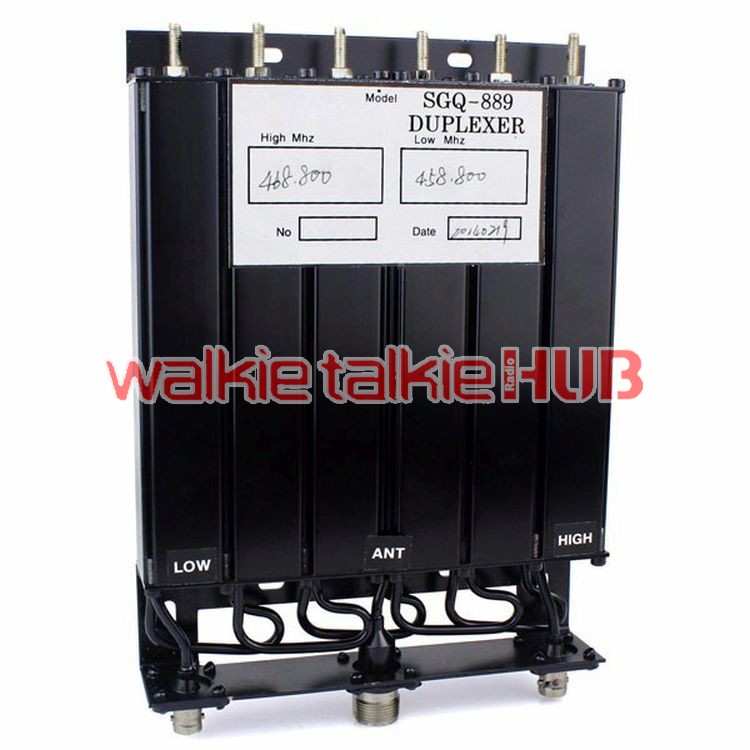

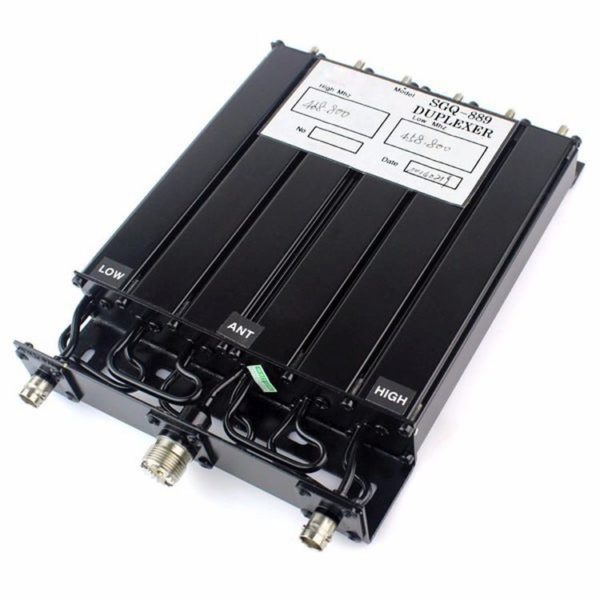

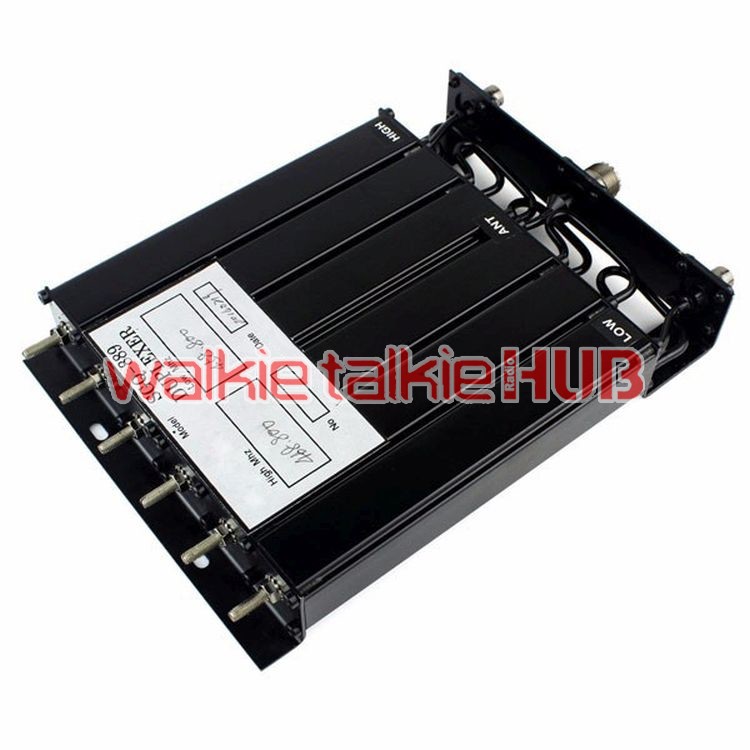

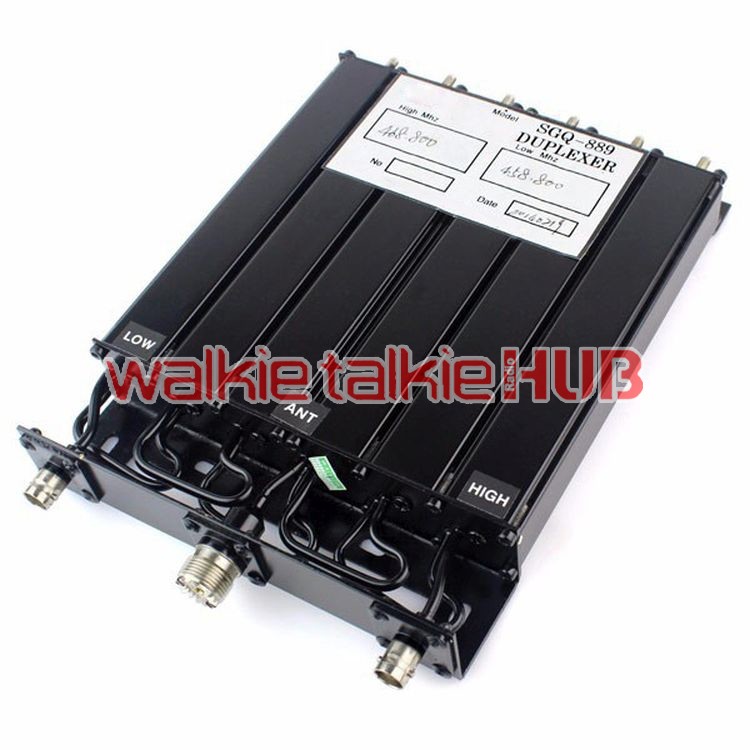

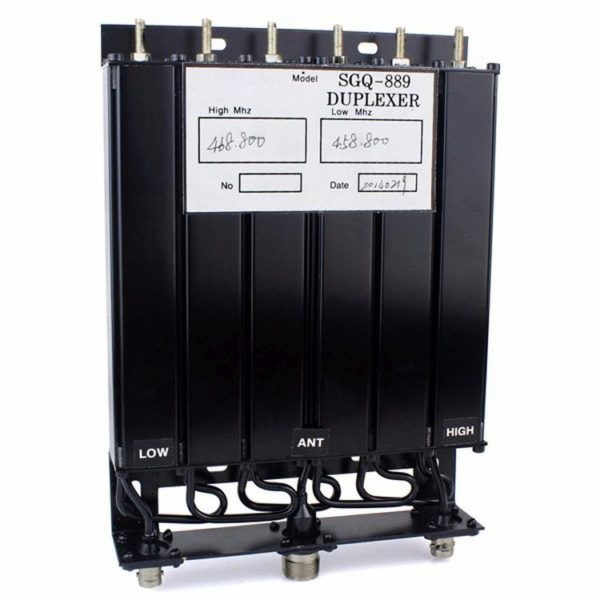

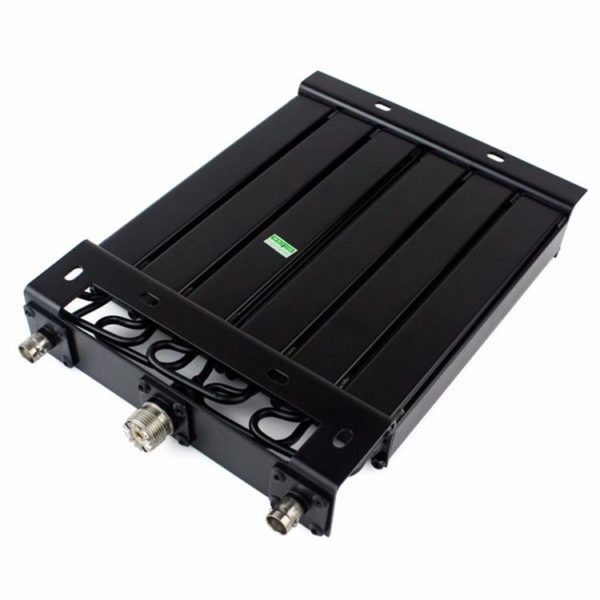

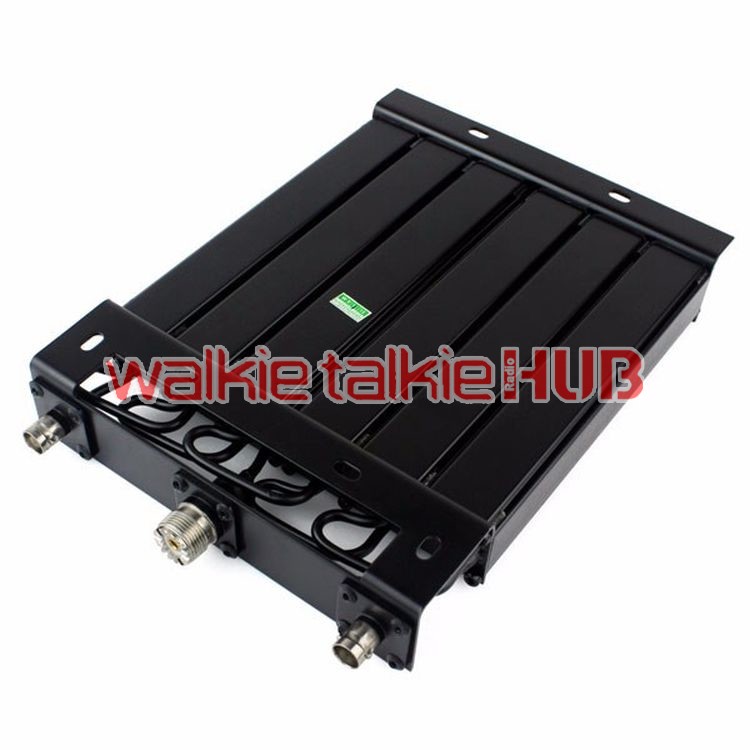

25W 6 Cavity SL16 & BNC Connector UHF Walkie Talkie Duplexer Repeater

$110.00 $82.00

SKU: 170992 Category:

Description

25W 6 Cavity SL16 & BNC Connector UHF Walkie Talkie Duplexer Repeater

Specifications:

  1. 25W RF power Handling
  2. 6 cavity Design
  3. Maximum Tx and Rx frequency difference: UHF 10Mhz
  4. Power Isolation >75dB
  5. Power loss <1dB
  6. Nominal impedance: 50
  7. V.S.W.R: <1.5
  8. Easy to build your repeater
  9. Support Frequency: UHF 380-470Mhz
  10. Free Frequency Tuning – send me the high / low frequency

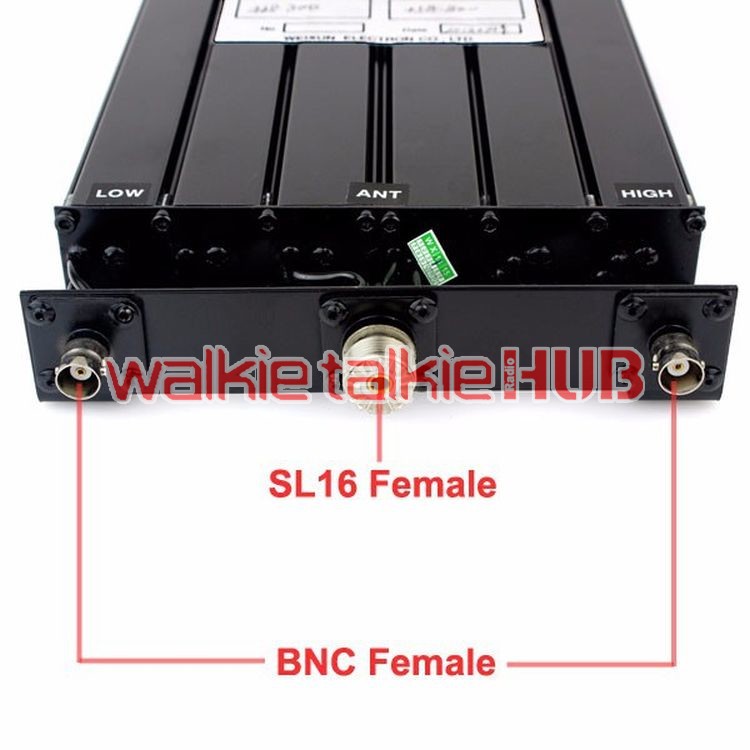

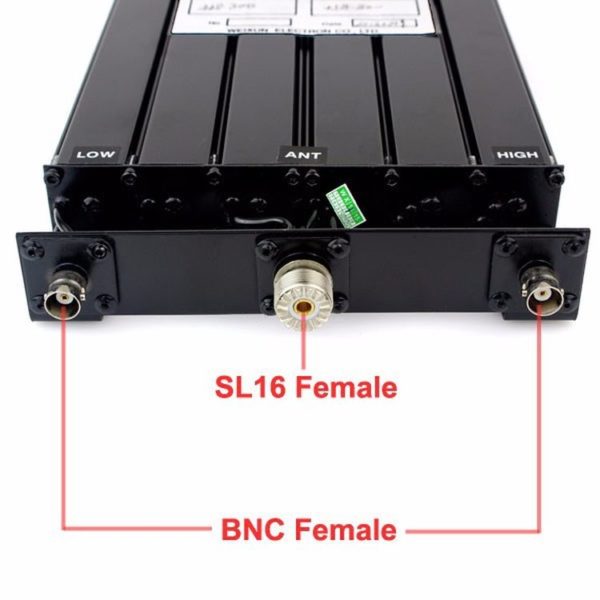

  11. SL16 & BNC connector
  12. Fit for Motorola Repeater Enclosurer
  13. Weight: 1.2Kg
  14. Size: 15.5 x 22.5 x 3.5cm

Notice: Please make note what frequency you want (High/Low) after you pay it. So that we can set it before ship out.

For example: 458.800MHz – 468.800MHz.



Package content

1 x 25W UHF Walkie Talkie Duplexer

Additional information

Weight 1.5 kg
Dimensions 300 × 200 × 100 mm
