This programming kit provides quick and easy programming of various for Motorola radios. This is a RIB-less set, so that no RIB is needed. Simply hook it up to your computer. This programming kit is not a straight forward cable, there is an internal converter circuit board built into it. The programming kit has a DB9F for connection to the serial port of your PC and the appropriate plugs for the specific for Motorola radio model as specified below
RJ45 to Radio:
CDM750, CDM1250, CDM1550, CDM1550-LS, CDM1550LS Plus, CM140, CM160, CM200, CM300, CM340, CM360, DeskTrac, EM200, EM400, GM1280, GM140, GM160, GM300, GM3188, GM338, GM340, GM360, GM3688, GM380, GM640, GM640, GM660, GR1125, GR1225, GR300, GR400, GR500, GTX Mobile, LCS2000, LTS2000, M10, M100, M120, M1225, M130, M200, M400, MaraTrac, MaxTrac, MCX760, MCX780, PM400, PRO3100, PRO5100, PRO7100, SM120, SM50, Sportbase and others.
Multi-pin Adapter GP328 to Radio:
GP1280, GP318, GP238, GP320, GP328, GP338, GP340, GP360, GP380, GP620, GP640, GP660, GP680, HT750, HT1250, HT1250-LS, HT1250-LS Plus, HT1550, HT1550-XLS, MTX850, MTX850-LS, MTX8250, MTX8250-LS, MTX950, MTX9250, PR860, PRO5150, PRO5350, PRO5450, PRO5550, PRO5750, PRO7150, PRO7350, PRO7450, PRO7550, PRO7750, PRO9150 and others.
Multi-pin Adapter GP328PLUS to Radio:
EX500, EX600, EX600-XLS, GL2000, GP328 Plus, GP338 Plus, GP344, GP388.
2.5 mm Plug to Radio:
AXU4100, AXV5100, CP040, CP125, CP140, CP150, CP160, CP180, CP200, CT150, CT250, CT250-LS, CT450, CT450-LS, EP450, GP308, GP3688, GP2000, GP2100, P020, P030, P040, P080, PR400, PRO2150, PRO3150, VL130 and others
Cable features Battery Case connector is to programme following for Motorola radios:
GP280, GP300, GP600, GP88, GTX Portable, GTX LTR Portable, GTX Privacy Plus Portable, LTS2000, PTX600, P110 and others.
Require power supply or battery (9V)

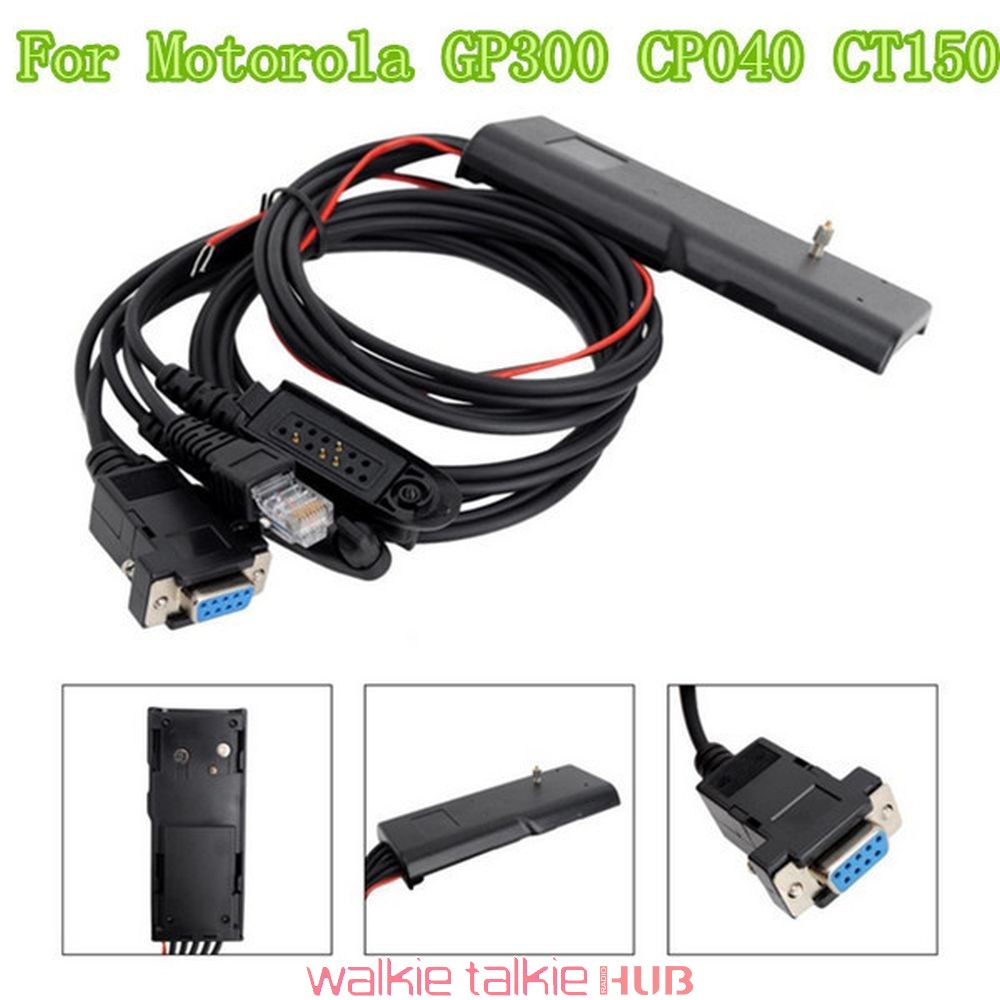

5 in 1 multi-use programming cable for motorola series radios
