PuXing PX-888K UHF VHF dual band Radio

$89.68

& Free Shipping
Quantity Discount (%) Price
1 $89.68
2 - 4 1.9 % $87.98
5 - 9 5.01 % $85.19
10+ 7.81 % $82.68
Guaranteed Safe Checkout

PUXING  PX-888K Dual Band UHF 400-480MHZ and VHF 134-176MHZ two way radio

 Features:

134-176MHZ RX/TX, 400-480MHZ RX/TX,  FM 97-108MHZ RX

UHF+VHF DUAL BAND,DUAL DISPLAY,DUAL STANDARD

4 display model available(CH name+CH number/CH name+frequency

TX/RX frequency/Frequency mode)

ctcss/dcs can be programming

128 memory channels

Built-in FM radio receiver

5 tone seltive call (ZVEI,EIA,CCIR etc)

8 scramblers

DTMF ANI seletive call, group call, broadcase call

DTMF encode/decode.

MSK encode/decode.

TX Stun or RX Stun function

voice prompt and annunciation

1750hz tone

Side key programming

Output power 4-5W

Wide 25khz and narrow 12.5khz

VOX gain level 1-9

scan function with all channels scan and PRI scan

Three color LCD backlight display

Emergency ANI call

Emergency channel call

Adjust squelch level 0-9

Busy channel lockout

Time out time

Various frequency band available

CTCSS/DCS scan

Dual watch mode/channel mode/frequency mode

ANI/PTT ID



Technical Specification:

General

  • Frequency: 134-176Mhz RX/TX
  •                      400-480Mhz RX/TX
  •                       97-108Mhz RX
  • Power: UHF 4W, VHF 5W
  • Weight: 223g include battery
  • Packing weight: 750g
  • Size: 115*57*30 (not include antenna)
  • Operate voltage: DC 7.4V

Transmitter

  • Frequency Stability 2.5PPM
  • Output Power 5W
  • Max Frequency Deviation 5KHz
  • Audio Distortion 3%
  • Modulation Character +3dB—-3dB
  • Adjacent Channel Power ≥65dB
  • Spurious Radiation ≤7.5UW(-36db for CE)
  • Occupied Bandwidth ≤16KHz

Receiver

  • RF Sensitivity <0.2UV(12DB SINAD)
  • Audio Distortion  3%
  • Audio Response +2dB—-10dB
  • Adjacent Channel Selectivity ≥60dB
  • Intermodulation Rejection ≥60dB
  • Blocking  ≥80dB

Function List:

1.Scan

 2. PRI

 3. VOX

4. POWER

5. SQL 0-9

6. SCRM

7. LIGHT

8. BEEP

9. VOICE

10. ANI

11.KEYBO

12.TOT

13. SCANS

14 N/W

15.DIFFR

16. C-CDC

17. R-CDC

18. T-CDC

19. S-D

20 STEP

21.CTC.S

22. DCS.S

23 LED

24.ROGER

25. SADD

26 NAME

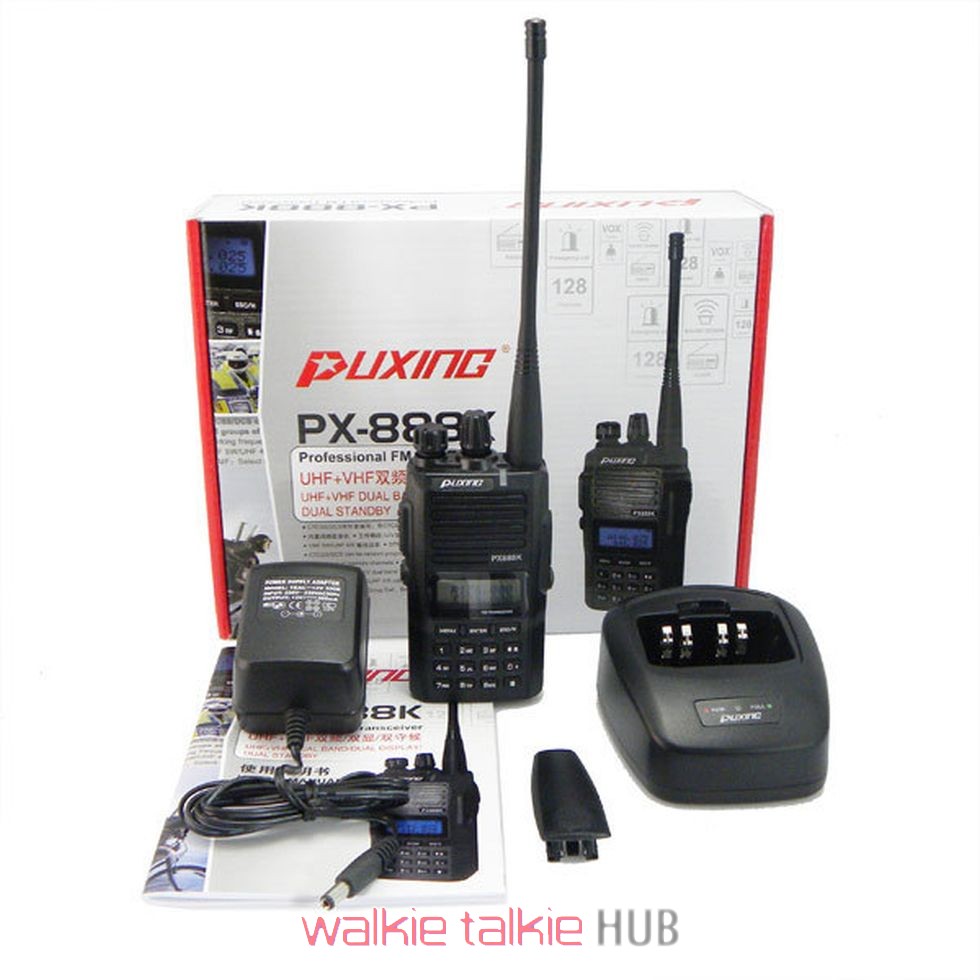

Packing list:

1* PX-888K dualband radio (134-176Mhz+400-480Mhz)

1* Battery Li-ion 7.4V 1200mah

1* Charger base

1* 110V US plug or 220V Europe plug or 240v Aus/nz plus

1* UHF/VHF dualband antenna

1* Plastci spring Belt clip

1* English user manual

Weight 0.8 kg
Dimensions 200 × 160 × 50 mm
