QYT KT-8R High Power U/V Quad-Band Color Screen FM Transceiver

$99.00 $75.00

SKU: 171113 Category:

Description

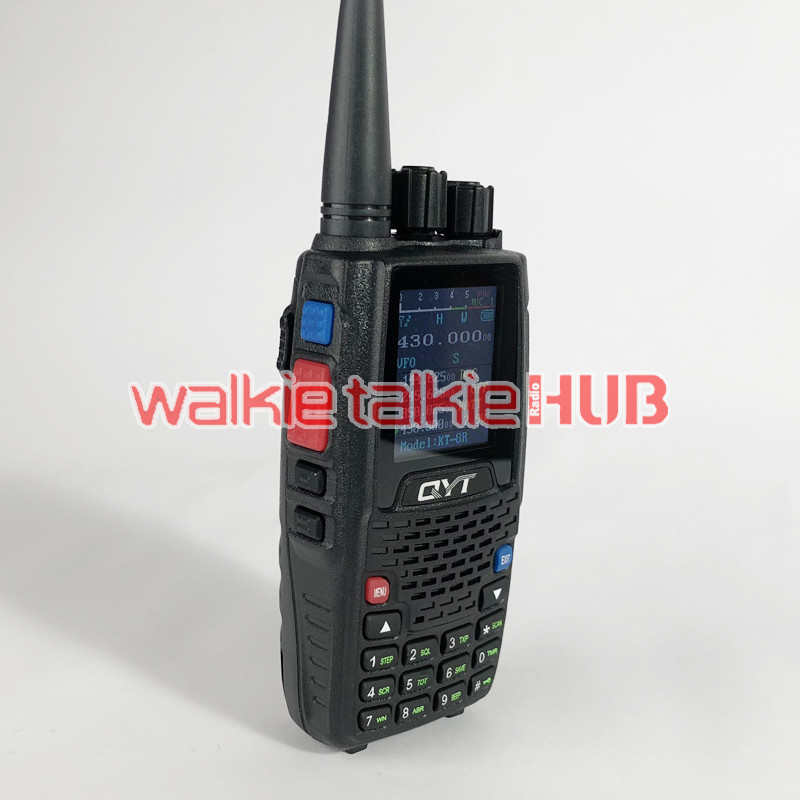

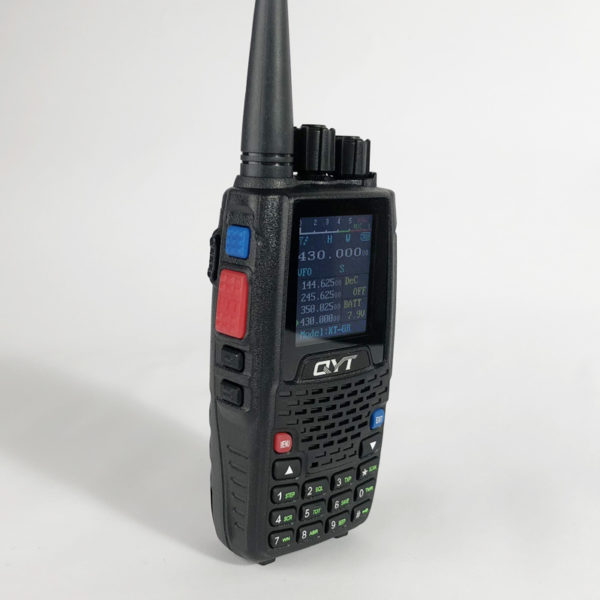

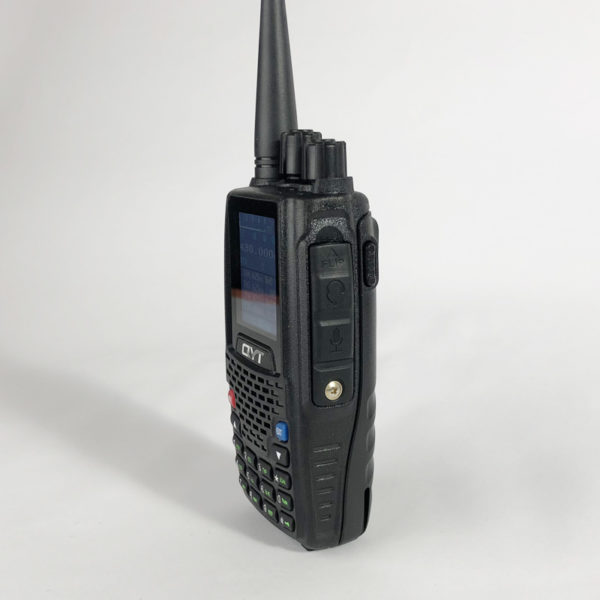

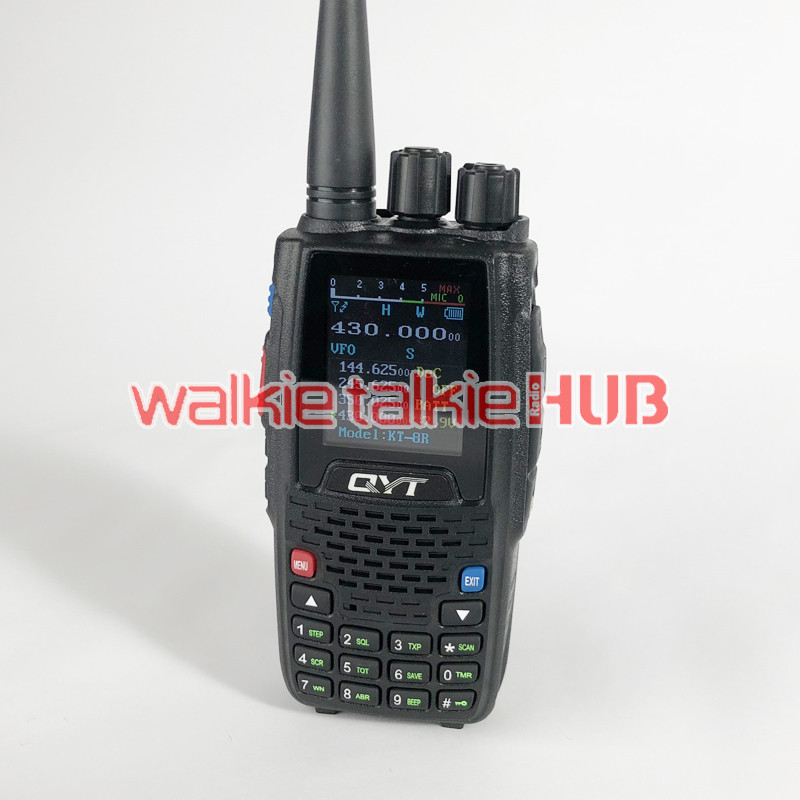

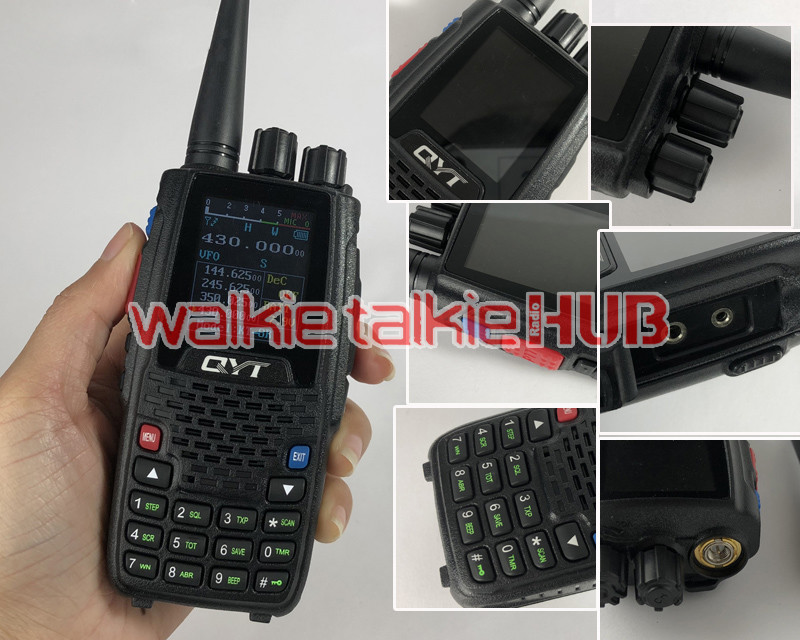

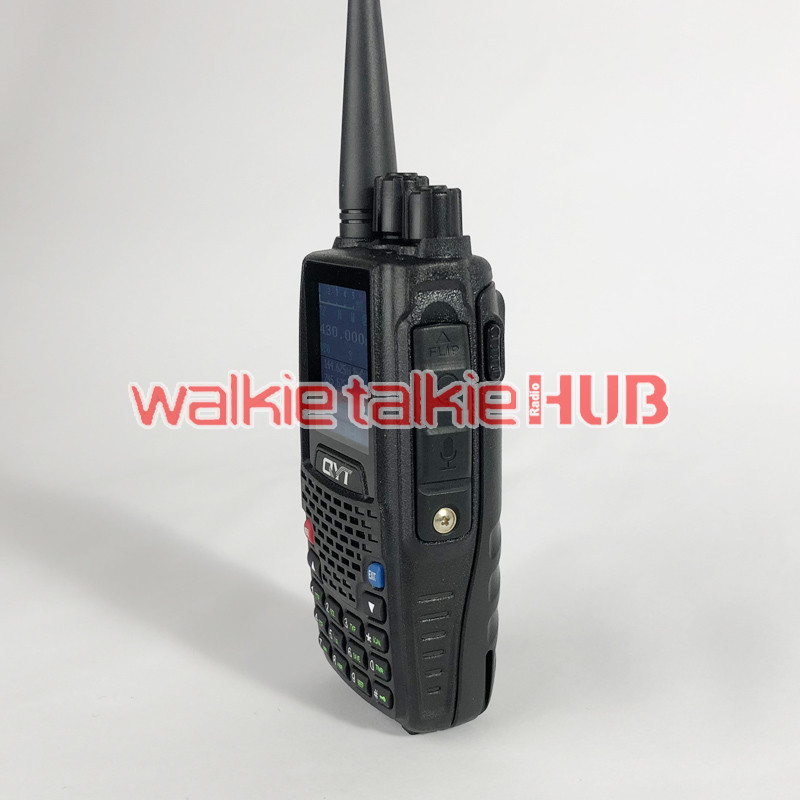

QYT KT-8R High Power U/V Quad-Band Color Screen FM Transceiver

About QYT KT-8R

KT – 8R is new Quad-Band Quad Display Color Screen, Quad Standby Handheld Walkie Talkie
Frequency range: 136-174 Mhz, 220-270 Mhz, 350-390 Mhz. 400-480 Mhz

Power (Real): 5 w  Battery capacity (Real): 2000 mAH
QYT KT-8R can be use like KT7900D handheld version.
With English subtitles with voice, convenient operation simple and clear

Talk Range
Open areas : 5w Big Power is up to 4-10KM.
Urban areas:  according to the environmental decision within 1 to 5km.



Main features:

  1. Quad frequency
  2. Fashion color screen
  3. High low Output power
  4. Easy operation
  5. English interface



General

Frequency Range VHF: 136-174MHz, 220-260MHz

UHF: 400-480MHz, 350-390MHz

Channel Capacity  200 Channels
Frequency Stability ±2.5ppm
Channel Step 2.5/5/6.2/10/12.5/25KHz
Working Voltage 7.4V DC±15%
Squelch way CARRIER / CTCSS / DCS / 5Tone / 2Tone / DTMF
Antenna impedance 50ohm
Operating Temperature -20~+60℃
Dimension(W*H*D) 128*62*35mm
Weight 230g

Receiver

Wide Band Narrow band
Sensitivity ≤0.25μν ≤0.35μν
Channel chioce ≥70dB ≥60dB
Intermodulation ≥65dB ≥60dB
Spurious Rejection ≥70dB ≥70dB
Audio response +1~~3dB(0.3~3KHz) +1~~3dB(0.3~2.55KHz)
Signal to noise ratio ≥45dB ≥40dB
Audio distortion ≤5%
Audio output power ≥1W@10%

Transmitter

Wide Band Narrow band
Output power <5W
Modulation Mode 16KΦF3E 11KΦF3E
Channel Power ≥70dB ≥60dB
Signal noise ratio ≥40dB ≥36dB
Parasitic harmonic ≥60dB ≥60dB
Audio response +1~~3dB(0.3~3KHz) +1~~3dB(0.3~2.55KHz)
Audio distortion ≤5%

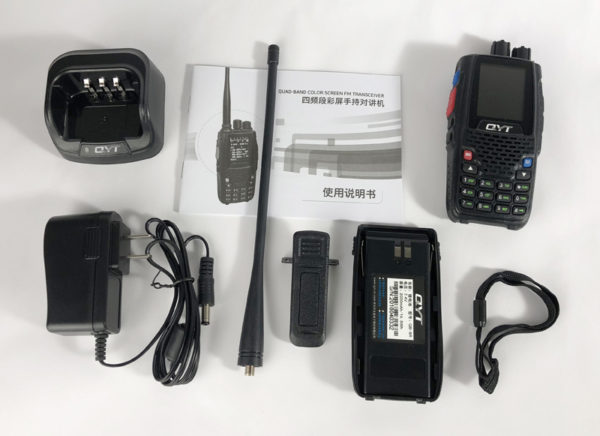

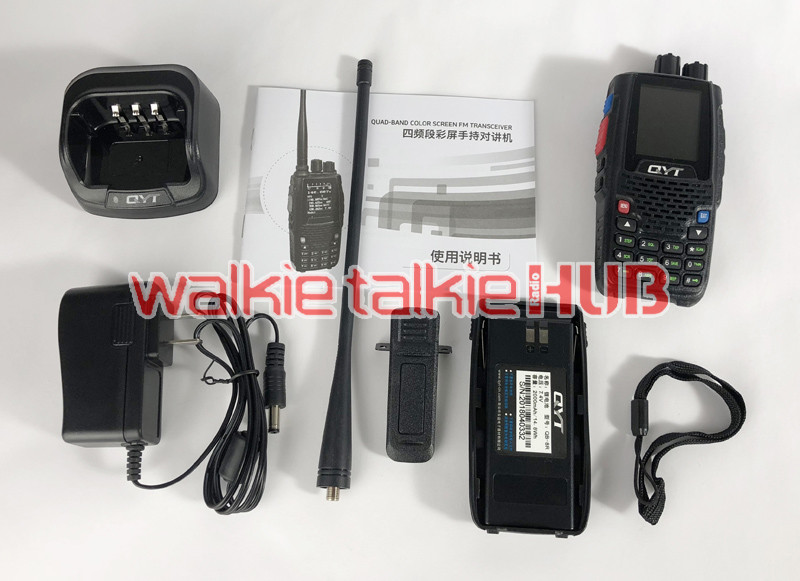

Package Include:
1 x QYT KT-8R Quad Band 5W Handheld Walkie Talkie FM Transceiver

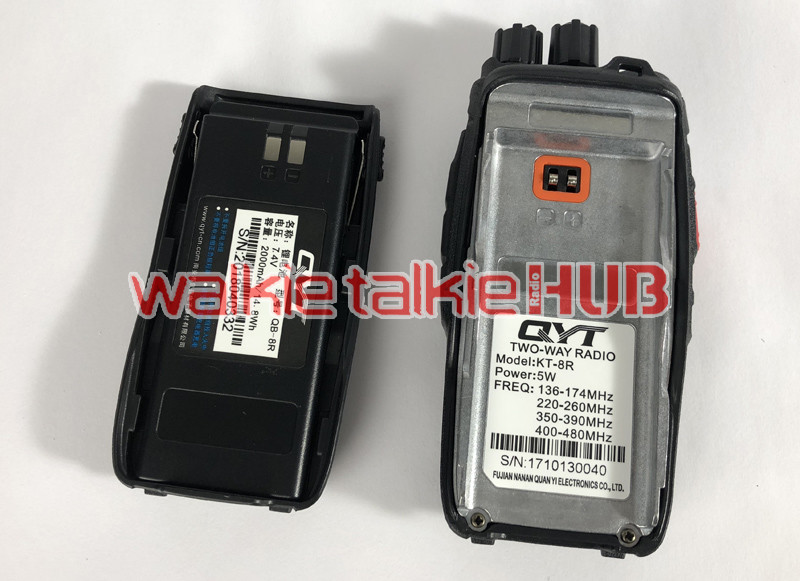

1 x 2000mAh Lithium Battery
1 x Antenna
1 x Belt Clip
1 x Belt
2 x User Manual
1 x Desktop Charger
1 x AC Adapter



Additional information

Weight 1 kg
Dimensions 400 × 300 × 100 mm
