Newest SenHaiX SPTT-N60 4G LTE Network Android Mobile Radio

$399.00 $259.00

Out of stock

SKU: 171129 Categories: ,

Description

Newest SenHaiX SPTT-N60 4G LTE Network Android Mobile Radio

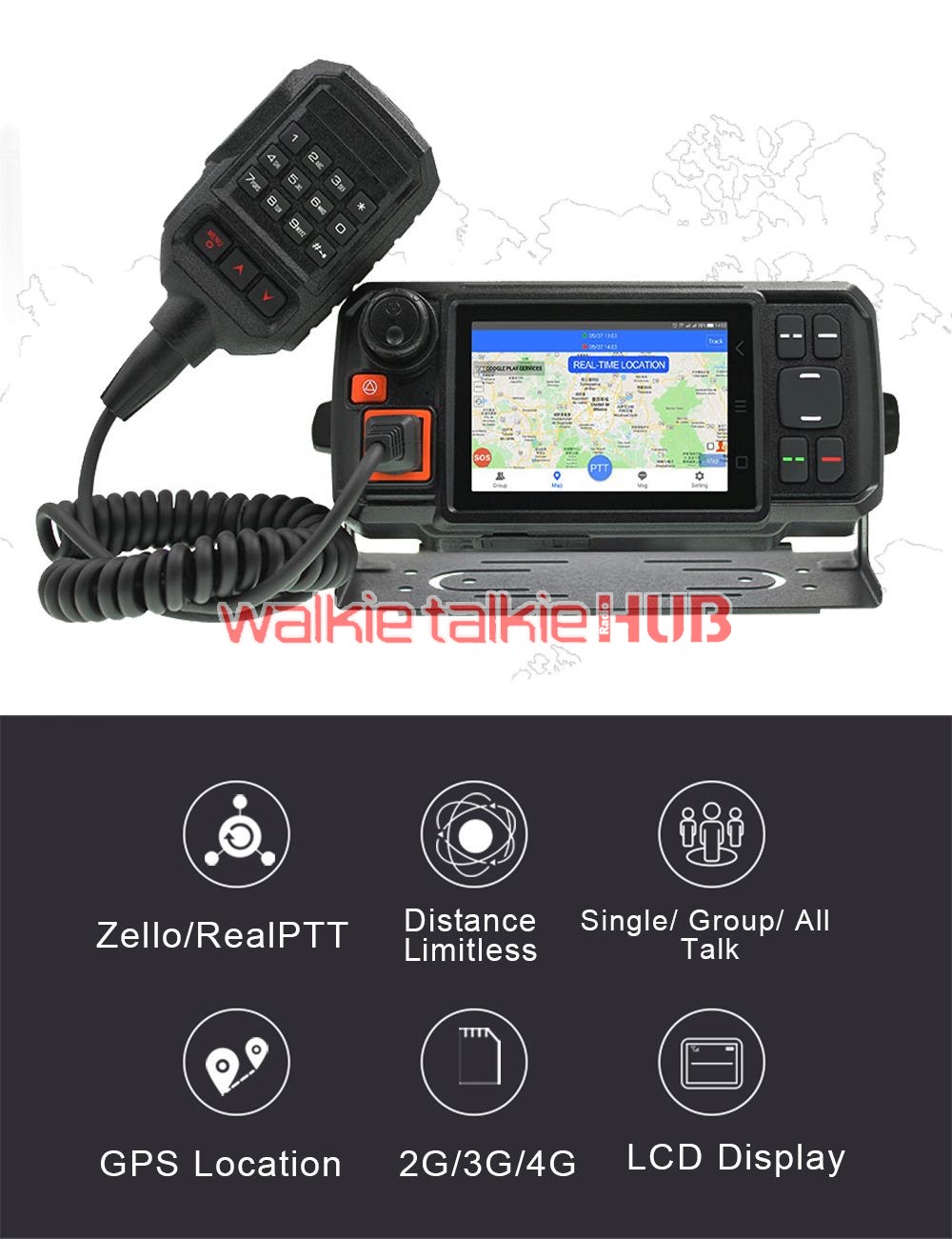

SenHaiX SPTT-N60 is 3G 4G network android mobile radio with wifi, bluetooth, zello, sos, phone function, gps function, with touch screen, big LCD.



Product Features

  1. OS-Android
  2. Screen – 4.5 Touch LCD display
  3. GPS Funtion(Logitute&Latitute Location)
  4. WIFI
  5. Bluetooth
  6. Play Store
  7. Phone Function
  8. SOS Function
  9. Zello APP , Real PTT ,409PTT
  10. All Call, Group Call & Individual Call

Technical Specifications

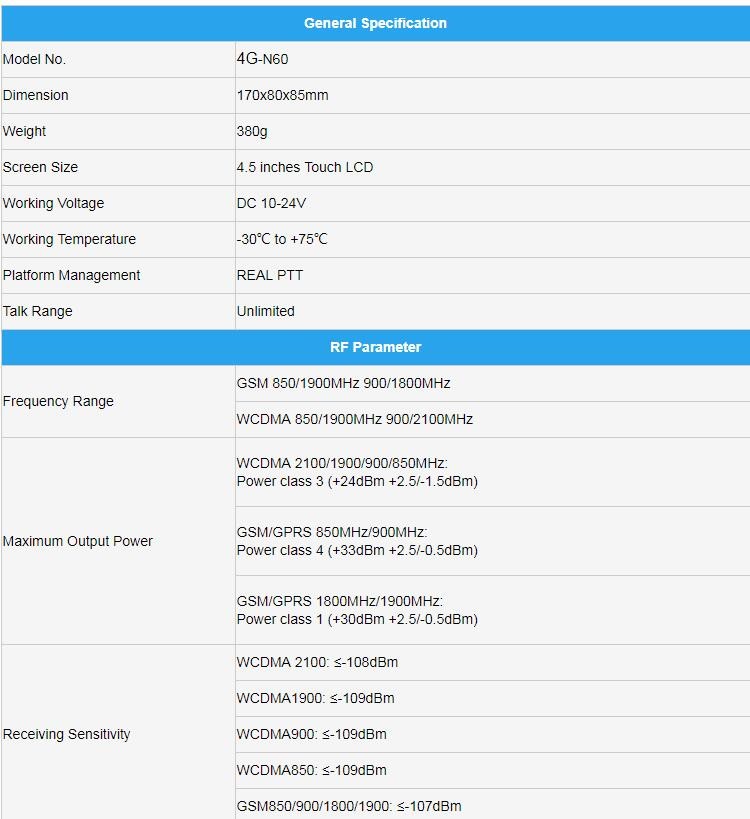

General Specification
Model No. SPTT-N60 -4G
Dimension 170x80x85mm
Weight 380g
Screen Size 4.5 inches  Touch LCD
Working Voltage DC 10-24V
Working Temperature -30℃ to +75℃
Platform Management REAL PTT
Talk Range Unlimited

RF Parameter

Frequency Range GSM    (2G) 900/1800MHz
WCDMA  (3G)   900/2100MHz
Maximum Output Power WCDMA 2100/1900/900/850MHz:
Power class 3 (+24dBm +2.5/-1.5dBm)
GSM/GPRS 850MHz/900MHz:
Power class 4 (+33dBm +2.5/-0.5dBm)
GSM/GPRS 1800MHz/1900MHz:
Power class 1 (+30dBm +2.5/-0.5dBm)
Receiving Sensitivity WCDMA 2100: ≤-108dBm
WCDMA1900: ≤-109dBm
WCDMA900: ≤-109dBm
WCDMA850: ≤-109dBm
GSM850/900/1800/1900: ≤-107dBm

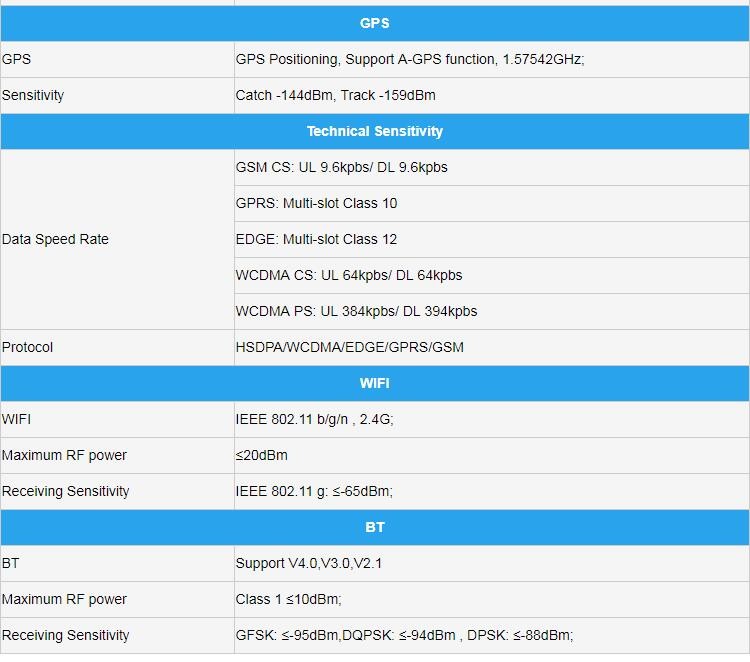

GPS

GPS GPS Positioning, Support A-GPS function, 1.57542GHz;
Sensitivity Catch -144dBm, Track -159dBm
Technical Sensitivity
Data Speed Rate GSM CS: UL 9.6kpbs/ DL 9.6kpbs
GPRS: Multi-slot Class 10
EDGE: Multi-slot Class 12
WCDMA CS: UL 64kpbs/ DL 64kpbs
WCDMA PS: UL 384kpbs/ DL 394kpbs
Protocol HSDPA/WCDMA/EDGE/GPRS/GSM

WIFI

WIFI IEEE 802.11 b/g/n , 2.4G;
Maximum RF power ≤20dBm
Receiving Sensitivity IEEE 802.11 g: ≤-65dBm;

BT

BT Support V4.0,V3.0,V2.1
Maximum RF power Class 1 ≤10dBm;
Receiving Sensitivity GFSK: ≤-95dBm,DQPSK: ≤-94dBm , DPSK: ≤-88dBm;



Package include :
1x N60 4G LTE Network Radio (EU version)
1x Mounting
1x DC Cable
1x Mic
1x Screw one pack

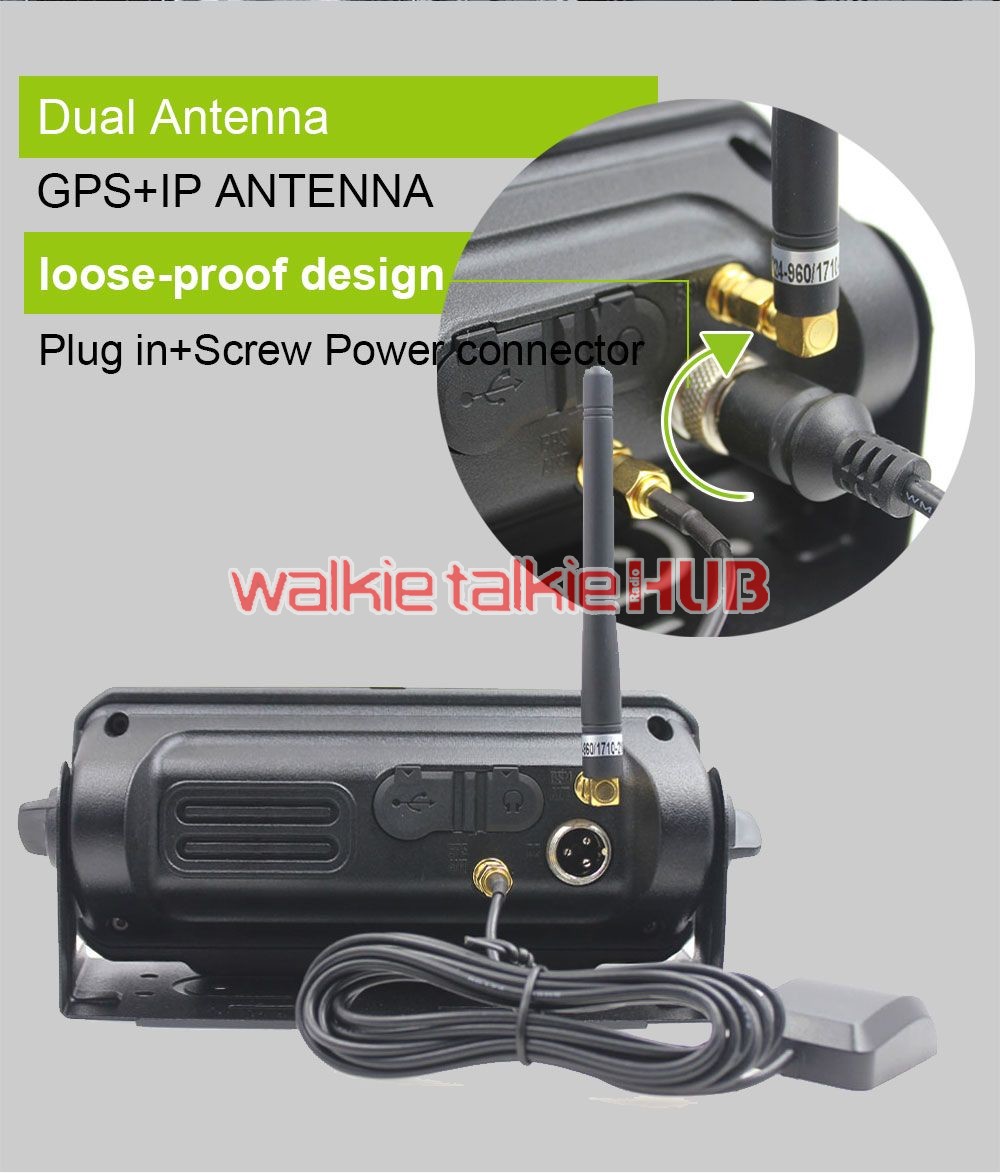

1x GPS antenna

Additional information

Weight 2.5 kg
Dimensions 500 × 400 × 100 mm
