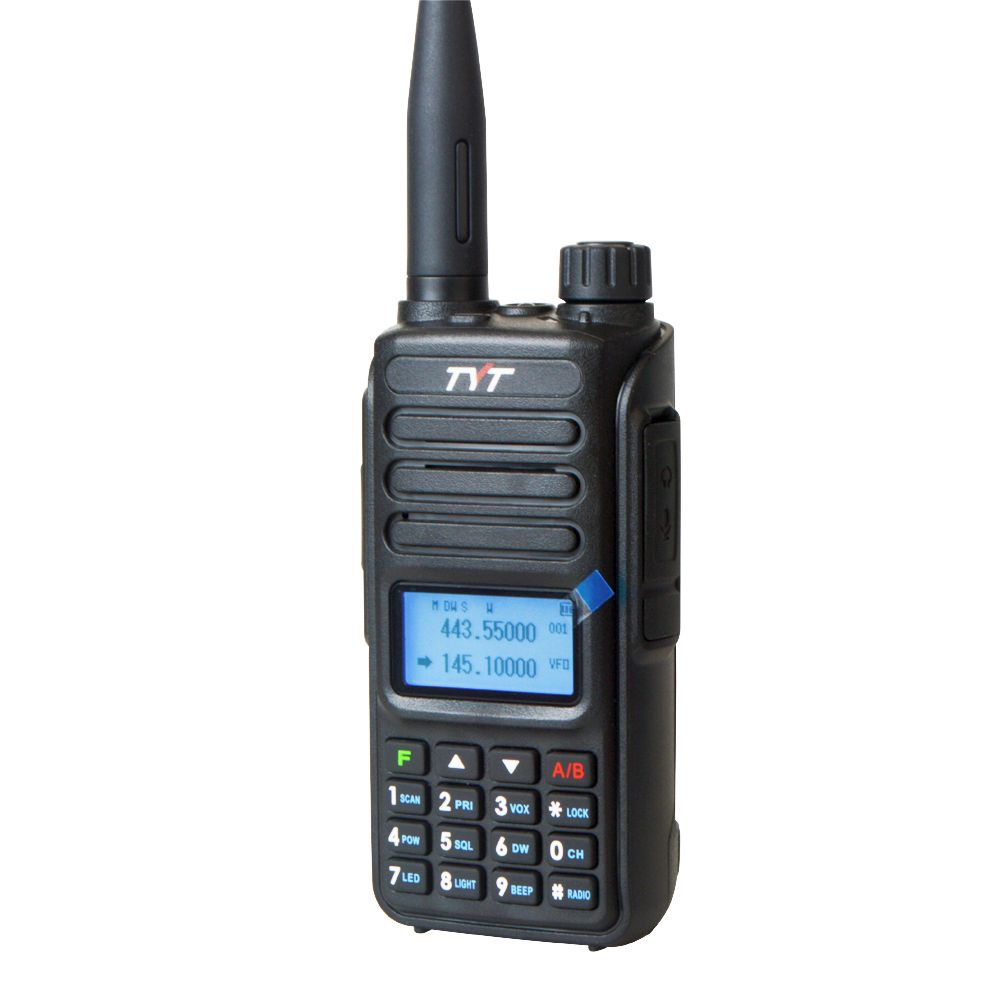

TYT TH-UV98 VHF UHF Dual Band Scrambler 10W Handheld Walkie Talkie

Sale!

$76.68

Quantity Price
1 $76.68
2 - 4 $74.56
5 - 9 $72.37
10+ $69.58

Description

TYT TH-UV98 10W VHF UHF dual band scrambler VOX FM Analog handheld talkie walkie TYT Portable Two way Radio 10km 200CH

Features:

-Dual Band, Dual Display, Dual Standby

-DOT-MATRIX LCD display

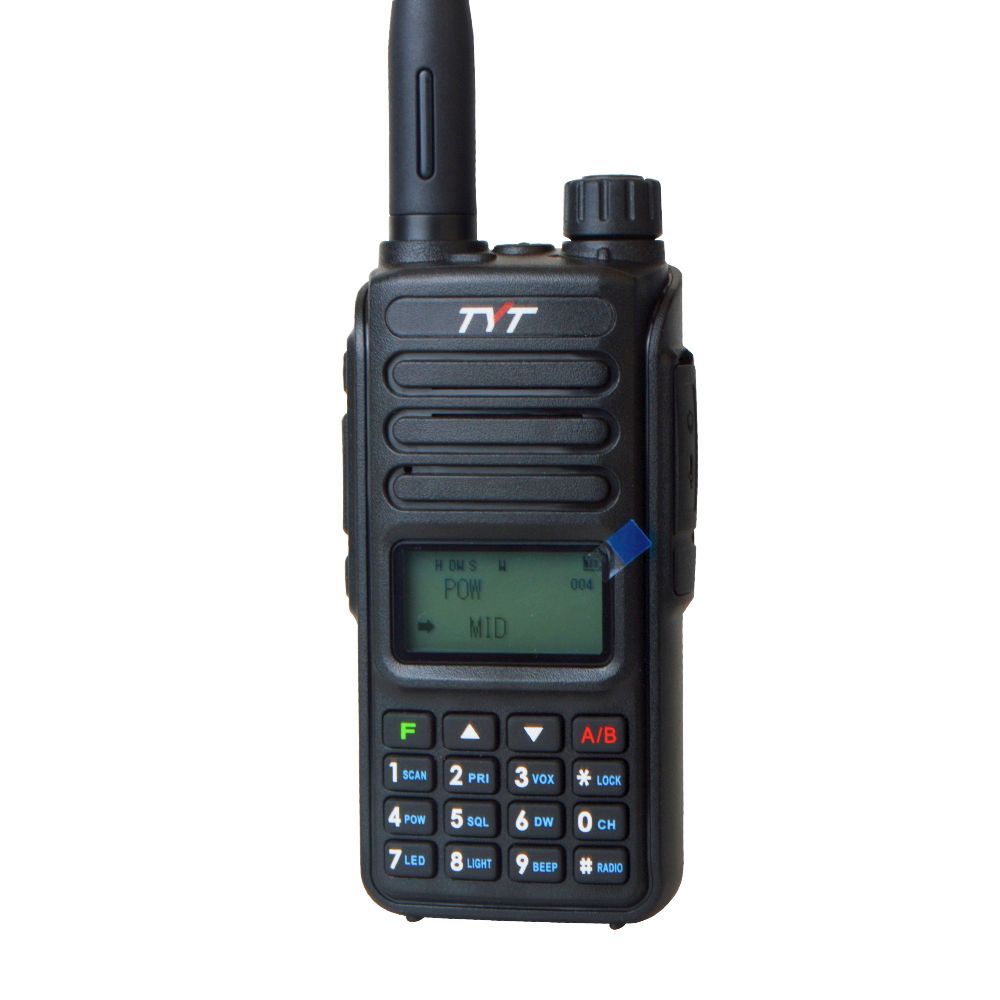

-High/Medium/Low Power Selectable

-10W Output Power

-Scrambler

-VOX

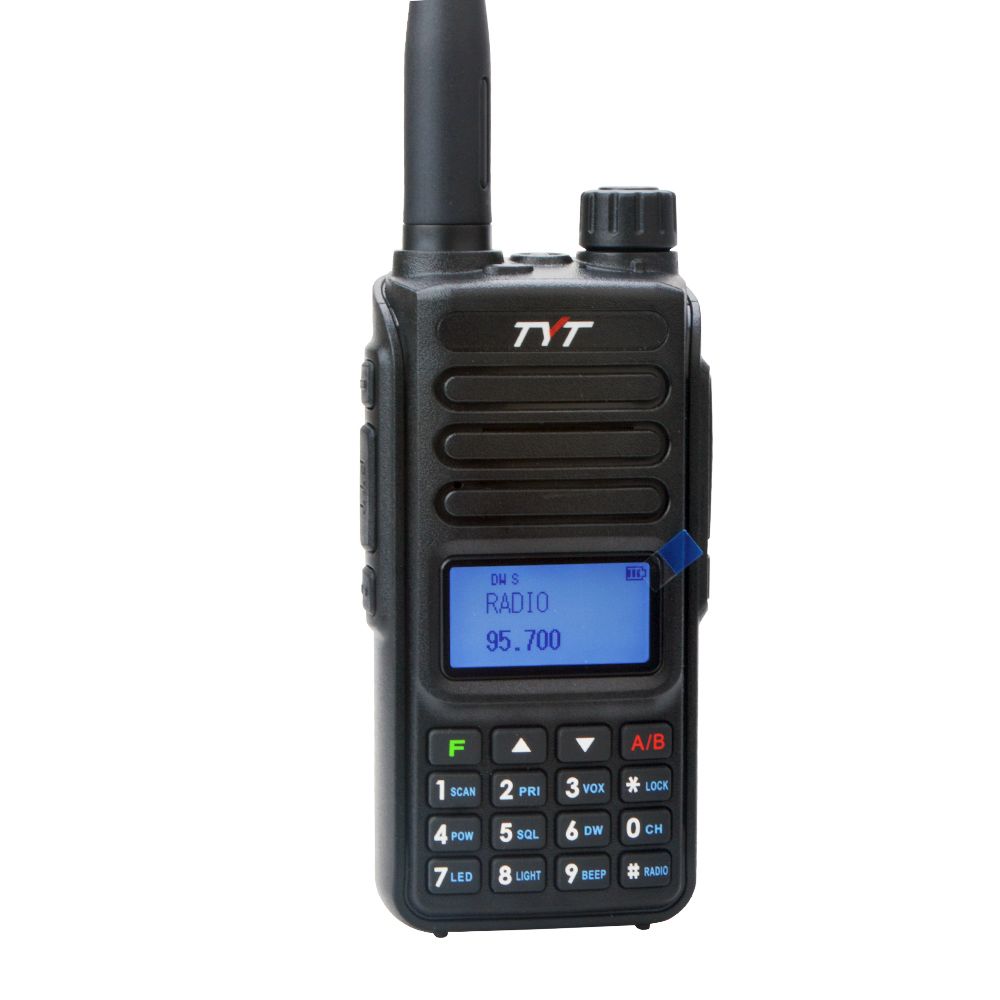

-FM Analog Radio

-2/5 tones DTMF

-1750Hz Tone

-Channel/Frequency Scan

Specifications:

General
Channel 200
Operating Voltage 7.4VDC
Operating Temperature -10°C ~+50°C
Weight 225g (Battery and Antenna Included)

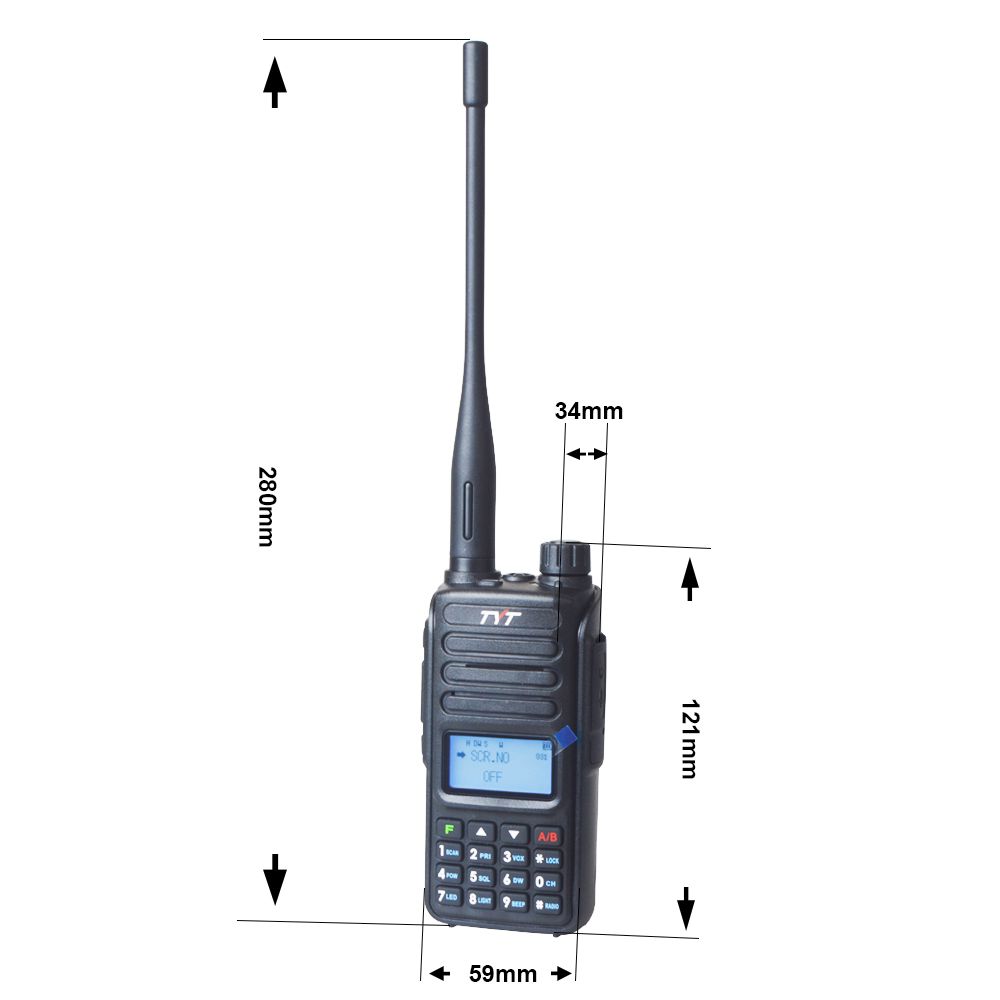

Dimensions 121*59*34mm

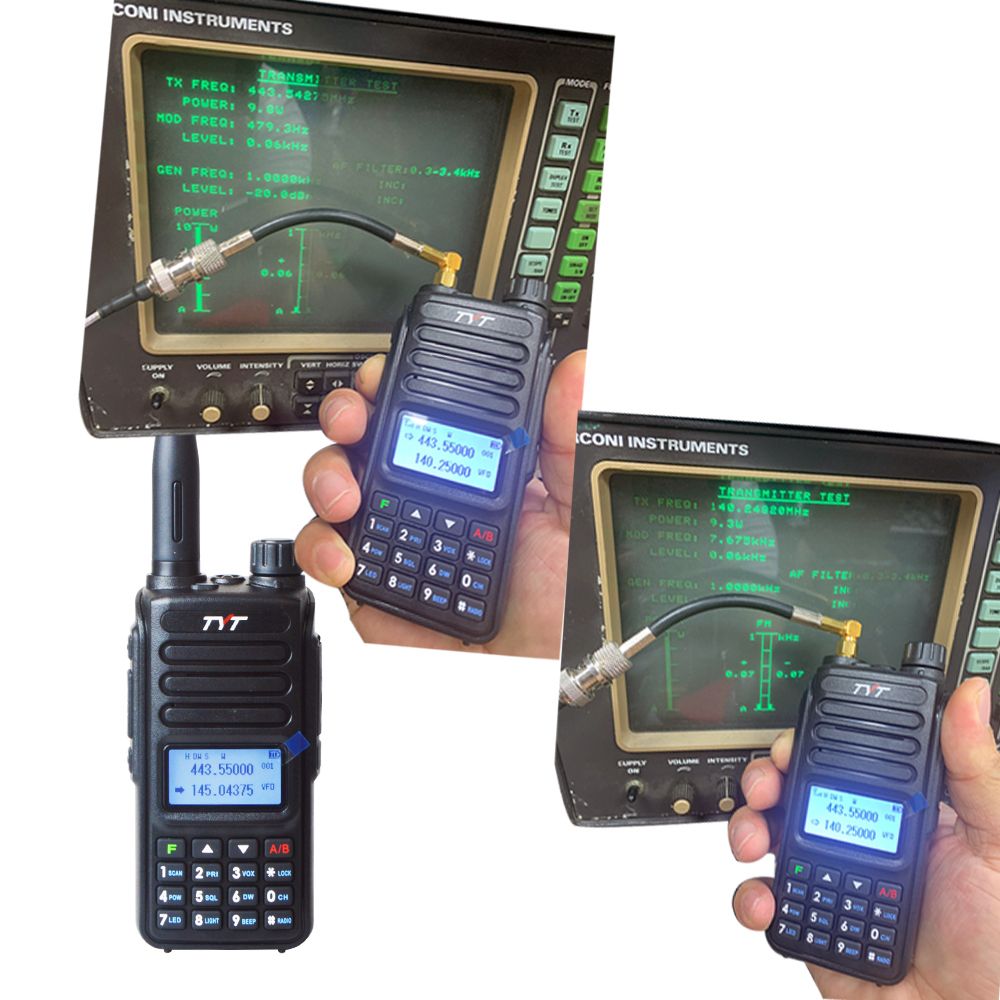

Transmitter
Frequency 136-174/400-480MHz
Power 10W (VHF)/9W (UHF)
Modulation Type 10W
Spurious Power ≤-15dB
Modulation Noise <-40dB
Modulation Distortion <5%
Frequency Stability 5ppm
Max Fr. Deviation <±5KHz
Current ≤1600mA
Audio Response (300-3400Hz) +6.5~-14dB
Adjacent Ch Power ≥60dB
Receiver
Sensitivity ≤0.2uV
Occupied Bandwidth ≤16KHz
Selectivity ≥65dB
Intermediation ≥55dB
Audio Power >500mW
Audio distortion ≤10%
Frequency Stability 5ppm
Current Standby:60mA,
Working: 250mA
Audio Response(300-3400Hz) +7~-12.5dB

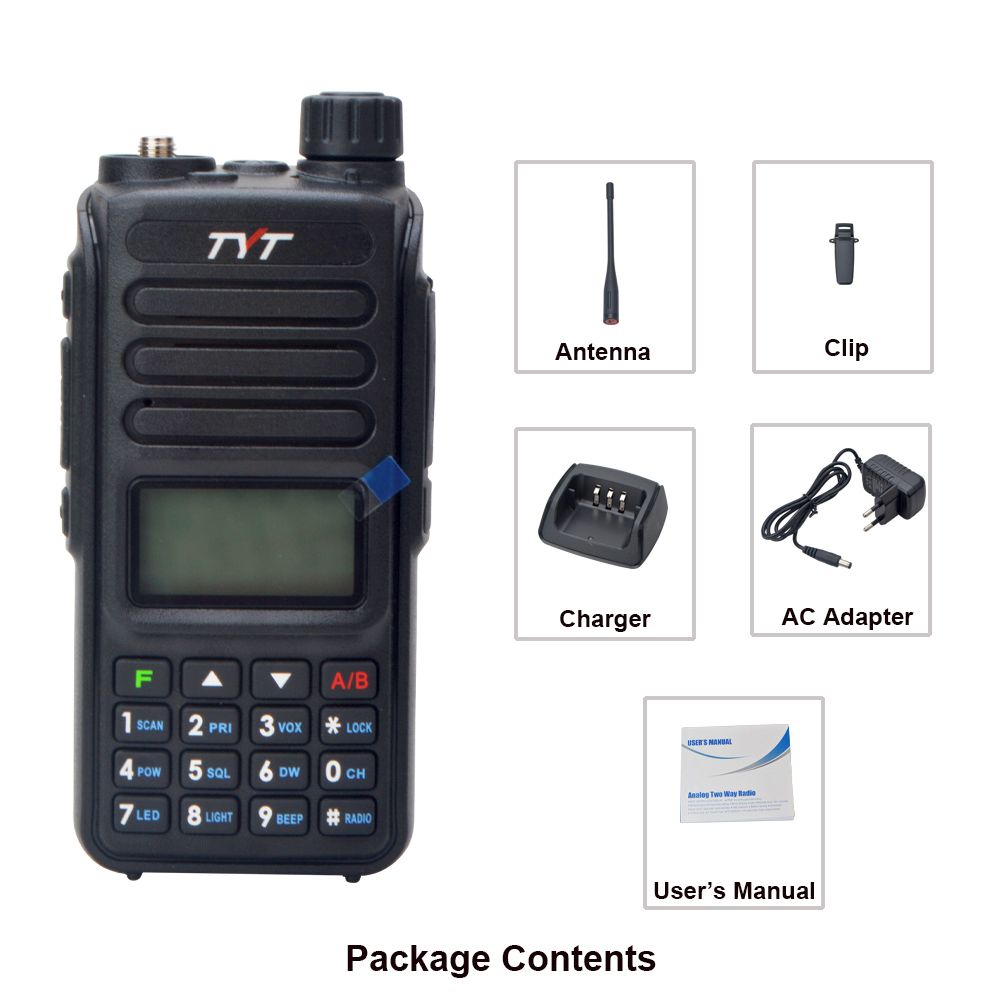

Package Contents:

1× TYT TH-UV98 10W Radio

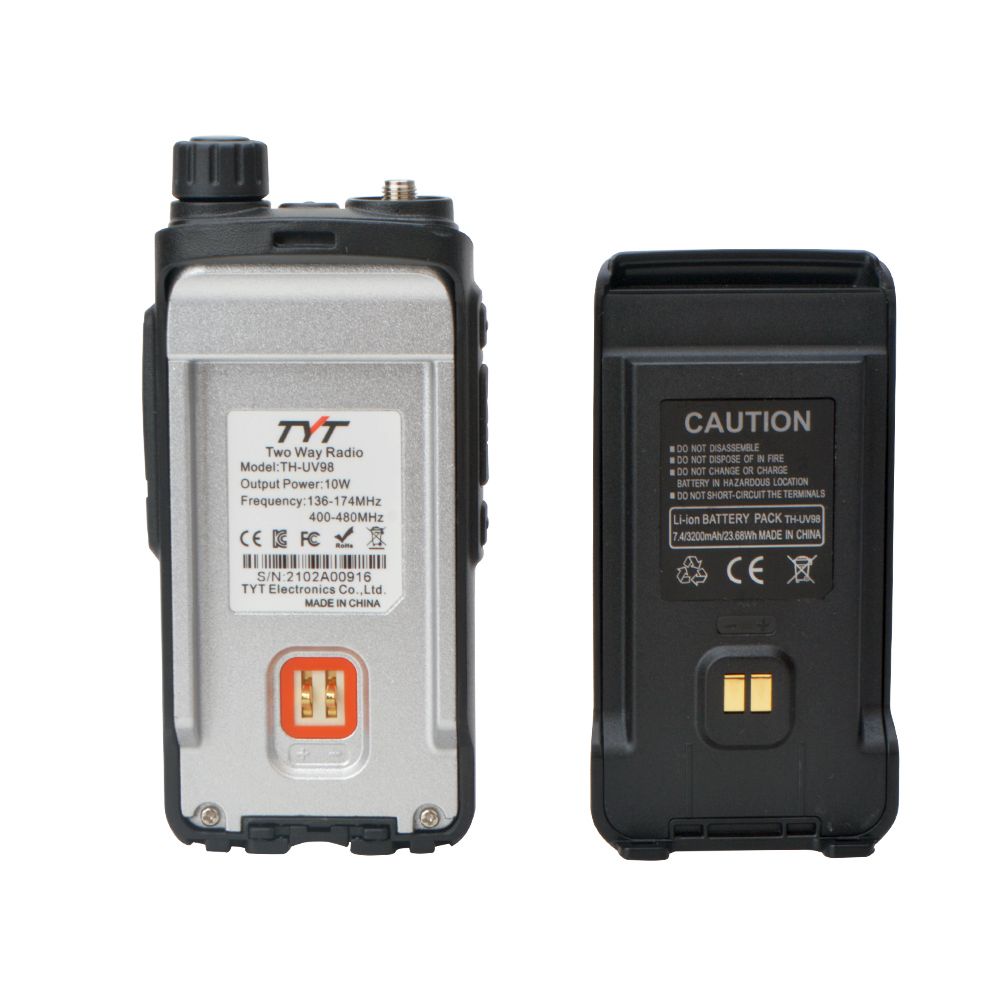

1× 3200mAh Li-ion Battery Pack

1× SMA-Male High Gain Antenna

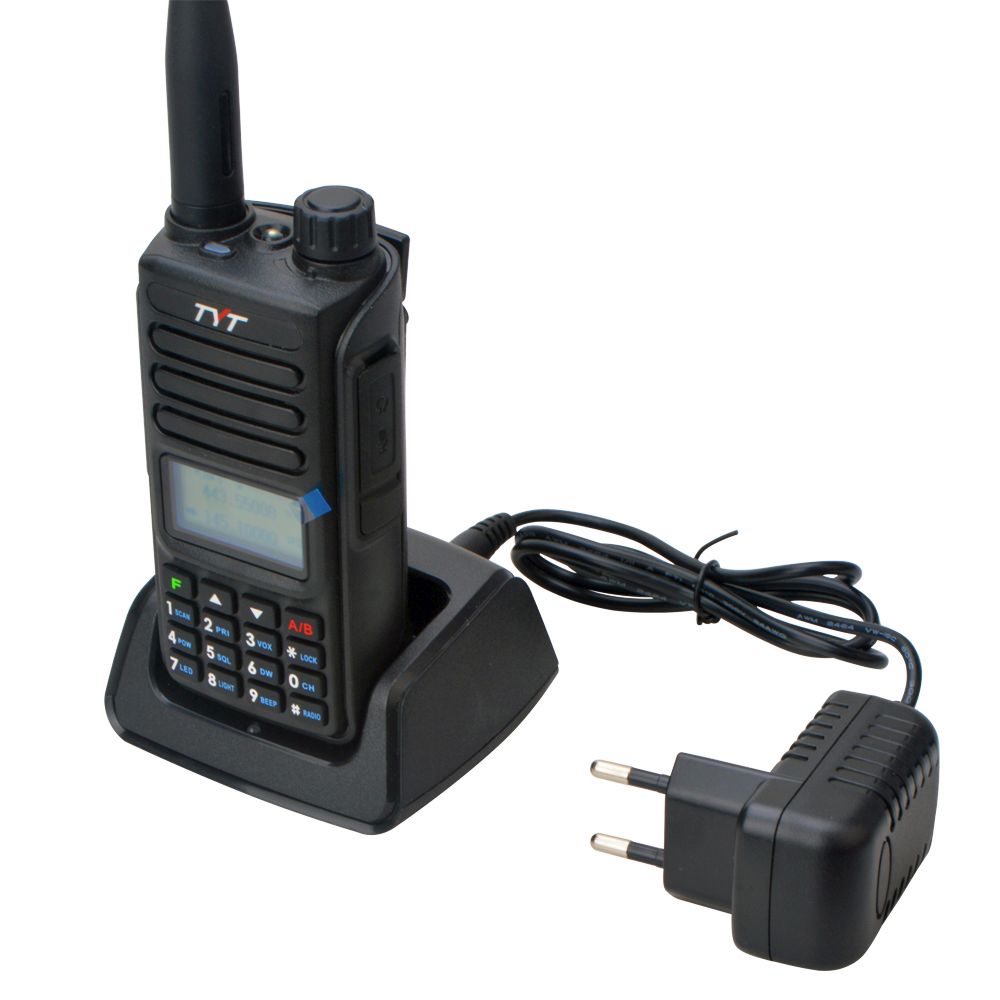

1× Desktop Charger

1× AC Adapter

1× User’s Manual

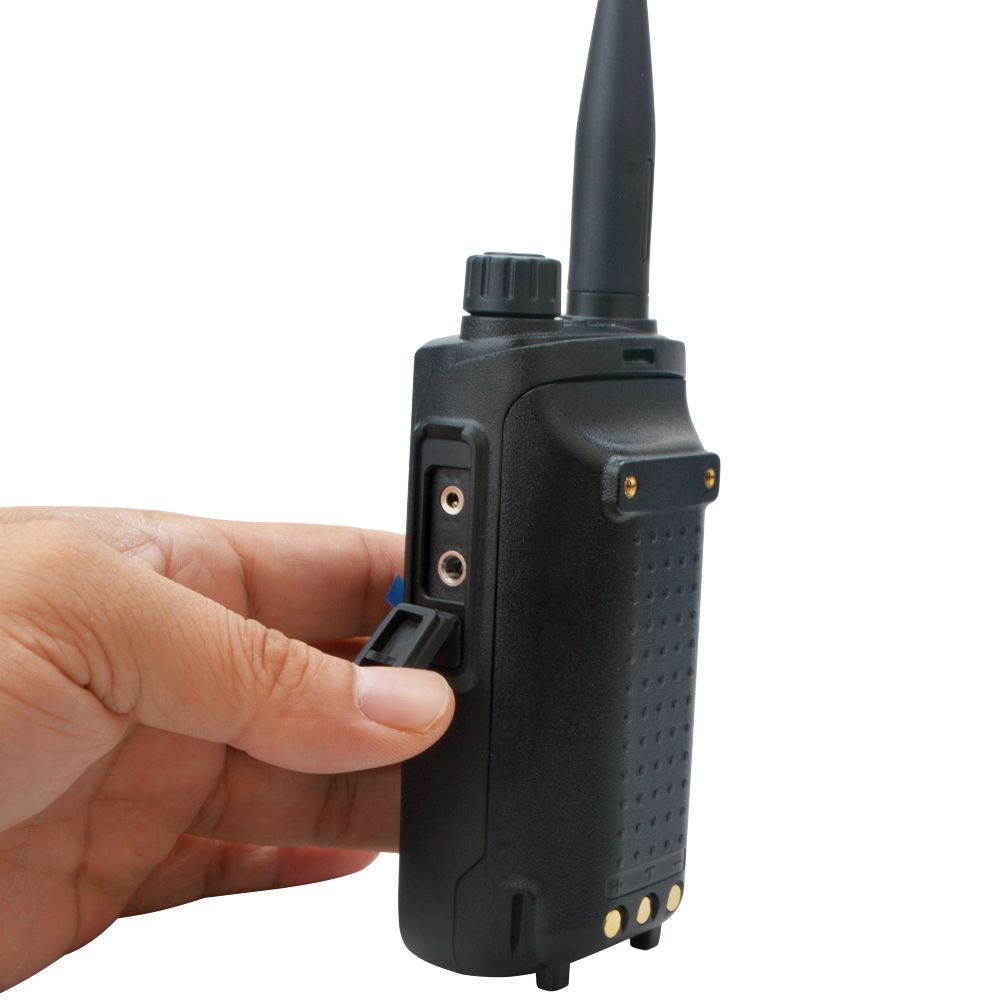

1× PTT Headset

TYT TH-UV98 VHF UHF Dual Band Scrambler 10W Handheld Walkie Talkie

Additional information

Weight 0.8 kg
Dimensions 40 × 100 × 60 mm
