Upgraded Antenna Analyzer Frequency Range 35mhz-2700mhz UV/GSM N1201SA+

$599.00 $265.00

Factory Sale, New Arrival !

Upgraded English Vesion :  35MHz~2700MHz

Free Shipping !!



SKU: 170507 Category:

Description

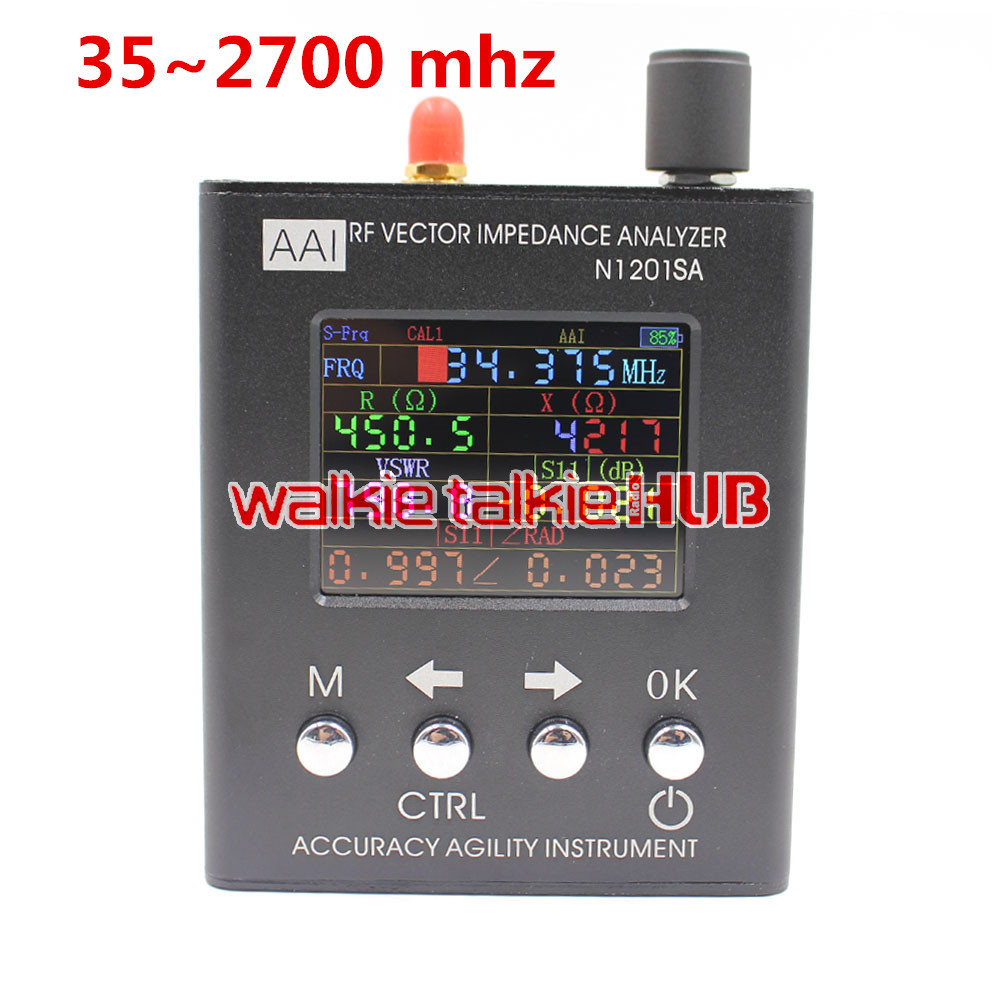

New Upgrade Super Quality N1201SA+ UV/GSM Antenna Analyzer Frequency Range 35mhz-2700mhz

N1201SA+ GSM Antenna Analyzer Specifications

Frequency                                35MHz~2700MHz

Spacing                                    1kHz

Display                                      2.4inch TFT Pixel 320×240(QVGA)

Battery                                      2000mAH(7.4Wh)

Power dissipation                     <1.5W

Charging current                      400mA

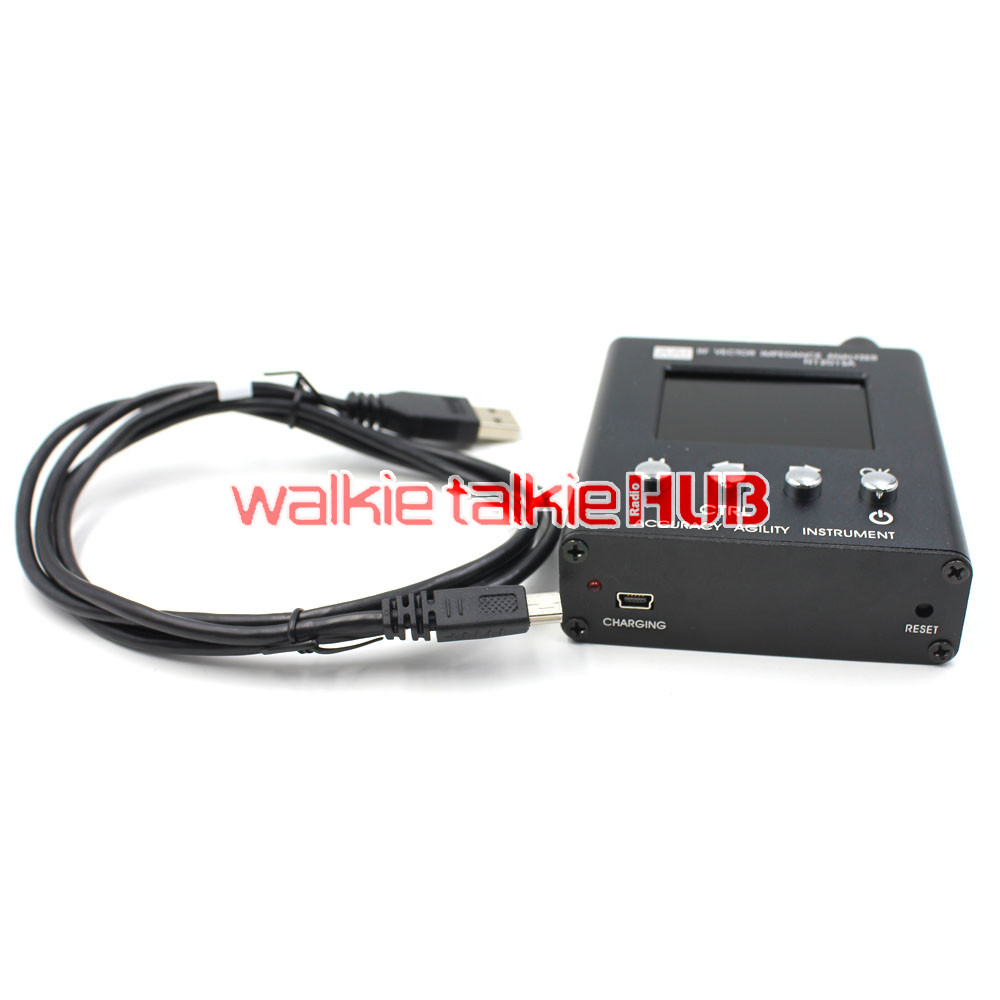

Charging port                           USB(For charging only)

Auto Power Off                        Adjustable(Always on,5mins~60min)

Measure facts                          resistance/reactance/SWR/s11

Resolution ratio                       4bits effective digits

Frequency accuracy                ±5ppm

Connector                                SMA-K

Measuring range                    impedance   0.1Ω~1000Ω(Absolute value of impedance)

SWR              1.000~65

s11(dB)         0dB~-60dB

Error (single point measurement)   impedance    <Absolute value of impedance×3%±0.1Ω(Z<200Ω,<1.5GHz)

SWR    <Effective reading×10%±0.1>

s11 (dB/°)   0.1 dB /5° (0dB~-10dB)

1 dB /10° (-10dB~-20dB)

5dB/20° (-20dB~-40dB)



directivity                              <35dB(140MHz~2GHz After calibration)

<30dB(2GHz~2.7GHz)

Scan Points                          280

output level                          -18dBm

Working temperature           0~40

Atmospheric pressure         860hPa~1060hPa

Dimension                           120mm*86mm*30mm

Description

This instrument  has  four interfaces: single point measurement, scanning, system information, correction and calibration

The default boot into single-point measurement interface.

Note: For the convenience of the user, each time calibration correction options will automatically change to the user calibration. Meanwhile, in order to ensure the integrity of the calibration, the calibration process, the automatic shutdown function fails, the consistent boot.

Startup and shutdown

Hold down the CTRL key off press the power switch button.

The boot state, long press (2S above) the switch button, after the release, the instrument will shut down

The boot state, long press (2S above) the switch button, after the release, the instrument will shut down

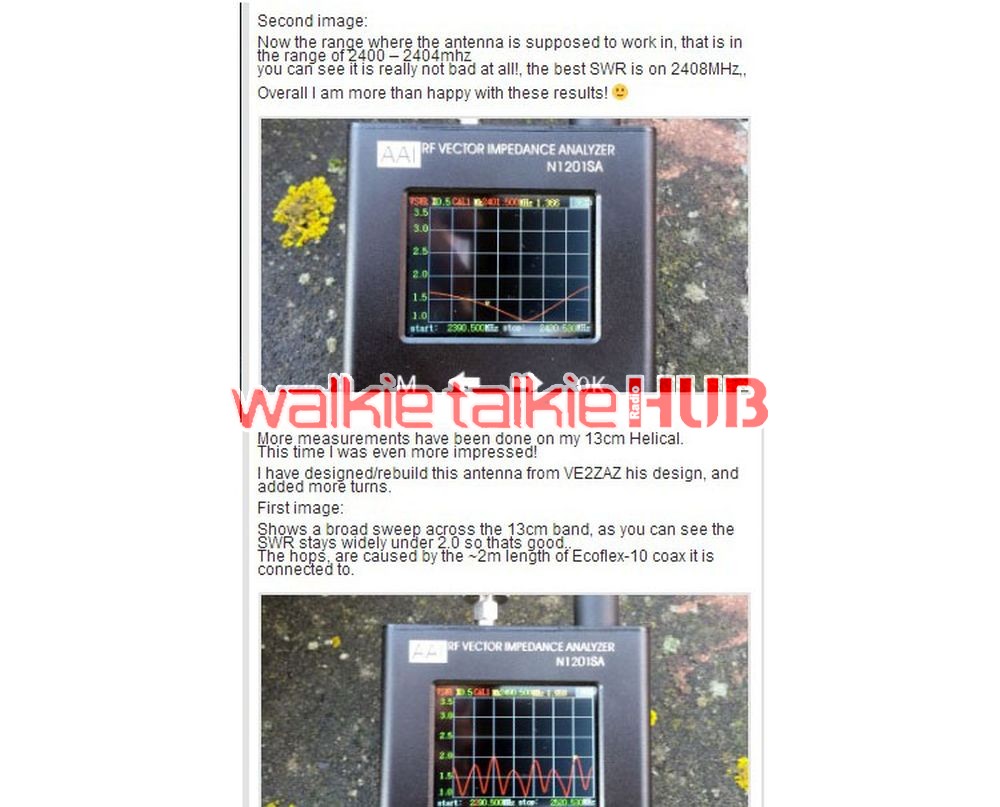

Recommend the use

1, in order to ensure the accuracy of measurement and calibration, preheat the instrument at least 15 minutes.

2, try to use good quality RF cable and connectors.

3, calibrated cable marked to the next may not need to calibrate and direct use.

4, test cable process affect the measurement accuracy, it is recommended that, where possible, do not choose too long test cable.

5, measurement and calibration before, make sure you are not in a strong wireless signal, so as to avoid interference caused by inaccurate measurements.

6, if the impedance measurements themselves do not understand, you can refer to a vector network analyzer instructions and tutorials. This instrument is equivalent to a single-port vector network analysis.

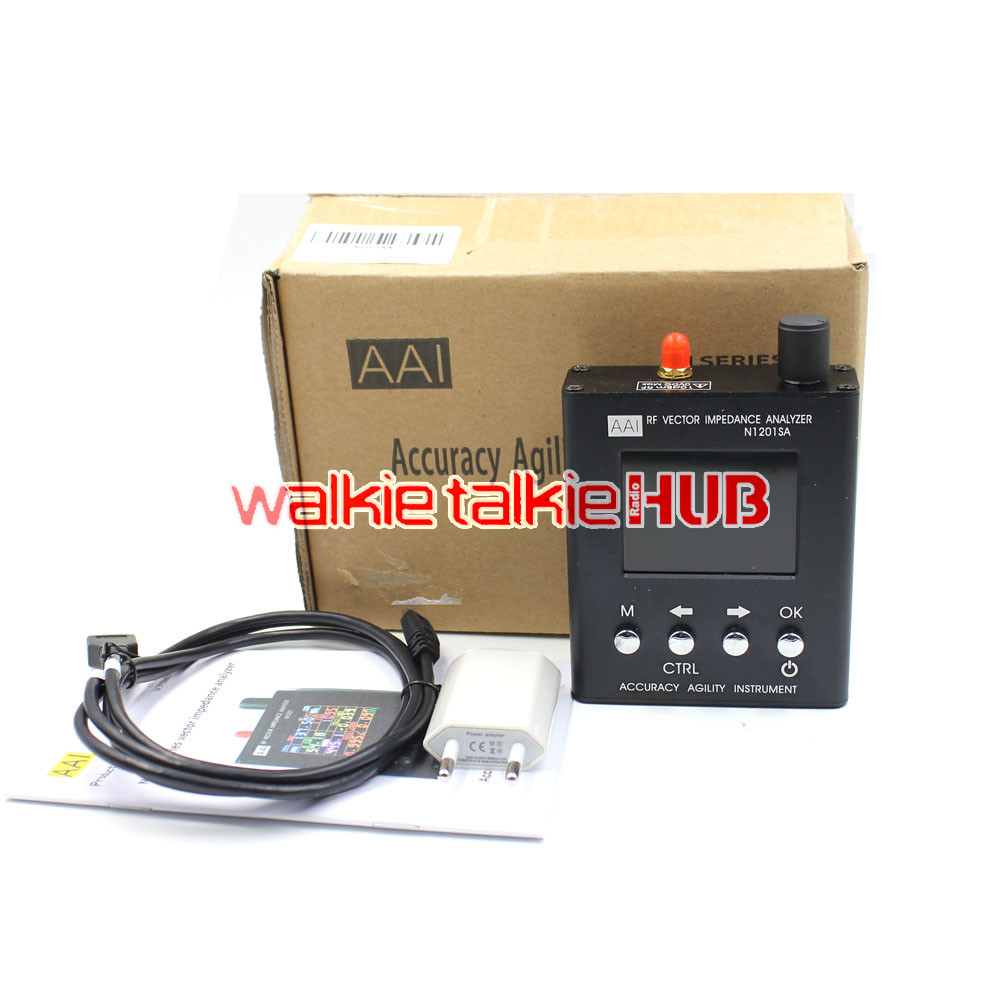

Package included:

1 x N1201SA+  Antenna Analyzer(35MHz~2700MHz)

1 x USB Cable

1x English Manual
