Sale!

Wouxun KG-UVD1P Waterproof Dual Band VHF UHF Two Way Radio

$88.00$97.00

– Dual band Dual frequency Dual display Dual standby
– VHF&UHF, UHF&UHF or VHF & VHF working modes
– Band Can Be Set Freely on The Same Channel

– Band can be set freely on the same channel
– Band switch selectable
– Transmit overtime voice prompt
– Wire clone, programmable by computer
– Power on display message customizable
– Display selectable on channel mode

Clear
SKU: 170229 Category:

Description

Wouxun KG-UVD1P Waterproof Dual Band  vhf / uhf  136-174 / 420-520MHz two Way Radio

The Wouxun KG-UVD-1P Dual-Dand handheld commercial transceiver provides up to 5 Watts of RF power on VHF and 4 Watts on UHF. This Dual-Band radio has a frequency range of 136-174 / 400-520MHz RX / TX. FM: 76-108 MHz (RX). This is not a lighter duty amateur version. It features a long operating time with the included 1700 mAh high capacity Li -ion battery pack.

Specifications:
Model: Wouxun KG-UVD1P

15% off
Coupon

Up to 15% off Coupon Wouxun KG-UVD1P Walkie Talkie

Wouxun KG-UVD1P Waterproof Dual Band vhf / uhf 136-174 / 400-470MHz two Way Radio The Wouxun KG-UVD-1P Dual-Dand handheld commercial transceiver provides up to 5 Watts of RF power on VHF and 4 Watts on UHF. This Dual-Band radio has a frequency range of 136-174 / 400-470MHz RX / TX. FM: 76-108 MHz (RX). This is not a lighter duty amateur version. It features a long operating time with the included 1700 mAh high capacity Li -ion battery pack.

More Less
Doesn't expire

Main Features:
– Handheld Two-way Radio with Dual band Dual frequency Dual display Dual standby
– VHF&UHF, UHF&UHF or VHF & VHF working modes
– Band Can Be Set Freely on The Same Channel
– Amateur bands for multi-country use: The bands can be programmed via simple to use software and a special USB programming cable. 136-174 & 400-480 (RX & TX) FM broadcast 76-108 (RX only)
– Voice Prompt (Chinese / English) 128 memory channels VOX Function Digital FM radio (Automatic tuning and storing, radio frequency display)
– SOS: This is another interesting feature. If you enable it in the menu, the radio will send out an SOS emergency signal
– Flashlight: This is one of the best features of the radio ! Pressing a side button illuminates a very bright white LED light at the top of the radio. This is very useful for finding gear at night
– Voice menu response: This feature is a little odd, but cool too. When enabled, the radio talks back to you in what I am assuming is a very cute Asian lady’s voice
– Wide and Narrow band modulation supports 25 Khz and 12.5 Khz
– Variable step frequency steps: 5Khz, 6.25Khz, 10Khz, 12.5Khz, 25Khz, 50Khz, 100Khz – Priority Scan, add scanning channel
– Band can be set freely on the same channel
– Band switch selectable
– Transmit overtime voice prompt
– Wire clone, programmable by computer
– Power on display message customizable
– Display selectable on channel mode

Main Functions:
– Stopwatch
– Busy channel lockout
– Auto / Manual keypad lock
Work Mode: U-V , V-U , V-V , U-U Can Be Set Freely
Frequency Range: 136-174MHz & 400-520MHz
Memory Channels: 128 channels
Operating Voltage: 7.4V
Operating Temperatures: – 30 ~ 60 centigrade
Working mode: CO-channel or Dis-channel simplex
Output Power: VHF: 5W / UHF: 4W
Modulation: FM
Max.frequency deviation: ≤ 5KHz
Spurious Radiation: < – 60dB
Frequency stability: 2.5ppm
Receive Sensitivity: < 0.2uV
Audio output power: ≥ 500mA
Powered by: 7.4V 1400mAh Rechargeable Battery
Waterproof: IP55
Dimensions: 61 x 119.5 x 37.5mm
Package Dimensions: 125 x 120 x 100mm
Net Weight: 248g
Package Weight: 796g
Color: Black
Approved: CE / FCC

Main Specifications:

 Frequency range

136-174/420-520MHz (RX/TX)

Memory Channels

128 Channels

Frequency Stability

±2.5ppm

Operating Temperature

-30°C≈+60°C

Waterproof

IP55

Antenna Impedance

50

Dimension

58x105x38mm

Weight

250g

Transmitter

Frequency stability

±2.5ppm

RF Carrier Power

Within pre-determined value±7.5dB

Max. Frequency Deviation

Channel space: 25KHz ±5KHz   Channel space: 12.5KHz ±2.5KHz

Audio Modulation

+3dB(pre-emphasis by 6dB between 0.3-3KHz)

Adjacent channel power

Channel space: 25KHz≥70dB

Channel space: 12.5KHz≥60dB

Spurious Radiation

≤30dBm

Inter modulation Attenuation

≥40dB

Modulation Distortion

≤10%

Residual FM

≤-35dB

Residual FM

≤3%

Receiver

Sensitivity(12dB SINAD)

0.16μV

Squelch rejection Sensitivity

≤0.8μV

Squelch Sensitivity

≤0.2μV

Audio output power

500mW

Audio Distortion

≤5%

Audio Response

(300-3000Hz)+1 to -3dB

Co-channel Rejection

≥-8.0dB

Performance of Amplitude Limited

≤3

Adjacent Channel Selection

Channel space: 25KHz≥70dB

Channel space: 12.5KHz≥60dB

Inter-modulation

≥65dB

Resistance

≥84dB

Spurious Radiation

9Khz-1GHz≤-57dBm

1GHz-4GHz≤-47dBm

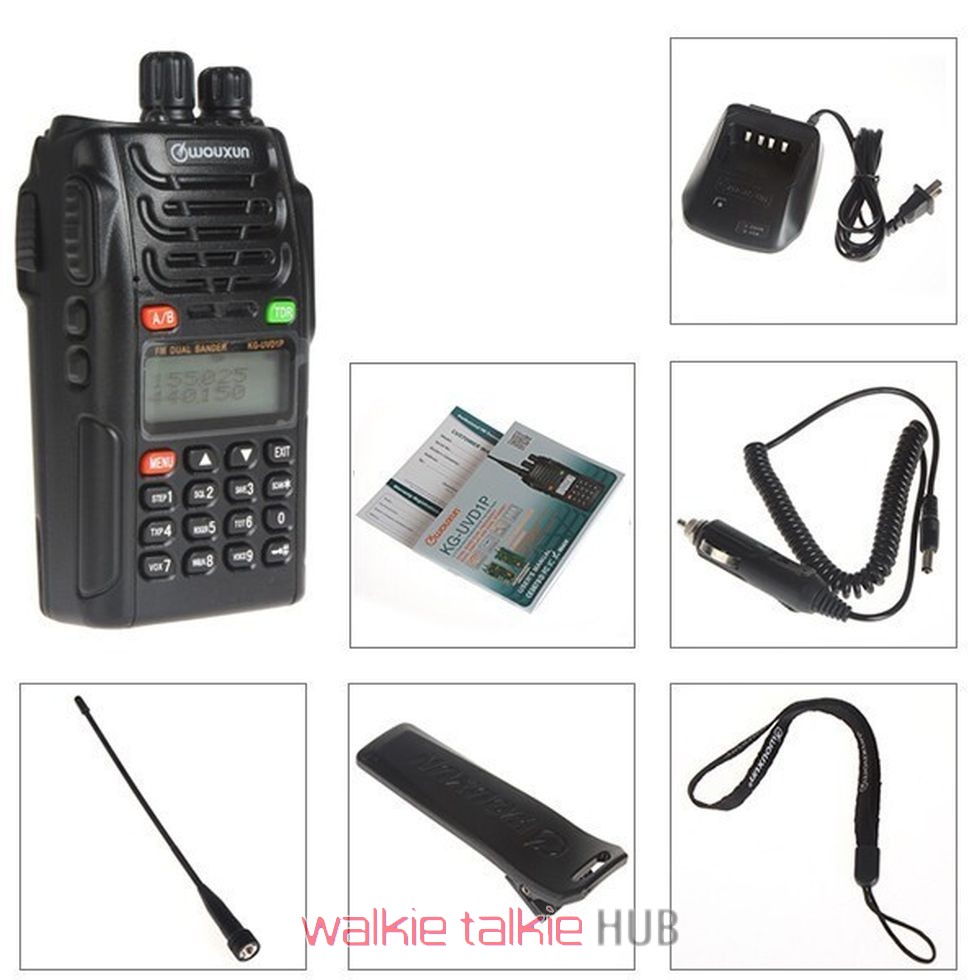

Package Includes:
1x KG-UVD1P Dual Band Radio
1x 7.4V 1400mah Li-ion Battery Pack
1x Dual Band Antenna.
1x Belt Clip.
1x ENG Manual
1x 12 V Car charger Cable cord
1x Desktop Charger with 100-240 PSU
1x Push to Talk Earpiece

Additional information

Weight 0.8 kg
Dimensions 180 × 180 × 60 mm
Frequency Range

UHF 400-470 MHz & VHF 136-174 MHz, UHF 420-520 MHz & VHF 136-174 MHz
