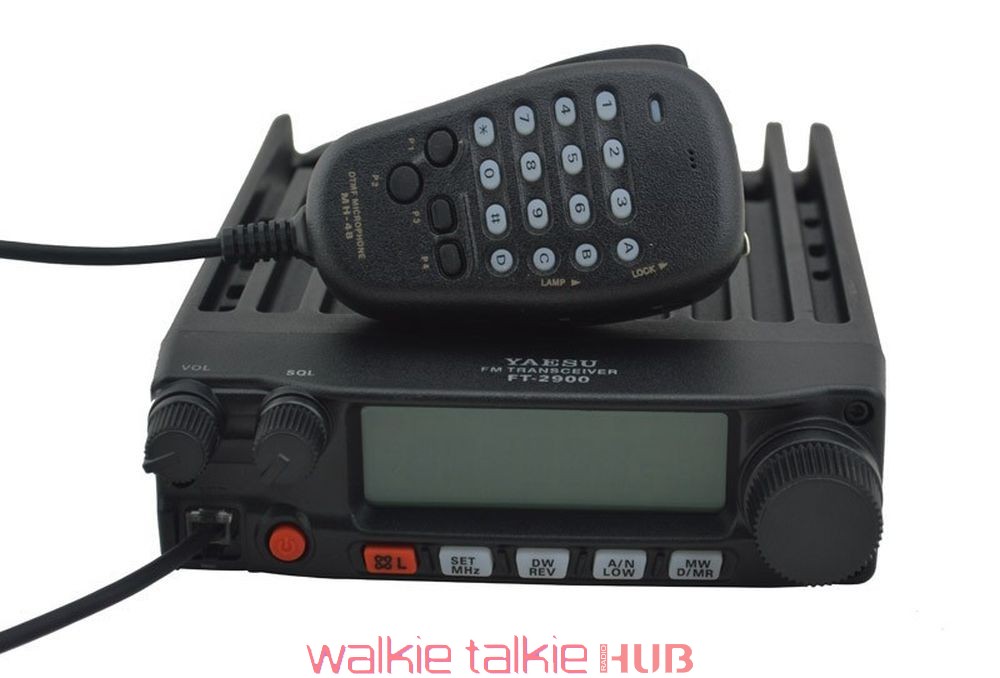

Yaesu FT-2900R/E VHF 136-174MHz Mobile Radio Station

Sale!

$250.00

75 Watts Power Output

Large LCD Display

Loud Audio with Internal Speaker

Excellent Receiver Performance

CTCSS and DCS Encode/Decode Built In

Extensive Memory System

Alpha-Numeric Channel Display

WIRES Internet Linking Access Feature

WX Channels with

MH-48A6J DTMF Direct Access Microphone

SKU: 170329 Categories: ,

Description

Yaesu FT-2900R/E Mobile Radio Station 75 Watt 136-174MHz VHF FM CAR Transceiver CB Heavy-Duty Base Radio

Yaesu FT-2900R/E 75 Watt Heavy-Duty 136-174MHz VHF FM Transceiver/Mobile Radio

High power output with No Cooling Fan Needed, a huge, easy-to-read display, and one-touch WIRES™ Internet Linking Access capability are yours with the rugged new FT-2900R

Features:

75 Watts Power Output

75 Watts of Solid RF Power with No Cooling Fan Needed! Four selectable power output levels are provided: 75/30/10/5 Watts. The power selection may be stored into memory, allowing you to conserve power while using strong local repeaters.

Large LCD Display

The large 6 digit backlit LCD on the FT-2900R ensure excellent visibility

Loud Audio with Internal Speaker

The FT-2900R packs 3W BIG watts of Loud Audio with its own Internal Speaker for those noisy environments.

Excellent Receiver Performance

The FT-2900R’s receiver front end features Yaesu’s renowned Advanced Track Tuning RF input filtering, which affords outstanding protection from Intermodulation distortion.

CTCSS and DCS Encode/Decode Built In

For easy repeater access, or silent monitoring of busy channels, both CTCSS and DCS (Digital Code Squelch) Encoder/Decoder circuits are built in. CTCSS and DCS configuration data may be stored independently in each memory channel. A “Split Tone” mode also allows operation on systems where CTCSS and DCS are used separately on the repeater uplink/downlink.

Extensive Memory System

The FT-2900R provides a total of 221 memory channels, including 200 “regular” memories, ten pairs of band-limit memories, and an instant-recall “Home” channel you can dedicate to a frequently-used repeater or simplex frequency. Memories can store repeater shift information, CTCSS/DCS data, power output level, scanning status (“Skip”), and Alpha-Numeric labels.

Alpha-Numeric Channel Display

Memory channels may be displayed either with the channel frequency or a personalized Alpha-Numeric label, for easy channel recognition. Up to six letters, characters, or numbers may be used for labeling channels.

WIRES Internet Linking Access Feature

The FT-2900R includes a conveniently-located “Internet” key, for quick access to Internet-linked repeater systems. Internet repeater linking allows you to use your FT-2800M to talk to other Amateurs throughout the world, with outstanding voice signal quality. The “Internet” key may be configured to send either a single DTMF digit, or a DTMF string, for operation on a WIRES™ (Wide-Coverage Internet Repeater Enhancement System) repeater, or on other Internet-linked repeaters using DTMF tone access.

WX Channels with

A special 10-channel Weather Band memory bank is provided in the U.S. version, allowing quick access to NOAA weather broadcasts. When the 1050-Hz “Severe Weather” alert tone is transmitted, the FT-2900R may be configured to emit an alarm tone to get your attention quickly. With the “Weather Alert” feature enabled, the FT-2900R will scan the ten Weather memories, stopping only if the 1050-Hz tone is received.

MH-48A6J DTMF Direct Access Microphone

The backlit MH-48A6J microphone allows direct keypad frequency entry, or keypad memory channel recall. On transmit, the MH-48A6J allows manual entry of DTMF tones for autopatch use, and the FT-2900R also includes a nine-memory, 16-digit DTMF Autodialer. Four user-programmable “soft” keys on the microphone may be programmed for easy control of a number of different features, and the [A]/[B]/[C]/[D] keys replicate the functions of the keys on the front panel of the transceiver, for maximum convenience while driving.

Specifications:

General
Frequency Range Tx:136-174MHz

Rx:136-174MHz

Channel Step 5/10/12.5/15/20/25/50/100kHz
Standard Repeater Shift ±600kHz
Frequency Stability Better than ±10ppm
Modes of Emission F2D/F3E
Antenna Impedance 50 Ohms, unbalanced
Supply voltage 13.8V DC±15%,negative ground
Current Consumption(typical) Rx:less than 0.7A, less than 0.3A (squelched)

Tx:15A(75W)/9A(30W)/5A(10W)/4A(5W)

Operating Temperature Range -4°F to +140°F (-20°C to +60°C)
Case Size(W×H×D) 6.3”×2”×7.3”(160×50×185mm)(w/o knobs)
Weight(Approx.) 4.2lb(1.9kg)
Transmitter
Output Power 75W/30W/10W/5W
Modulation Type Variable Reactance
Maximum Deviation ±5kHz(Wide)

±2.5kHz(Narrow)

Spurious Radiation Better than -60dB
Microphone Impedance 2k-Ohms
Receiver
Circuit Type Double Conversion Superheterodyne
Ifs 21.7MHz & 450kHz
Sensitivity (for 12dB SINAD) Better than 0.4uV
Selectivity(-6/-60dB) 12kHz/28kHz(Wide)

9kHz/22kHz(Narrow)

IF Rejection Better than 70dB
Image Rejection Better than 70dB
Maximum AF Output 3W into 4 Ohms 10% THD
Specifications subject to change without notice or obligation.Specifications guaranteed only within amateur band.
Frequency ranges will vary according to transceiver version.

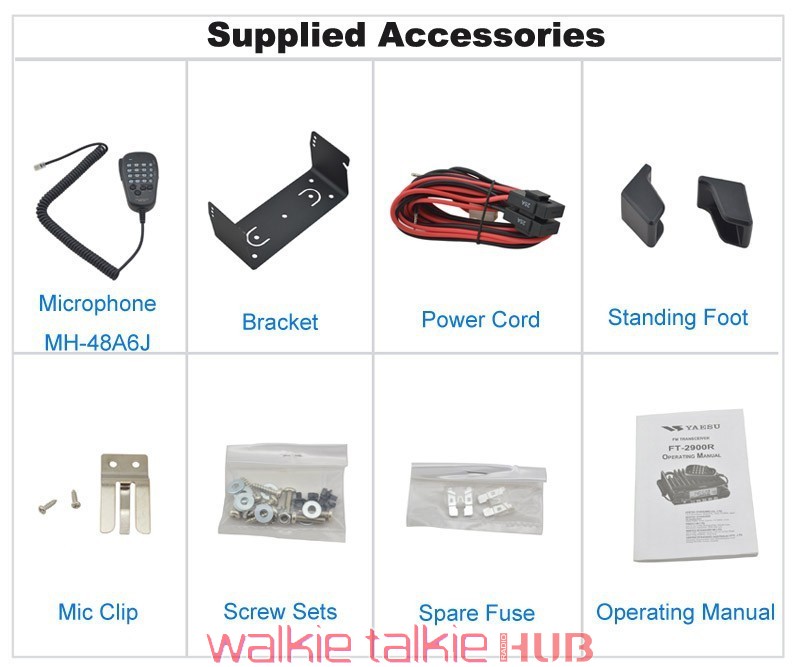

Package Contents:

  • 1 x Yaesu FT-2900R VHF 136-174MHz Transceiver
  • 1 x Microphone MH-48A6J
  • 1 x Mobile Mounting Bracket MMB-83
  • 1 x DC Power Cord with Fuse
  • 2 x Spare Fuse 15 A
  • 1 x Base Station Foot
  • 1 x English Operating Manual
  • 1 x Warranty Card

Yaesu FT-2900R/E VHF 136-174MHz Mobile Radio Station

Additional information

Weight 2 kg
Dimensions 200 × 160 × 70 mm
