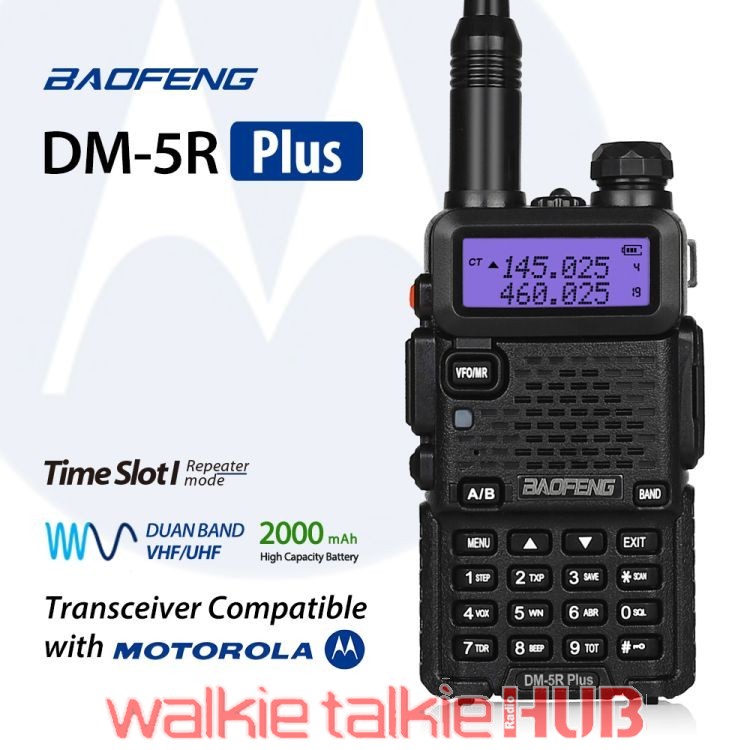

Baofeng DM-5R Plus

• Transceiver Compatible with Motorola Tier II DMR
• VHF/UHF 136-174/400-480Mhz
• 2000mAH High Capacity Battery
• High Power/Low power
• Repeater Mode Time slot I
• Description DM-5R PLUS — BaoFeng’s FIRST DMR Digital Radio & The FIRST DUAL BAND DMR Digital Radio! Upgraded Version! Crystal Clear Sound Quality
  The Baofeng DM-5R features the latest in digital technology to bring you crisp, clear sound when transmitting and receiving. Longer Life
  With featuring an upgraded power-saving mode & an upgraded standby feature, the DM-5R will be there when you need it. The DM-5R transmits for a total time of 14 hours, and will stay powered on in standby for up to 30 hours on a single charge.Compatible with Motorola
  The upgraded version of DM-5R can communicate with a Motorola radio, and it supports DMR repeaters.
• Features & Specifications Frequency range: VHF/UHF 136-174/400-480Mhz
  High/ Low Power Settings: 5W/1W
  Maximum transmission distance: 3KM
  Battery capacity: 2000mAh
  Channel: 128
  21CM Dual Band Antenna
  8-Level Stepped Frequency Selection
  Compatible with Digital And Analog Systems
  Dual Band Repeater
  Auto power saving function
  Emergency Alarm
  Flashlight
  Support Individual/Group/All Call
  Walkie-Talkie Detection
  CTCSS/DCSSize: 110x52x32mm

General specifications

Frequency range	VHF: 136-174MHz /UHF:400-520MHz (Dual Band)
Storage channel	128 groups
Stepped frequency	2.5/5/6.25/10/12.5/20/25kHz
Operating voltage	DC7.4 V (rechargeable lithium battery)
Frequency stability	±1.5ppm
Operating temperature	-20℃—+50℃
Operation mode	same-frequency simple or different-frequency simplex
Antenna impedance	50Ω
Battery capacity	1500mAh
Volume	110×58×32mm (excluding antenna)

Transmitting

Output power	4W/1W
Modulation (wideband/narrowband)	Analog: 16K¢F3E/11 K¢F3E Digital: 4FSK
Maximum frequency deviation (wideband/narrowband)	≤5KHz/≤2.5KHz
FSK allowable error rate	≤3%
Spurious power	≤7.5uW
Adjacent channel power	≤-65dB/≤-60dB
Signal to noise ratio (wideband/narrowband)	≥-45dB/≥-40dB
CTCSS/DCS frequency deviation (wideband/narrowband)	0.7±0.1KHz/0.4±0.1KHz
Modulation sensitivity	8—12mV
Transmitting current	≤1.5A

Receiving

Analog sensitivity	-122dBm (12dB SINAD)
Digital sensitivity	-120dBm(BER≤5%)
Audio power	1W
Audio distortion	<10%
Intermodulation (wideband/narrowband)	≥62dB/≥58dB
Adjacent channel selectivity (wideband/narrowband)	≥65dB/≥60dB
Receiving current	≤380mA

Package

1 x DM-5R PLUS DMR Radio
1 x Antenna
1 x Headset
1 x Battery
1 x Desktop Charger
1 x Power Adaptor
1 x Belt Clip
1 x Hand Strap
1 x Manual
