1-30 Mhz Manual Antenna Tuner kit for HAM RADIO QRP DIY Kit

Original price was: $30.00.Current price is: $15.90.

+ Free Shipping

1-30 Mhz Manual Antenna Tuner kit for HAM RADIO QRP DIY Kit

Foreword:

Days can tune to the original non-resonant antenna by adding the appropriate inductance or capacitance so that the radio can work properly. The original resonant antenna, the antenna has changed due to outside influences, the SWR can be amended. Can be used as a band-pass filter, the emission can reduce unnecessary radiation outside the band, the cross-modulation and interference-band receiver can be reduced again.

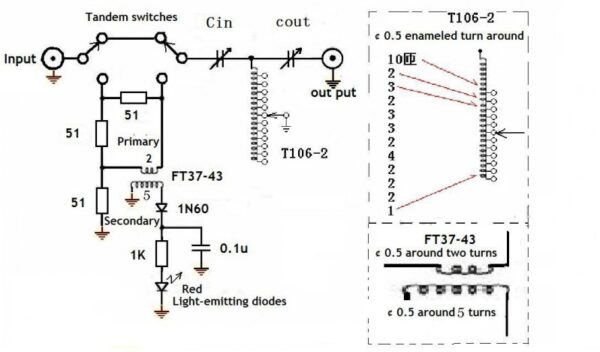

Days tune kit comes with the standing wave directions, using a T-type topology network, shortwave 1-30MHz, can withstand the transmit power of 15W, the tuning range of approximately 40-300 ohms, can be very convenient for QRP communication, to ensure high efficiency radio transceiver in communication, but also allows you to fully enjoy the fun of DIY.



This kit requires some soldering electronic technology, will recognize the device, it will weld, the basic need debugging, as long as careful assembly according to package instructions can succeed. If the novice find weld on the error, intended to build the first not handle, please contact customer service personnel will get the appropriate technical guidance.
This kit welding, making easy to understand, easier to learn, easy to use. Comes with standing instructions, Q9 type interface (such as the need to be self to M-type interface), using T-topology networks, QRP facilitate communication with the low-power transceiver (shoes, frogs, octopus, etc.) used to make transceiver and antenna valid match, meet your emission requirements, ensure a highly efficient radio communications.

Key Features of this manual antenna turner:
Days when exposed to direct transfer power: <20W
Day tune tuning the input power: <3W
Tuning indication: LED display
Interface: Q9 type
Operating frequency: 1-30MHz
Antenna Interface: Q9 type
Match the antenna impedance range: about: 30 ~ 300Ω
Carrying RF power: less than 15W
Tuning required RF power: less than 3W



This kit includes the original as follows:

  • A waterproof sealed box
  • Stickers (used to determine the position of the transfer hole) 1
  • Q9 Block (lug) 2
  • Ordinary wire segment
  • Variable capacitor 2
  • 2 small knob
  • 0.25 countersunk head screws (for fixed variable capacitor) 4
  • The 0.25 head screws 2
  • 0.3 gasket 4
  • 0.3 nut 2
  • Multi-knife switch (12 stalls) a
  • A large knob
  • T106-2 the toroid (red) 1
  • 0.5 enameled wire, Section 1,
  • A circuit board (standing wave indicator)
  • A stall switch
  • The red light emitting diode 1
  • 51 ohm 2W resistor 3
  • FT37-43 toroid (Black) 1
  • 1K resistor (light-emitting diode current limit) a
  • 1N60 1
  • 0.1u capacitor 1
Weight 0.5 kg
Dimensions 200 × 100 × 100 mm
