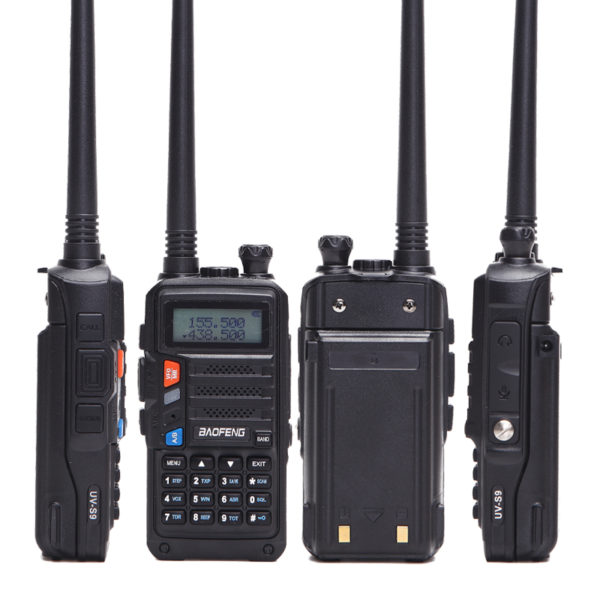

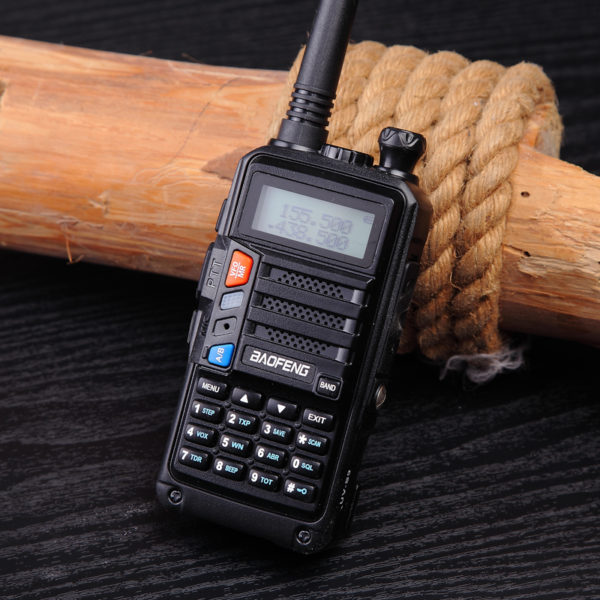

2018 Baofeng AS53 8W Dual Band 10KM Long Range Thicken Battery Handheld Analogue Radio


+ Free Shipping

2018 Baofeng AS53 8W Dual Band 10KM Long Range Thicken Battery Handheld Analogue Radio

[iframe src=”″ width=”100%” height=”500″]



1.   100% Brand New & Never Used

2.   Dual-band handheld transceiver with display function menu on the display “LCD”

3.   DTMF encoded

4.   Lithium-ion battery with high capacity

5.   Commercial FM radio receiver (65MHz~108MHz)

6.   Incorporates 105 codes “DCS” and 50privacy codes “CTCSS” programmable

7.   Function “VOX”(voice operated transmission)

8.   Alarm function

9.   Up to 128 memory channels

10.   Broadband (Wide)/Narrowband (Narrow), selectable

11.   High/low power selectable

12.   Display illumination and programmable keyboard

13.   Function “beep” on the keyboard

14.   Dual Watch/dual reception

15.   Selectable Frequency Step

16.   Function “OFFSET” (frequency offset for repeater access)

17.   Battery saving function

18.   Timer transmission “TOT” programmable

19.   Selecting the Scan Mode

20.   Busy Channel Lock

21.   Built-in RX CTCSS/DCS scan

22.   Built-in LED flashlight

23.   Programmable by PC

24.   Level Threshold “Squelch” adjustable from 0 to 9

25.   Cross band reception

26.   Tone end of transmission

27.   Built-in key lock



Frequency range VHF:136MHz-174MHz(Rx/Tx)
65MHz-108MHz(Qnly commercial FM radio reception)
Memory channels Up to 128 channels
Frequency stability 2.5ppm
Frequency step 2.5/5/6.25/10/12.5/25KHz
Antenna impedance 50 OHM
Operating temperature -20°C-60°C
Supply voltage Rechargeable Lithium-Ion 7.4V
Battery Capacity 2800mAh
Consumption in standby <=75mA
Consumption in reception 380mA
Consumption in transmission <=1.4A
Mode of operation Simplex or semi-duplex
Dimensions 110x58x32mm
Weight 130g(approximate)
RF power 8W/1W
Modulation type FM
Emission class   16K  øF3E/11KøF3E(W/N)
Maximum deviation <=±5KHz/<=±2.5KHz(W/N)
Spurious emission <-60dB
Receiver sensitivity 0.2µV (at 12 dB SINAD)
Inter modulation 60dB
Audio output 1000mW
Adjacent channel selectivity 65/60dB

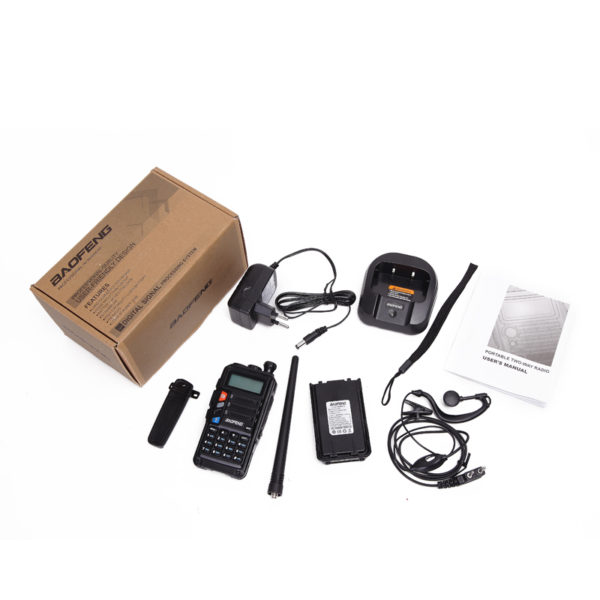

Package include:

·        1 X 2018 Baofeng AS53 Portable radio

·        1 X Inductively loaded antenna

·        1 X 2800mAh Li-ion battery pack

·        1 X LI-ion charger

·        1 X Belt clip

·        1 X The Sling

·        1 X User’s manual

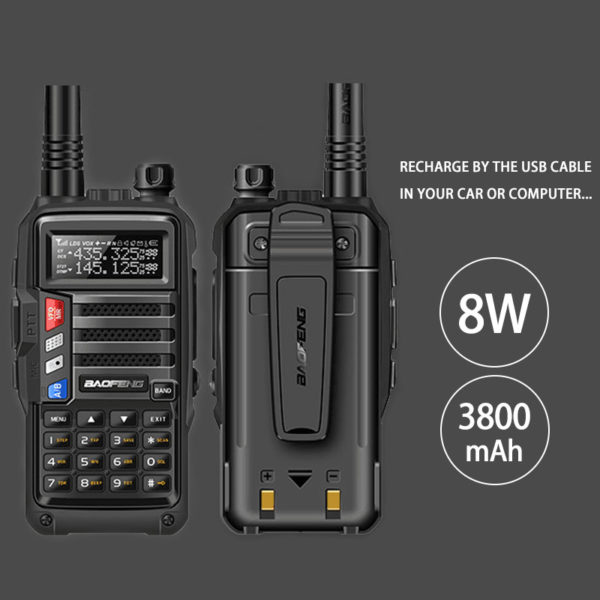

With  optional methods to charge the battery. But the standard does not include the USB cable and car charger cable.

If any questions Or bulk order, please contact Ms. Amy Huang:


WhatsApp / Skype: +86-13860123881

Tel: 86(592)5995025

Fax: 86(592)3720556

Weight 1 kg
Dimensions 300 × 200 × 100 mm

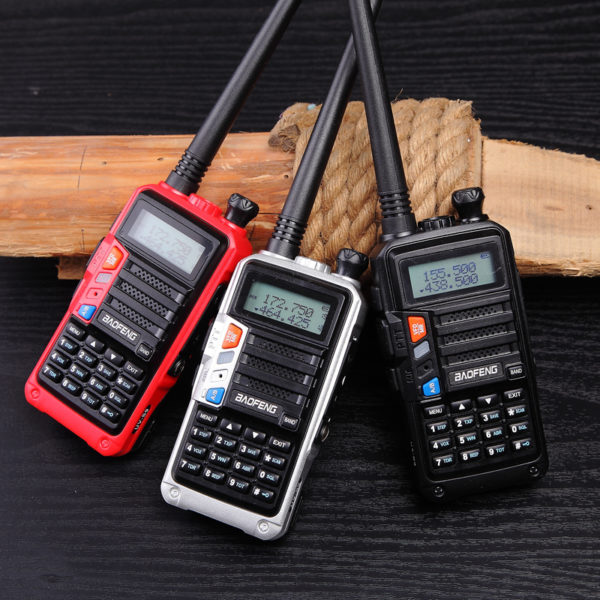

Black, Silver
