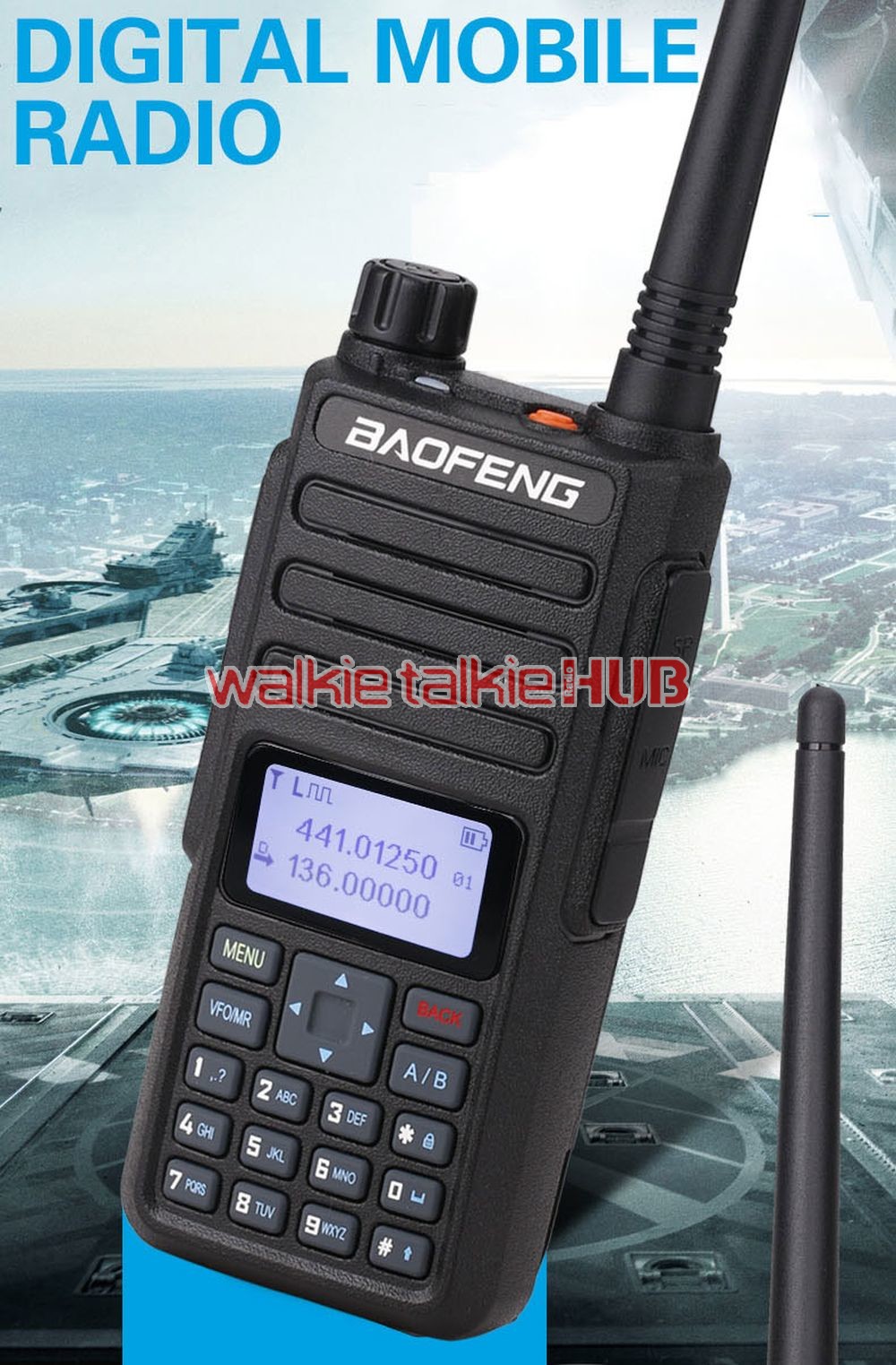

2PCS 2019 Baofeng DM-1801 DMR Digital Mobile Radio Compatible With Motorola

Original price was: $300.00.Current price is: $152.00.

+ Free Shipping

2PCS 2019 Baofeng DM-1801 DMR Digital Mobile Radio Compatible With Motorola

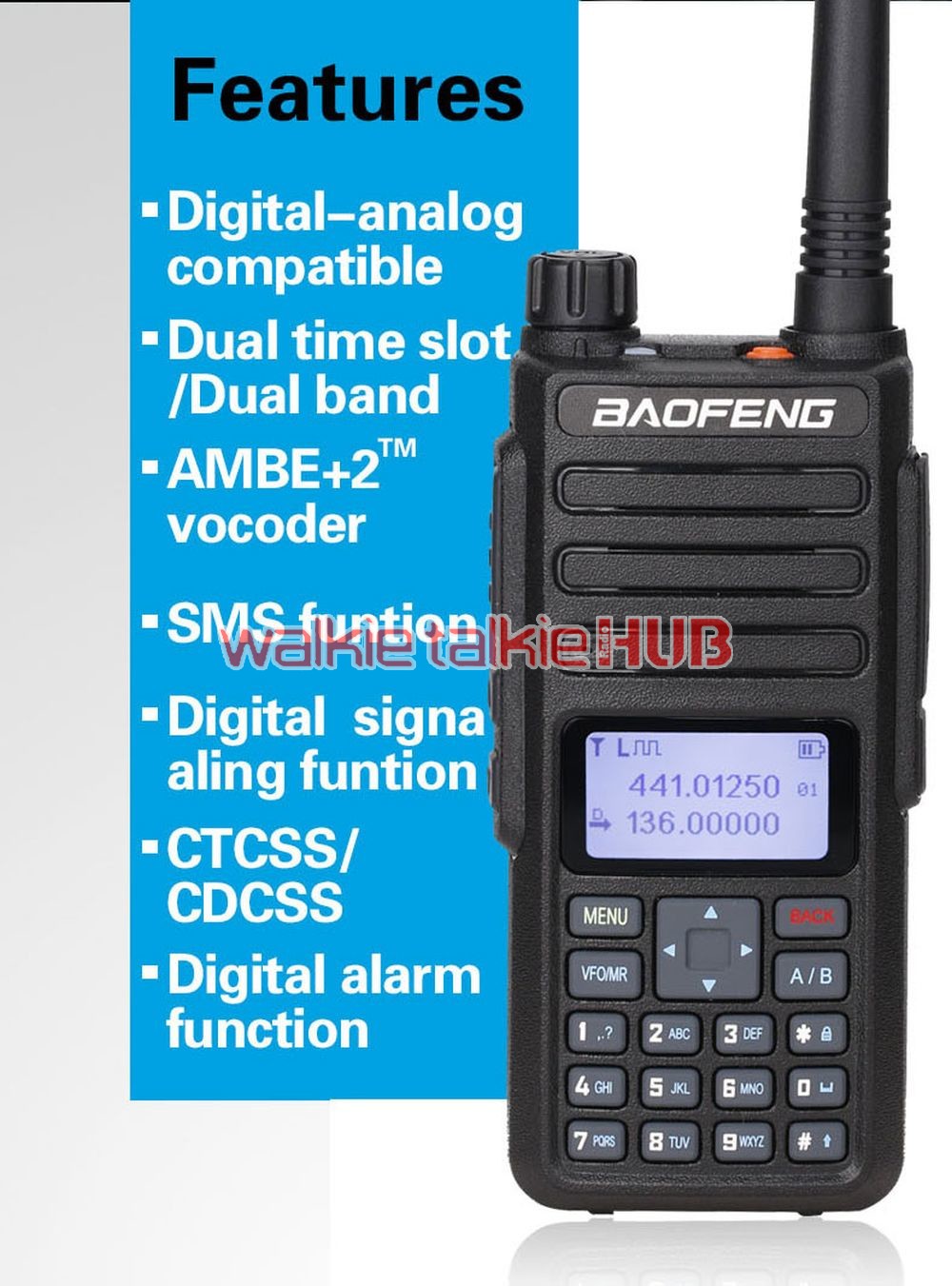

Features
Baofeng DM-1801 Dual Band Dual Time Slot DMR Digital/Analog Two Way Radio 136-174/400-470MHz 1024 Channels Ham Walkie Talkie.
1.Baofeng DM-1801 is a Dual Band, Dual Time Slot, Tier I & Tier II compliant DMR radio Enjoy crystal clear audio quality with DMR technology.
2.Larger Capacity Li-ion Battery
Equipped with a 2200mAh Li-ion battery. Up to 18 hours work time and 48 hours of standby time. It lasts 30% longer than the other DMR radio. DM-1801  is light weight and    handy, perfect for long QSO’s.
3.More keypad operations Channel names,
TX & RX frequencies, channel number, tones and etc. can all be programmed through the keypad. Users can also customize the top and side buttons for their       favorite functions.
4.Talking Range
The talking range of Baofeng DM-1801 can be as far as 5KM (3 Miles) under the visible range. There are other factors that affect the talking range of a two-     way radio. such as weather, exact frequency used, and obstructions etc.

Specifications:

General
Frequency Range Dual Band VHF 136-174MHz &UHF 400-470MHz
Storage channel  64 groups ,1024
Stepped Frequency 2.5/5/6.25/10/12.5/20/25KHz
Operating Voltage DC 7.4V
Frequency Stability ±1.5ppm
Operating Temperature -20°c ~ 50°c
Operating Mode Same-frequency simple or different-frequency simplex
Antenna Impedance 50Ω
Battery Capacity 2200mAh
Dimensions 133 ×62 ×32mm(Antenna Not included)
Transmitting
Output Power 1W/5W
Modulation (wide band/ Narrow band) Analog: 16K F3E/11K F3E

Digital:Tier i&ii

Maximum frequency Deviation (wide band/ Narrow band) ≤5KHz /≤2.5KHz
FSK allowable error rate ≤3%
Spurious power ≤7.5 W
Adjacent channel power ≤-65dB ≤-60dB
Signal to noise radio -45dB -40dB
CTCSS/DCS  Frequency Deviation 0.7 ±0.1KHz/0.4± 0.1KHz
Modulation  sensitivity 8-12mV
Transmitting Current ≤1.5A
Receiving
Analog sensitivity -122dBm (12dB SINAD)
Digital sensitivity -120dBm (BER ≤5%)
Audio Power 1W
Audio Distortion <10%
Intermoulation ≥62dB / ≥ 58dB
Adjacent channel selectivity (Wideband/narrow band) ≥65dB /≥60dB
Receiving current ≤380mA

Package Contain:

2× BAOFENG DM-1801

2× 2200mAh Li-ion Battery Pack

2× Charger Unit with AC Adapter

2× Antenna

2× Hand Strap

2× Belt Clip

2× Earpiece

2× User Manual

Weight 1 kg
Dimensions 400 × 300 × 100 mm
