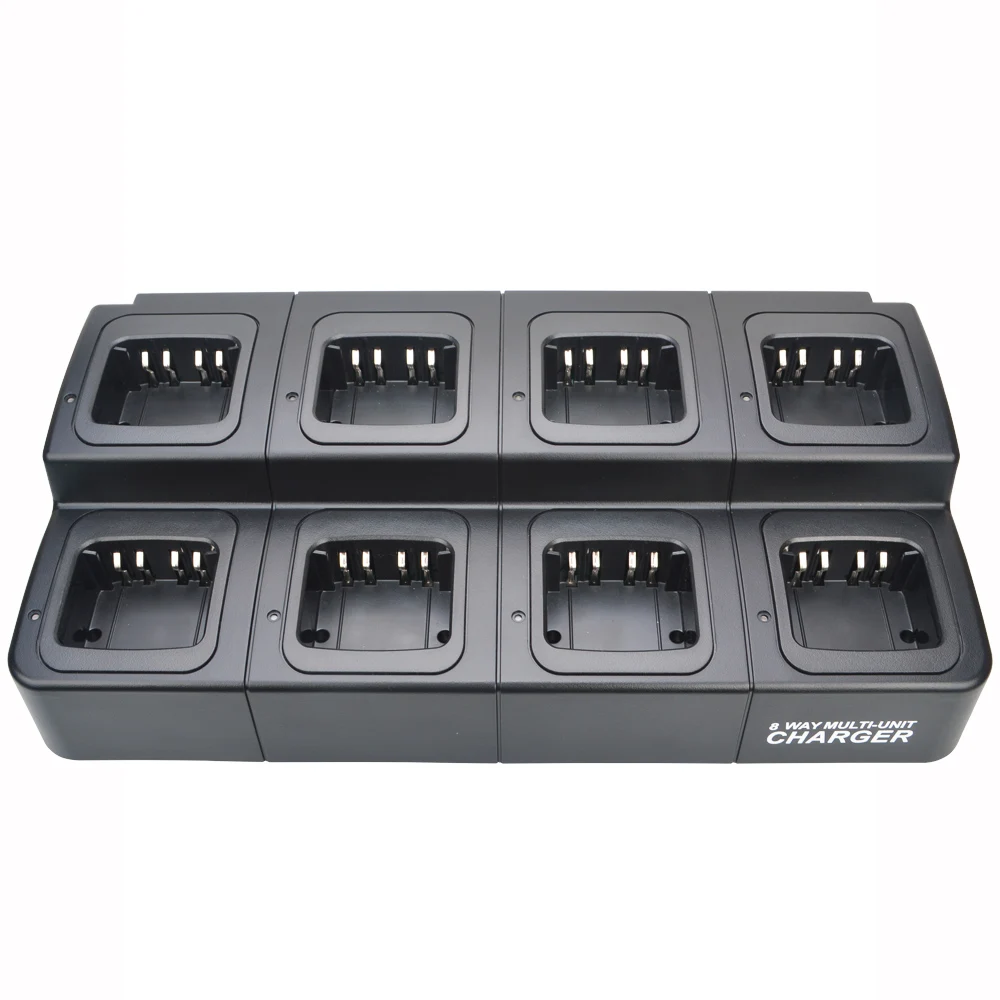

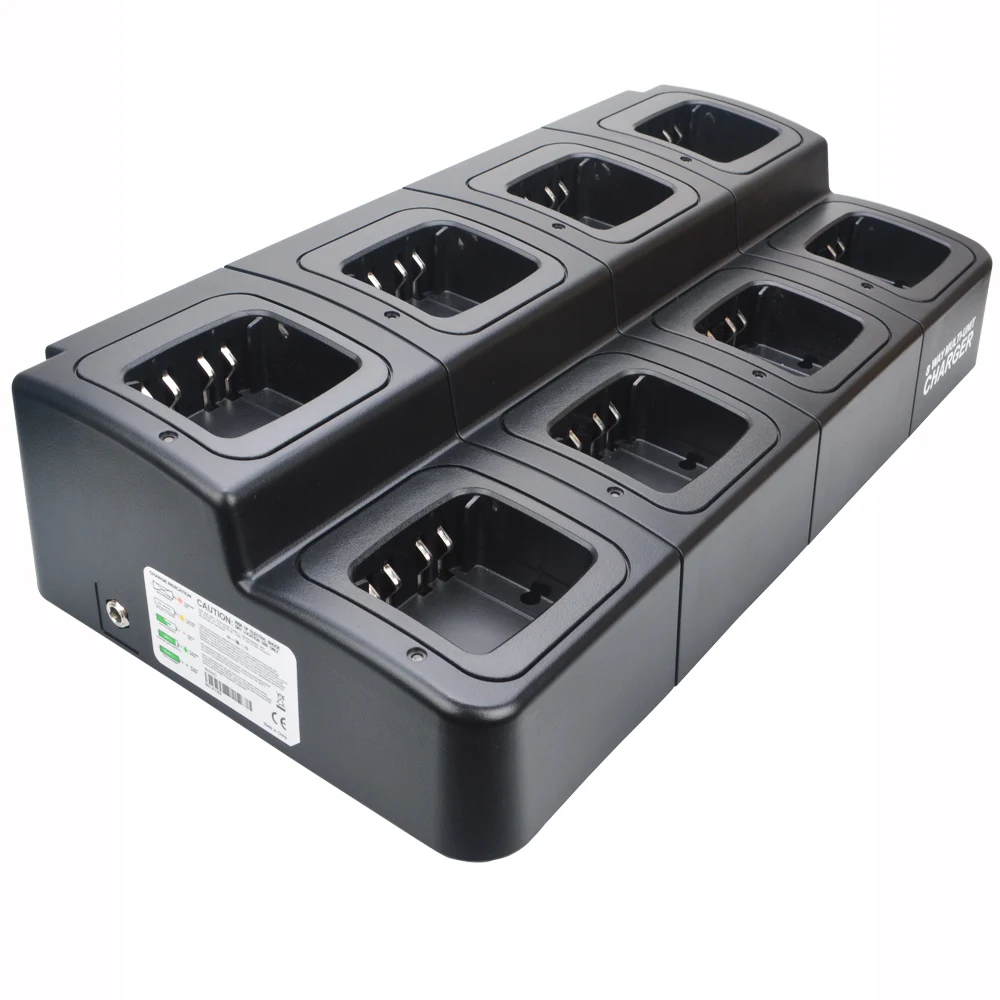

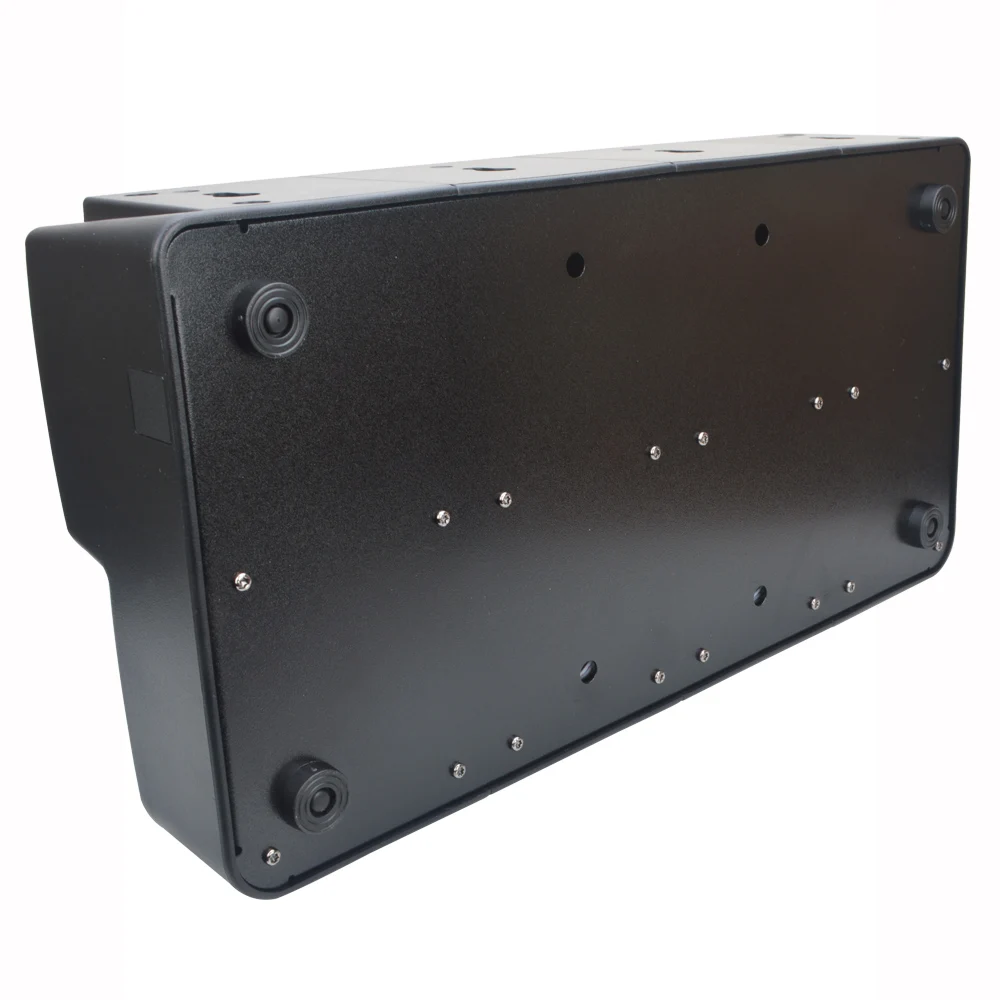

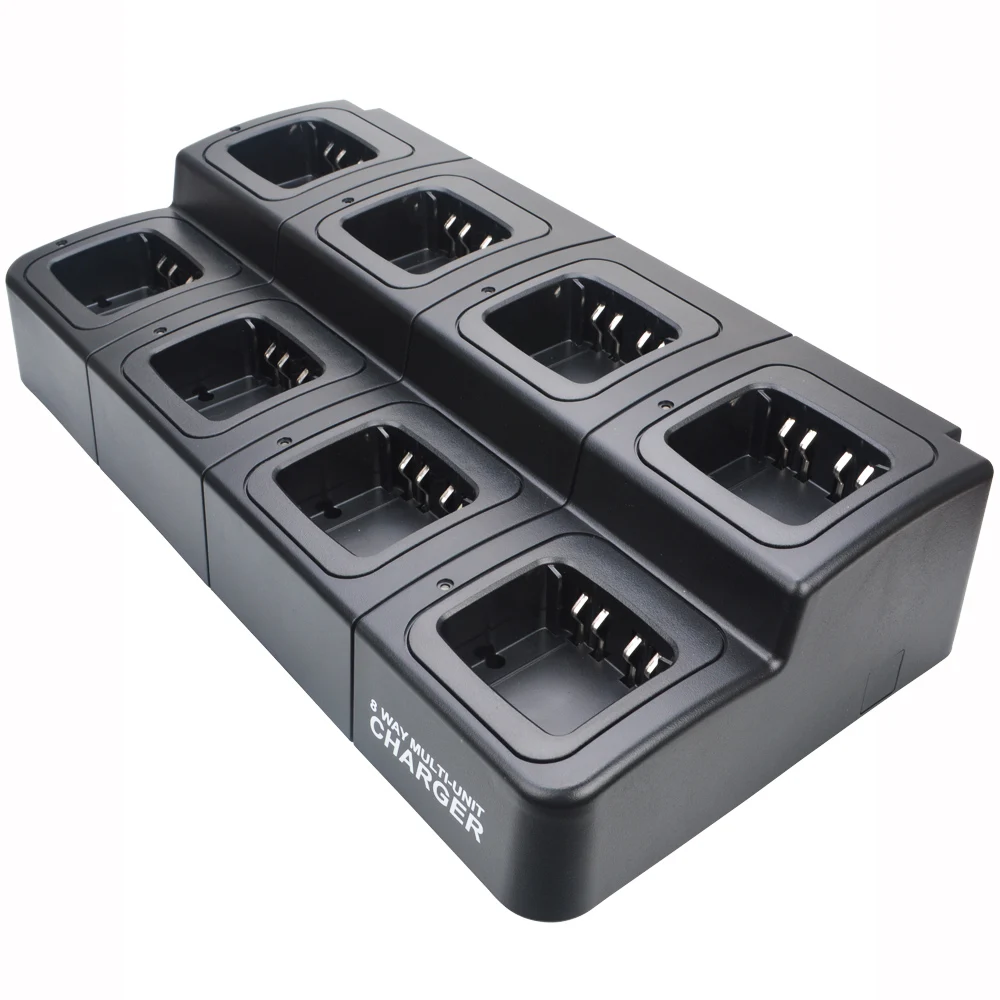

Eight Way Multi-Unit Charger for Motorola XiR P8268 P8260 DP4800 DP3601 DP3400 DGP4150 P8608 P6600 Series Walkie Talkie PMNN4409
Instruction:
When this 8 way multi-unit charger work for long time no charged battery and excessive consumption battery which battery voltage lower than 6.5V, charger will automatically measurement first then yellow flashing charging by small current. When battery charged arrive voltage 6.5V, the indicator will turn red and current starts to increase to about 600mAh (one Charger tray). When the battery capacity arrive about 98%, the red light will change to flashing green light, and current become small, after battery voltage arrive 8.3V ±1%, the indicator will turn green. The charging process is completed.
Yellow Light: Low battery voltage,small current charging
Red Flashing: No original battery or damage
Red light: battery charging normally
Green Flashing: the battery is charged to 98%
Green Light: Battery charged fully
Compatibility:
For battery Models NNTN4066,NNTN4077,NNTN4103,NNTN4104 ,PMNN4415,PMNN4416,PMNN4418,PMNN4407,PMNN4406,PMNN4409,PMNN4412
For Walkie Talkie Models XiR P6600,P6620,P8200,P8800,DP3400,DP3600 DGP4150,P8608,P8660 DP4800 Series
Specifications:
Charger Dimensions: 38*19*9cm
Weight: 2.9kg
Package Dimension: 50.3*20.5*10.1cm
Input Voltage: 110V-240V
Output Voltage: 12V
Single -Slot Charging: Pre-charge/Constant Current about 600mAh, Constant Voltage: 8.4V± 1%

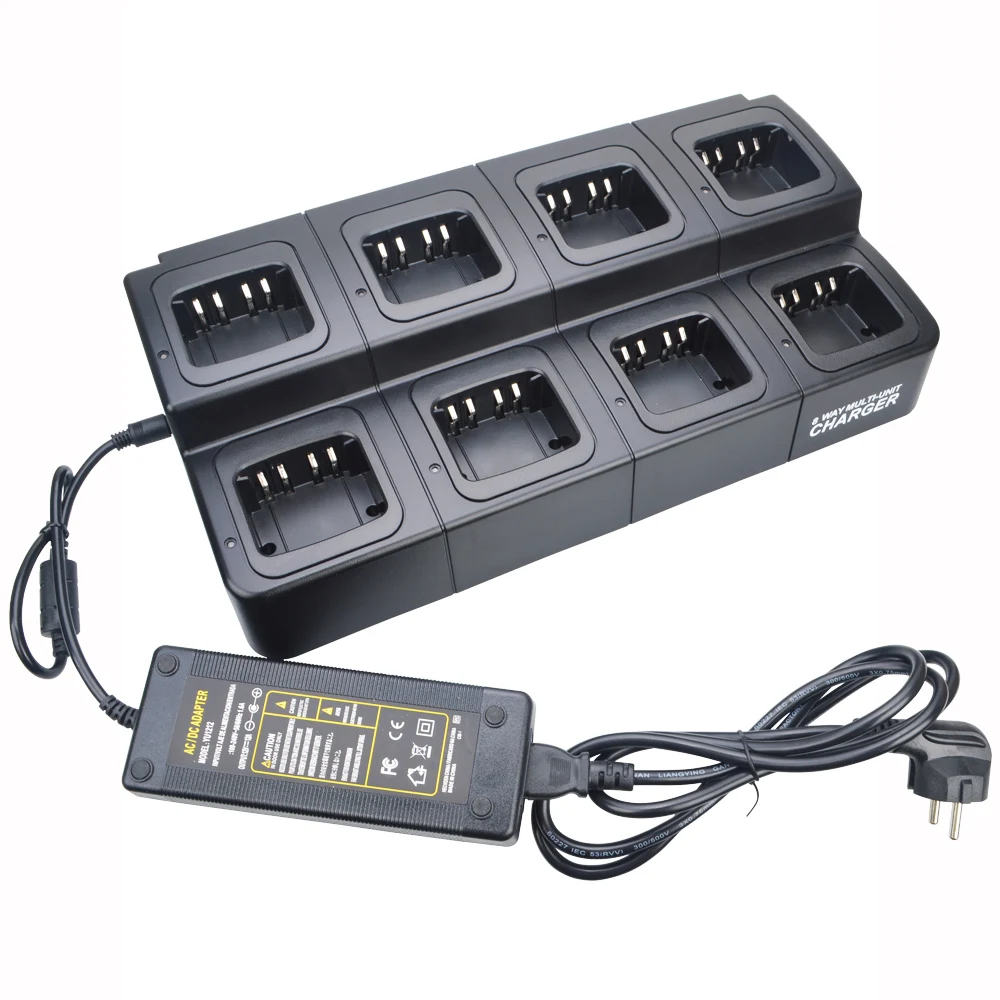

Package Contains:
1×Eight Way Multi-Unit Charger
1× AC/DC Adapter
1× Power Cable with correct plug for your country
