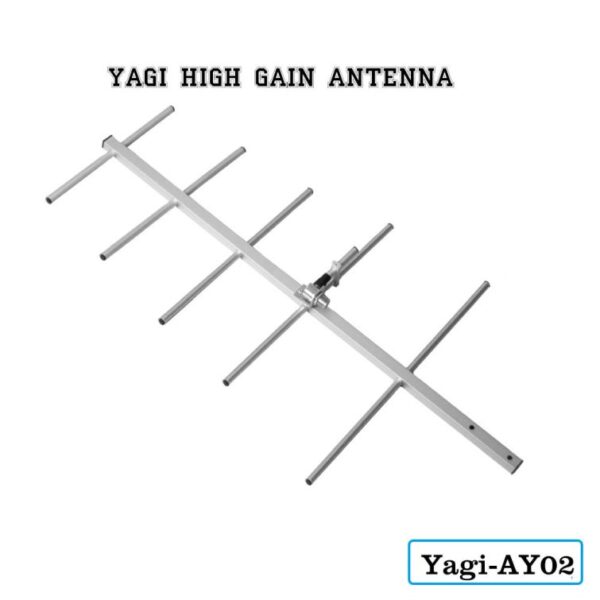

Ailunce AY02 Yagi-Uda Antenna High Gain Yagi Antenna Female Connector Walkie Talkie

Sale!

$49.00

SKU: 171413 Category:

Description

Ailunce AY02 Yagi-Uda Antenna High Gain Yagi Antenna Female Connector Walkie Talkie

Ailunce High Gain Antenna AY02 Yagi Antenna Female Connector Yagi-Uda Antenna Ham Radio antenna For UV-5R UV-82 BF-888S Walkie Talkie

Ailunce AY01

Features:
High gain
Strong directionality
Strong anti-interference ability
Realize long-distance communication
Simple structure and easy disassembly
Lightweight and durable, easy to install
High cost performance

Model:AY02
UHF: 400-470MHZ
Best communication quality in the 430-450 MHz band
Gain:11DBi
connector:SO239(SL16-K)

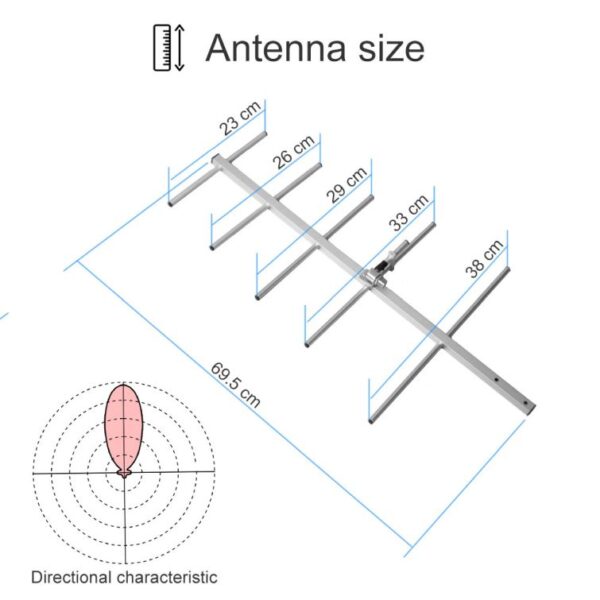

length :69.5cm
weight:0.44KG
for: TYT MD380 MD390 MD398 TC-8000 TC-8200
Baofeng BF-888S BF-9700 BF-C3plus BF-C5plus….
leixeu:note
anysecu:S-338 DM-960 AC-6R AC-8R
PUXING:PX-2R PX-888/PX-888K PX-777







Brand Ailunce Ailunce Ailunce Ailunce
Model AY01 AY02 AY03 AY04
Frequency UHF
400-470MHz
UHF
400~470 MHz
UHF
400~470 MHz
UHF&VHF
136~174 &400~470 MHz


Connector

SL16-K SL16-K SL16-K SL16-K
Length 46cm/18.11inch 45.2cm/17.8inch 72.5cm/28.5inch 92.5cm/36.4inch
Foldable NO YES NO NO
Product Size 460x360x60mm 452x351x47mm 725x380x48mm 925×1045×60 mm
Package Size 470*85*85mm 455*85*50mm 445*60*60mm 445*100*100mm
Weight 0.4Kg 0.4Kg 0.4Kg 0.85Kg
Gain 7 dBi 7 dBi 9 dBi UHF9.5 dBi
VHF11.5 dBi
Element 3 Elements 3 Elements 5 Elements VHF(3Elements)

UHF(5 Elements)





1.AY01

Description:

It can greatly increase communication distance, improve communication quality. Suitable for radio enthusiasts, people with high requirements for wireless communication quality and distance.

Features:

  • High gain
  • Strong directionality
  • Strong anti-jamming
  • Realize long distance communication
  • Simple construction and easy assembly and disassembly
  • Lightweight and sturdy, easy to set up
  • High cost performance

Specifications:

  1. Brand: Ailunce
  2. Model: AY01
  3. Frequency: UHF
  4. Gain: 7 dBi
  5. Max power: 50W
  6. V.S.W.R: Less 1.2
  7. Impedance: 50 ohm
  8. Connector: UHF Female(SL16-K)
  9. Length: 46cm

Note: Best communication in the 430-440MHz band.



2. AY02

Brand: Ailunce

Model: AY02

Frequency: UHF

Length: 45.2cm/17.8inch



Feature

•3 Elements

•Foldable

•High Gain

•Strong directionality

•Strong anti-jamming

•Realize long distance communication

•Simple construction and easy assembly and disassembly

•Lightweight and sturdy, easy to set up

•High-cost performance

Electrical Specifications
Frequency Range 400~470 MHz
Bandwidth 20MHz
Impedance 50Ω
VSWR <1.5
Gain 7 dBi
Polarization Vertical
Horizontal 3dB Beam Width 53°
Vertical 3dB Beam Width 45°
Front To Back Ratio >15 dB
Maximum Power Input-watts 100W
Lighting Protection Direct Ground
Connector SL16.K
Mechanical Specifications
Size 452 x 351x 47mm
Mounting hardware Ø30~Ø40 mm
Rated Wind Velocity 60 m/s
Weight 0.4Kg

3. AY03

Brand: Ailunce

Model: AY03

Frequency: UHF

Length: 72.5cm/28.5inch



Feature

•5 Elements

•High Gain

•Strong directionality

•Strong anti-jamming

•Realize long distance communication

•Simple construction and easy assembly and disassembly

•Lightweight and sturdy, easy to set up

•High-cost performance

Electrical Specifications
Frequency Range 400~470 MHz
Bandwidth 50MHz
Impedance 50Ω
VSWR <1.5
Gain 9 dBi
Polarization Vertical
Horizontal 3dB Beam Width 58°
Vertical 3dB Beam Width 40°
Front To Back Ratio >15 dB
Maximum Power Input-watts 100W
Lighting Protection Direct Ground
Connector SL16.K
Mechanical Specifications
Size 725 x 380x 48mm
Mounting hardware Ø30~Ø40 mm
Rated Wind Velocity 60 m/s
Weight 0.4Kg

4.AY04

Brand: Ailunce

Model: AY04

Frequency: UHF&VHF

Length: 92.5cm/36.4inch



Feature

•VHF(3 Elements), UHF(5 Elements)

•High Gain

•Strong directionality

•Strong anti-jamming

•Realize long distance communication

•Simple construction and easy assembly and disassembly

•Lightweight and sturdy, easy to set up

•High-cost performance

Electrical Specifications
Frequency Range 144 & 430 MHz
Impedance 50Ω
VSWR <1.5
Gain 9.5 dBi / 11.5 dBi
Horizontal Beam Width 53°/ 45°
Vertical Beam Width 48°/ 40°
Polarization Horizontal or Vertical
Front To Back Ratio >12 dB
Maximum Power Input-watts 100W
Lighting Protection Direct Ground
Connector SL16.K
Mechanical Specifications
Size 925×1045×60 mm
Mounting hardware Ø30-Ø60 mm
Rated Wind Velocity 60 m/s
Weight 0.85Kg

Package Include(AY01):

  • 1 x Boom
  • 1 x Driven Element (DE)
  • 1 x Director (D)
  • 1 x Reflector (Ref)
  • 1 x Clamp

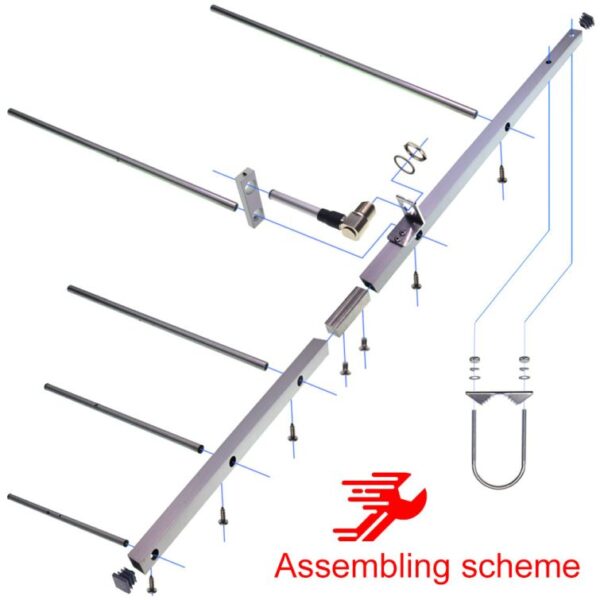

  • 1 x Installation Diagram
  • 6 x gum cover
  • 4 x Screw

Package Includes(AY02)

Ailunce AY02 Foldable Yagi Antenna



Package Includes(AY03)

Ailunce AY03 High Gain Antenna



Package Includes(AY04)

Ailunce AY04 High Gain Antenna

Ailunce AY02 Yagi-Uda Antenna High Gain Yagi Antenna Female Connector Walkie Talkie

Additional information

Weight 0.6 kg
Dimensions 500 × 300 × 100 mm
