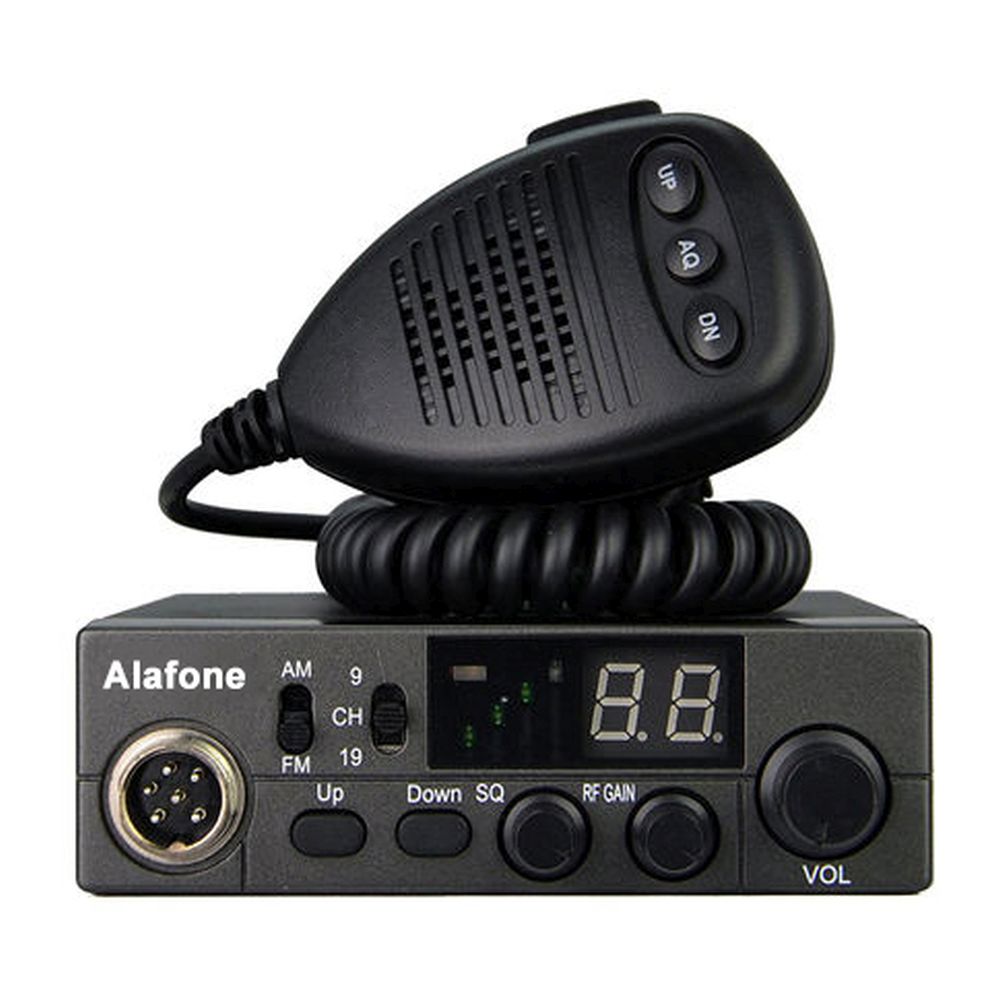

Alafone ALF298 High Quality 26MHz -27MHz Amateur AM FM CB Radio

Original price was: $99.00.Current price is: $49.99.

+ Free Shipping
Quantity Discount (%) Price
1 $49.99
2 - 4 2.1 % $48.94
5 - 9 6.22 % $46.88
10+ 12.26 % $43.86

Alafone ALF298 High Quality 26MHz -27MHz Amateur AM FM CB Radio

AM/FM 10m Radio Home CB Radio​

CE 4W 27 MHZ CB Radio Mobile Radio

​Two Way Base Station Transceiver AM FM Mobile Radio CB Base Station Radio

100mile Walkie Talkie 27MHz 12V/24V AM FM CB Radio

Two Way Base Station Transceiver AM FM Mobile Radio CB Base Station Radio

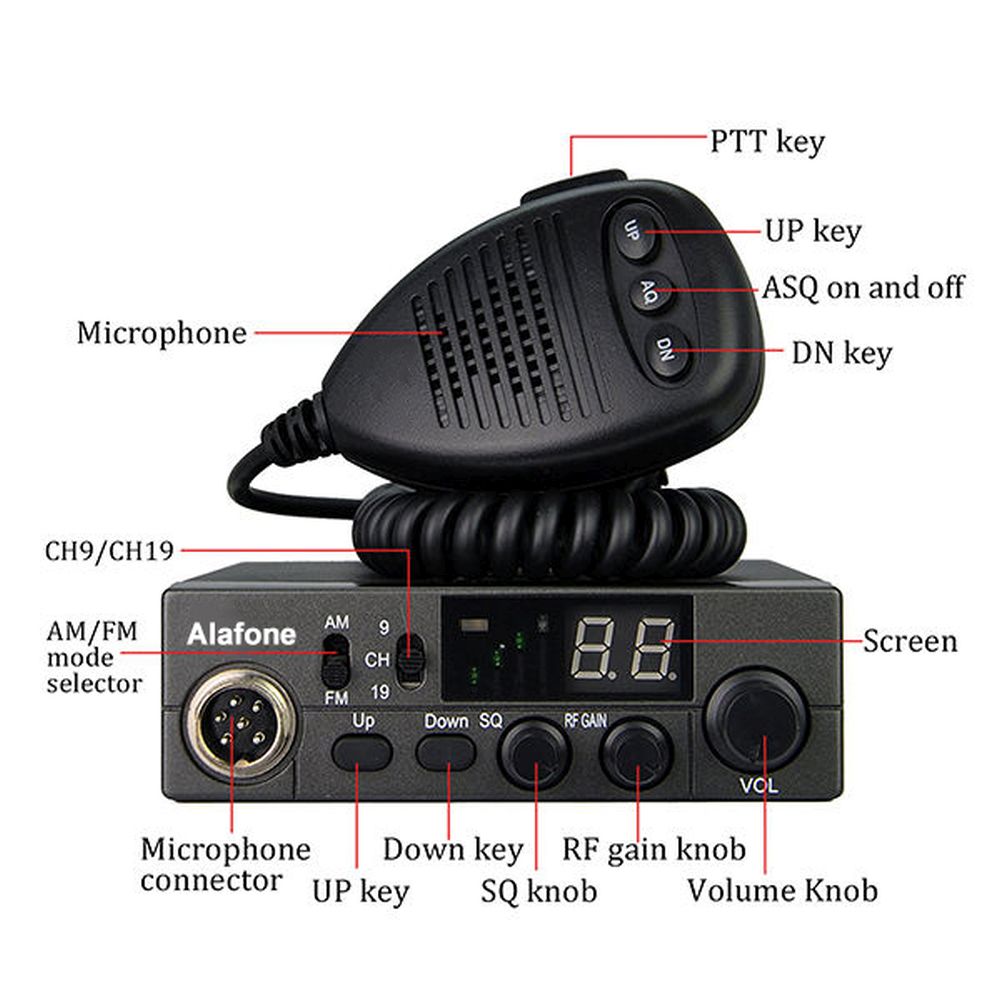

Feature:
Stable quality as LEGEND II;
4W RF power
40 AM/FM channels
Channel 9 and channel 19 switch
Mode AM/FM switch
With adjustable ASQ
RSSI indication (4-digit LED indication)
2 Digit channel indication
RF gain control
Volume with power ON/OFF control
TX/RX LED indication
Up/Down microphone
Front microphone plug
Jack for external speaker
Manual Squelch

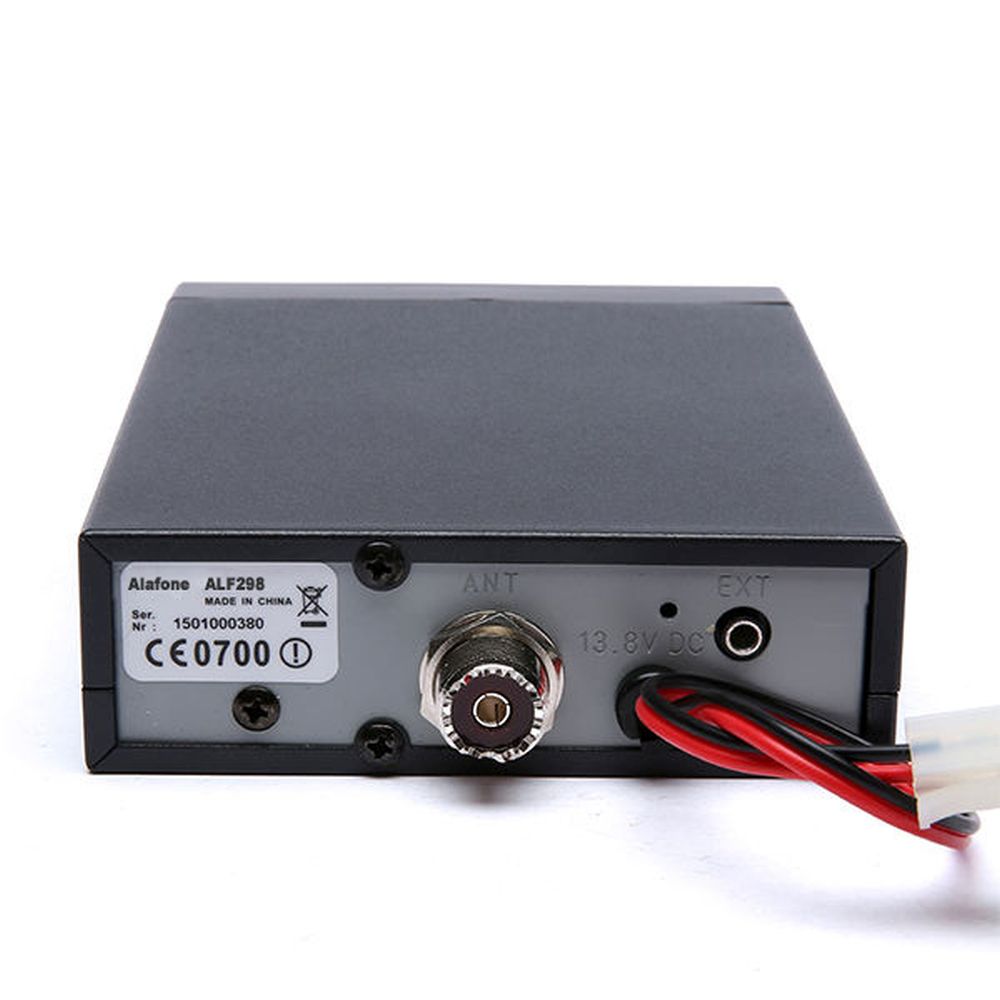

ANT Connector
FREQ. expanding (A,B,C,D,E,F,POLAND and NZ band)

Specifications:

GENERAL
Channels 40 AM/FM
Frequency range 26.960-27.400MHz
Frequency control P.L.L.
Operating temperature -20°/+55°C
DC input voltage 13.8Vdc ±15%

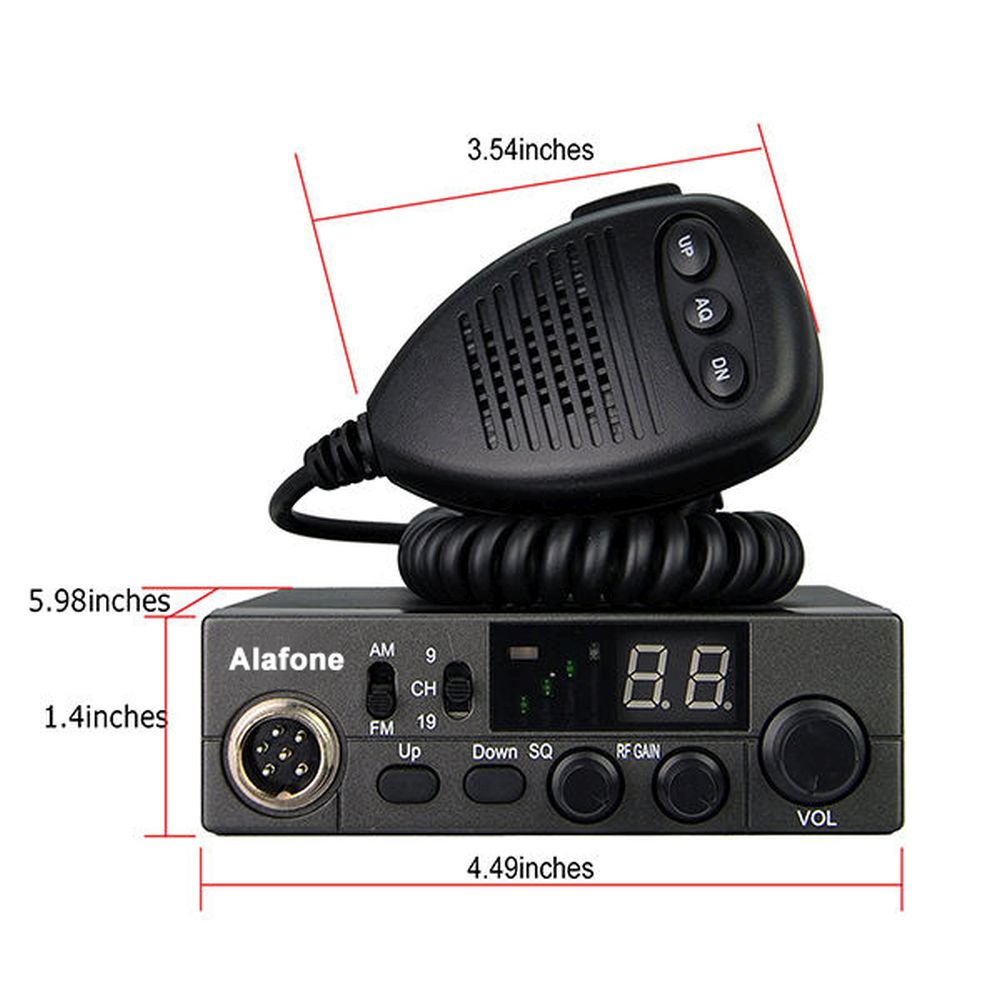

Size 115 (L) x 38 (A) x 150 (P) mm
Weight 0.8 kg
RECEIVER
System CPU controlled Double conversion super
IF 1° 10.7 MHz / 2° 450 KHz
Sensitivity -120dBm for 12dB SINAD (FM)
-107dBm for 12dB SINAD (AM)
Audio output @10% THD 2.5W at 8 ohm
Audio distortion <8% at 1 KHz
Image rejection 65dB
Adjacent channel 85dB
Signal ise ratio 45dB
Current drain 220mA (stand-by)
TRANSMITTER
System CPU controlled P.L.L. synthesizer
Maximum RF power 4W at 13.8Vdc
Modulation 85% to 90% (AM)
1.8 KHz ±0.2 KHz (FM)
ANT impedance 50 ohm unbalanced
Current drain 1500mA (at no modulation)

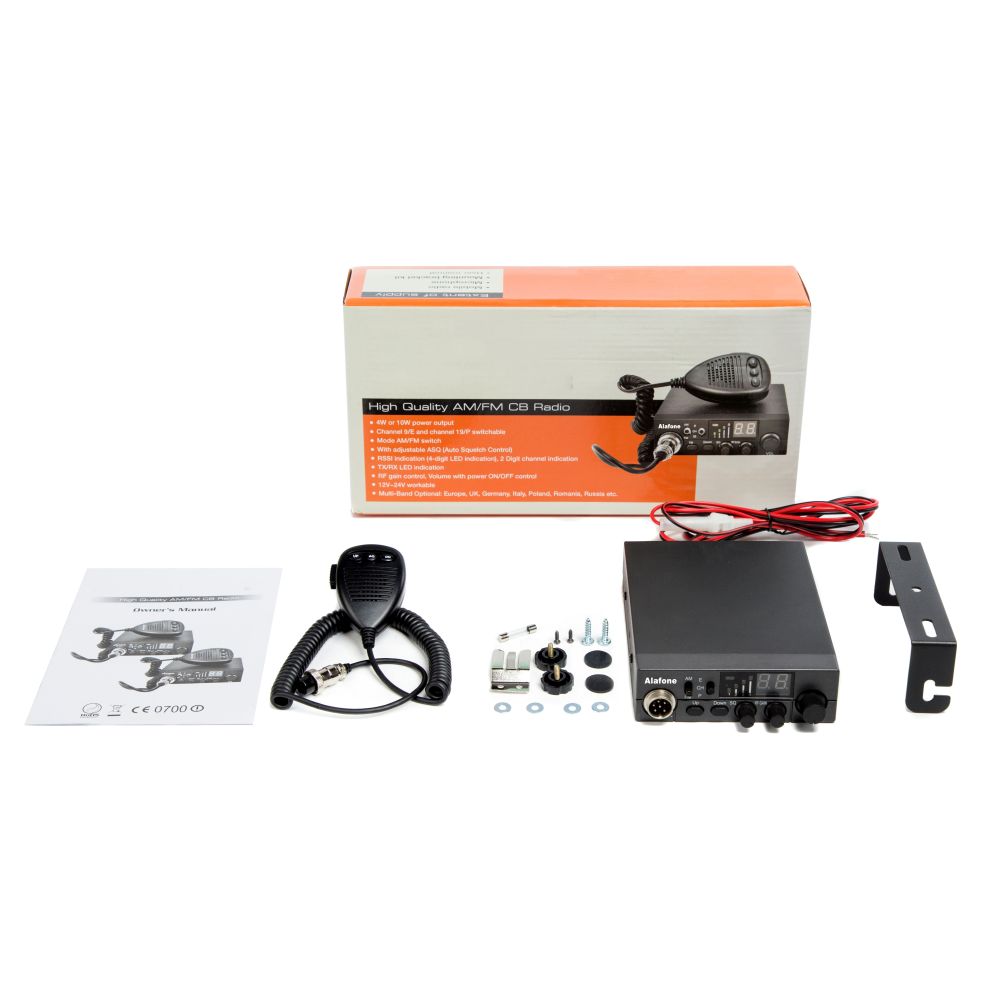

Package Included:

1*CB Mobile Radio

1*Microphone

1*Bracket

1*Screw set

1*Manual in EN

Weight 1 kg
Dimensions 40 × 30 mm
