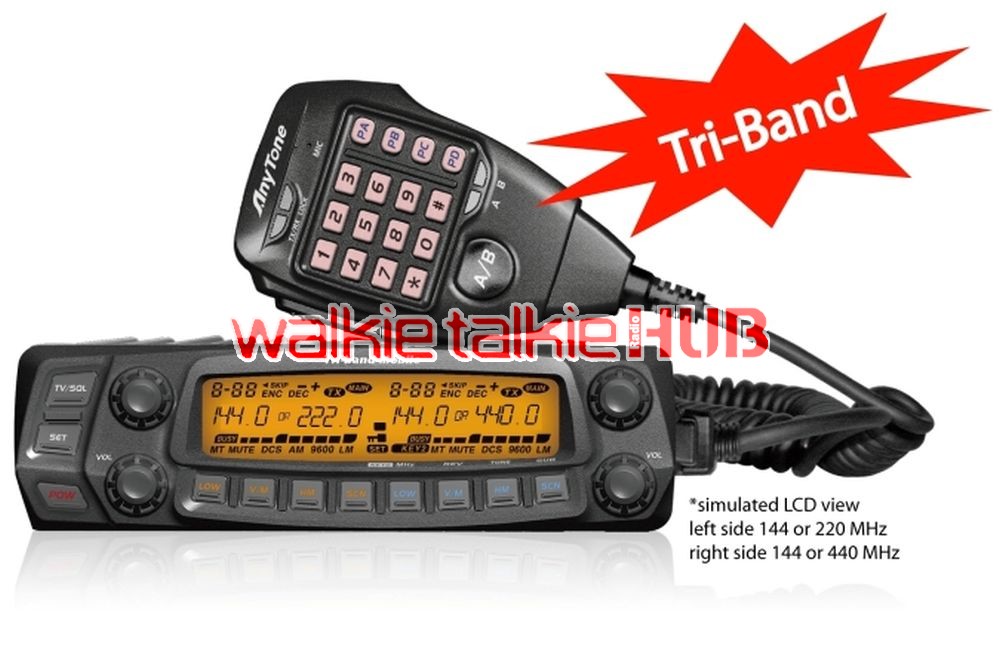

AnyTone AT-5888UV III Tri-Band 2 Meter 220 MHz 70 Cm Mobile Transceiver

AT-5888UV III TRI-BAND Mobile Radio

Model: AT-5888UV III Tri-band

Series Model: 5888 TRI-BAND, 5888III

(Model Different All the same except for the model name.)

Communication Type Voice / Tone only

Modulation FM

Power Supply DC 13.8V by DC source



Frequency Range:

RX: VHF 1: 136-174MHZ, UHF1: 220-260MHZ, UHF2: 400-512MHZ

TX: VHF1: 144-148MHZ, UHF1: 222-225MHZ, UHF2: 420-450MHZ



Function:

Working Mode: Full duplex on UU, UV, VV, UV or VU as repeater mode

Dual Receive: Consist with A & B band

Power: VHF1: 55W/25W/10W/5W  UHF1: 25W/10W/5W, UHF3: 45W/25W/10W/5W

758 memory channels

CTCSS+DCS+DTMF+2Tone/5Tone encode and decode

Bandwidth: 12.5KHZ/25KHZ

Compander

Scramble function (9 groups fixed+2groups be defined by user)

Channel step: 2.5/6.25/10/12.5/15/20/25/50KHZ

ANI function (DTMF/ANI, 5-Tone/ANI) PTT ID.

DTMF Microphone
