AnyTone AT779 Miniature UHF VHF Mobile FM Transceiver

• 15W/10W/5W UHF Mobile Radio Transceiver. 199 programmable memorized channels
• Frequency Range: UHF: 400-490MHz,Various scan functions including CTCSS/DCS scan function
• Automatic calling Identification function by CTCSS or DCS signaling
• Narrow Band compliant,Different band width per Channel, 25K for wide band, 12.5K for narrow band
• AT-779 Mobile Radio has nice housing, stoutness & stability,advanced and reliable functions, perfect& valuable. This amateur mobile radio especially designs for drivers and it pursues company philosophy of innovation and practicality.

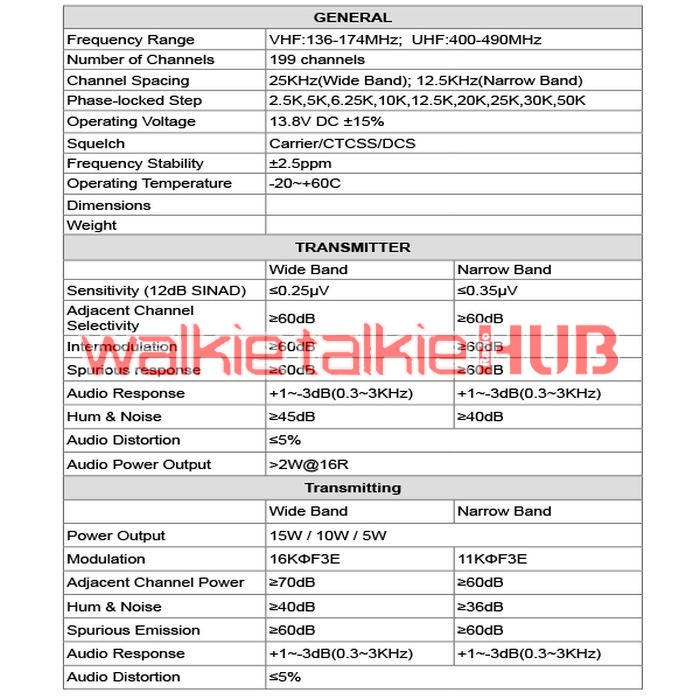

SPECIFICATIONS

GENERALFrequency Range: 136-174MHz Or 400-490MHzNumber of Channels:199 channelsChannel Spacing:25KHz(Wide Band);12.5KHz(Narrow Band)Phase-locked Step: 2.5K, 5K, 6.25K, 10K, 12.5K, 20K, 25K, 30K,50K.Operating Voltage:13.8V DC±15%Squelch:Carrier/CTCSS/DCS

Frequency Stablility:±2.5ppm

Operating Temperature:-20℃~+60℃

Dimensions：109x104x25mm

Weight：421g

TRANSMITTER

Sensitivity(12dB SINAD) Wide Band: ≤ 0.25μV Narrow band:≤ 0.35μV

Adjacent Channel Selectivity: Wide band: ≥60dB Narrow band:≥60dB

Intermodulation:Wide band: ≥60dB Narrow band:≥60dB

Spunous response:Wide band: ≥60dB Narrow band:≥60dB

Audio Response:+1～-3dB(0.3～3KHz) Narrow band:+1～-3dB(0.3～3KHz)

Hum&Noise :Wide band:≥45dB Narrow band:≥40dB

Audio distortion:≤5%

Audio power output:>2W@8Ω

Transmitting

Power Output: Wide band:15W/10W/5W Narrow band:15W/10W/5W

Modulation:Wide band:16KΦF3E Narrow band:11KΦF3E

Adjacent Channel Power:Wide band:≥70dB Narrow band:≥60dB

Hum&Noise:Wide band:≥40dB Narrow band:≥36dB

Spurious Emission:Wide band:≥60dB Narrow band: ≥60dB

Audio Response:+1～-3dB(0.3～3KHz) Narrow band:+1～-3dB(0.3～2.55KHz)

Audio Distortion:≤5%

ACCESSORIES

AnyTone AT779 Radio, Install Bracket, Fuse(5A 250V), non-slip mat, User Manual, Microphone Hanger, Adjusting Screws, Screws, Pads
