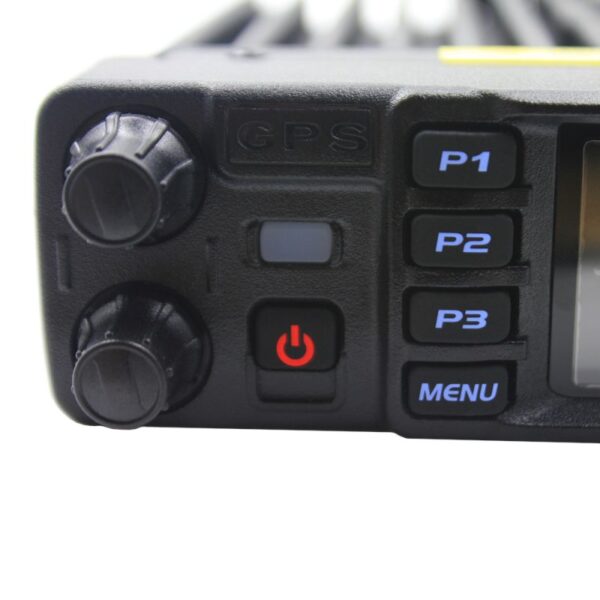

DMR AT-D578UV III Pro Anytone Pro GPS APRS PTT Bluetooth Car Radio Commercial Radio communicator AT 578 for truck taxi
Anytone AT-D578UVIIIPRO 50W DMR digital mobile Radio Tri-band Walkie Talkie with GPS APRS Bluetooth
Anytone DMR radio At-d578uv Dual Band GPS radio transmitter communicator for communication

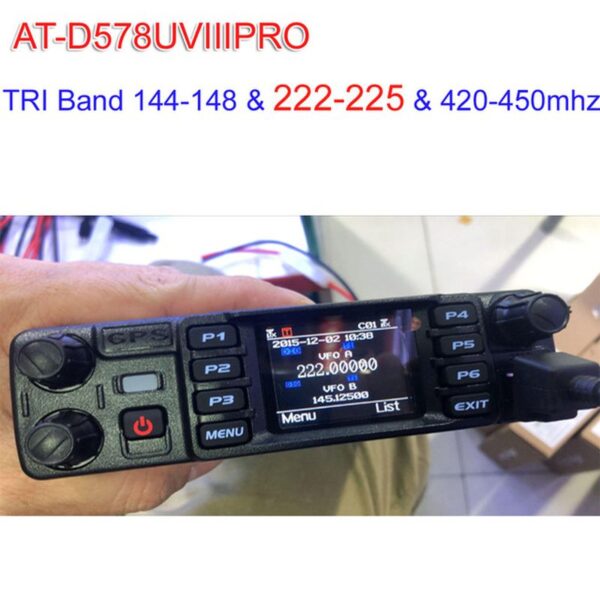

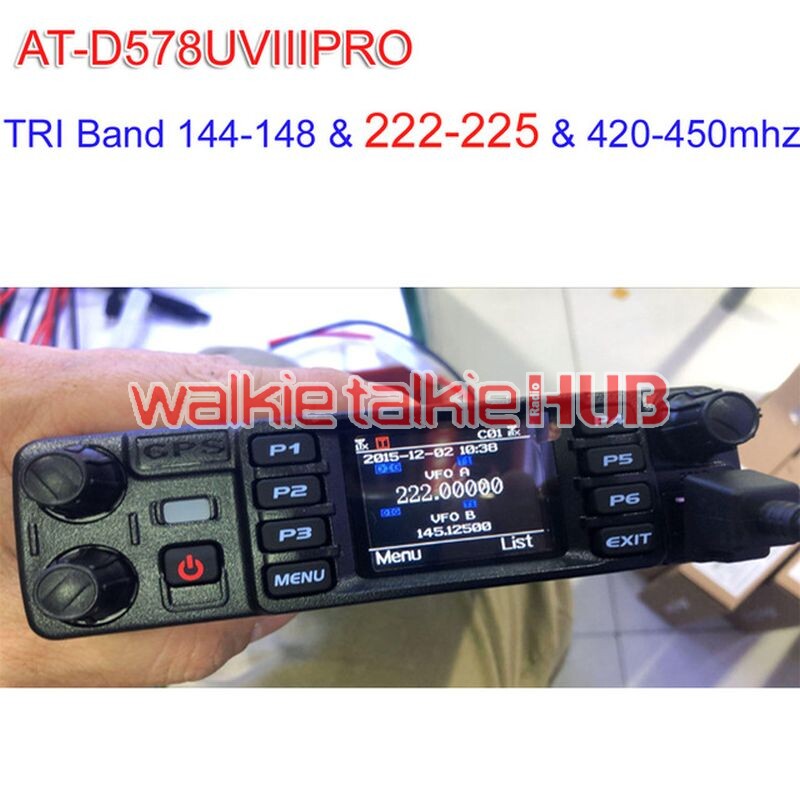

- AnyTone AT-D578UV III Pro Tri-Band Amateur DMR/Analog Mobile with Bluetooth GPS
- Free programming cable, Software and user guide on the USB thumb drive
- AnyTone Tri-Band DMR/Analog Amateur ATD578UV III Pro Mobile Radio with GPS and Built-in Bluetooth!
- Dual RX simultaneously (Analog +DMR or Analog +Analog)
- Cross Band Repeater Function
Dual RX simultaneously (Analog +DMR or Analog +Analog)
Cross Band Repeater Function
(FCC ID: T4K-D578UV)
Bluetooth(Built-IN)
Roaming (Auto/Manual)
Repeater Check (Out-of-range checking for repeater)
Talker Alias (Send and Displays)
Analog and DMR APRS
Custom Standby background picture
Compatible with 868 and 878 Codeplug
Dual-mode (Digital+Analog)
Features:
• Working Mode: Full duplex on UU, UV, VV,VU. Dual RX(Analog+DMR or Analog+Analog)
• True-2-slot: Provide 2-slot communication which allows for 2 talk paths on 1 frequency; ETSI DMR Tier I and II compliant
• Power: VHF 60W/25W/10W; UHF 50W/25W/10W
• Auto-senses digital or analog reception
• 4000 channels + VFO; 10,000 Talk groups with 200,000 digital contacts
• Support Contact Manager
• Display: 1.77 inch TFT color LCD, dual display; dual PA; dual PTT
• Bandwidth: 12.5K/25K (Analog); 12.5K (DMR);
• Weather Alerts
• VOX Function; Digital Recording and Play
• DTMF/2TONE/5TONE encode and decode
• AES256 digital encryption; Zone selection
• SMS via keyboard
• Crossband repeater function
• Ranging function between radios with GPS
• Roaming function; Talker alias function
• Emergency alarm (with GPS data transmission)
• IP connect to Repeater
• Duplexer Talk(Optional)
• Call interrupt(Optional)
Specification:
GENERAL | |
Frequency Range | 136-174MHz (V) , 400-490MHz (U) |
Channel Capacity | 4000 channels |
Channel Spacing | 25KHz (Wide Band) 12.5KHz (Narrow Band) |
Phase-locked Step | 5KHz, 6.25KHz |
Operating Voltage | 13.8V DC ±20% |
Frequency Stability | ±2.0ppm |
Operating Temperature | -20℃~ +55℃ |
TRANSMITTER | |
Power Output | VHF: 50/25/10/5W UHF: 45/25/10/5W |
Modulation limit | ±5.0KHz 25KHz (Wide Band) ±2.5KHz 12.5KHz (Narrow Band) |
Adjacent Channel Power | ≥70dB (Wide Band) ≥60dB (Narrow Band) |
Hum & Noise | ≥40dB (Wide Band) ≥36dB (Narrow Band) |
Spurious Emission | ≥70dBc (Wide Band) ≥70dBc (Narrow Band) |
4FSK Digital Modulation | 12.5KHz(data)7K60FXD 12.5KHz(data+voice)7K60FXE |
Audio Distortion | ≤5% |
Error rate | ≤3% |
RECEIVER | |
Sensitivity (12dB SINAD) | ≤0.25μV (Wide Band) ≤0.35μV (Narrow Band) |
Digital Sensitivity | 0.3uV/-117.4dBm (BER 5%) 0.7uV/-110dBm (BER 1%) |
Adjacent Channel Digital Sensitivity Selectivity | ≥70dB (Wide Band) ≥60dB (Narrow Band) |
Spurious Emission | ≤-57dB (Wide Band) ≤-57dB (Narrow Band) |
Spurious Rejection | ≥70dB (Wide Band) ≥70dB (Narrow Band) |
Blocking | 84db |
Hum & Noise | ≥45dB (Wide Band) ≥40dB (Narrow Band) |
Audio Distortion | ≤5% |
Audio Power Output | ≥2W |
Standard Accessories:
1 x AnyTone AT-D578UV III Pro Tri-Band Mobile Radio
1 x Speaker Microphone
1 x Mobile Mounting Bracket
1 x DC Power Cable with Fuse Holder
1 x USB Programming Cable
1 x Screws
1 x USER Manual
