Anytone AT-D878UV Plus GPS APRS DMR Bluetooth PTT UHF VHF Dual Band Digital Radio

Original price was: $368.00.Current price is: $239.00.

+ Free Shipping

Anytone AT-D878UV Plus GPS APRS DMR Bluetooth PTT UHF VHF Dual Band Digital Radio

Ham radio AnyTone AT-D878UV PLUS Digital DMR And Analog UHF/VHF Dual band Bluetooth PTT walkie talkie with FM,VOX, GPS, APRS

The AnyTone D878UV radio is a VHF and UHF radio with both Digital DMR (Tier I and II) and Analog capabilities. All the features of the excellent Anytone 868 with the addition of Roaming & Analogue APRS support (Includes GPS as standard)
Offering a total of 4,000 channels (Analog and Digital), 10,000 Digital Talk Groups, and up to 150,000 contacts, as well as multiple DMR ID numbers (Radio ID’s) for a single radio.
This enables Moonraker to supply it preprogrammed with all UK DMR and analogue vhf/uhf repeaters
Supplied with a 3300 mAh battery the radio will give a good working days performance.The Anytone AT-D878UV is a talky for the DMR digital system (compatible with MOTOTRBO Tier 1 and 2), it is also analogue in FM. Unlike many other DMR equipment, the AT-D878UV offers real VFO function. With it, you can set the desired frequency and configure it as usual, instead of limiting yourself to accessing only pre-programmed memory channels. Of course, the Anytone D878UV also has memory channels, 4000 to be exact. But you do not need to depend on pre-programmed channels. Another difference with other DMR equipment is that it has the possibility to change most of its parameters (not all). Therefore, you do not have to depend on a PC to make any changes to the configuration. However, there are certain parameters, such as the DMR ID, which you can only use with the free PC program.

New The AT-D878UV is the successor to the immensely popular D868UV. The novelty of this radio are, among other things, the APRS functions. The `878 ‘has more internal program memory, which allows the manufacturer to incorporate more functions into the software. For example, you can now configure all APRS parameters through the menu, there is no need to reprogram the code connector for such changes. And another new feature is the ‘roaming’, that is, the function in which a repeater is automatically selected by checking the accessibility of the repeaters from a predefined list of repeaters.

The AT-D878UV has many interesting features. You can memorize 4000 memories (digital and / or analog); 10000 groups or TGs and up to 150,000 contacts. In analog mode, you have functions like DTMF, CTCSS and DCS as well as coding with 2 or 5 tone signals. Also available 1750 Hz tone send. Talky has 5 buttons to which you can assign certain functions, each user can adjust the talky according to their preferences. Its large 1.77 “full color screen has different intensity levels and it looks good, even in sunlight.To save battery, the light on the screen can be turned off with the interval you choose.

It is also good to highlight the possibility of storing multiple DMR ids. Therefore, this talky is valid for professional environments and then, with another ID, for amateur radio bands. For example, several people can share it. The Anytone D878UV has a GPS receiver, so that, if you wish, issue the location of the talky. The AT-D878UV is Bibanda with 2m (VHF) and 70cm (UHF), in both bands you can output analogue or digital DMR. Also, receive in commercial FM (WFM) to listen to your favorite stations. The emission power has 4 values, from 1 to 6w in VHF and 7w in UHF. The headset / microphone connection is compatible with Kenwood or Wouxun. The antenna connector is SMA, the Diamond antennas are excellent, for example those of the “J” class. The programming cable is included with the talky, you will not have to look for it, the programming software is downloaded for free from the manufacturer’s website.

Characteristics of the Anytone AT-D878UV

1.77 color screen

10-keys, 5 programmable buttons

Bibanda 2m / 70cm (V / U, V / V, U / U)

Channel width of 12.5 / 25 kHz (analog) or fixed 12.5 kHz (DMR)

Digital: DMR (Tier I / II) and FM analog

WFM reception 87.5 – 108 MHz

Up to 5 DMR Indicators

4000 Memories, 10000 Talkgroups, 150000 user entries (contacts)

250 Zones (memory mbanks)

Show the ID (Indicative) of the stations

2 slots and all color codes

Powers 1, 2.5, 5, 6 (UHF) / 7 (VHF) W

Automatic recognition of analog / digital mode

1750 Hz tone send

Squelch tone CTCSS, DCS

Call tone: DTMF, 2 tone, 5 tone

GPS receiver

New APRS on FM or DMR

New APRS settings per menu

Recording and retransmission of received signals (Only in DMR)

New Roaming (selection of a reachable repeater from a pre-defined list)


New Ready for the Bluetooth option (see note).

Protection IP54

Compatible with Kenwood / Wouxun accessories

12v table top charger for use at home or in the carOutstanding


1.APRS Receive

Turn APRS Receive, if both radio GPS is positioned, the radio will display the other radio’s distance and position when radio is receiving.

The APRS will be displayed on the menu of the radio when the radio GPS function is “ON”.

2. The radio comes with Built-in Bluetooth module, it can be connected to any Bluetooth headsets universally by using the Bluetooth PTT to transmit signal to your partner.


1.77 inch color screen

5 programmable buttons

DMR Digital Tierr I & Tierr II (compatible with MOTOTRBO Tier 1 & II)

4000 Memories, 10000 Talkgroups, 150000 user entries (contacts)

250 Zones

2 slots and all color codes

Built-in Bluetooth Module in the radio with Bluetooth PTT


Analog & DMR APRS


Recording and retransmission of received signals (Only in DMR)

FM Radio 87.5-108MHz reception only

1750 Hz tone


DTMF, 2 tone, 5 tone

Frq step: 2.5/5/6.25/10/12.5/20/25/30/50KHz

3300mAh Li-ion battery pack

Weather Alarm

1000HZ/1450Hz/1750Hz/2100Hz TBST Seletable


Frequency Range VHF: 136-174MHz UHF: 400-470MHz
Memory Channels 4000
Channel Spacing 25KHz(Wide Band), 12.5KHz (Narrow Band)
Phase-locked Step 5.0/6.25KHz
Frequency Stability ±2.5ppm
Operating Temperature -20°c to +55°c
Operating Voltage 7.4V DC±20%
Dimensions 129*61*39mm
Weight 282g(with battery pack, antenna
Receiving Part
Wide band Narrow band
Sensitivity(12dB SINAD ≤0.25µV ≤0.35µV
Digital Sensitivity 0.3uV/-117.4dBm(BER 5%)

0.7uV/-110dBm (BER 1%)

Adjacent Channel Selectivity ≥70db ≥60dB
Spurious Emission ≤-57dB ≤-57dB
Spurious Rejection ≥70dB ≥70dB
Blocking 84dB
Hum & Noise ≥45dB ≥40dB
Audio Distortion ≤5%
Audio Output power 1000mW/16 ohm
Transmitting Parts
Wide band Narrow band
Output Power VHF: 7/5/2.5/1W, UHF: 6/5/2.5/1W
Modulation Mode ±5.0KHz 25KHz ±5.0KHz 12.5KHz
Adjacent Channel Selectivity ≥70dB ≥60dB
Hum & Noise ≥40dB ≥36dB
Spurious Emission ≤-36dB ≤-36dB
4FSK Digital Modulation 12.5KHz(data) 7K60FXD

12.5KHz(data+voice) 7K60FXE

Audio Distortion ≤5%

Notes: Above Specifications are subject to change without any notice due to technology enhancement

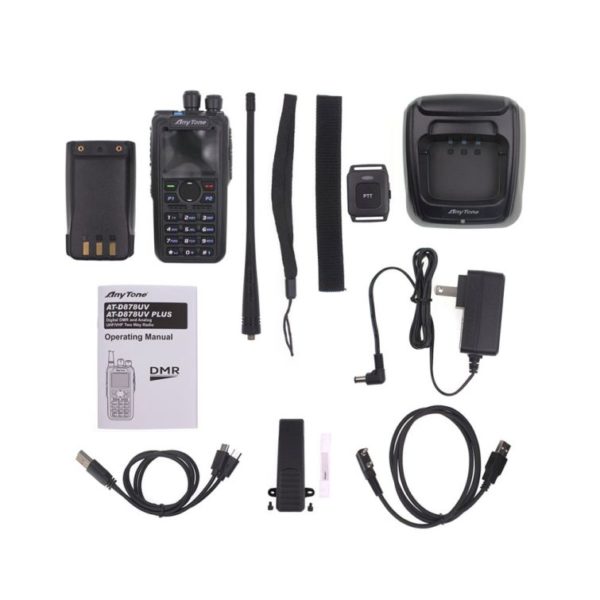

Package Contents:

1×Anytone AT-D878UV Plus Bluetooth Radio

1×7.4V 3300mAh Li-ion Battery Pack

1×Bluetooth PTT

1×USB Programming Cable


1×Belt Clip

1×Desktop Charger with AC adapter

1×Radio ENG Manual

1×Bluetooth ENG Manual

1×Hand Strap

Weight 1 kg
Dimensions 600 × 400 × 100 mm
