BaoFeng BF-F8+ Dual Band Radio


& Free Shipping
SKU: 170203 Category:
Guaranteed Safe Checkout

Baofeng amateur radio BF-F8+ two way radio 136-174MHZ/400-520MHZ Dual Band walkie-talkie


1. Dual band/dual display/dual standby: A/B band independent operation( UV UU VU VV )

2. 128 groups channels storage: Shortcut menu operation mode

3. VFO & Memory channels scan: Emergency Alarm

4. Time-out Timer (TOT): 0~9 grades VOX selectable

5. PTT & ANI ID: FM radio and 25 stations storage

6. Voice companding: 50 CTCSS/105 DCS

7. High/Low TX power selectable: DTMF function

8. Wide/Narrow Band(25kHz/12.5kHz)

9. VOX function

10. Busy channel lock-out(BCLO)

11. Busy lockout function

12. Scanning function

13. Monitor function

14. Time-out Timer (TOT)function

15. LCD display

17. Dual display

18. Battery voltage display function

19. Channel name display and editing functions

20. Signal strength indicator

21. Keypad lock function

22. Built-in Led torch

23. FM radio

24. Wire clone function

25. Emergency alarm function

26. Low battery alarm

27. Power saving function

28. Tone end of transmission

29. Chinese and English voice prompt

30. PC software programmable


•Frequency Range:   136-174MHzFeatures:

400- 520MHz

•Storage Channel:   128

•Step Frequency:   2.5/5/6.25/10/12.5/20/25KHz

•Rated voltage:   DC 7.4V

•Frequency Stability:   ±2.5ppm

•Work Temperature :   -20°c  to +60°c

•Battery Capacity:   H-1800m Ah (Li-ion Battery)

•Battery Life:   About 11 Hours

•Frequency Combination:   PLL frequency synthesis

•Antenna Impedance:   50 Ω

•Wok Mode:   Same Frequency  simplex Operation or Different Frequency  simplex Operation

•Dimension:   110x58x32 mm (Excluded Antenna)


•Output power:   5W / 1W (Max 5W)

•Modulation Mode:   16kF3E / 11kF3E

•Maximum deviation:   5kHz(Wide) /  2.5kHz(Narrow)

•Spurious Radiation:   7W

•Adjacent Ch. power:   -65dB(Wide) / -60dB(Narrow)

•Pre-emphasis characteristics:   6dB

•Current:   1.6A(5W)

•CTCSS/DCS deviation:   0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow)

•Intermediation sensitivity:   8-12mv

•Intermediation distortion:   10%

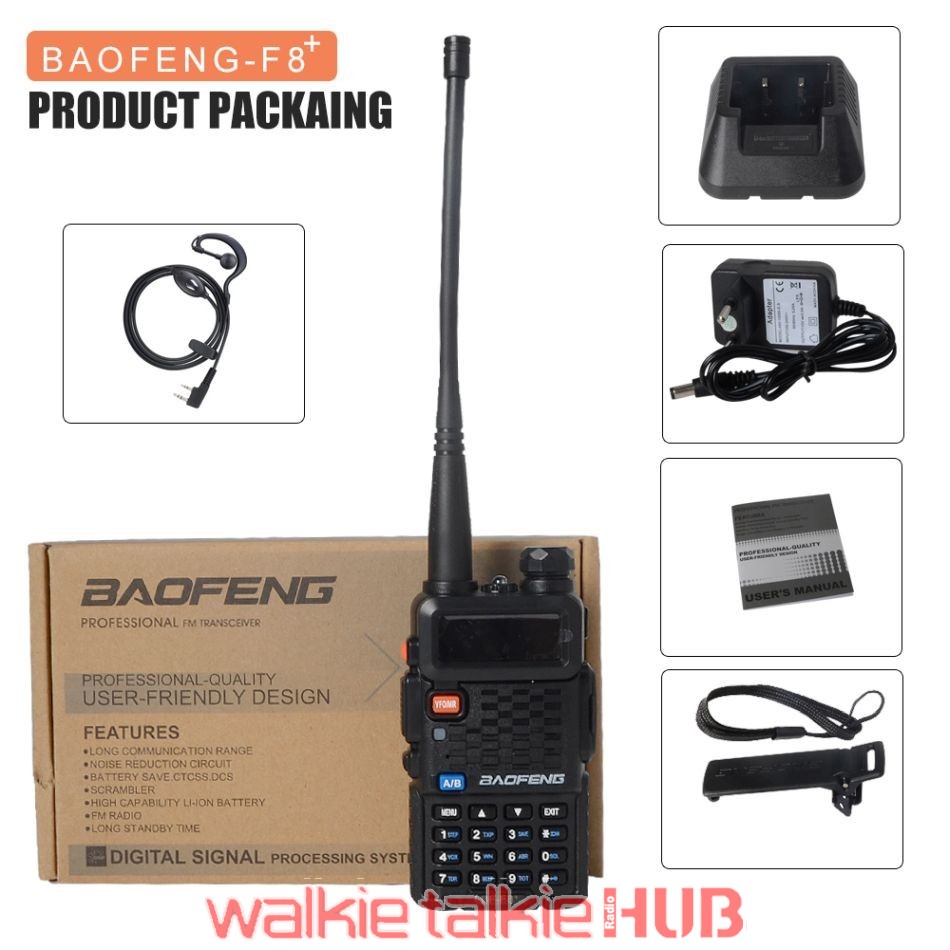

1 x BaoFeng BF-F8+ (VHF136-174MHz / UHF 400-520MHz) Two-Way Radio

1 x 7.4V 1800mAh Li-ion Battery Pack

1 x Antenna 136-174/400-479.995Mhz

1 x Earphone Mic/Headset

1 x Belt Clip

1 x Hand Strap

1 x Adapter

1 x Desktop Charger ( 100V ~ 240V )

1 x ENG Manual

Weight 0.7 kg
Dimensions 160 × 100 × 50 mm
