Baofeng DMR DM-1701 RD-5R Open GD77 Dual Mode Analog And Digital Walkie Talkie Tier 1+2 Dual Time Slot Ham Two Way Radio

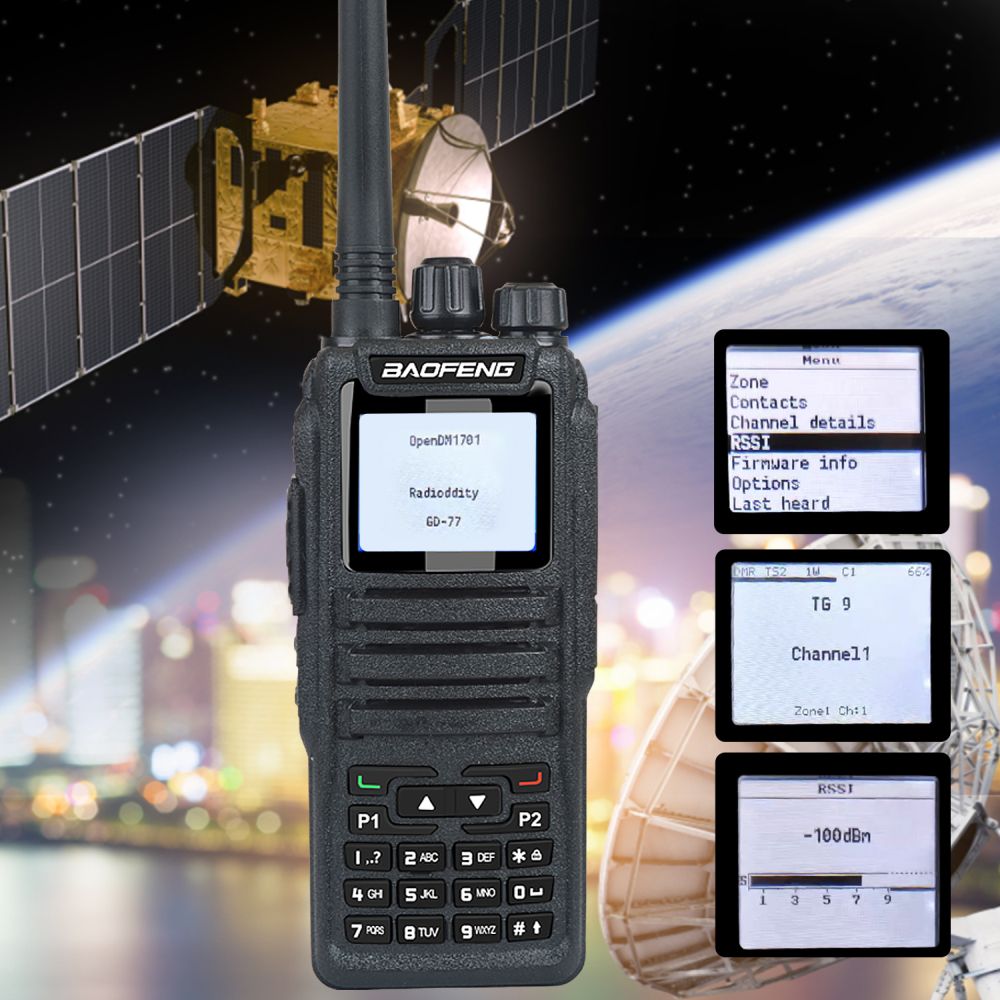

Perfect support for opengd77 programs

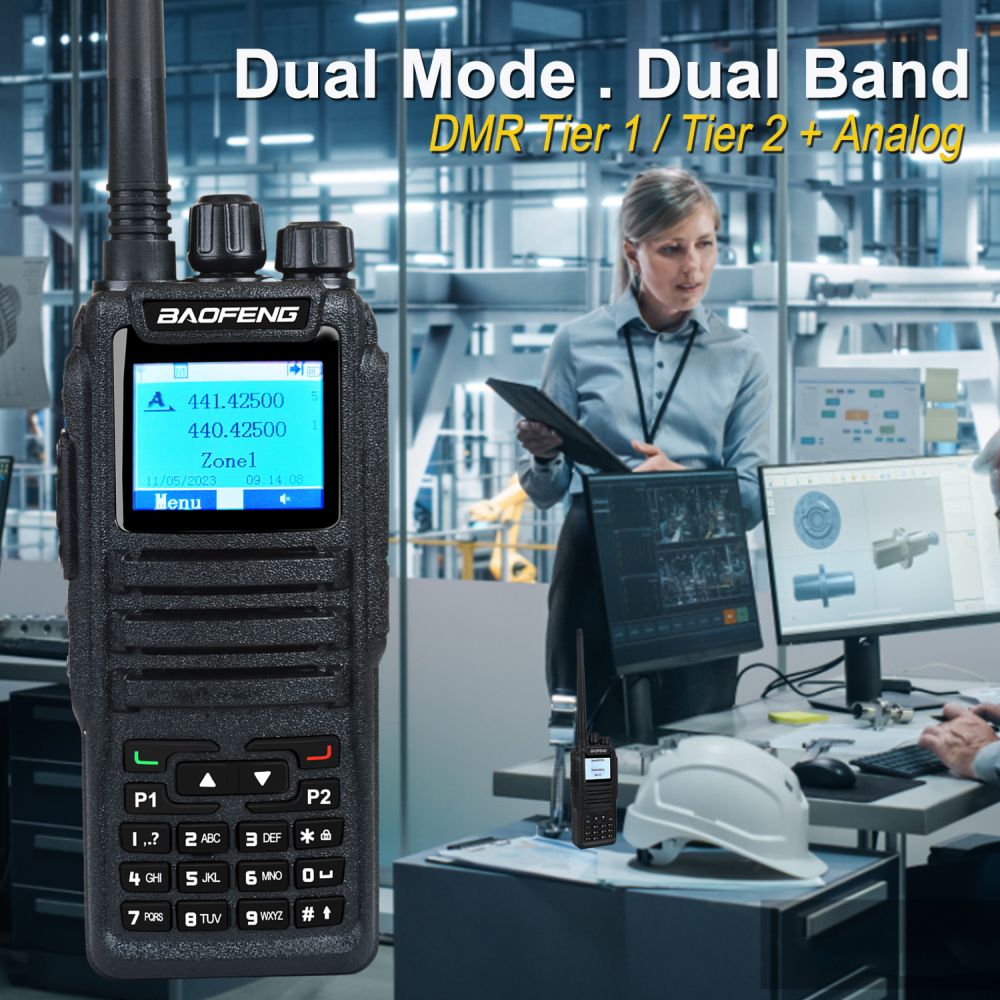

✧ [Digital & Analog Compatible] – FCC Part90 Certification ID: 2AJGM-DM1701. The DM-1701 is compatible with digital and analog modes, including dual band VHF/UHF coverage of 136-174 and 400-470 MHz. It has up to 3,000 Channels, 10,000 Digital Talk Groups and 120,000 Contacts.

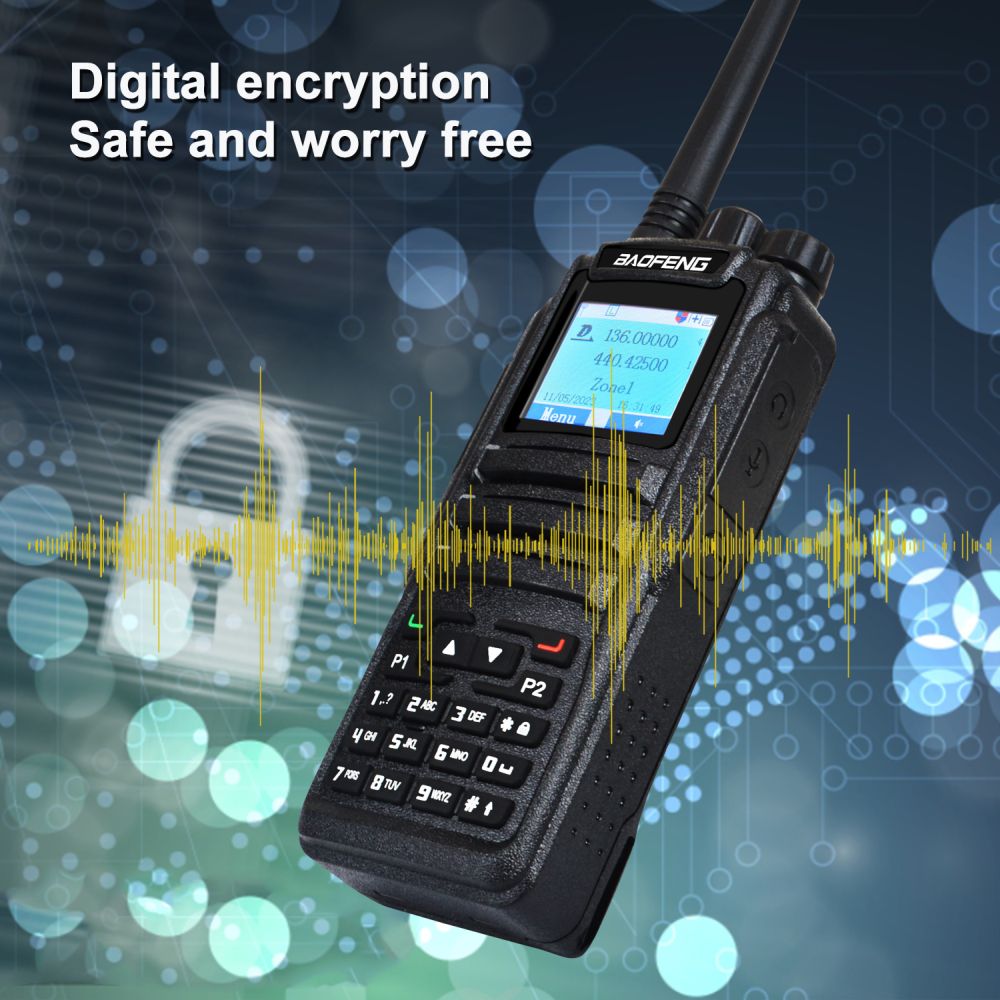

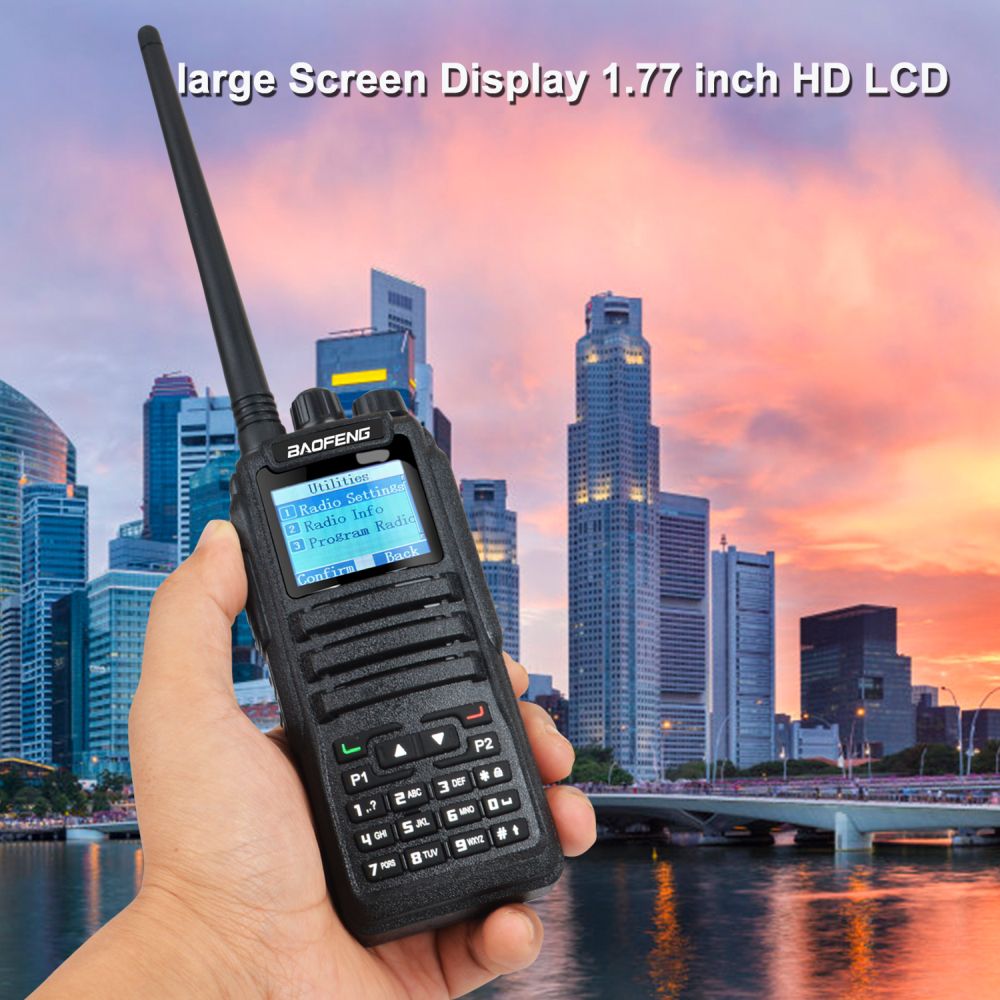

✧ [Multi-function & 1.77′ color TFT Display] – The DM-1701 offers to scan analog and digital channels, manual programming, DTMF, VFO, SMS, emergency alarm, digital monitor mode, CTCSS and CDCSS, color codes and DMR encryption. There are 5 customized keys for faster access to those features.

✧ [Updated Software & Firmware Support] – The DM-1701 CPS supports mass editing, users can make complex application requirements, which makes it easier to write code plugs. Firmware and software upgrading for new functions are life-time-free.

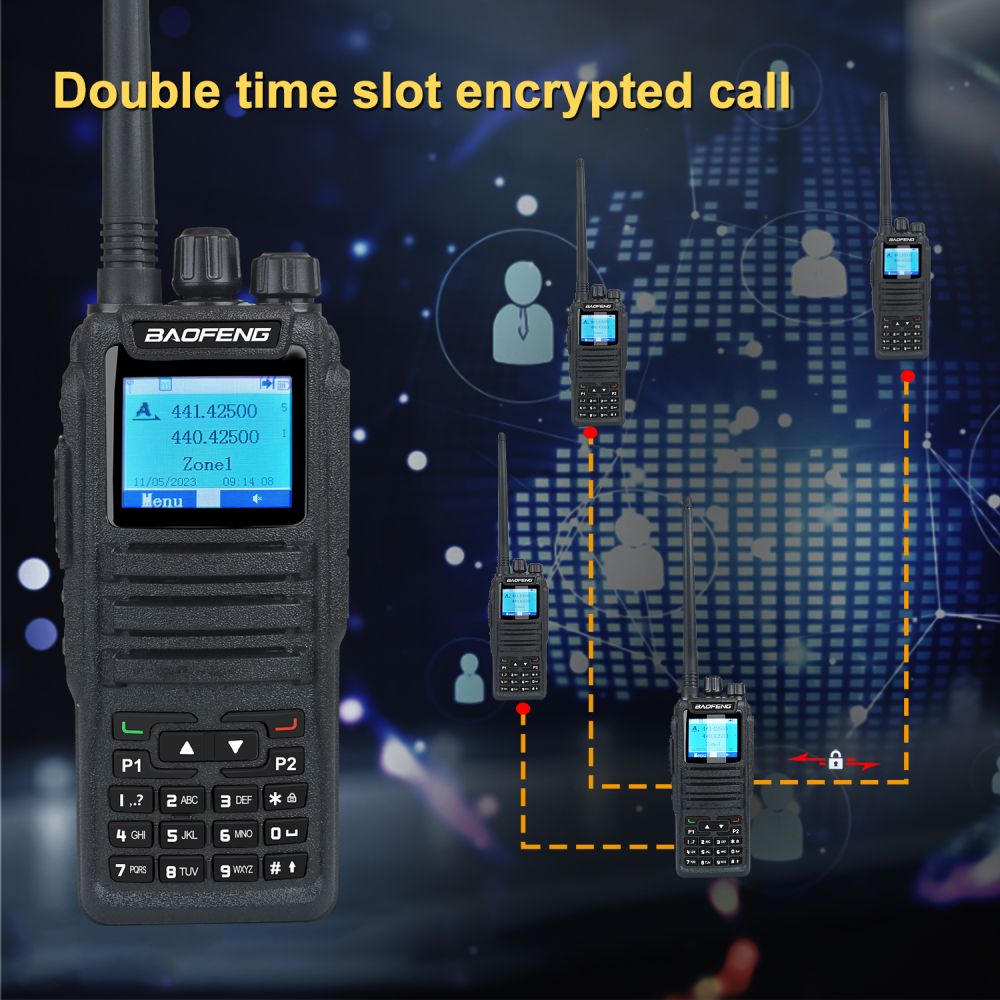

✧ [DMO True 2 Time Slot]– Direct mode dual slot communication achieves two groups of calls at a frequency point at the same time so that the communication efficiency is doubled and frequency resources are saved. Compatible with MOTOTRBO Tier I & II and other DMR radios.

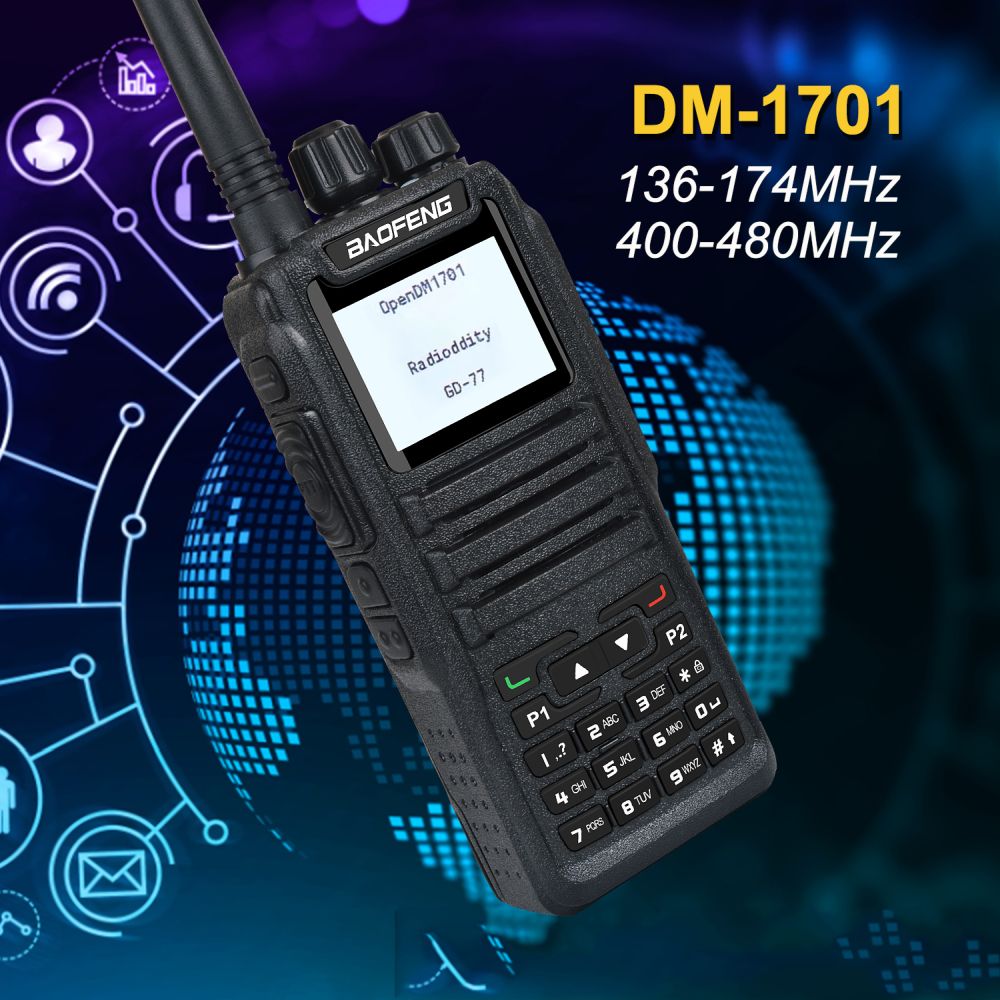

OpenGD77 Firmware Supported Baofeng Walkie Talkie DM-1701 Digital DMR Tier II Dual Time Slot Dual Band VHF136-174MHz & UHF 400-480MHz DMR Digital and Analog Dual Working Modes Portable Ham Amateur Two Way Radio


  1. Support OpenGD77 Firmware Upgrading
  2. Dual Band VHF 137-174MHz & UHF 400-480MHz

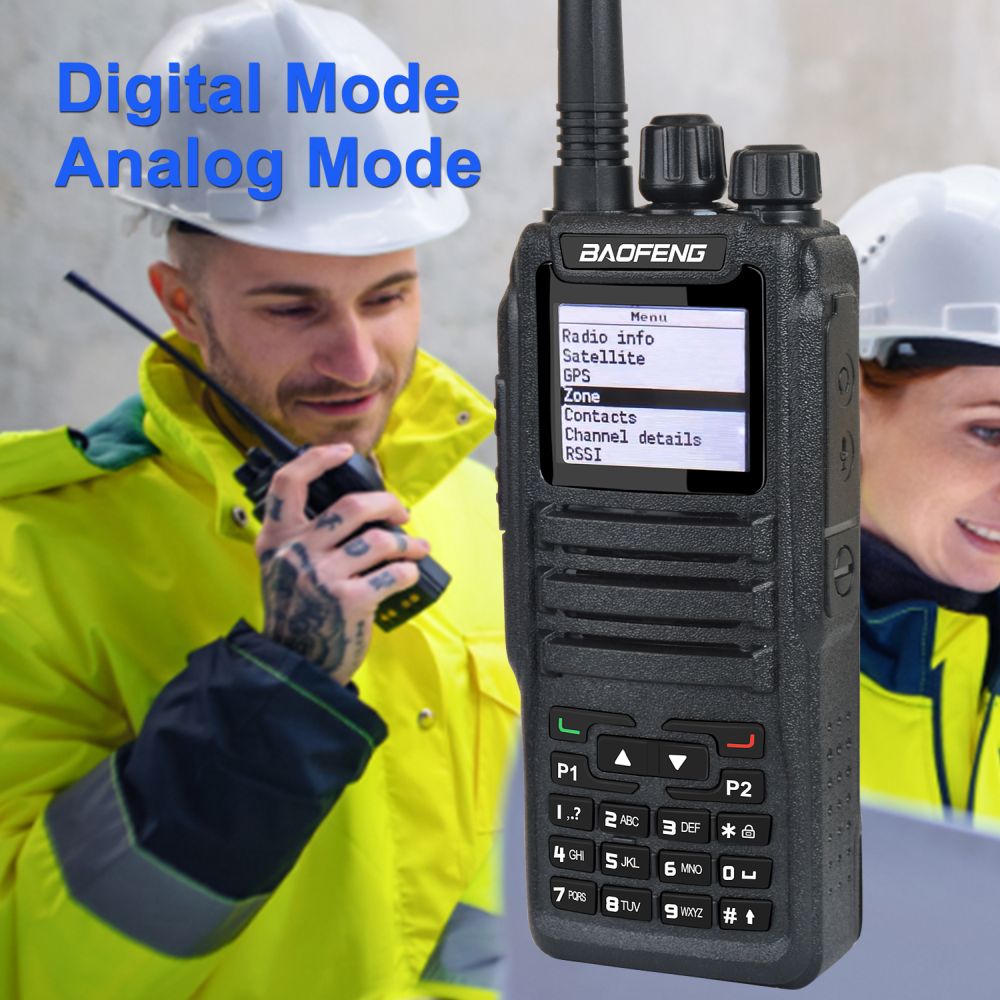

  3. Analogue & Digital Two Working Mode

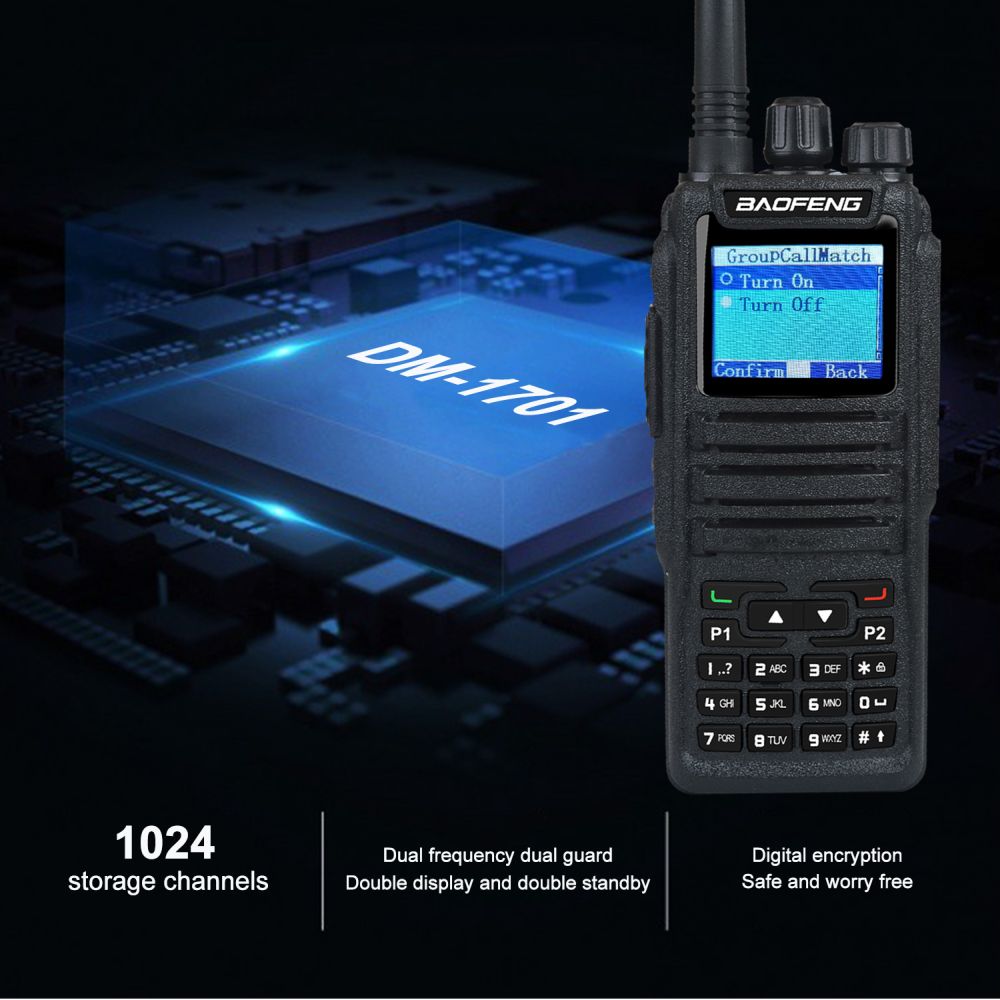

  4. 1024 Storage Channel
  5. Dual Time Slot, Tier I &II
  6. Compatible with MOTOTRBO Hytera Tier II Radio and its repeater perfectly with Vocoder AMBE+2TM
  7. Dual Display
  8. VOX Function
  9. Frequency Step:2.5/5/6.25/10/12.5/20/25/k
  10. Scan
  11. 16 groups color code selectable
  12. 2200mAh 7.4V 16.3Wh High Capacity Li-ion battery Pack

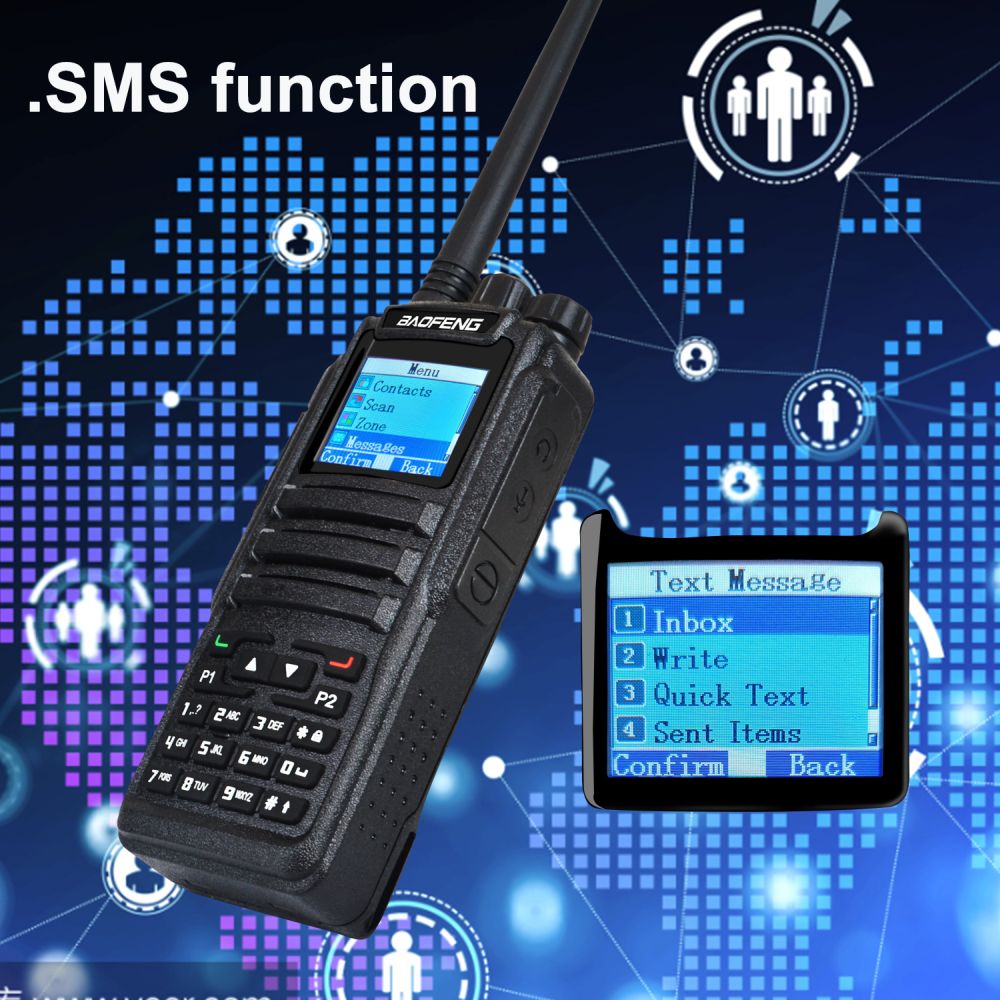

  13. SMS message
  14. Support manually programming and PC programming
  15. High/Medium/Low Power selectable
  16. Frequency/Channel Mode Selectable


Model Number DM-1701
Working Voltage 7.4V
Frequency Range VHF:136-174MHz UHF:400-470MHz
Frequency stability ±1.0ppm
Channel Up to 1024
Type Portable
Battery 1*2200mAh 7.4V Li-ion(included)
Maximum Range 5km-10km
Material Plastic
Color Black
Operating environment -30℃-+60℃

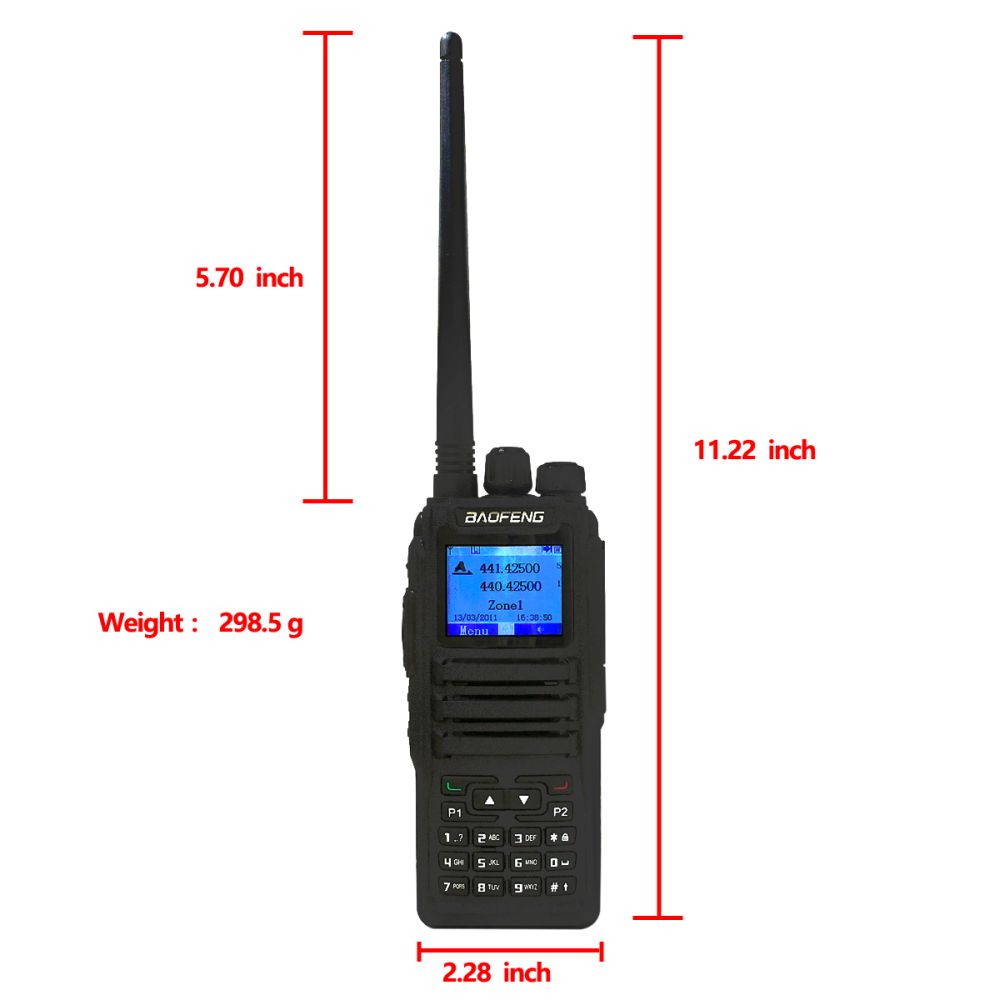

Size(not including the antenna) Approach.133*62*36mm
Weight:(including the battery and antenna) Approach.300g

Output power High:5W Low:1W
Output consumption Analog≤1.6A Digital≤0.9A
Standby current consumption ≤0.18A
Adjacent channel power ≤65dB ≤60dB
Audio response +1~3dB
Digital Protocol ETSI-TS102 361-1,-2,-3
Modulation distortion ≤5%
Analog receive sensitivity -122dBm
Digital receive sensitivity -120dBm
Audio power 1W
Audio distortion <10%
Signal imitation ≥70dB
Audio response +1~3dB
Receive current ≤380mA
Intermediation(wide/narrow) ≥62dB/≥58dB
Adjacent channel selectivity ≥65dB/≥60dB

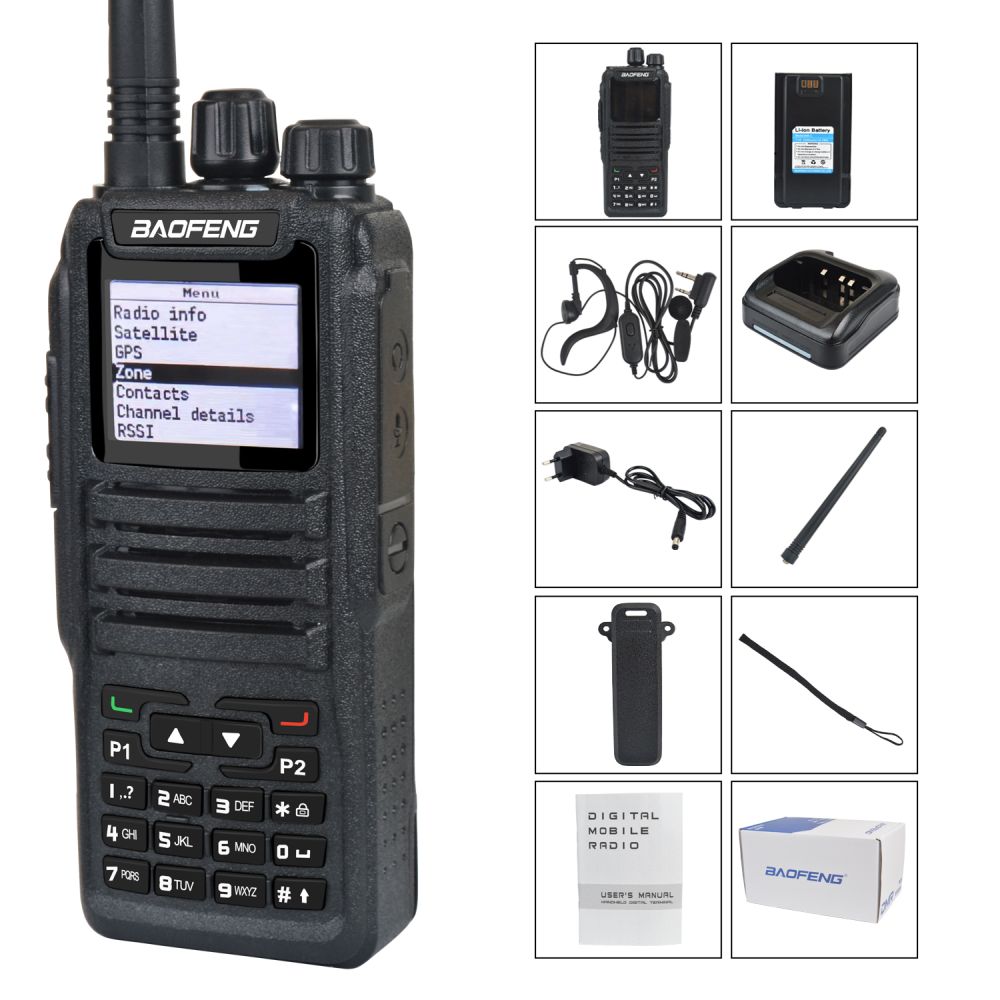

Package Contains:

1 x Baofeng DM-1701 DMR Two way Radio

1 x 7.4V 2200mAh Li-ion Battery

1 x Antenna

1 x Power Adapter

1 x Battery Desktop Charger

1 x Belt Clip

1 x Hand Strap

1 x User Manual

1 x Headset
