Baofeng DM-1702 GPS DMR Walkie Talkie VHF UHF Dual Band Digital Two Way Radio
Baofeng DMR DM-1702 (GPS) Walkie Talkie VHF UHF Dual Band 136-174 & 400-470MHz Dual Time Slot Tier 1&2 Digital/Analog Radio
Features:
- Compatible with MOTOTRBO Hytera Tier II Radio and its repeater perfectly
- Dual Band VHF 137-174MHz & UHF 400-470MHz
- GPS Function(optional):Support longitude & latitude position

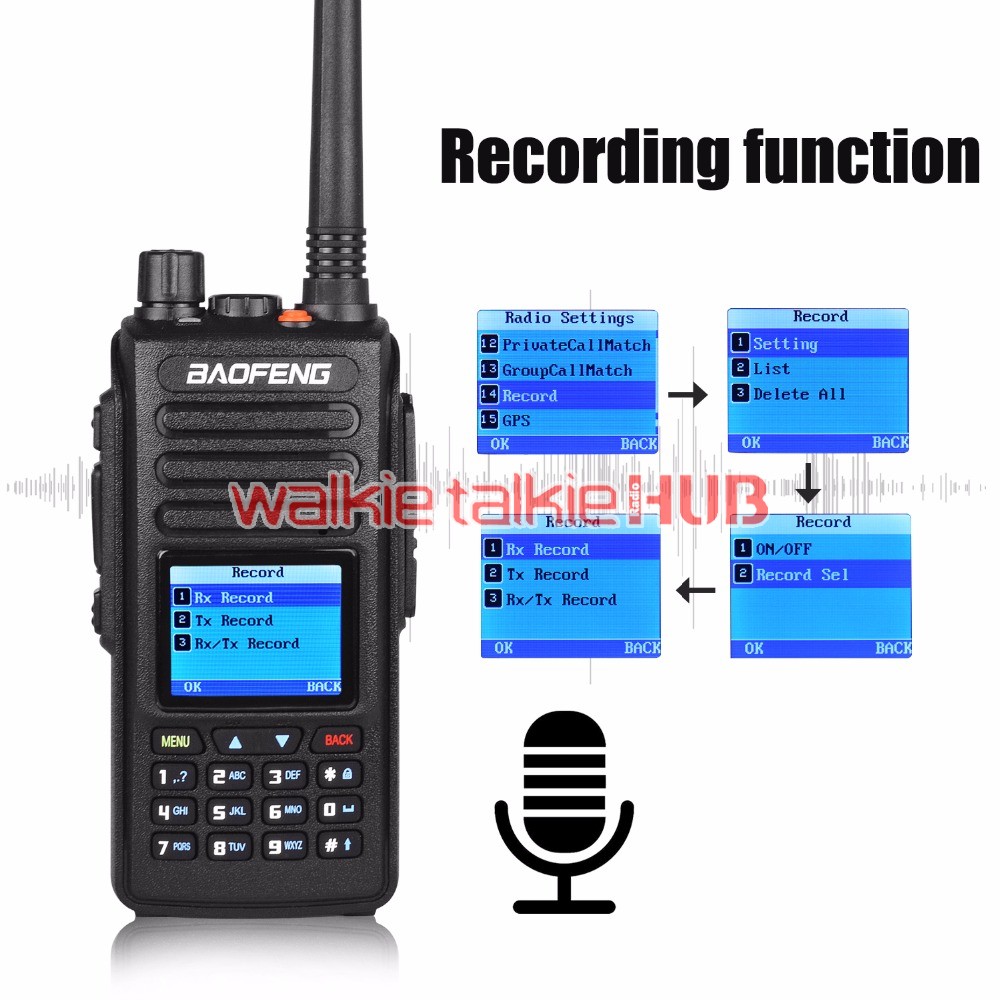

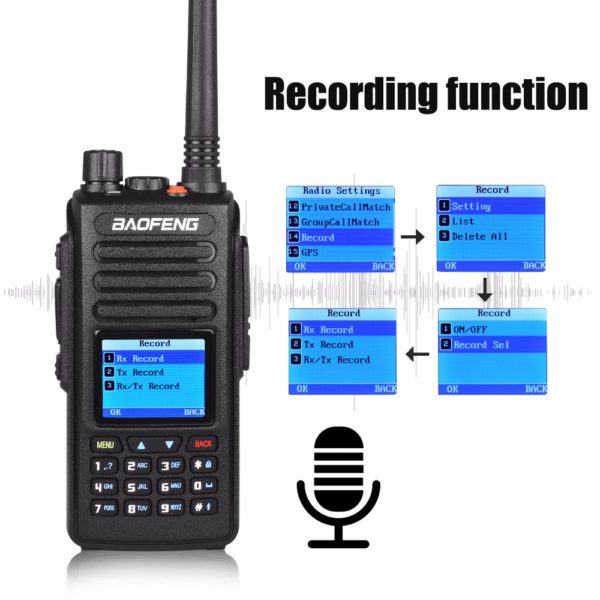

- Voice Record function(optional): Built-in 1G memory card to record TX & RX voice continuously for 9 hours
- Analogue & Digital Mode
- 6.1024 Storage Channel
- Dual Time Slot, Tier I &II
- 8.Group Call/Private call
- 9.Dual Display
- VOX Function
- Frequency Step:2.5/5/6.25/10/12.5/20/25/k
- Scan
- 16 groups color code seletable

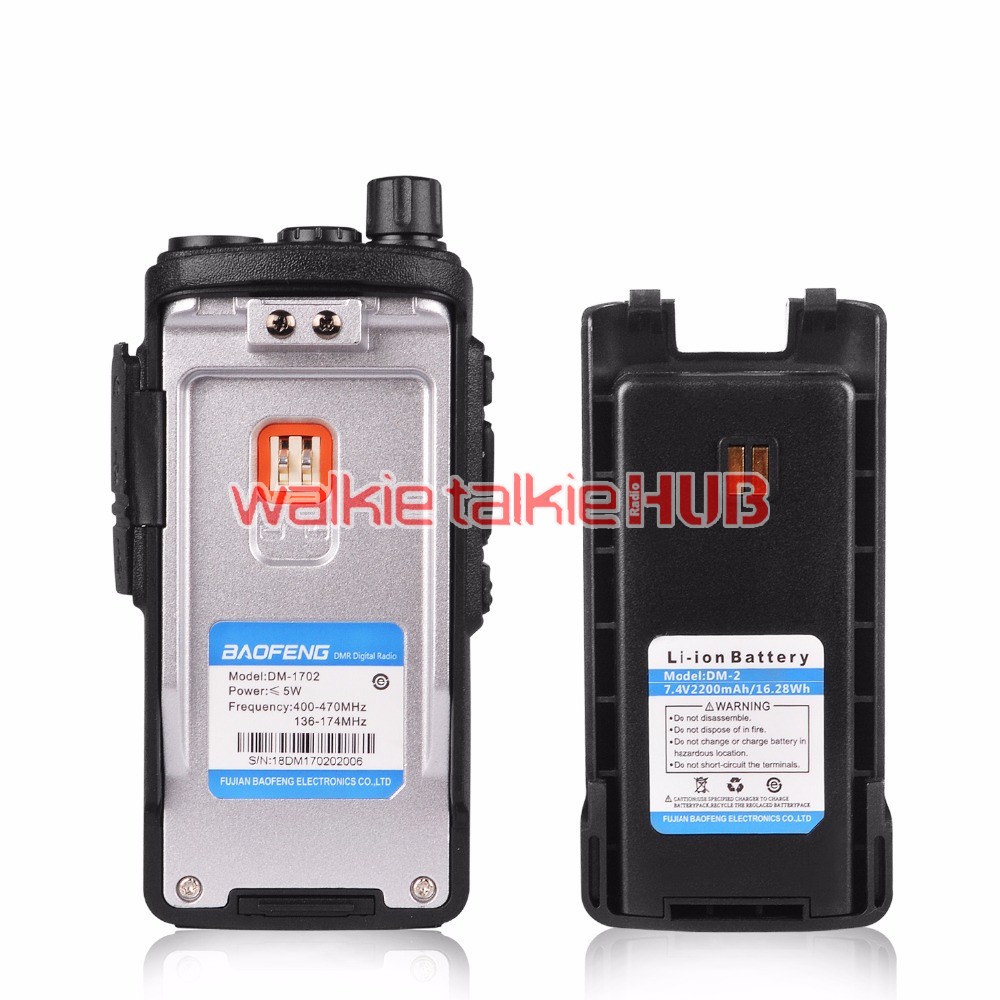

- 2200mAh 7.4V 16.28Wh High Capacity Li-ion battery Pack
- SMS message
- Support manually programming and PC programming
- High/Medium/Low Power seletable
- Frequency/Channel Mode Selectable
Specifications:
General | |
Frequency Range | VHF:136-174MHz, UHF:400-470MHz (Dual Band) |
Memory Channel | 1024 |
Operating Voltage | DC 7.4V |
Frequency stability | ±1.0ppm |
Demission | 136*62*36mm (no including the antenna) |
Operating environment | -30℃-+60℃ |
Weight | Approach.274g(including the battery and antenna) |
Transmitter | |
Output power | High:5W Low:1W |
Adjacent channel power | ≤65dB ≤60dB |
Output consumption | Analog≤1.6A Digital≤0.9A |
Audio response | +1~3dB |
Standby current consumption | ≤0.18A |
Digital Protocol | ETSI-TS102 361-1,-2,-3 |
Modulation distortion | ≤5% |
Vocoder type | AMBE+2 TM |
FM/FM modulation: | 16K¢F3E,25KHz 141K¢F3E,20KHz 11K¢F3E,12.5KHz |
4FSK/4FSK digital modulation | 12.5KHz for data:7K60FXD 12.5KHz for data and voice:7K60FXE |
Signal-to-noise(wide/narrow) | ≥45dB,25KHz ≥40dB,12.5KHz |
Antenna Port Spurious | 9KHz-1GHz ≤-36dBm 1GHz-12.75GHz: ≤-30dBm |
Receiver | |
Analog receive sensitivity | -122dBm (12dB SINAD) |
Digital receive sensitivity | -122dBm (BER≤5%) |
Audio power | 1W |
Audio distortion | <10% |
Signal imitation | ≥70dB |
Audio response | +1~3dB |
Receive current | ≤380mA |
Intermediation(wide/narrow) | ≥62dB/≥58dB |
Adjacent channel selectivity | ≥65dB/≥60dB |
PM noise | ≥45dB,25KHz / ≥40dB,12.5KHz |

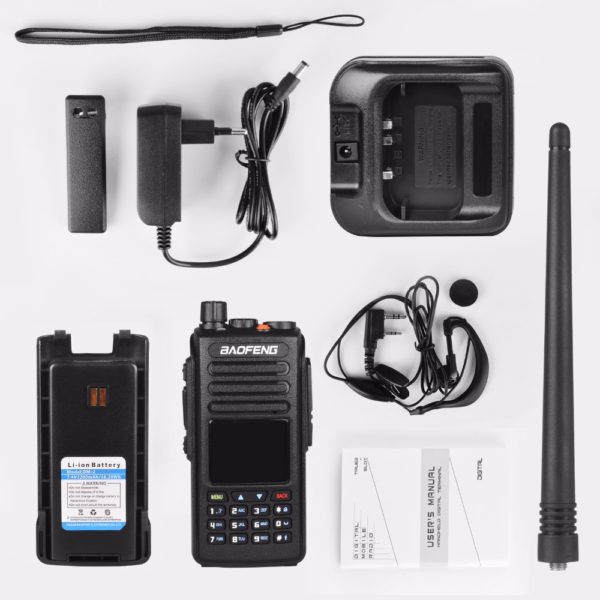

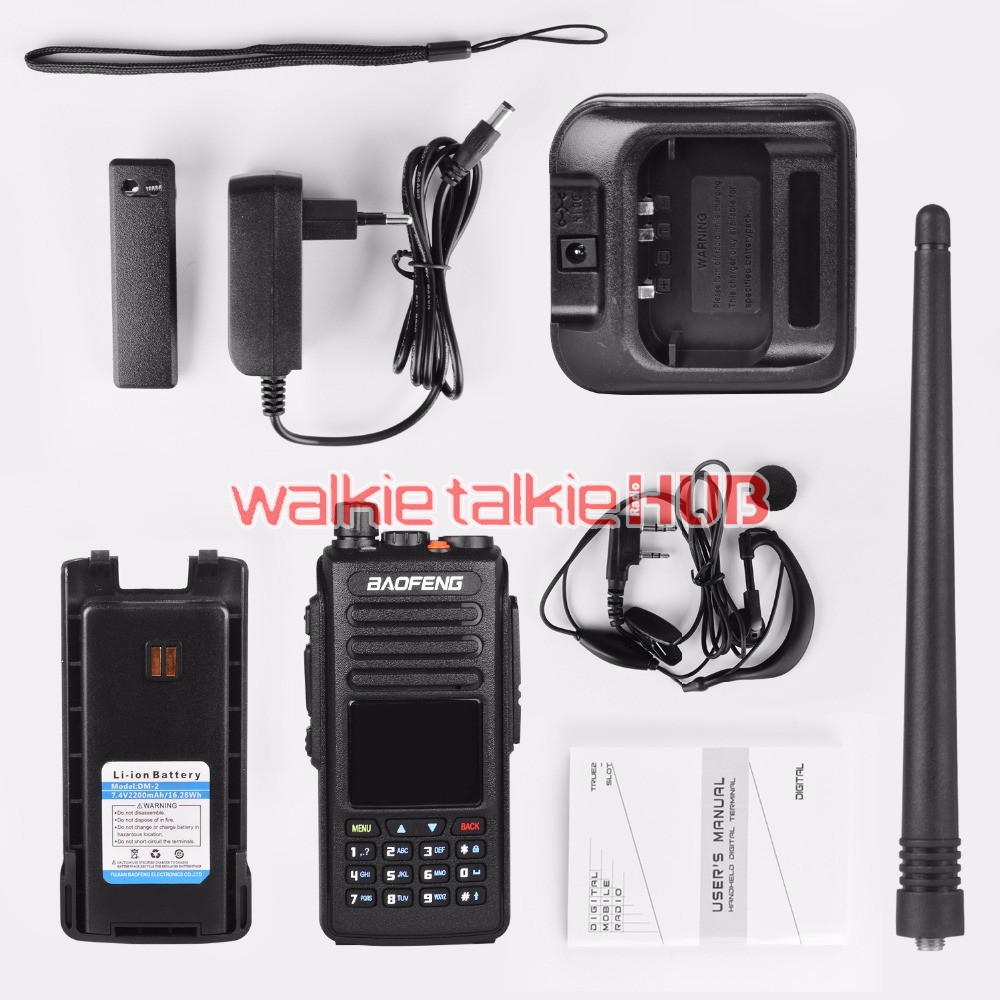

Package Contain:
1× BAOFENG DM-1702 GPS DMR
1× 2200mAh Li-ion Battery Pack
1× Charger Unit with AC Adapter
1× Antenna
1× Hand Strap
1× Belt Clip
1× Earpiece
1× User Manual
