Sale!

Baofeng UV-5R UHF VHF Dual Band Radio

$35.00

& Free Shipping
SKU: 170129 Category:
Guaranteed Safe Checkout

Baofeng UV-5R 136-174/400-520MHz Walkie Talkie 5W UHF&VHF Dual Band Portable Ham Radio

The transcevier is a micro-miniature multiband FM transceiver with extensive receive frequency coverage, providing local-area two-way amateur communications along with unmatched monitoring capability.

Please check the below Shipping Service Description carefully before you purchase.

Dual-band / Dual-Display / Dual-Standby A/B band independent operation
128 groups channels storage Shortcut menu operation mode
VFO & Memory channels scan Emergency Alarm
Tri-color background light selectable 0~9 grades VOX selectable
PTT & ANI ID FM radio and 25 stations storage
Voice companding 50 CTCSS/104 DCS
  PC programmable
Wide/Narrow Band(25kHz/12.5kHz) Transmitter time-out timer(TOT)
High/Low TX power selectable Busy channel lock-out(BCLO)



Functions:

1. Frequency Range: 136-174 / 400-520 MHz

2. Dual-Band Display, Dual Freq. Display, Dual-Standby

3. Output Power: 4 /1Watts

4. 128 Channels 50 CTCSS and 104 DCS

5. Built-in VOX Function

6. 1750Hz Brust Tone

7. FM Radio (65.0MHz-108.0MHz)

8. LED Flashlight

9. Large LCD Display

10. Hight /Low RF Power Switchable

11. 25KHz/12.5KHz Switchable

12. Emergency Alert

13. Low Battery Alert

14. Battery Saver

15. Time-out Timer

16. Keypad Lock

17. Monitor Channel

18. Channel Step: 2.5/5/6.25/10/12.5/25KHz

19.ROGER SET



Specifications
General
Frequency Range 65-108MHz (FM Receive only)
136-174 MHz and 400-520 MHz (TX/RX)
Channel No. 128
Frequency Stability ±2.5ppm
Antenna High gain Dual-Band Antenna
Antenna Impedance 50Ω
Operating Voltage DC 7.4V
Mode of operation Simple or semi-duplex
Dimension W x H x D 100 x 52 x 32 mm
Weight 250g
Transmitter
Output power 4W / 1W (Max 5W)
Modulation Mode 16kΦF3E / 11kΦF3E
Maximum deviation 5kHz(Wide) / 2.5kHz(Narrow)
Spurious Radiation 7μW
Adjacent Ch. power ≤-65dB(Wide) / ≤-60dB(Narrow)
Pre-emphasis characteristics 6dB
Current ≤1.6A(5W)
CTCSS/DCS deviation 0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow)
Intermediation sensitivity 8-12mv
Intermediation distortion 10

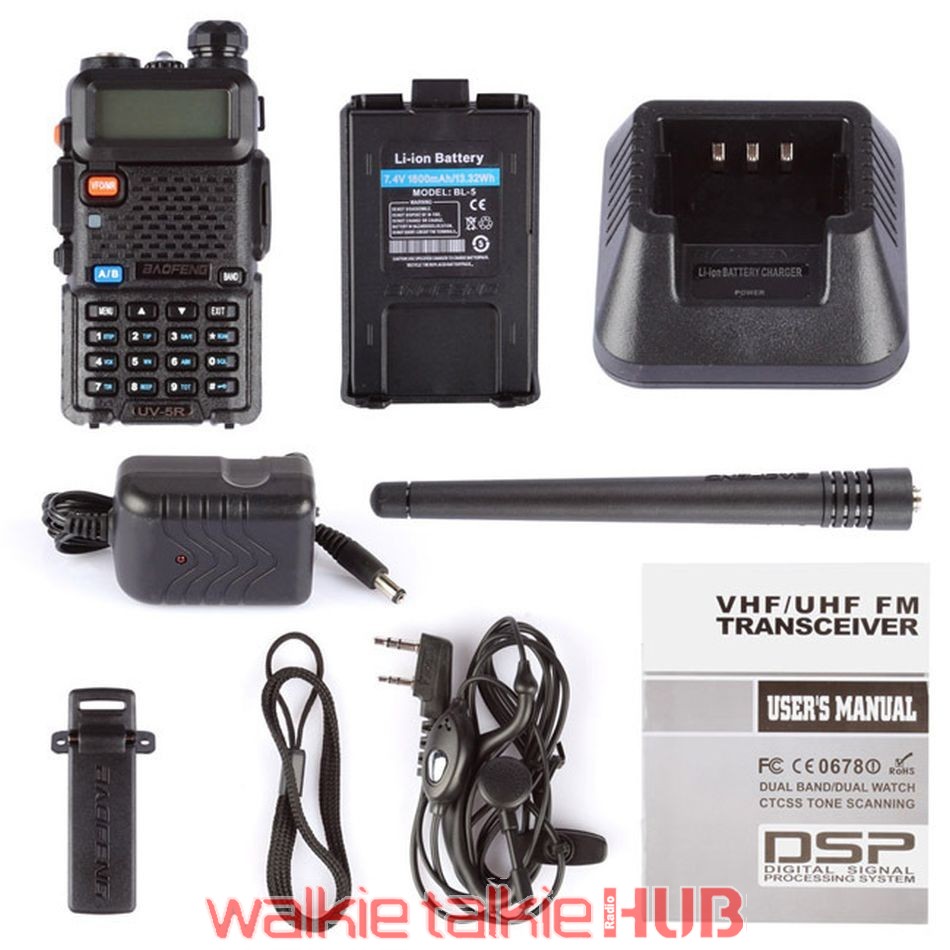

Package:

1 x BaoFeng UV-5R (VHF136-174MHz / UHF 400-520MHz) Two-Way Radio
1 x 7.4V 1800mAh Li-ion Battery Pack
1 x Antenna 136-174/400-479.995Mhz
1 x Earphone Mic/Headset
1 x Belt Clip
1 x Hand Strap
1 x ENG Manual
1 x adapter
1 x Desktop Charger ( 100V ~ 240V )

Weight 0.6 kg
Dimensions 160 × 100 × 50 mm
