BAOFENG UV-5RA Dual Band Radio

BAOFENG UV-5RA UHF VHF Dual Band Walkie Talkie For CB Radio Station Radio Scanner Police Two-Way Radio

Specification

This Baofeng transceiver is a micro-miniature multi band FM transceiver with extensive receive frequency coverage, providing local-area two-way amateur communications along with unmatched monitoring capability. An upgraded version of UV-5R+, with more stubborn case, more rich and enhanced features!

Features:

1        Dual-band handheld transceiver with display function menu on the display”LCD”.

2        DTMF encoded.

3        Lithium-ion battery with high capacity.

4        Commercial FM radio receiver(65MHz ~ 108MHz).

5        Incorporates 105 codes”DCS” and 50 privacy codes”CTCSS” programmable.

6        Function”VOX”(voice operated transmission).

7        Alarm function.

8        Up to 128 memory channels.

9        Broadeband(Wide)/Narrowband(Narrow),selectable.

10    High power/ low (4W/1W) selectable.

11    Display illumination and programmable keyboard.

12    Function”beep” on the keyboard.

13    Dual Watch/dual reception.

14    Selectable Frequency Step 2.5/5/6.25/10/12.5/25kHz.

15    Function”OFFSET”(frequency offset for repeater access).

16    Battery saving function”SAVE”.

17    Timer transmission”TOT” programmable.

18    Selecting the Scan Mode.

19    Function Busy Channel Lock”BCLO”.

20    Built-in RX CTCSS/DCS scan.

21    Built-in LED flashlight.

22    Programmable by PC.

Specifications:

General
Frequency Range	65-108MHz(FM Receive only)
	136-174MHZ and 400-520HZ (TX/RX)
Channel No.	128
Frequency Stability	±2.5ppm
Antenna	High gain DualBand antenna
Antenna Impedance	50Ω
Operating Voltage	DC 7.4V
Mode of operation	Simple or semi-duplex
Dimension(W x H x D)	100 x 52 x 32 mm
Weight	250g(including battery, antenna)
Transmitter
Output power	4W / 1W (Max 5W)
Modulation Mode	16kΦF3E / 11kΦF3E
Maximum deviation	<5kHz(Wide) / <2.5kHz(Narrow)
Spurious Radiation	<7μW
Adjacent Ch. power	≤-65dB(Wide) / ≤-60dB(Narrow)
Pre-emphasis characteristics	6dB
Current	≤1.6A(5W)
CTCSS/DCS deviation	0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow)
Intermediation sensitivity	8-12mv
Intermediation distortion	<10%

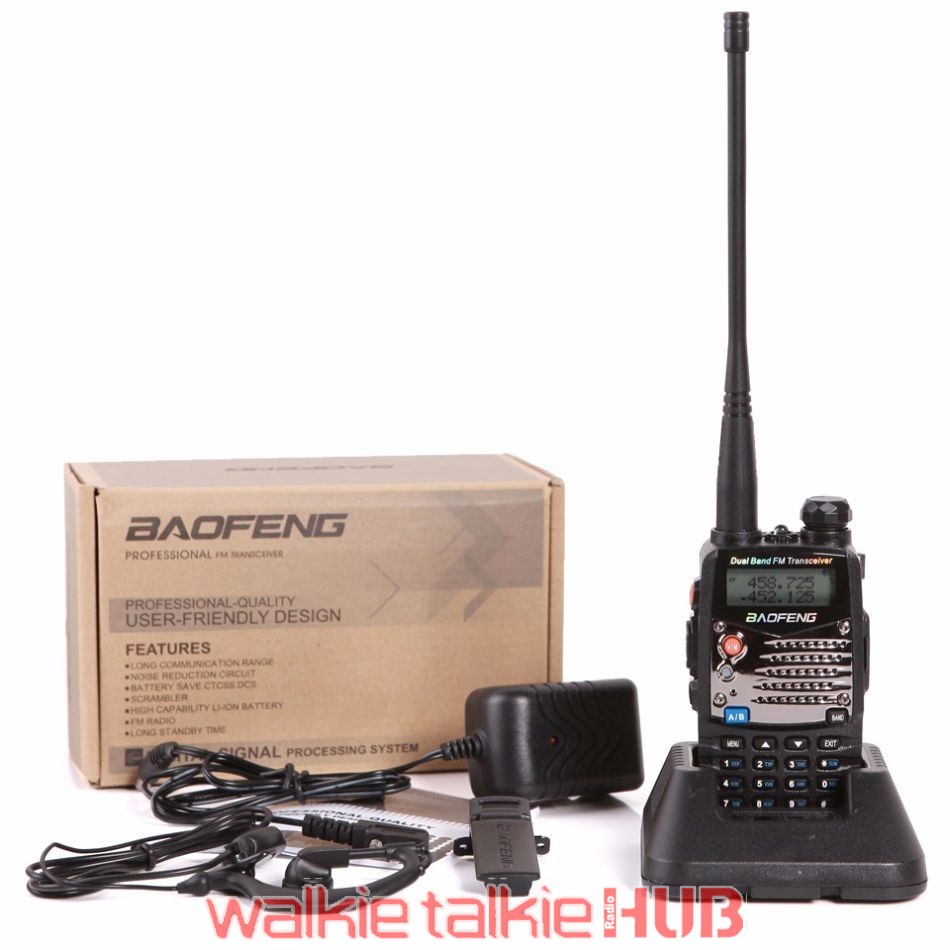

Package:

1 x Baofeng UV-5RA Walkie Talkie

1 x 7.4V 1800mah Li-ion Battery Pack

1 x Dual Band SMA-Female Long Antenna

1 x Belt Clip

1 x ENG Manual

1 x Desktop Charger ( 100V ~ 240V European Plug/US Plug AU/UK/ZA adaptors all available)

1 x PTT Earpiece for free as the gift
