Baofeng UV-5RE8W 136-174/400-520MHz Dual Band 2M/70cm FM High Power 8W Two Way Ham Radio Transceiver
Model | UV-5RE8W | |
Features | ||
Dual band/ dual display/ dual standby | A/B band independent operation (UV UU VV VU) | |
128 groups channels storage | 136-174MHz & 400-520MHz | |
Shortcut menu operation mode | Emergency Alarm | |
Transmitter time-out timer(TOT) | VOX (0~9 grades) | |
PTT & ANI ID | FM radio (65-108MHz) | |
Voice COMP | 50 CTCSS/ 104 DCS | |
TX power selectable (4W/1W) | Busy channel lockout | |
LED Flashlight | Large LCD Display | |
Wide/Narrow Band | Yes | 25kHz/12.5kHz |
Frequency step | Yes | 2.5/5/6.25/10/12.5/25KHz |
Scanning function | Yes | |
Monitor function | Yes | |
Battery voltage display function | Yes | |
Channel name display & editing | Yes | |
Signal strength indicator | Yes | |
Keypad lock function | Yes | |
Flashlight | Yes | |
Wire clone function | Yes | |
Low battery alarm | Yes | |
Power saving function | Yes | |
ROGER SET | Yes | |
Chinese and English voice prompt | Yes | |
PC software programmable | Yes | |
Basic Descriptions | ||
Rated Voltage | 7.4V DC ±10% | |
Max output power | 5W | |
Battery type | Li-ion battery | |
Battery capacity | 2800 mAh | |
Earpiece / MIC type | 2 Pin KEN WOOD Type | |
Antenna | SMA-Female | |
Working temperature | -20~+50°C | |
Antenna Impedance | 50 OM | |
Weight | 250g | |
Dimension ( L x W x H ) | 58 x 32 x 110 mm (Not Antenna ) | |
Specification | ||
Frequency stability | ±2.5ppm | |
Modulation | F3E | |
Max frequency deviation | <= 5kHz(Wide) <= 2.5kHz(Narrow) |
|
Emission current | <=1.6A | |
CTCSS / DCS | 0.5 ± 0.1kHz(Wide) 0.3 ± 0.1kHz(Narrow) |
|
Spurious Radiation | <7uW | |
Intermediation Distortion | <10% | |
Intermediation sensitivity | 8-12mv | |
Adjacent channel selectivity | <= 65dB(Wide) <= 60dB(Narrow) |

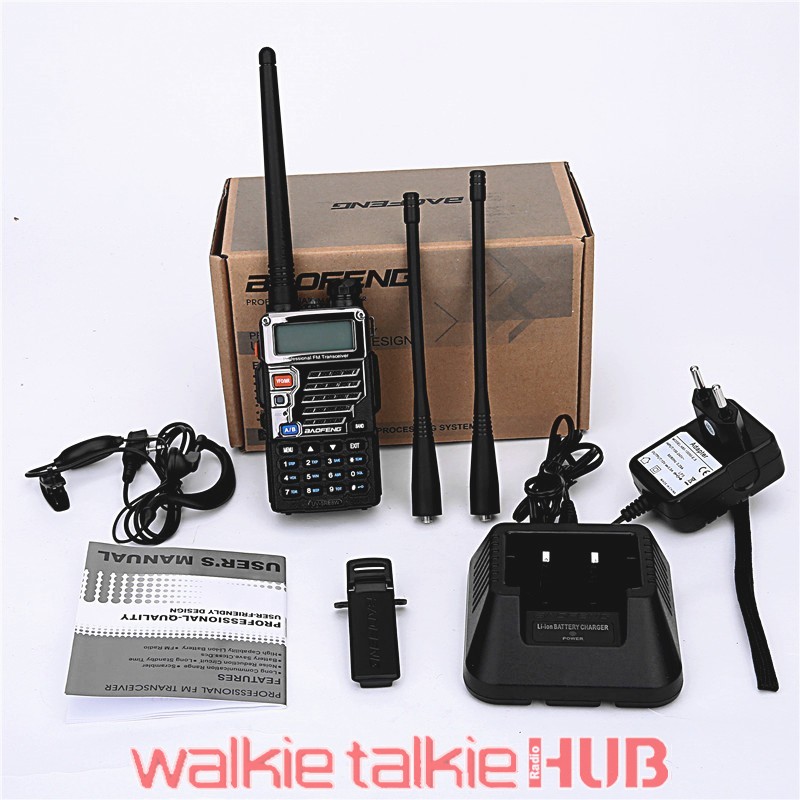

Package contents:
1 x Portable Radio
1 x Dual Band Antenna
1 x Li-ion Battery Pack(7.4V, 2800mAh)
1 x Charger and Adapter(European plug, US plug, UK plug, Australian plug)
1 x Ear Hook Earphone
1 x Belt Clip
1 x Sling
1 x User’s Manual
