Baofeng UV-5RTP 8W High Power VHF/UHF 136-174/400-520MHz Dual Band FM True Two-way Ham Radio Walkie Talkie
The transceiver is a micro-miniature multiband FM transceiver with extensive receive frequency coverage, providing local-area two-way amateur communications along with unmatched monitoring capability.
Please note that: In 136-174/400-470 Mhz the radio can achieve tri-power(especially for high power level), but if you want the radio used in above 500Mhz, the maximum output power would be about 6.6w.
Frequency Range: 140-150/430-440MHz (Can be unlocked to 136-174/400-520MHz via programing cable)
Dual-Band Display, Dual Freq. Display, Dual-Standby
Output Power: 8/ 4 /1Watts Triple Power
128 Channels 50 CTCSS and 104 DCS
Built-in VOX Function
1750Hz Brust Tone
FM Radio (65.0MHz-108.0MHz)
LED Flashlight
Large LCD Display
Hight /Low RF Power Switchable
25KHz/12.5KHz Switchable
Emergency Alert
Low Battery Alert
Battery Saver
Time-out Timer
Keypad Lock
Monitor Channel
Channel Step: 2.5/5/6.25/10/12.5/25KHz
ROGER SET
Specifications:
| General | |
| Frequency Range | 65-108MHz (FM Receive only) |
| 136-174 MHz and 400-519.995 MHz (TX/RX) | |
| Channel No. | 128 |
| Frequency Stability | ±2.5ppm |
| Antenna | High gain Dual-Band Antenna |
| Antenna Impedance | 50Ω |
| Operating Voltage | DC 7.4V |
| Mode of operation | Simple or semi-duplex |
| Dimension W x H x D | 100 x 52 x 32 mm |
| Weight | 250g including battery, antenna |
| Transmitter | |
| Output power | 8W / 4W / 1W (Max 8W) |
| Modulation Mode | 16kΦF3E / 11kΦF3E |
| Maximum deviation | 5kHz(Wide) / 2.5kHz(Narrow) |
| Spurious Radiation | 7μW |
| Adjacent Ch. power | ≤-65dB(Wide) / ≤-60dB(Narrow) |
| Pre-emphasis characteristics | 6dB |
| Current | ≤1.6A(5W) |
| CTCSS/DCS deviation | 0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow) |
| Intermediation sensitivity | 8-12mv |
| Intermediation distortion | 10 |

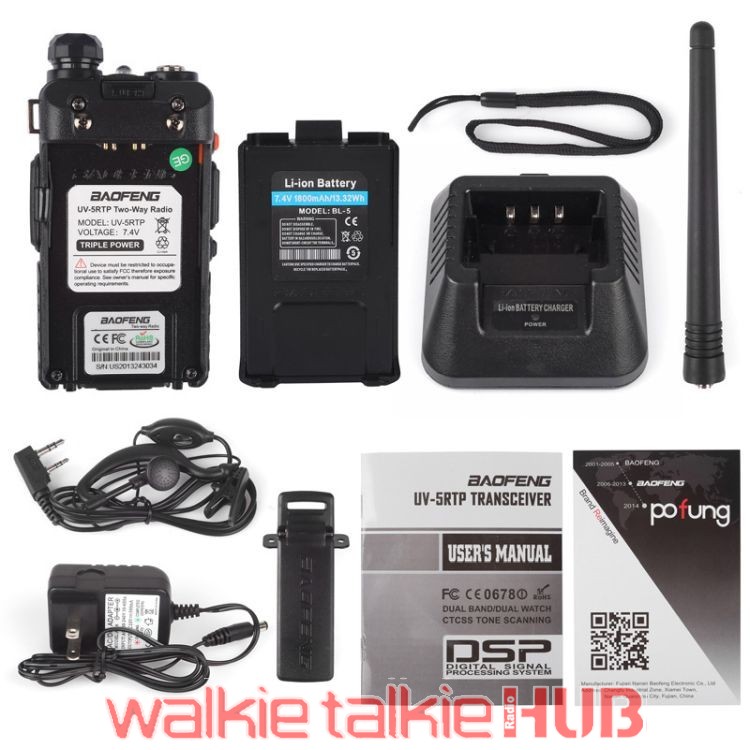

Package:
1 x Baofeng * UV-5RTP * (VHF136-174MHz / UHF 400-519.995MHz)
1 x 7.4V 1800mAh Li- ion Battery Pack
1 x Booster Antenna 136-174/400-519.995Mhz
1 x Earphone Mic/Headset
1 x Belt Clip
1 x Hand Strap
1 x Manual
1 x adapter
1 x Desktop Charger ( 100V ~ 240V )
