Baofeng UV-6 Dual Band Radio

Baofeng UV-6 Dual Band Radio  UHF 400-470MHz & VHF 136-174MHz Walkie Talkie

Features

Dual band/stanby without LCD display FM transceiver, functions as follow:

1.16CHs which can memory 128 groups frequency
2. Voice Guide for channel order and its working frequency
3. Double PTT design for TX when signal got

4. 1750Hz burst tone for repeater function

5. Li-ion batterypack with 2000mAh high capacity

6. 105 DCS  50 CTCSS

7. VOX available

8. H/L power switchable

9. Battery Save

10. Time out timer

11. PC programming

12. Wire clone function

SPECIFICATIONS

GENERAL
Frequency Range	136-174 & 400-470MHz
Channel Capacity	128
Channel Spacing	2.5/5/6.25/10/12.5/25KHz
Operated Voltage	7.4V
Standard Battery	2000mAh
Battery Life	8 hours
Frequency Stability	2.5ppm(-20  º C ~+60 º C  )
Operated Temperature	-30  º C ~+60 º C
Antenna Impedance	50 Ω
Dimensions	125.5*61.7*36.2mm
Weight	About 205g

TRANSMITTER
RF Power Output	5W/2W
Modulation	F3E
Spurious Emission	≥-65dB
FM Noise(N/W)	45dB ≤42dB
Audio distortion	Less than 5%
Adjacent Channel Power	≤-65dB≤-60dB
Max Frequency Deviation	5KHz (N)/ 2.5KHz (W)
Frequency Error	500Hz
Modulation Distortion	0.1KHz (300-3000KHz)
Transmitting Current	About 1.5A

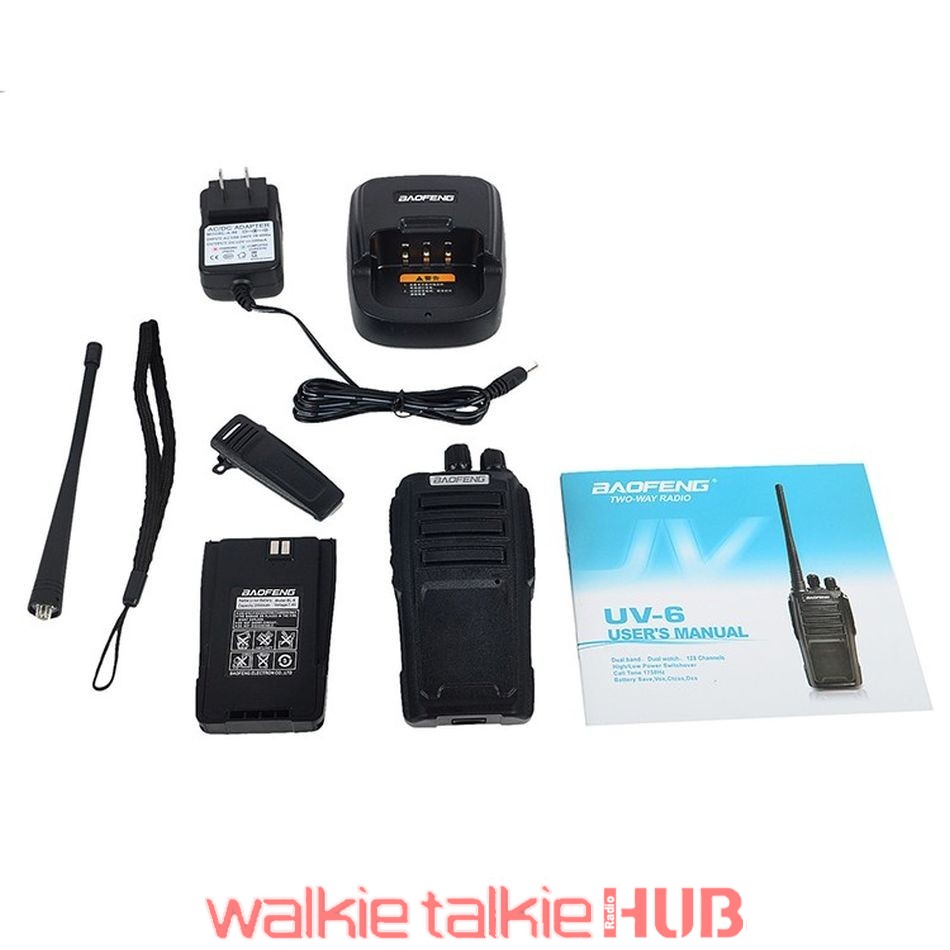

Full set including

– 1x UV-6 DUal Band FM Radio
– 1x 7.4V 2000mAh Li-ion Battery Pack
– 1x Dual Band Antenna
– 1x Belt Clip with screw Set
– 1x English Manual
– 1x Desktop Charger ( 100V ~ 240V ) with correct adapter for your country
– 1x Handstrap

– 1x PTT eapriece
