BaoFeng UV-82 Double PTT  8W Portable Radio Walkie Talkie Amateur Radio

HIGH OUTPUT 8 WATT UV-82HX

The UV-82  is the latest generation of the classic UV-82 Series. Some new features found in the UV-82HX  are the three adjustable power levels (Low – 1 watt, Middle – 4 watt, High- 8 watt) allowing for a high power output 8 watt

THE DUAL PTT DIFFERENCE

The UV-82 Series come with a dual push-to-talk button. The dual PTT is a huge leap forward in the HT technology. It allows you to transmit on two frequencies by the use of the rocker PTT switch. By pressing up you can transmit on “Frequency A” and by pushing down you can transmit on “Frequency B”. Frequency A or B can also be used as a scanner of channels, frequencies, CTCSS and DTS tones.

Attention: On the BaoFeng UV-82  you are able to synchronize the PTT button to enable single Push-to-Talk communications.

THE BAOFENG UV-82 SERIES

The UV-82 series has upped the bar on affordable ham radio technology! Compared to previous BaoFeng products (UV-5R, GT-3, and the v2+ Series) the UV-82 comes with a much louder speaker (1 watt), a much more solid case with larger buttons, and a new chipset and PCB board that outperforms the range, accuracy, and output of the previous BaoFeng chipsets. It is not simply a remake but a new radio from the ground up. It outperforms the the 2nd Gen UV-5R chipset (used in the UV-5Rs, GT-3 BF-F8+, and v2+ series).

DUAL WATCH RECEIVER

The UV-82  has one built-in receiver but can “watch” two channels (semi duplex). Monitor two different frequencies (even on different bands (VHF/UHF)) and the radio will monitor both frequencies giving priority to the first station to receive an incoming call.

FM BROADCAST STATION

You can listen to the FM Broadcast radio, while still monitoring your radio frequencies in the background. Any incoming call will be given priority insuring you never miss an important call while listening to the radio.

GROUP TONES SUPPORTED

The UV-82  supports the most common Analog Tones. It supports CTCSS, DCS, and DTMF calling methods. Set-up your calling methods to call by group tones. Tone calling (private line) is required by most repeater applications and the UV-82HX  supports the latest standards

The UV-82  can even send DTMF tones. This allows for sending ANI (Caller ID) or remote commands that require DTMF tones

INTERNAL VOX FUNCTION

The UV-82  has an internal VOX (Voice Operated Transmit) function for convenient hands-free operation and can be used in conjunction with the included earpiece and mic. The VOX level and VOX delay time are adjustable your needs.

CUSTOMIZE YOUR OPERATION WITH CHANNELS, PROGRAMMABLE BUTTONS, AND MORE!

You can program your UV-82HX  exactly how you want it. There are 128 programmable memory channels. You can add or remove channels from scanning list using the free computer software. You can give channels alphanumeric names, using a computer. The radio has 3 power levels (8 watt maximum), allowing you to choose  how far you can communicate. You can set VFO limits using the CHIRP software. You can easily program from a PC to set-up the radio to operate exactly as needed.

Function

Specification

Brand	BaoFeng
Model	UV-82 (1W/4W/8W Version)
Function introduction	LCD has a dual display function
	Automatic search and display functions of CTCSS/DCS signaling
	The new radio
	Flashlight lighting function
	U-U, V-V, U-V function
	The channel name edit function
	Dual band intercom function
	Computer programming function
	VOX voice function
	Frequency, channel scanning
	Channel scanning table editing function (which can be freely selected channel involved in scanning)
	General index
	The frequency range
FM	65-108MHz (radio, can receive, cannot transmit)
VHF	136.000-174.00MHz (VHF, transmitting and receiving are)
UHF	400-520.00MHz (UHF, transmitting and receiving are)
The number of channels	128
Working voltage	7.4V DC 2800MAH lithium battery
Step frequency	2.5/6.25/10/12.5/20/25KHz
Frequency stability	+ 2.5PPM
The 50 ohm antenna
Size	(110mm * 58mm * 32mm) (height * width * thickness)
Emission
Output power	Triple: 8W/ 4W/ 1W
Current	less than 1.4A (4W)
Modulation sensitivity	8-12mV
Modulation distortion	<10%
	Modulation restrictions
	<5KHz broadband, narrowband <2.5KHz
	The sub audio / digital sub audio frequency offset
	0.75KHz + 50Hz, 0.37KHz + 30Hz
The stray radiation	<7 W
Modulation mode	16K phi F3E/11K phi F3E
Modulation characteristics	6dB/ per times frequency increasing
Receiver
Reference sensitivity	-122dBm (12dB SINAD)
Audio Power	1W
Audio distortion	<10%
Modulation of receiving bandwidth	5K
Clutter suppression	greater than or equal to 65dB
Adjacent channel selectivity (broadband, narrowband)	= 65dB = 60dB
Intermodulation (broadband, narrowband)	= 60dB = 55dB
Blocking	= 85dB

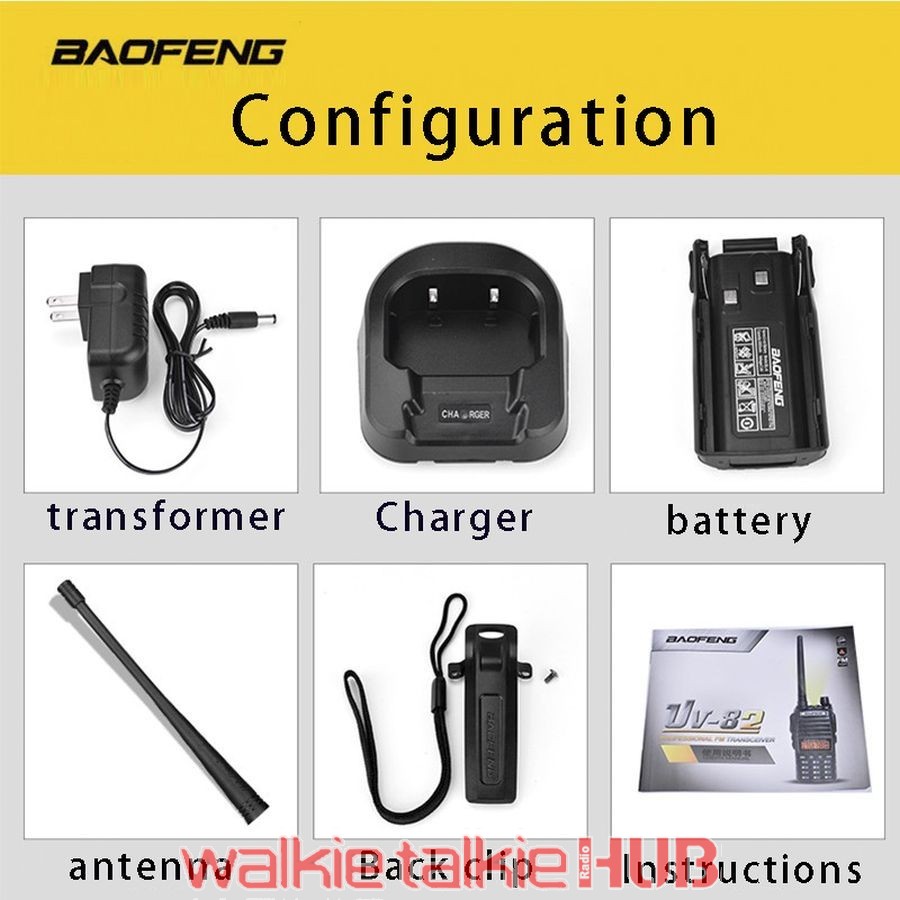

Standard configuration	a host, antenna, battery charger root block, a sleeve, a hand belt clip and lanyard a, book, package box a.

Package included:

1 xbaofeng uv-82 real 8W  walkie talkie

1 x 7.4V  Li-ion Battery Pack.

1 x Antenna

1 x Earphone

1 x Belt Clip.

1 x Hand Strap.

1 x AC Adapter.

1 x Desktop Charger (100V~240V).

1 x User Manual.

What Makes it Unique?

* 3 Power Levels (1, 4, 8 watt) adjustable

* VFO/ MR (Frequency Mode) can be locked via software

* The Dual PTT Switch can be synchronized via software to simplify operation of the radio

* The blacklight on/off switch time can be set via software

* Can be program to repeater manually or via software

* It includes the High Gain V-85 Antenna to Optimize Performance

* Full Accessory Compatibility with ALL UV-82 accessories

* Multiple TONE Burst Options on a NEW user Menu. Selectable Tone Burst Options Include: 1000hz, 1450hz, 1750hz, 2100hz
