Baofeng UV-82 Dual PTT Dual Band UHF VHF 5W Radio

Baofeng UV-82 Dual Band VHF UHF 137-174/400-520MHz Transceiver two way radio Walkie Talkie

The UV-82 series has upped the bar on affordable ham radio technology! Compared to previous BaoFeng products (UV-5R, GT-3, and UV-B Series) the UV-82 comes with a much louder speaker (1 watt), a much more solid case with larger buttons, and a new chipset and PCB board that outperforms the range, accuracy, and output of the previous BaoFeng chipsets. It is not simply a remake but a new radio from the ground up.

Features:

Frequency Range: 136-174 & 400-520MHz

Dual Band, Dual Display, Dual Frequency, Dual Standby

Dual band, dual display

A/B band independent operation

128 groups channels storage

Shortcut menu operation mode

VFO & Memory channels scan

Emergency Alarm

Tri-color background light selectable

0~9 grades VOX selectable

PTT & ANI ID

FM radio and 25 stations storage

1750Hz Brust

Tone Time-out Timer

Channel Monitor

Battery Saver

Keypad Lock

Channel Step: 2.5/5/6.25/10/12.5/25KHz

Low Battery Alert

ROGER SET

Emergency Alert

25KHz/12.5KHz Switchable

FM Radio (65.0MHz-108.0MHz)

Large LCD Display

LED Flashlight

Hight /Low RF Power Switchable

Voice companding

50 CTCSS/ 104DCS coder & tone searching

dual standby

PC programmable

Wide/Narrow Band(25kHz/12.5kHz)

Transmitter time-out timer(TOT)

High/Low TX power selectable

Busy channel lock-out(BCLO)

Specification:

General
Frequency Range	65-108MHz(FM Receive only)
	136-174MHZ and 400-520MHZ (TX/RX)
Channel No.	128
Frequency Stability	2.5ppm
Antenna	High gain DualBand antenna
Antenna Impedance	50
Operating Voltage	DC 7.4V
Mode of operation	Simple or semi-duplex
Antenna :	SMA -Female
Earpiece / mic type :	K Plug type
Dimension(W x H x D)	132 x 60 x 35 mm (not included antenna)
Weight	238g(including battery, antenna)
Power adapter	Input: AC100-240V, 50-60Hz; Output: DC10V/500mA; Plug Type: US
Transmitter
Output power	5W / 1W (Max 5W)
Modulation Mode	16kF3E / 11kF3E
Maximum deviation	5kHz(Wide) / 2.5kHz(Narrow)
Spurious Radiation	7W
Adjacent Ch. power	-65dB(Wide) / -60dB(Narrow)
Pre-emphasis characteristics	6dB
Current	1.6A(5W)
CTCSS/DCS deviation	0.50.1kHz(Wide) / 0.30.1kHz(Narrow)
Intermediation sensitivity	8-12mv
Intermediation distortion	10%

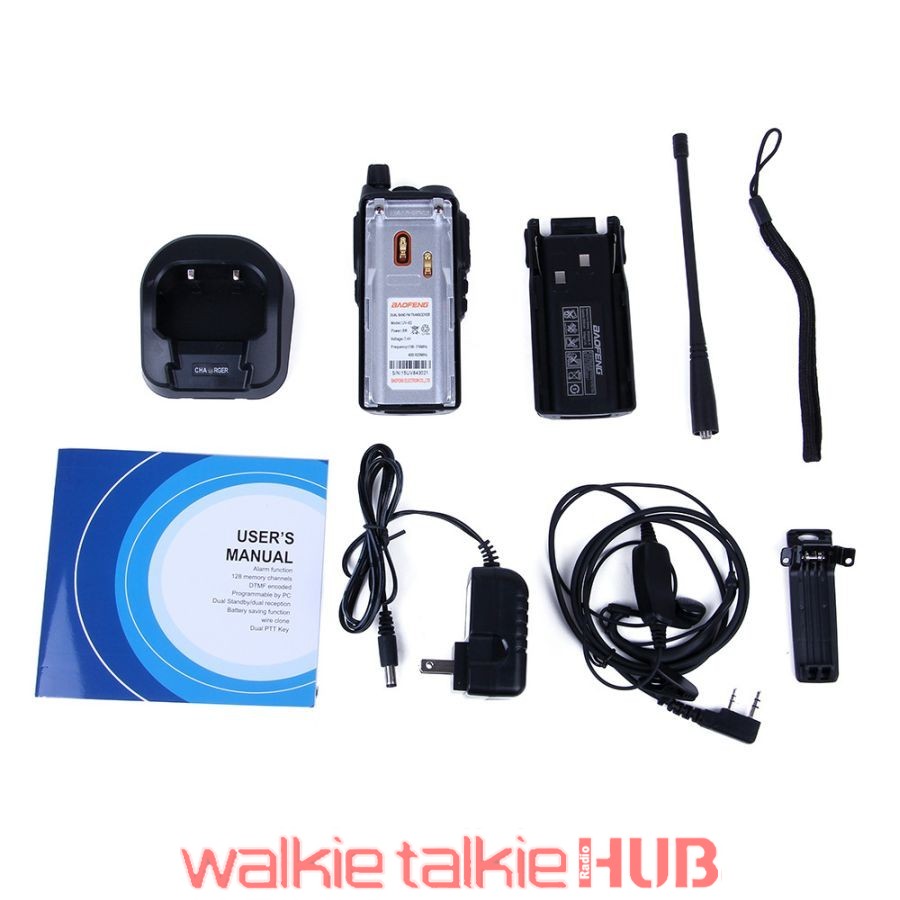

Contains:

1x BAOFENG UV-82 Dual Band FM Transceiver (not included battery)

1x 7.4V/1800mAh BL-8 Battery

1x Antenna

1x Power Adapter

1x Belt Clip

1x Hand Strap

1x Battery Charger

1x User Manual

1x Dual PTT earpiece
