Baofeng UV-8D UHF 400-480MHz Dual PTT Radio 8W 128CH 2800 mAh DTMF VOX 1750Hz Tone FM VOX Walkie Talkie
| All of our items are Brand New | ||
| Model | UV-8D | |
| Dual PTT | Single Band/Single Frequency | |
| 128 groups channels storage | UHF: 400-480MHz | |
| Shortcut menu operation mode | Emergency Alarm | |
| Transmitter time-out timer(TOT) | VOX (0~9 grades) | |
| PTT & ANI ID | FM radio (65-108MHz) | |
| Voice COMP | CTCSS/ DCS | |
| Call Tone 1750Hz | Repeater working confirmation | |
| TX power selectable(8W/1W) | Busy channel lockout | |
| LED Flashlight | DTMF Code | |
| Wide/Narrow Band | Yes | 25kHz/12.5kHz |
| Frequency step | Yes | 12.5/25KHz |
| Scanning function | Yes | |
| Monitor function | Yes | |
| Keypad lock function | Yes | |
| Flashlight | Yes | |
| Wire clone function | Yes | |
| Low battery alarm | Yes | |
| Power saving function | Yes | |
| Chinese and English voice prompt | Yes | |
| PC software programmable | Yes | |
| Basic Descriptions | ||
| Rated Voltage | 7.4V DC | |
| Output power | 8W/1W | |
| Battery type | Li-ion battery | |
| Battery capacity | 2800mAh | |
| Earpiece / MIC type | 2 Pin for KENWOOD Type | |
| Antenna | SMA-Female | |
| Working temperature | -20~+50 Degrees Celsius | |
| Antenna Impedance | 50 ohm | |
| Weight | 230g | |
| Dimension ( LXWXH ) | 60 X 38 X 120 mm (Not Antenna ) | |
| Specification | ||
| Frequency stability | ± 2.5ppm | |
| Modulation | F3E | |
| Max frequency deviation | <= 5kHz(Wide)/<= 2.5kHz(Narrow) | |
| Emission current | <=1.5A | |
| CTCSS / DCS | 0.7 ± 0.1kHz(Wide)/0.4 ± 0.1kHz(Narrow) | |
| Spurious Radiation | <=7.5µW | |
| Intermediation Distortion | <10% | |
| Intermediation sensitivity | 8-12mv | |
| Adjacent channel selectivity | <= 65dB(Wide)/<= 60dB(Narrow) | |
| Modulation character | 6 dB per fold frequency patch | |
| Sensitivity | -122dbm (12dB SINAD) | |
| Audio Power | 1W | |
| Audio Distortion | <= 10% | |
| Blocking | >= 85dB | |
| Spurious rejection | >=65dB | |

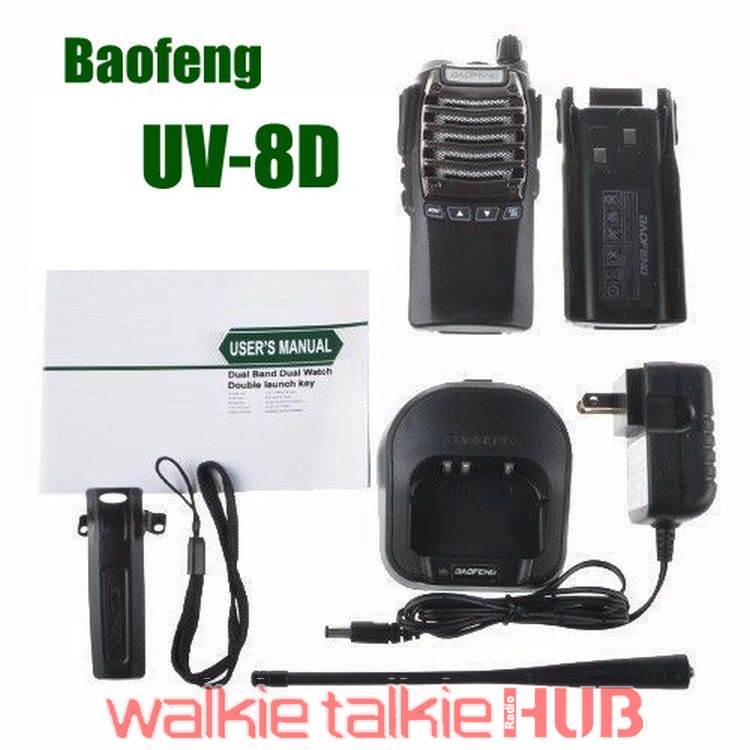

Each Package included:
- 1 x Baofeng UV-8D UHF Radio
- 1 x Antenna
- 1 x Li-ion battery pack
- 1 x LI-ion charger (fit for your country)
- 1 x Belt clip
- 1 x The sling
- 1 x User’s manual
- 1 X Earpiece
