Baofeng UV-S9 PLUS Tri-Band Amateur Radio UHF VHF 220-260MHz FM Transceiver

$39.99

& Free Shipping
Guaranteed Safe Checkout

Baofeng UV-S9 PLUS Tri-Band Amateur Radio UHF VHF 220-260MHz FM Transceiver

Baofeng UV-S9 PLUS Tri-Band 10W High Power Portable Two Way Radio 220-260Mhz UV 5R Upgrade Amateur Radio FM Transceiver

Feature:

1.   100% Brand New & Never Used

2.   Tri-band handheld transceiver with display function menu on the display “LCD”

3.   DTMF encoded

4.   Lithium-ion battery with high capacity

5.   Commercial FM radio receiver (65MHz~108MHz)

6.   Incorporates 105 codes “DCS” and 50privacy codes “CTCSS” programmable

7.   Function “VOX”(voice operated transmission)

8.   Alarm function

9.   Up to 128 memory channels

10.   Broadband (Wide)/Narrowband (Narrow), selectable

11.   High/low power selectable

12.   Display illumination and programmable keyboard

13.   Function “beep” on the keyboard

14.   Dual Watch/dual reception

15.   Selectable Frequency Step

16.   Function “OFFSET” (frequency offset for repeater access)

17.   Battery saving function

18.   Timer transmission “TOT” programmable

19.   Selecting the Scan Mode

20.   Busy Channel Lock

21.   Built-in RX CTCSS/DCS scan

22.   Built-in LED flashlight

23.   Programmable by PC

24.   Level Threshold “Squelch” adjustable from 0 to 9

25.   Cross band reception

26.   Tone end of transmission

27.   Built-in key lock

Specification:

General
Frequency range 136-174MHz(Rx/Tx)
220-260MHz(Rx/Tx)
400-520MHz(Rx/Tx)
Memory channels Up to 128 channels
Frequency stability 2.5ppm
Frequency step 2.5/5/6.25/10/12.5/25KHz
Antenna impedance 50 OHM
Operating temperature -20°C-60°C
Supply voltage Rechargeable Lithium-Ion 7.4V
Battery Capacity 2800mAh
Consumption in standby <=75mA
Consumption in reception 380mA
Consumption in transmission <=1.4A
Mode of operation Simplex or semi-duplex
Dimensions 110x58x32mm
Weight 130g(approximate)
Transmitter
RF power 8W/1W
Modulation type FM
Emission class 16K  øF3E/11KøF3E(W/N)
Maximum deviation <=±5KHz/<=±2.5KHz(W/N)
Spurious emission <-60dB
Receiver
Receiver sensitivity 0.2μV (at 12 dB SINAD)
Inter modulation 60dB
Audio output 1000mW
Adjacent channel selectivity 65/60dB

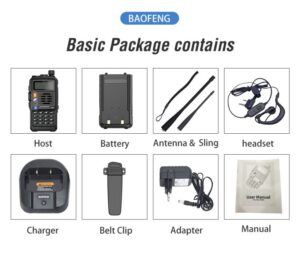

Contains:
1 x BaoFeng UV-S9 Plus Tri-band Radio (136-174Mhz /220-260Mhz /400- 520Mhz)
1 x  2800mAh Li-ion Battery Pack
2 x Antenna (One is Specifically for 220-260Mhz)
1 x Earphone Mic/Headset
1 x Belt Clip
1 x Hand Strap

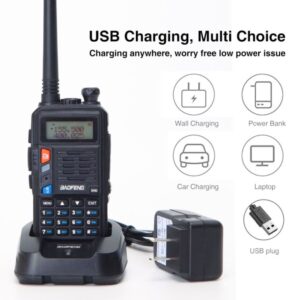

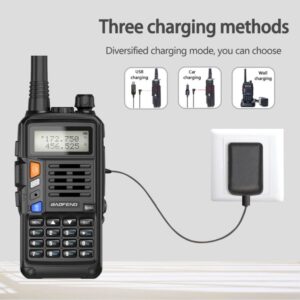

1 x Adapter
1 x Desktop Charger ( 100V ~ 240V )
1 x Product Manual
(This is standard ,If need other accessory,Pls place your need order)
Weight 0.5 kg
Dimensions 150 × 100 × 80 mm
