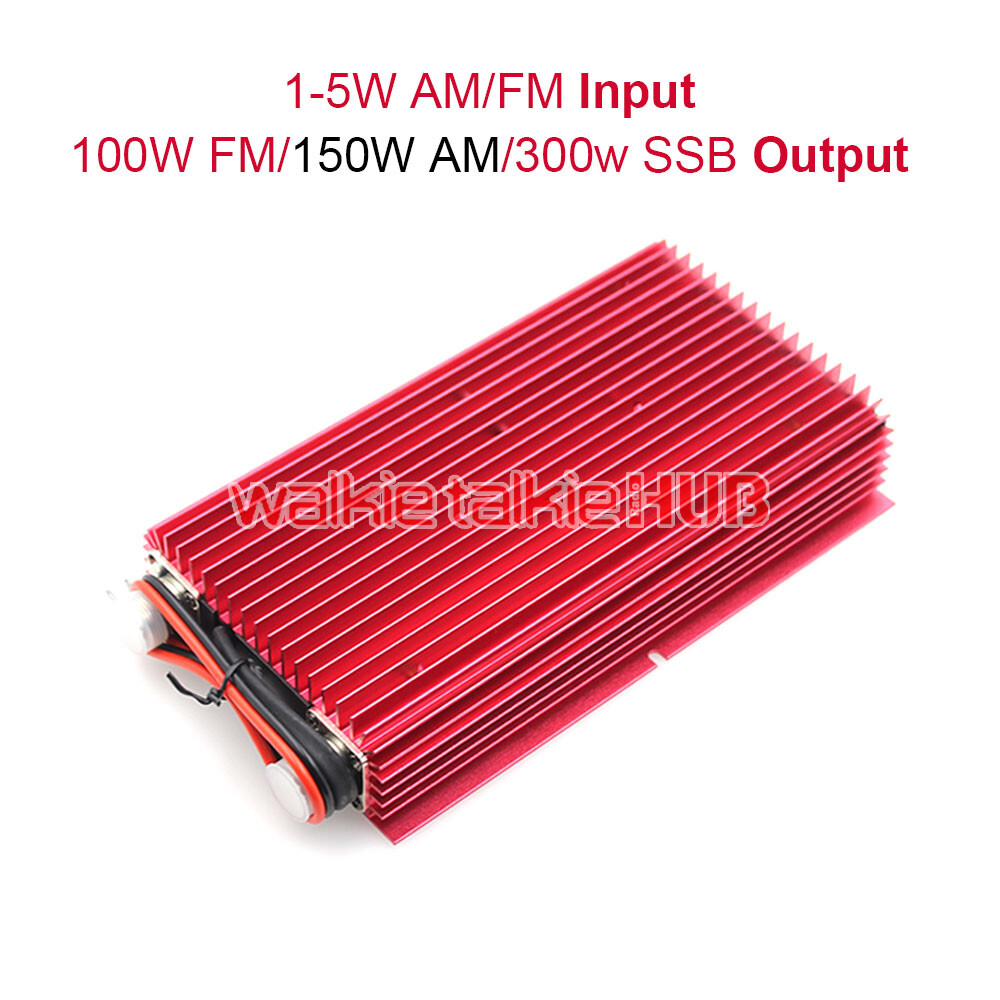

Baojie BJ-300 Power Amplifier 100W FM 150W AM 300W SSB 3-30MHZ Mini-size and High Power CB Radio Amplifier BJ300

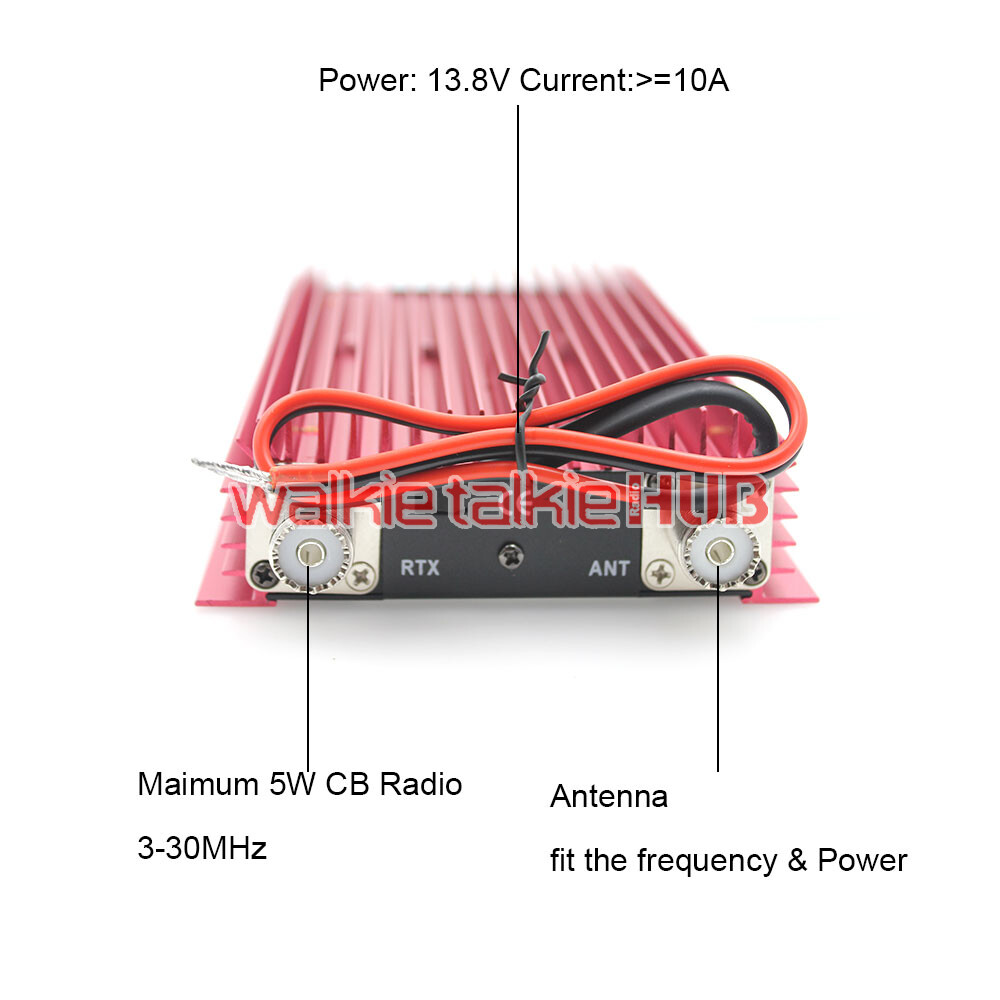

· Input power:3-5W,Pls connect the antenna before operation,Working mode:FM- AM-CW-SSB
· Frequency range:20-30MHz,optimum efficiency:25-27MHz
· voltage:12-14V,Input current/POWER:14-20A
· Inversion polarity protection,Compact high power all mode amplifier with mobile radio
· FM Output power: Max 100 W,AM Output power:Max 200 W, Output power SSB: Max 300W,Note:if you will test the max power to FM100W/AM 150W or SSB 300w,you can try use input 10w from FM/AM /SSB radio but please don’t use too long time, the operate will cause damage to power transistor, more serious will cause the amplifier to burn out.
Specifications
Frequency range:20-30MHz,(optimum efficiency:25-27MHz)

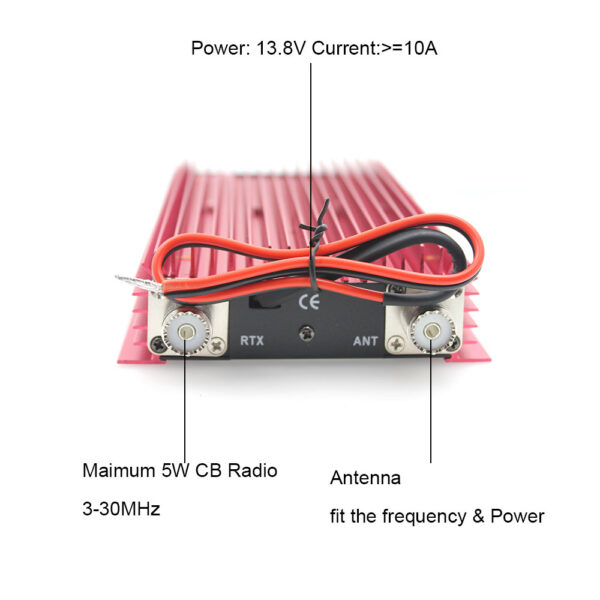

voltage:12-14V
Input current/POWER:14-20A
Input power:3-5W
Input power SSB:2-10W
FM Output power: Max 100 W
AM Output power:Max 200 W
Output power SSB: Max 250W
Working mode:FM- AM-CW-SSB
Note: if you will test the max power to FM100W/AM 200W or SSB 300w,you can try use input 10w from FM/AM /SSB radio but please don’t use too long time, the operate will cause damage to power transistor, more serious will cause the amplifier to burn out.
Blown fuse:2×12 A

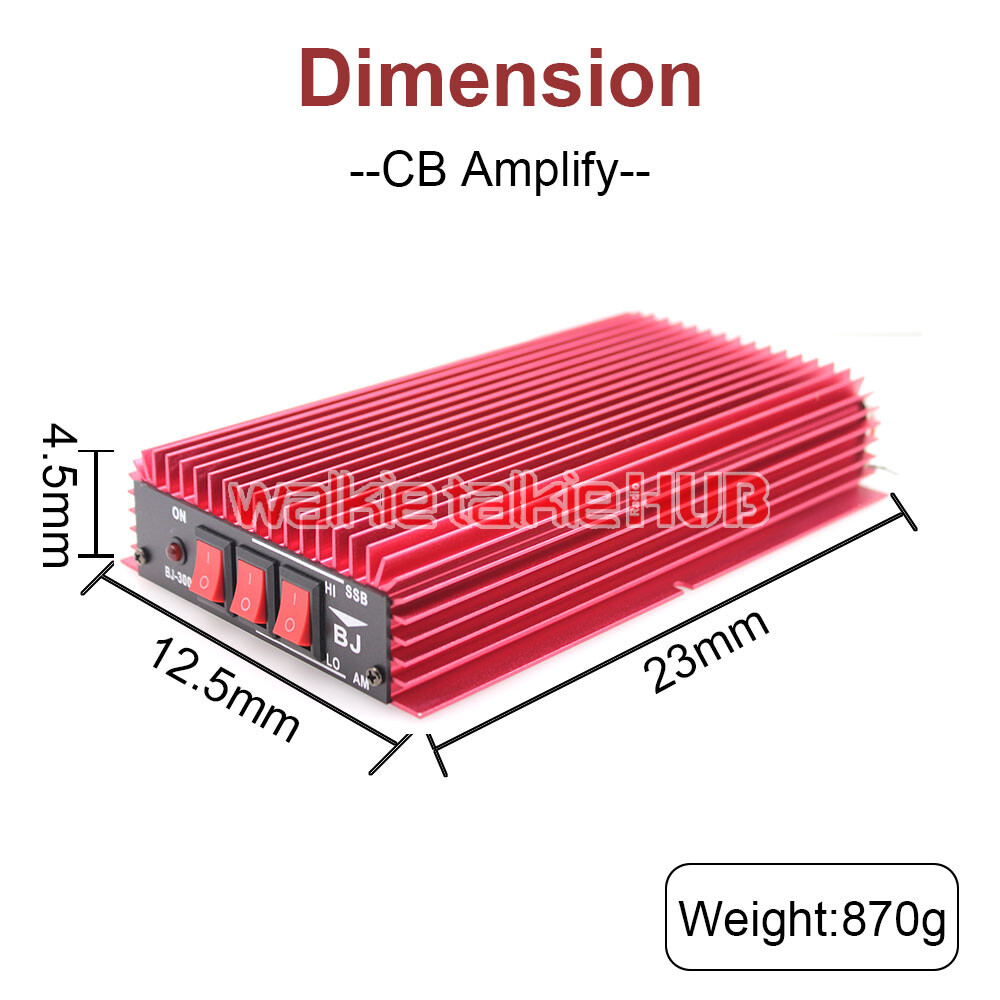

Dimension:109x225x35 mm
Net weight:750 g.

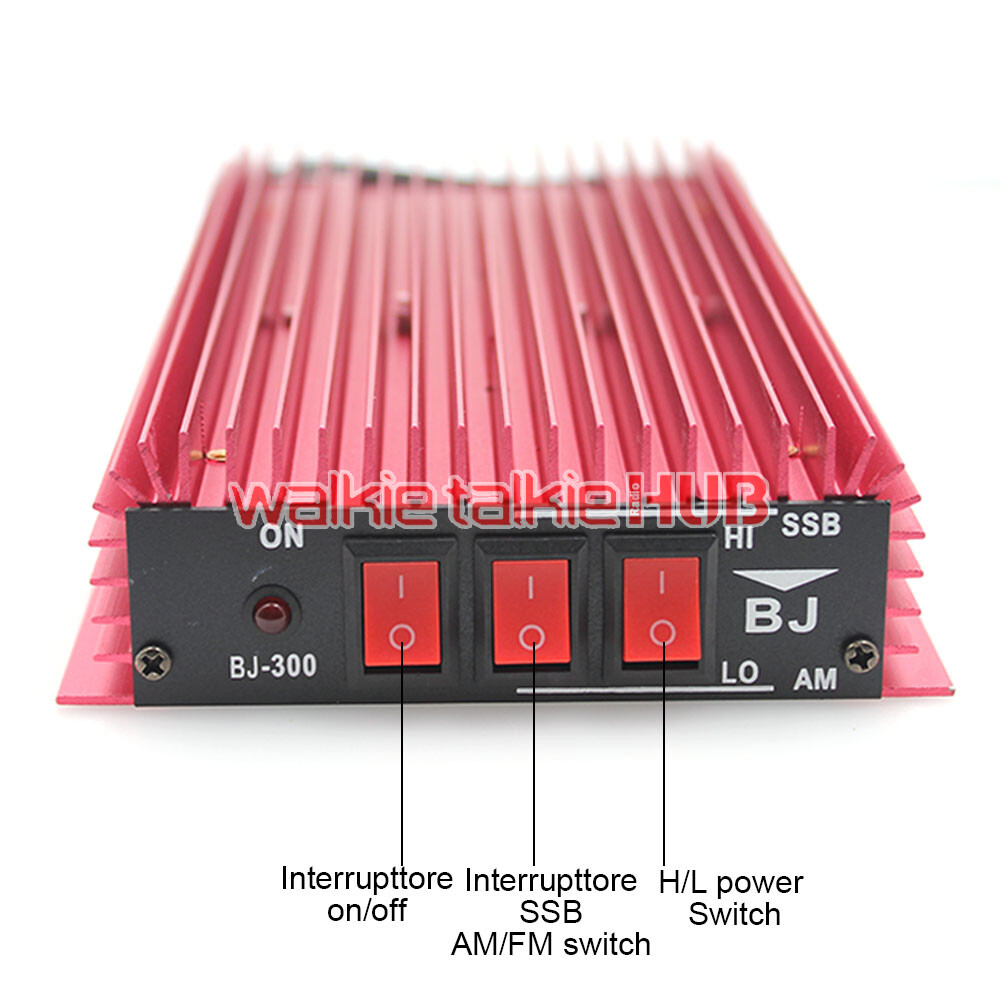

Compact high power all mode amplifier with automatic TX/Rx switch and On/Off switch. Electronic switch.
Inversion polarity protection.

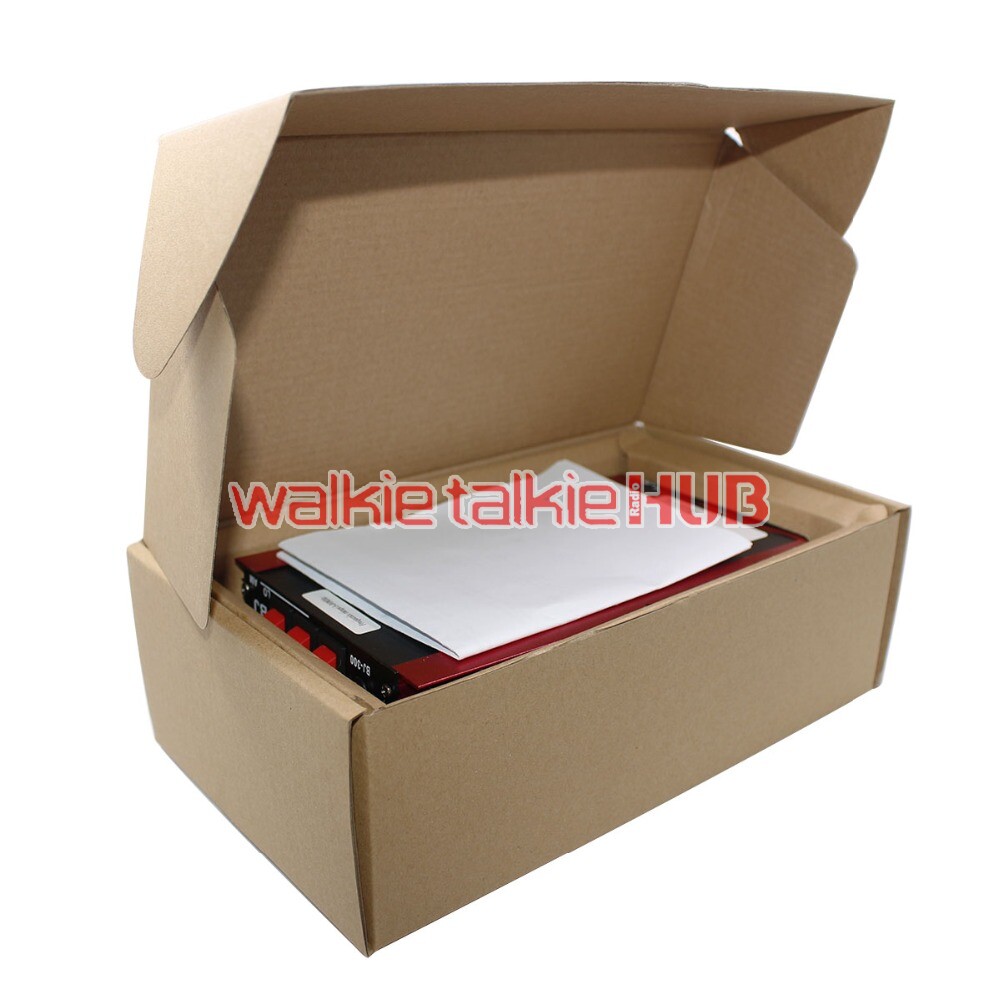

Packing Incudes:
1*BJ-300 Amplifier
