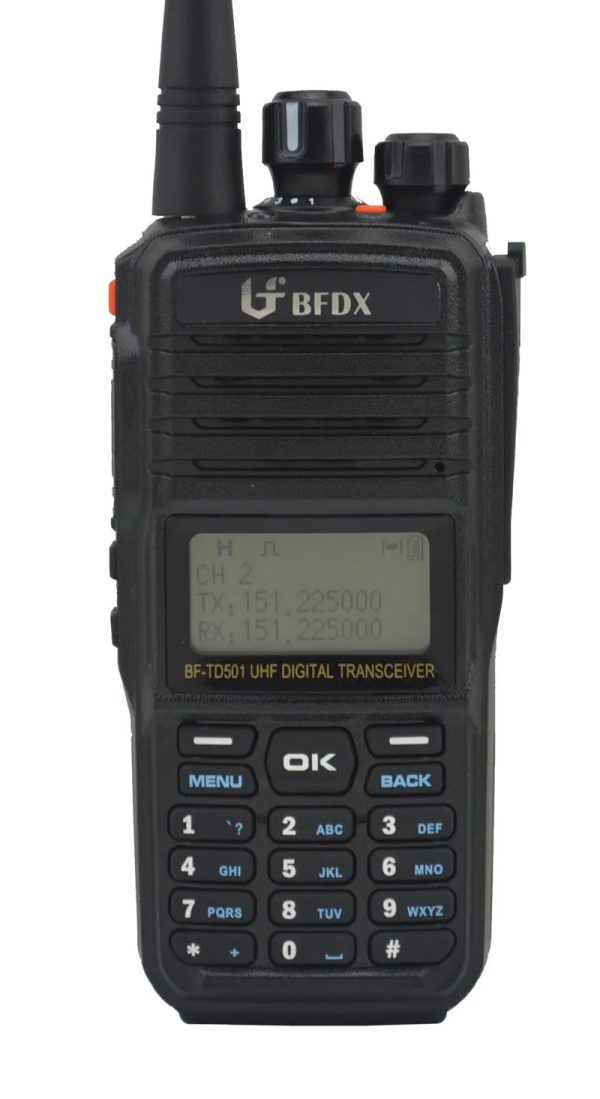

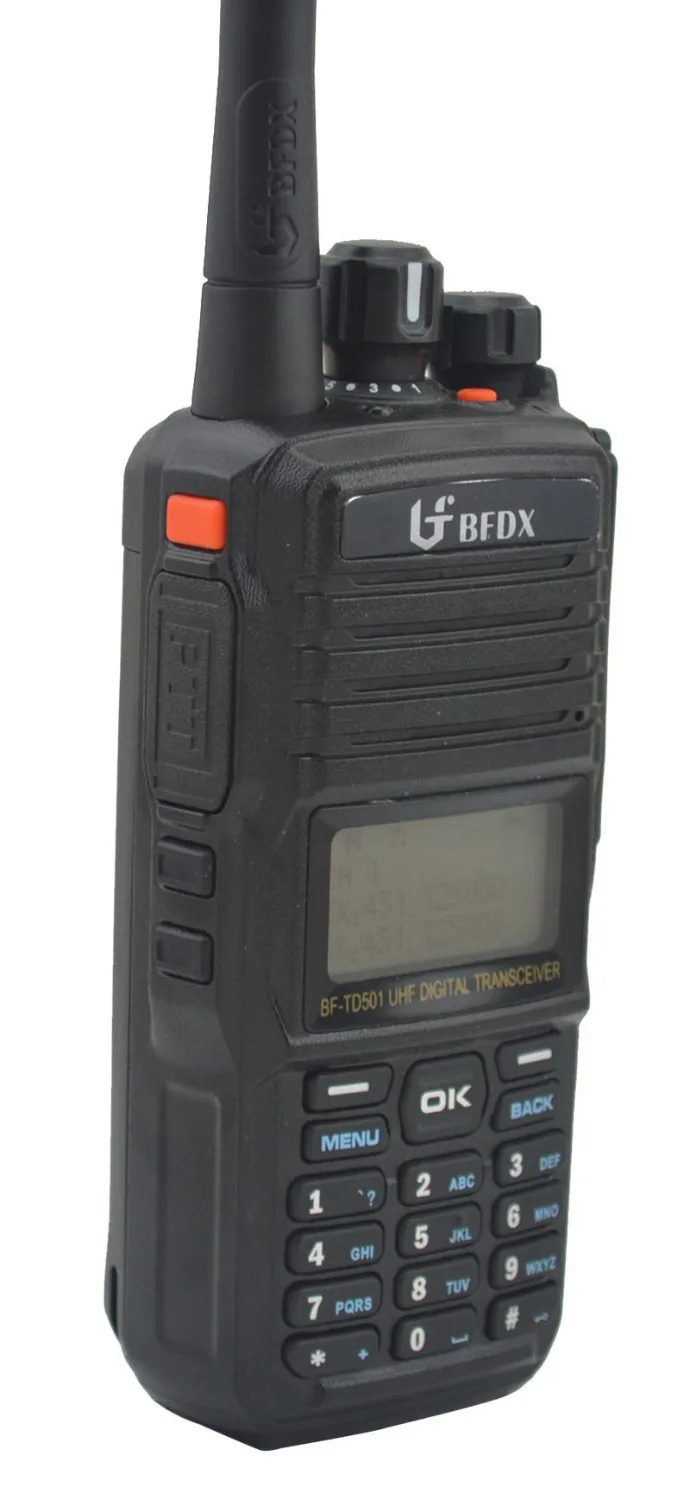

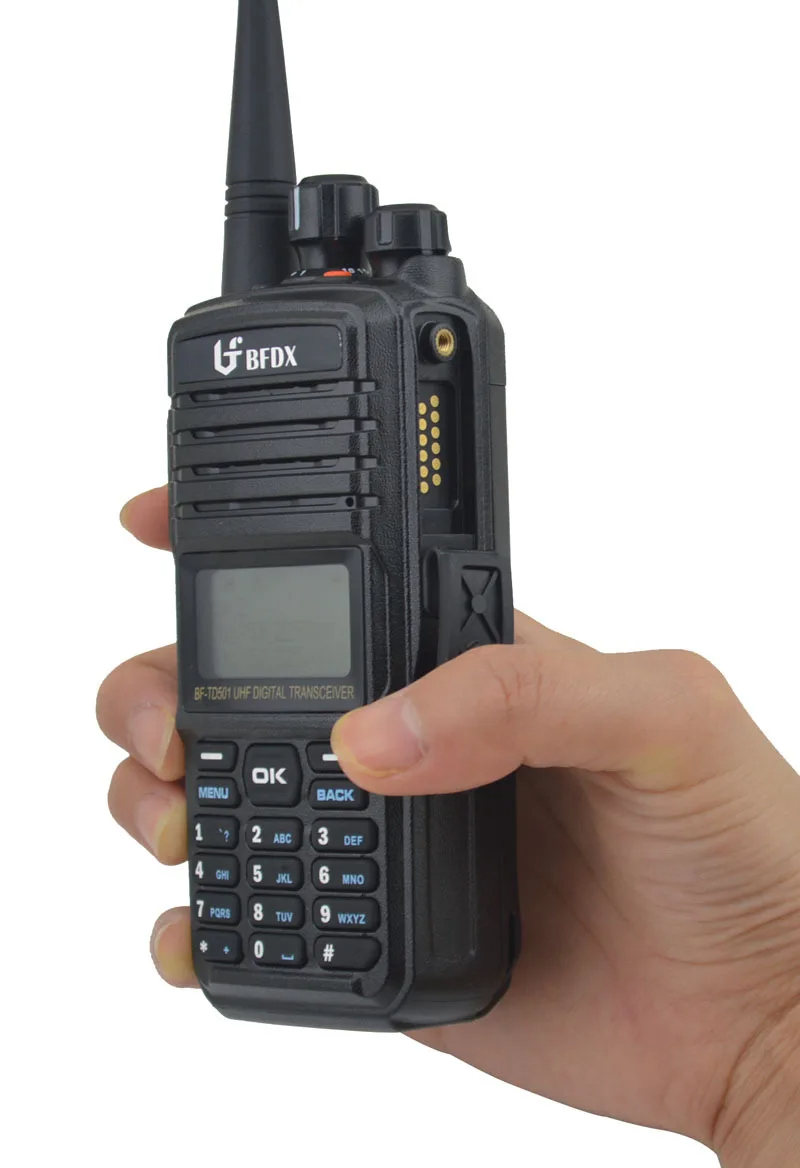

BFDX BF-TD501 DMR Handheld Walkie Talkie UHF VHF Digital Radio

Original price was: $345.00.Current price is: $227.00.

+ Free Shipping

BFDX BF-TD501 VHF 136-174MHz DMR Digital FM Transceiver

BFDX BF-TD501 UHF 400-470MHz DMR Digital FM Transceiver digital two way radio

BFTD501 is a professional digital two way radioTDMA, supporting digital and analog 2 working modes.According to standard DMR protocol,TDMA dual slots,dynamic encryption,with 4FSK modulation,AMBE+2™ vocoder,this make  BF-TD501 as a best radio for you to migration from analog to digital.



This is DMR digital radio which can communicate with any Moto DMR digital Radios.

The default color code  of BF-TD501 is 0

The default repeater slot of BF-TD501 is  1

The default Caller ID of BF-TD501 is eight digits
Main Function:

Working in digital and analog 2 working modes

It supports digital and analog 2 working modes,meeting different communication demands.

Dual slots

Dual slots TDMA-Time division multiple access,greatly increase the communication capacity.

Voice encryption

Encryptioned code can be set via software,which can be used to scramble and descramble voice call on encryptioned channels.

Individual call

Except the pointed 2 person can talk with each other,noboly elase can hear,which can well protect the privacy of communication.

Group call

A group of people or certain members settled as a group, all the members can talk with each conviniently.

All call

A certian radio can talk with any other radios in the same channel.,no matter whatever group he or she is in.This is very useful for dispatch.

Specifications:

GENERAL
Frequency Range 136-174MHz / 400-470MHz
Channels 160
Zones 50
Channel Spacing 6.25KHz
Working Voltage 7.4V DC
Battery Capacity 2000mAh
Battery Average Working Time(5/5/90) 12 hours
Frequency Stability ±1ppm
Antenna Impedance 50 ohm
Dimension 62(L)*39(W)*113(H)mm
Weight 291g(including battery pack)
Transmitting
Power Output H:4-5W L:1W
4FSK Modulation 4K00F1E
Spurious Emission -36dBm≤1GHz/-30dBm≥1GHz
Adjacent Channel Power ≤60dB
Vocoder AMBE 2+
Receiving
Sensitivity 3%BER≤0.25μV
Audio Output Power 500mW
Audio Distortion <5%
Conduction Radiation -57dBm
Environmental Indicators
Operating Temperature -20°c-+60°c
Storage Temperature -30°c-+85°c
Damp Proof MIL-STD-810C/D/E/F

PACKAGE Contents:

1 x BF-TD501 DMR Digital Radio

1 x 7.4V 2000mah Li-ion Battery Pack

1 x SMA-Female VHF Antenna

1 x Belt Clip

1 x User Manual

1 x Desktop Charger ( 100V ~ 240V ) with Correct Adapter for your Country

1× Handstrap



Weight 1.2 kg
Dimensions 400 × 400 × 150 mm
Frequency Range

VHF 136-174MHz, UHF 400-470MHz
