Sale!

Compatible with Motorola’s DMR Dual Band Kydera DR-8500UV Walkie Talkie

Original price was: $165.00.Current price is: $114.00.

+ Free Shipping

Compatible with Motorola’s DMR Dual Band Kydera DR-8500UV Walkie Talkie

Dual band UHF VHF DMR walkie talkie DR-8500UV portable two way radio



1.Compatible with Motorola’s DMR.
2.Group Calling,General Calling,Individual Calling.
3.GPS(optional)
4.Li-ion Battery
5.4000Channels
6. uhf vhf radio talki walki
7.Call Alert
8.2 way radio manufacturers
9.best handheld ham radio

New
1. More channel capacity: 4000 channels, 250channels per Zone,  but  if you prefer 16channels per Zone, it is no problem.
2. True 2-time slot: which allows for 2 talk path on 1 frequency

Main Features:
FM Radio
Backlight Control
Keylock
TOT
Scan
High/Low Power
Language Selection
Keytone Control
Low Power Alert
Display Mode
Man Down (Optional)

Digital Features
Message
Remote Kill
Remote Revive
Private Call
Group Call
General Call
Contacts
No-address Call
Remote detection
Call Alert
Call log
Emergency Alarm
Voice Encryption
GPS(Optional)

Analog features
CTCSS
DCS
Squelch Setting
Busy Channel Lockout
Narrow/Wide Band
Scrambler (Optional)
Compandor(Optional)

General Specification of dmr walky talky

Function characteristics:
Ø Individual Calling
Ø Group Calling
Ø General Calling
Ø Stun
Ø Recents
Ø Contacts
Ø GPS Status(optional)
Ø SMS
Ø Remote monitor (optional)
Ø Scan

Technical performance:

Ø Menu Mode
Ø Keypad
Ø 107 DCS
Ø 50 CTCSS
Ø LCD Display
Ø PC Programmable
Ø Priority Scan
Ø Channel Naming
Ø Li-ion Battery Pack
Ø Busy Channel Lockout
Ø Multiple Call Tones+1750Hz
Ø Hi/Low Power
Ø Time-out Timer
Ø Low Battery Alert
Ø Frequency/Channel Scan
Ø Battery Strength Indicator
Ø Selectable Squelch Level
Ø CO/TO/SE Scan Switchable
Ø Programmable Greeting Message
Ø Selectable Name/Frequency Display Mode

General
Frequency 136-174Mhz & 400-480Mhz or other specified frequency (customized)
Channel 4000 channels (250channels per zone, 16 zones)
Channel spacing 12.5/25KHz
Power 4/5W
Antenna impedance 50Ω
Dimension (H*W*D) 111mm x 58mm x 38mm
Weight (with battery) 225g
Li-Pol battery 2300mAH
Rated voltage DC: 7.4V
Receiver
Frequency stability (-20℃, +60℃, +25℃) +/-1.5ppm
Analogue sensitivity 0.3uV/0.25uV
Digital sensitivity (5%BER) 0.25uV/0.2uV)
Inter-modulation 65dB
Adjacent channel selectivity 60dB@12.5kHz/65dB@25kHz
Spurious rejection 65dB
Rated audio 500mw
Audio distortion @rated audio 3%
FM hum & noise -40dB@12.5kHz/-45dB@25kHz
Audio response +1,-3dBm
Conducted /radiated emission -57dBm
Transmitter
Frequency stability (-30℃, +60℃, +25℃) +/-1.5ppm
Modulation restriction ±2.5dB@12.5kHz/±5.0dB@25kHz
FM hum & noise -40dB@12.5kHz/-45dB@25kHz
Conducted /radiated emission -36dBm<1GHz/-30dBm>1GHz
Adjacent channel selectivity -60dB@12.5kHz/-65dB@25kHz
Audio response +1,-3dBm
Audio distortion 3%
FM modulation 12.5kHz: 11KOF3E
25kHz: 16KOF3E
4FSK digital modulation 12.5kHz data: 7K60F1D and 7K60FXD
12.5kHz audio: 7K60F1E and 7K60FXE
12.5kHz data and audio: 7K60F1W
Digital vocoder AMBE+2™
Digital agreement ETSI-TS102 361-1,-2,-3

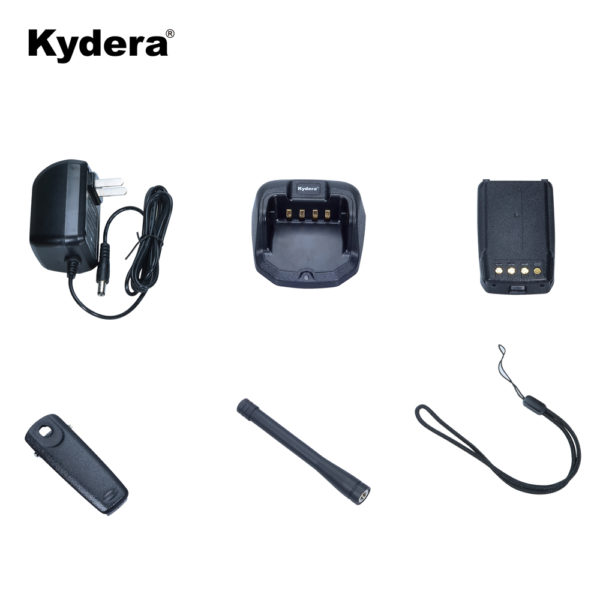

Each Unit Package Contain:

1 x Kydera DR-8500UV Dual Band DMR transceiver

1 x Battery 2300mAh Li-ion

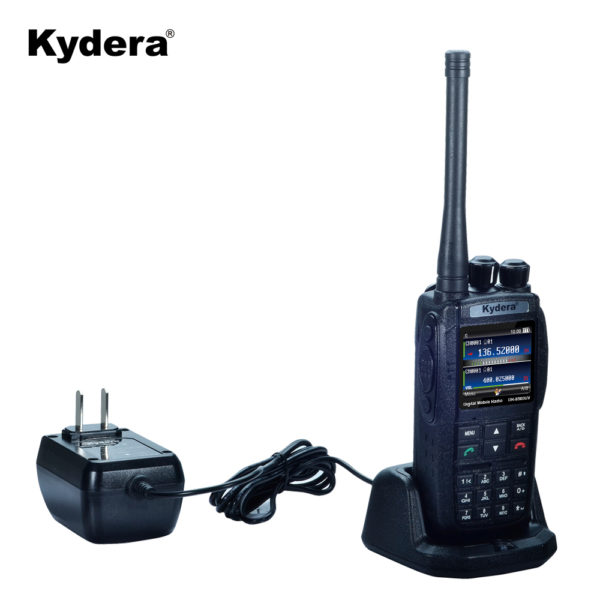

1 x Charger Docking

1 x Charger Adaptor (for your country)

1 x High Gain Dual Band Antenna

1 x Belt Clip

1 x Sling

1 x PTT Earpiece

Weight 0.8 kg
Dimensions 400 × 300 × 100 mm
