CQV-SWR-508 1.8-54MHz 200W SWR & Power Meter Digital PWR SWR Meter with 4.3″ Color Touch Screen

Original price was: $350.97.Current price is: $177.94.

+ Free Shipping

SWR Power Meter CQV-SWR-508 200W Digital Standing Wave Meter Work from 1.8-54Mhz 4.3-inch IPS Color LCD display

CQV-SWR-508 1.8-54MHz 200W SWR & Power Meter Digital PWR SWR Meter with 4.3″ Color Touch Screen

Features:
– 200W digital power standing wave meter

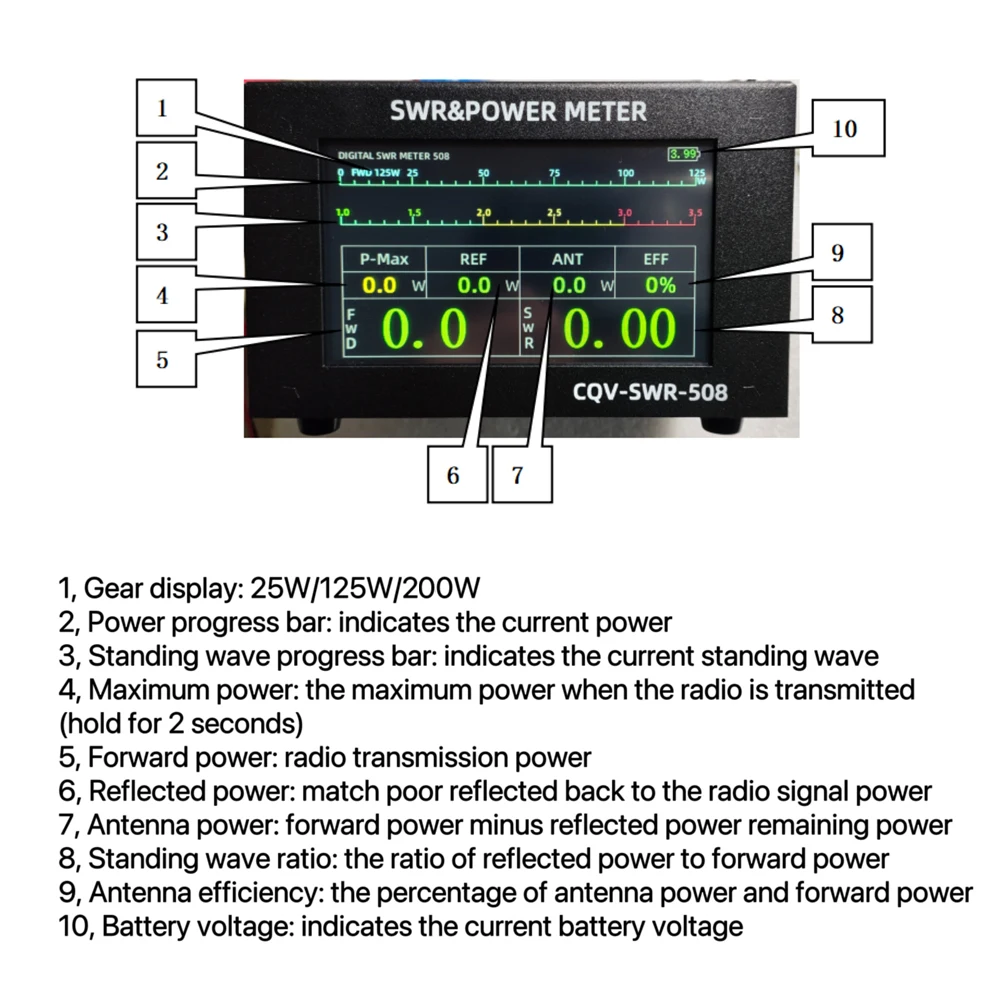

– Supports direct reading of forward/reverse and power/standing wave parameters

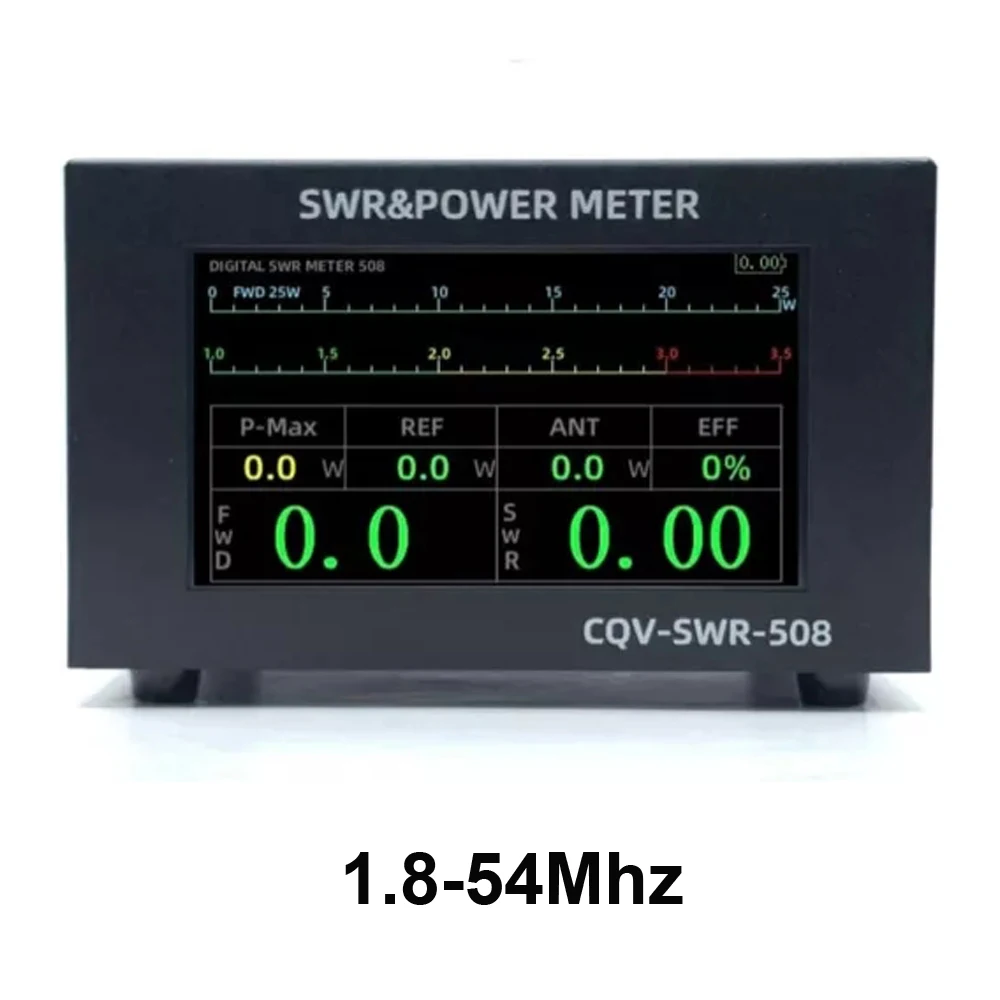

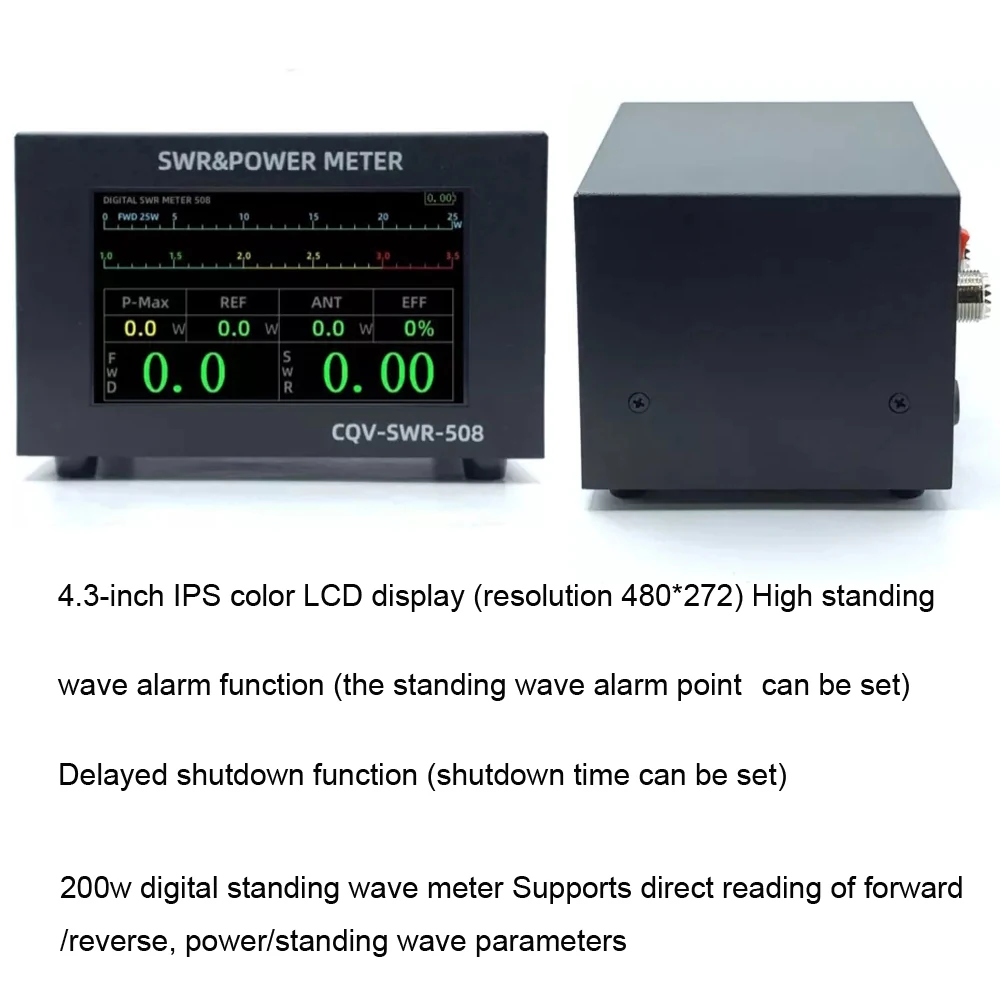

– With a 4.3-inch IPS color LCD display with a resolution of 480*272

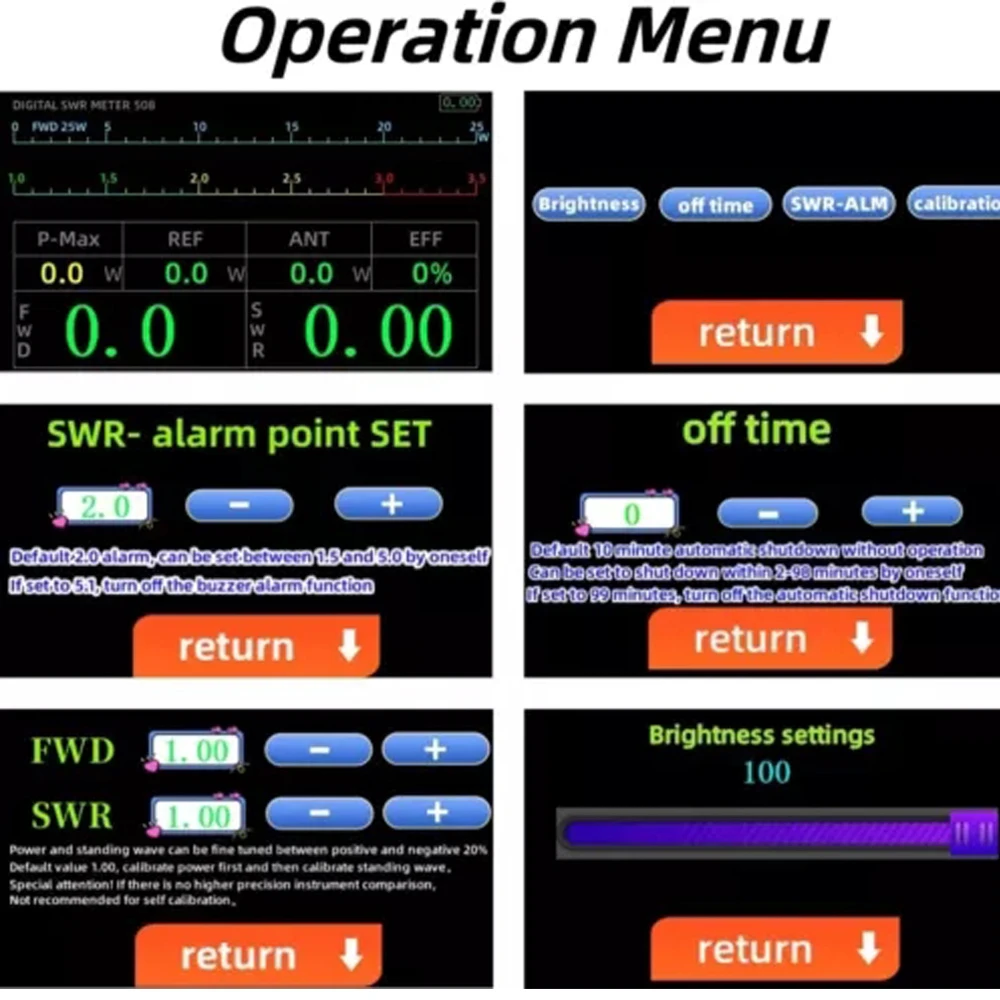

– High standing wave alarm: standing wave alarm point can be set
– Delay shutdown function: shutdown time can be set
– Launch automatic boot function
– Battery under-voltage protection
– Simulate the progress bar function
– Power fine-tuning function (±20%)
– Standing wave fine-tuning function (±20%)

Specifications:
– Working frequency: 1.8-54MHz
– Measuring range: 0.5-200W (in FM, CW, AM and FT8 modes. It is recommended not to exceed 120W for long-term use)
– Standing wave range: 1-99.9 (when the standing wave is greater than 2.0, it will sound the alarm. And you can set the alarm point through the menu)
– Charging interface: Type-C DC 5V/1A (charging voltage 5.5V maximum)
– Battery model: 3.7V/4000mAh (It will flash to alarm when the battery voltage is below 3.4V. And it will automatically shutdown when the voltage is below 3.35V)
– Interface type: UHF (SL16)
– Shell size: 132mm x 100mm x 82mm/5.2″ x 3.9″ x 3.2″ (excluding protruding part)
– Net weight: about 800g/1.8lb

Package Included:
– 1 x SWR Meter

Weight 1.8 kg
Dimensions 500 × 500 × 200 mm
