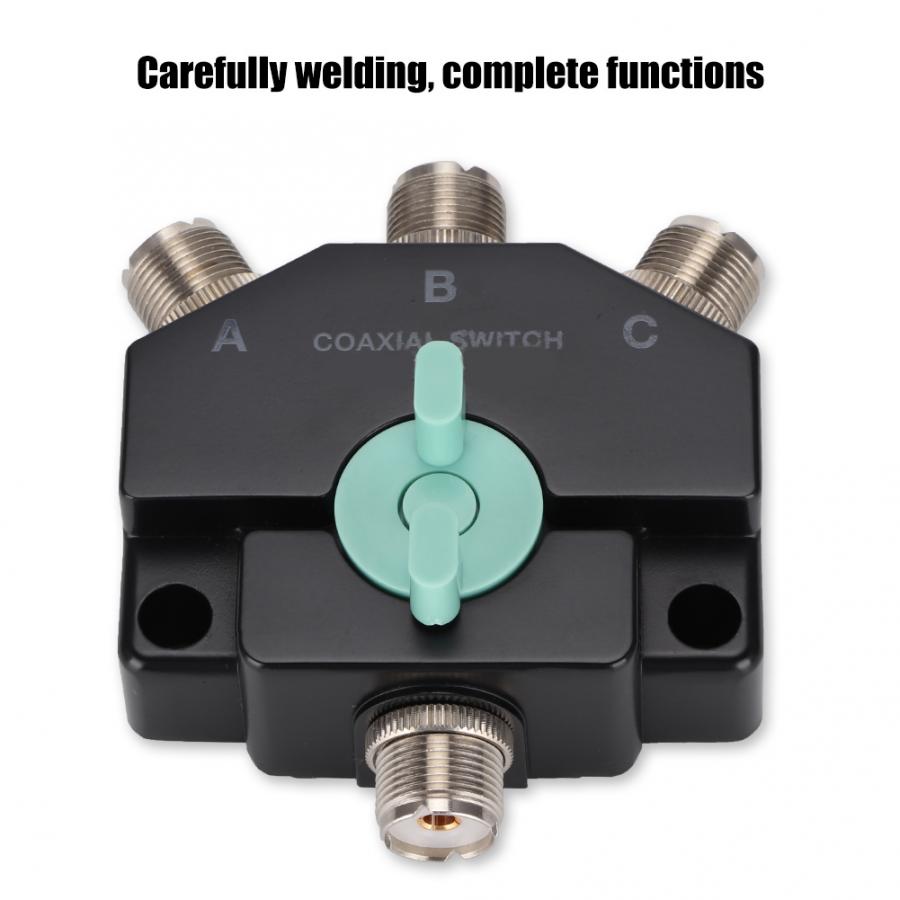

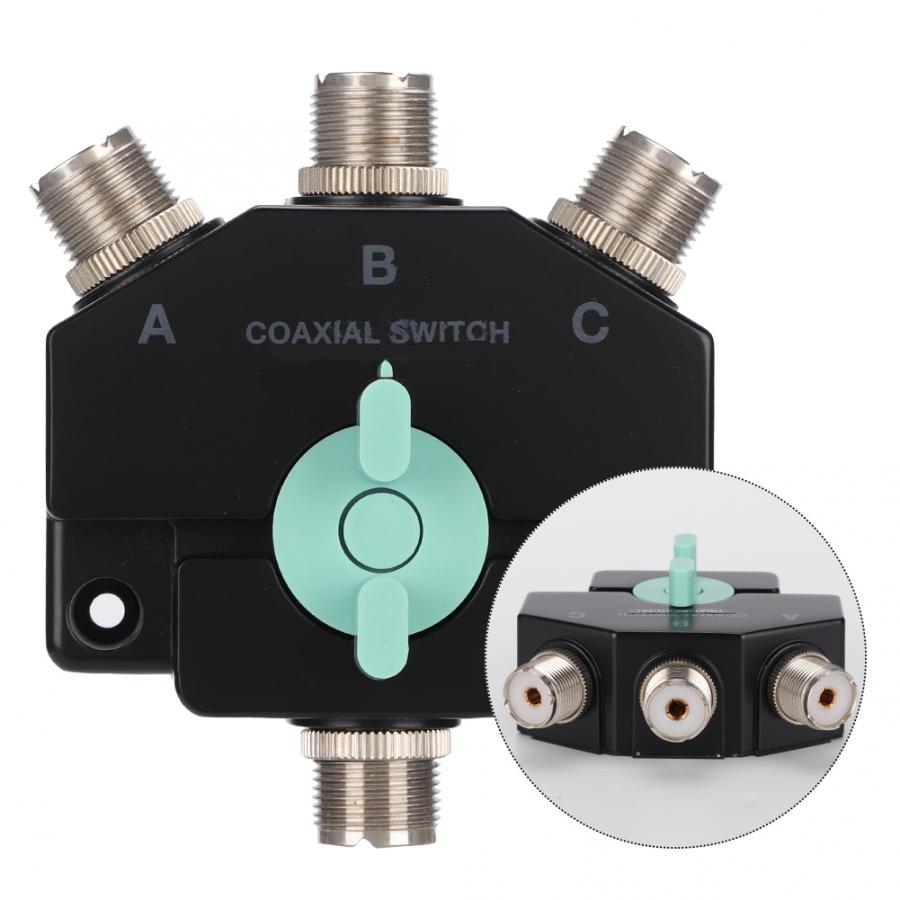

CX-310 1 Circuit 3 Antenna Switcher Multi-Functional Antenna Short- Base
Features:
- It is made of high quality metal material, strong and durable.
- It can adjust the received signal by switching the antenna, convenient and practical.
- The interface with the antenna is made by precise technology, and there is no problem of bad contact.
- It can be connected to three antennas, outstanding performance.
- The impedance is only 50 ohms and the loss is very low.
Specifications:
Material: Metal
Size: Approx. 9.5*7.7*2.9cm/3.74*3.03*1.14inch
Frequency: DC-800MHz
2 Position Switch 1-Input -3-Outputs
Insertion loss: less than 0.1dB (DC-500MHz), more than 0.15dB (500-1000MHz)
Isolation: more than 60dB (DC-500MHz), over 50dB (500-800MHz)
VSWR: less than 1.1 (DC-500MHz), less than 1.2 (500-1000MHz)
Through power: (less than SWR1.2), 1.5KW (DC-30MHz), 1KW (30-150MHz), 500W (150-800MHz)
Impedance: 50 Ohm
Interface: M-J Interface
Material: Metal
Size: Approx. 9.5*7.7*2.9cm/3.74*3.03*1.14inch
Frequency: DC-800MHz
2 Position Switch 1-Input -3-Outputs
Insertion loss: less than 0.1dB (DC-500MHz), more than 0.15dB (500-1000MHz)
Isolation: more than 60dB (DC-500MHz), over 50dB (500-800MHz)
VSWR: less than 1.1 (DC-500MHz), less than 1.2 (500-1000MHz)
Through power: (less than SWR1.2), 1.5KW (DC-30MHz), 1KW (30-150MHz), 500W (150-800MHz)
Impedance: 50 Ohm
Interface: M-J Interface
Package list:
1 x Switcher
2 x Screw
