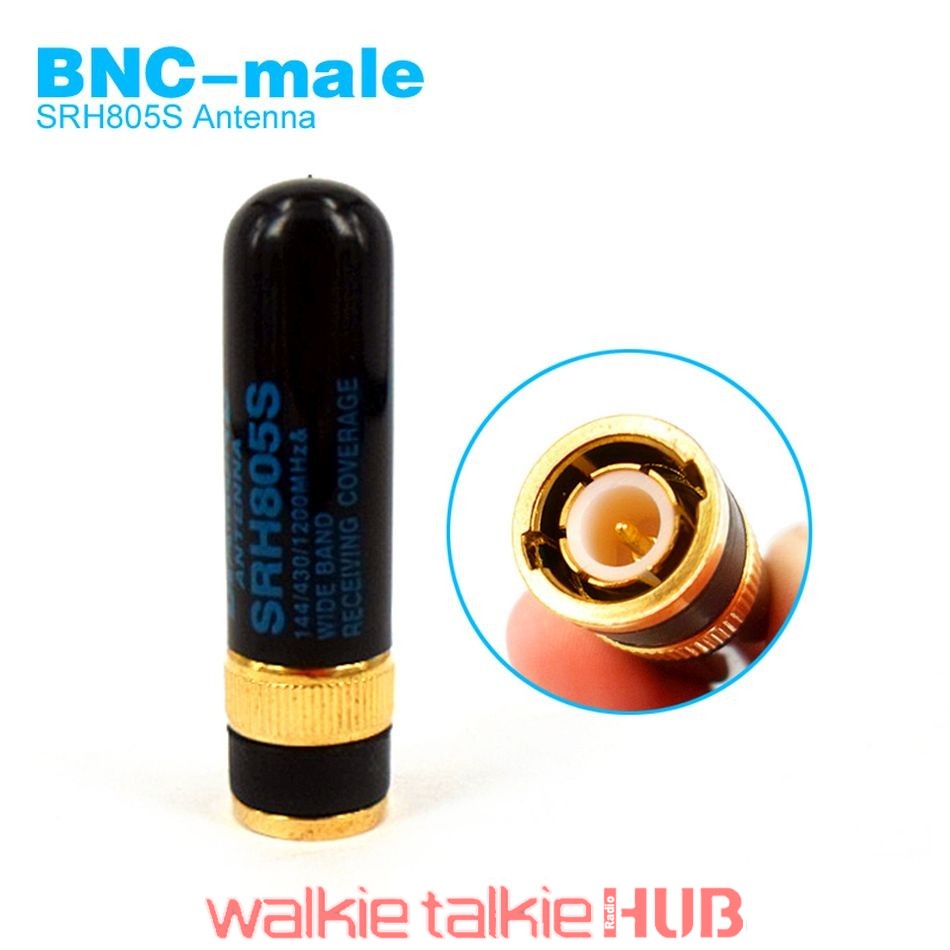

Diamond SRH805S 144/430MHz BNC Male Antenna

Original price was: $20.00.Current price is: $10.00.

+ Free Shipping

Diamond SRH805S 144/430MHz BNC male Walkie Talkie Antenna for ICOM Kenwood Handheld Radio IC-V8 IC-V82 IC-V85 TK308 TK100 TK200 HT440


Model: SRH805S
Band: Dual band
Transmission Frequency: 144/430MHz/1200MHz (136-174MHz+400-480MHz)
Receiving Frequency: 120/150/300/450/800 / 900MHz
Gain: 2.15db / 3.0db
Max power: 10 W
V.S.W.R: < 1.5
Impedance: 50 OHM
Connector: BNC-Male
Length: 5cm
Features: compact appearance, easy to carry.
Applicable models:
For ICOM Series: IC-V8 IC-V82 IC-V85
For Kenwood TK100 TK200 TK220 TK300 TK310 TK320 TK208 TK308 TK22AT TK42AT TH28A TH48A TH78A TH45A TH25A TH26A TH46A
For Marantz C150 C450 HX260 HX270
For Motorola Series: HT440 HT90 CP500 CP520 etc.
Package Includes:
1 X SRH805S Antenna ( BNC-male connector )
Weight 0.06 kg
Dimensions 70 × 70 × 20 mm
