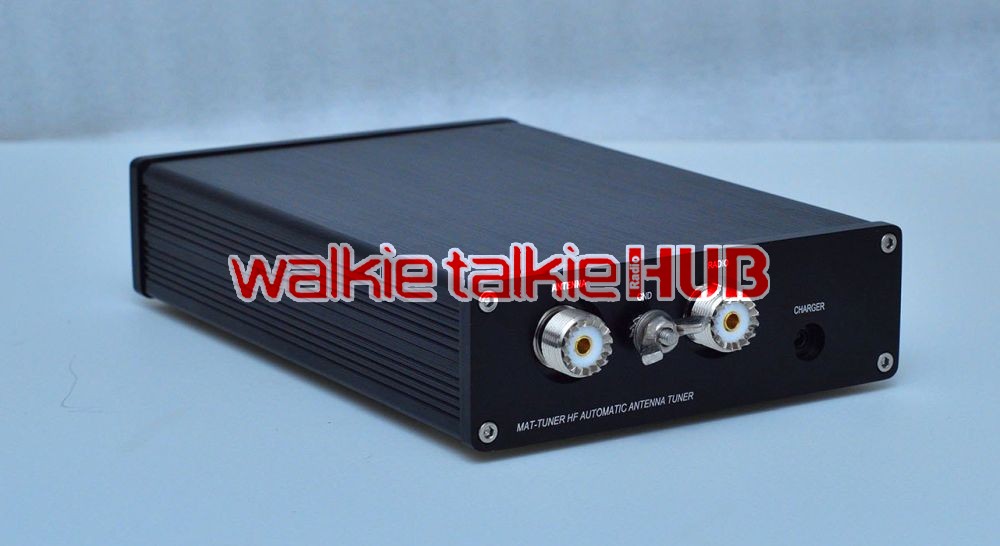

HF Automatic Antenna Tuner MAT-125E For Shortwave Radio

HF Automatic Antenna Tuner MAT-125E For Shortwave Radio

The main improvements in the new version are as follows:

The version of the tuner is based on the experience of previous products on the basis of the shell technology has been greatly improved, before and after the panel using aluminum milling process, beautiful and strong.

The new version of the tuner according to the feedback of friends, the original antenna seat re-selection, directly from foreign procurement, to ensure the accuracy of the product process.

Officially released the new version of mAT-125E short-wave 120-watt magnetic retention version of automatic tuner (lithium battery version)

Related parameters：

Maximum power: 120 watts

Operating frequency: 3M, 5M, 7M, 10M, 14M, 18M, 21M, 24M, 28M

Work: automatic + manual fine-tuning

Adjust the standing wave: most of the antenna can be adjusted to 1.5 standing wave about

Operating voltage: 8.4V, built-in two 18650 lithium battery-powered, operating current less than 0.02A, with a dedicated charger

Antenna impedance: 5-1500 ohms

Dimensions: width 13cm, length 20cm, high 4cm

Approximate weight: 800 grams

Features:

1, Adjust the circuit using imported Ami East magnetic ring and the original TDK capacitor, to ensure stable work, excellent performance, high efficiency;

2, The use of macro-magnetic retention relay.

3, Switch the use of world-class manufacturer C & K’s silver-plated button switch, feel great.

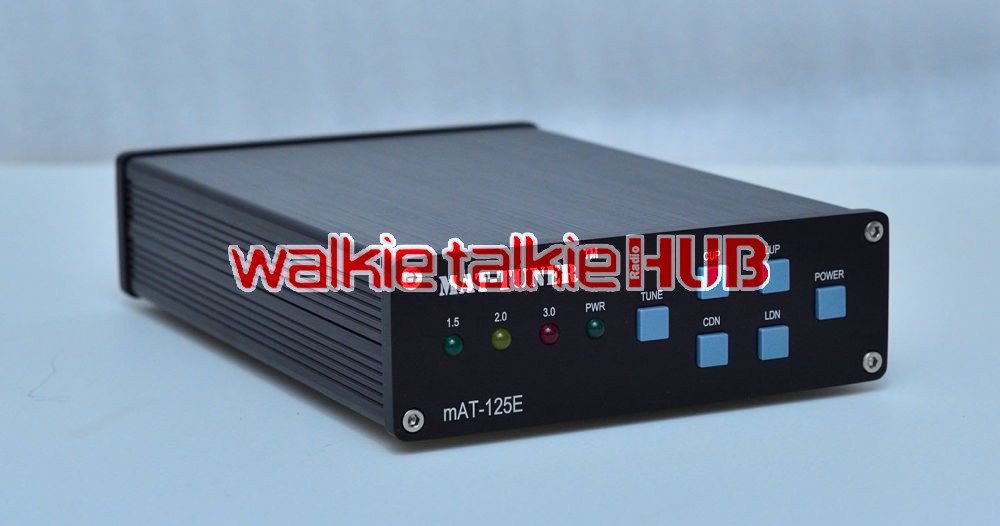

4, The panel uses light-emitting diodes to show the current live wave ratio, intuitive and convenient.

5, The tuning speed. The first adjustment within 8 seconds, if the standing wave is less than or equal to 1.5, then automatically store data, the next time to adjust the time to less than 0.5 seconds, and not afraid of power down.

6, small power can be adjusted, the use of 5-20 watts of low power can be accurately adjusted, the minimum use of power 5 watts, the maximum use of power 120 watts.

Package Included:

1 x mAT-125E Antenna Tuner

1 x Dedicated Data Line

mAT-125E is a general-purpose short-wave automatic tuner, suitable for most of the shortwave model. Adjust the circuit using imported components, to ensure stable work, excellent performance, high efficiency. The use of macro-magnetic relay relay, built-in lithium battery, power consumption is minimal and no external power supply to work, especially for outdoor use. Tune has a fast tuning, can automatically store the characteristics of the configuration. The first adjustment within 8 seconds, if the standing wave is less than or equal to 1.5, then automatically store data, the next time to adjust the time to less than 0.5 seconds, and not afraid of power down. Can be perfect at a minimum of 0.5 watts of power.

Comes with a dedicated lithium battery charger.

Applicable to long lines, bipolar, GP, Yagi and other common antenna.

Pledge:

1, Commitment to unconditional refund within a week, as long as you do not like, you can a full refund to ensure that your interests, to buy no risk! If the quality of the buyer only need to bear the return postage, but should not have obvious use of traces, does not affect the sale again.

2, The use of power range, the warranty for one year, do not charge any fees.

3, A year after the free maintenance of life, only charge the cost.
