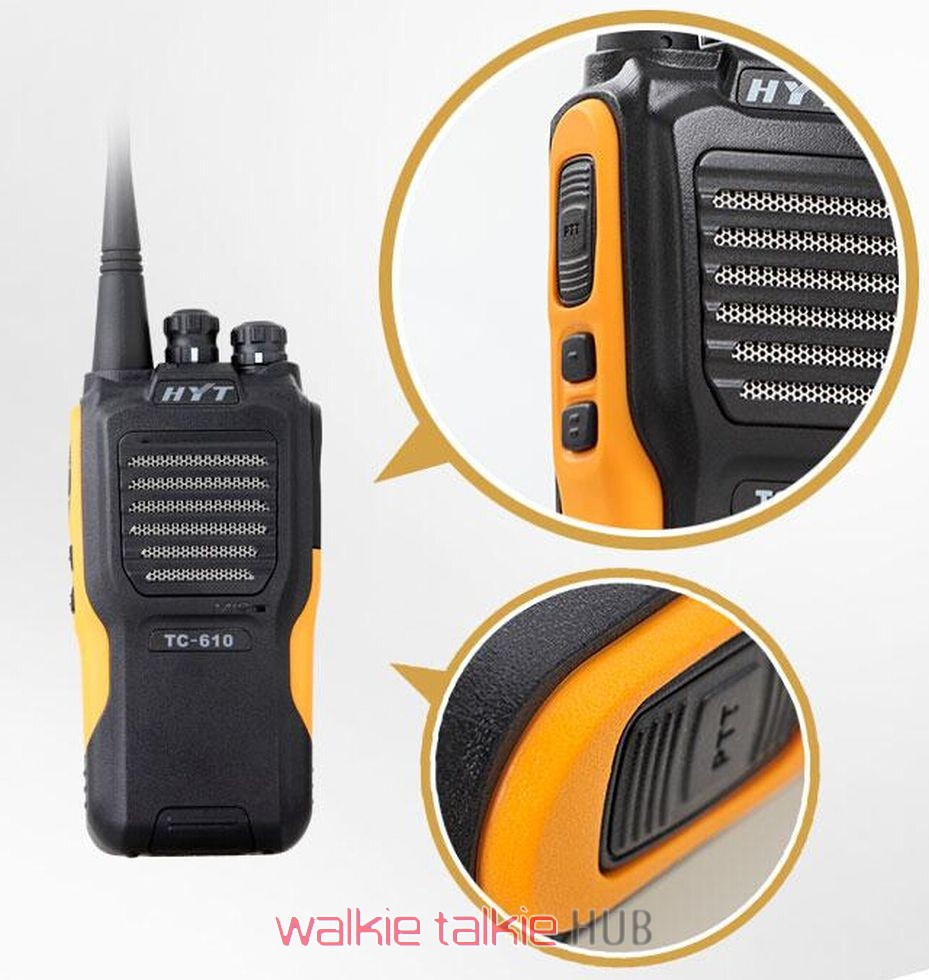

HYT TC 610 VHF136-174MHz Portable Radio
Frequency: UHF 136-174MHz
Detailed Specification:
vhf uhf fm transceiver, Two-Way Radio, Walkie Talkie, Handheld Transceiver, 2 way radio, Interphone
Main function/ Features:
1. Voice prompt
2. PC Programming/Wireless Cloning Function
3. Alarm Function between the Units
4. 16 channels
5. Output power:5W
6. Function and Features
7. Frequency:136-174,400-420,440-470,450-470,350-390MHz
8. Output power:5W
9. 16 channels
10. CTSS/DCS
11. Voice prompt
12. Auto battery saving function
13. PC Programming/Wireless Cloning Function
14. Alarm Function between the Units
|
Specifications
|
|
|
Frequency Range
|
136-174 MHz
|
|
Channel Capacity
|
16
|
|
Channel Spacing
|
25 /12.5KHz
|
|
Operating Voltage
|
7.4V
|
|
Standard Battery
|
1200 mAh (Li-ion)
|
|
Battery Life (5-5-90 Duty Cycle)
1200mAh Li-Ion battery (Standard) |
More than 9 hours
|
|
Frequency Stability
|
±2.5ppm
|
| Operating Temperature |
-20~+55
|
|
Antenna Impedance
|
50Ω
|
|
Dimensions (H×W×D) (with battery, without antenna)
|
119mm×55mm×33mm
|
|
Weight (with antenna & battery)
|
270 g
|
|
Transmitter
|
|
|
RF Power Output
|
5W/2W |
|
Modulation
|
F3E
|
|
Spurious and Harmonics
|
-36dBm (<1GHz); -30dBm> (1GHz)
|
|
FM Noise
|
40/35dB
|
|
Audio Distortion
|
≤5 %
|
|
Receiver
|
|
|
Sensitivity
|
0.25/0.28 μV
|
| Selectivity | 70/60dB |
| Intermodulation |
≥60dB
|
| Spurious Response Rejection |
≥70dB
|
| S/N |
45/40dB
|
| Rated Audio Power Output |
800mW
|
| Rated Audio Distortion |
≤5%
|
Standard Accessories in the package
1* HYT TC-610 VHF 136-174MHz Radio
1*Antenna
1*Belt Clip
1*Manual in English
1*Battery 1200mAh(Li-ion)
1*Charger 110-240V(we will offer adaptor for your country if required)
Applications
· Service industry(Hotel, Restaurant, Supermarket, etc);
· Security, Property Management;
· Police, Firefighters, Education, Public Utilities;
· Constrution Sites & Transportation;
· Warehouse, Ports & Logistic Industry;
· Manufacturing industry
Two way radio with compact and user-friendly design
