Features:
Rugged Design
DP880 is strictly designed to meet IP67 and MIL-810C/D/E/F/G standard, ensuring good performance in potentially harsh environments such as harbors, manufacturing plants, petrochemical factory and construction sites.
Durable Battery
Two-time slot transmission reduces transmit time in half and thus increases talk time longevity.2000mAh battery supplied in standard package ensures at least 14 continuous working hours in analog mode and 16 hours in digital mode.
Improved Audio Quality
Digital error-correction technology rejects noise and static, providing consistent audio quality throughout the coverage area and in challenging low lying areas..
AMBE+2TM vocoder further improves speech communication. 1.6W audio output and a 40mm diameter powerful speaker ensure louder and crisper voice communication.
Double Capacity Repeater Mode
DP880 can work with a single repeater to achieve twice the traffic capacity without relicensing or rebanding, meaning two voice communications or one voice communication and one data transmission can transmit at the same time in one channel.
Analog/Digital Mode
DP880 can operate both in analog and digital mode by channel switching or mixed mode scanning. DP880 can be used on the existing analog system, and when your budget allows, transitioning to digital at your own pace.
Versatile Services
DP880 provides versatile services including individual call, all call, group call, emergency call, radio enable & disable, remote monitor, radio check, call alert, facilitating high-efficient communication and management.
Text Message
When it is not convenient to have voice communication, text message offers a quiet communication choice. You can choose one of the maximum 50 preset messages to initiate a quick transmission or write a free-form message by keypad.
Basic Encryption
The 16-bit digital encryption technology ensures only the intended person can hear the communication.
One Touch Access
Support one touch access to send a digital call or a message, providing a quick way to send a call or a message under emergency situation.
DTMF Encode and Decode
Supports DTMF encode and decode in analog mode, providing better compatibility with existing analog radio system.
Specifications:
| DP880 | |
| Frequency Range | 400~470MHz 136-174MHz |
| Channel Capacity | 1000 |
| Channel Spacing | 12.5KHz/25KHz |
| Operating Voltage | 7.5V DC ±20% |
| Battery | 2000mAh Li-ion (Standard) |
| Dimension | 54mm×122mm×37mm |
| Weight(with battery and antenna) | 300g |
| Transmitter | |
| Frequency Stability | ±2.5 ppm |
| Power Output | 1W/4W(UHF) 1W/5W(VHF) |
| Modulation Limiting | 2.5kHz 12.5KHz, 5kHz 25kHz |
| FM Hum and Noise | -40dB 12.5kHz -45dB 25kHz |
| Conducted/Radiated Emission | -36dBm <1GHz, -30dBm >1GHz |
| Adjacent Channel Power | -60dB 12.5KHz, -70dB 25KHz |
| Audio Response | +1dB,-3dB |
| Audio Distortion | 3% |
| 4FSK Digital Modulation | 12.5KHz(data only):7K60FXD 12.5KHz(data+voice):7K60FXE |
| Digital Protocal | ETSI TS 102 361-1, -2, -3 |
| Receiver | |
| Frequency Stability | ±2.5 ppm |
| Analog Sensitivity | 0.35μV /-116dBm(12 dB SINAD) |
| Digital Sensitivity | 0.22μV /-120dBm |
| Intermodulation | TIA603C:70dB ETSI:65dB |
| Adjacent Channel Selectivity | ETSI: 60dB 12.5kHz,70dB 25kHz |
| Spurious Response Rejection | TIA603C:75dB ETSI:70dB |
| Rated Audio Power | 1.5W±0.1W |
| Rated Audio Distortion | 3% (Typical) |
| Hum and Noise | -40dB 12.5kHz -45dB 25kHz |
| Audio Response | +1dB,-3dB |
| Conducted Spurious Emission | -57dBm < 1GHz,-47dBm > 1GHz |
| Environmental Specifications | |
| Operating Temperature | -30~+60 |
| Storage Temperature | -40~+85 |
| Thermal Shock | MIL-STD-810 C/D/E/F/G |
| Humidity | MIL-STD-810 C/D/E/F/G |
| ESD | IEC 61000-4-2(level 4) |
| Dustproof & Waterproof | IP67 |

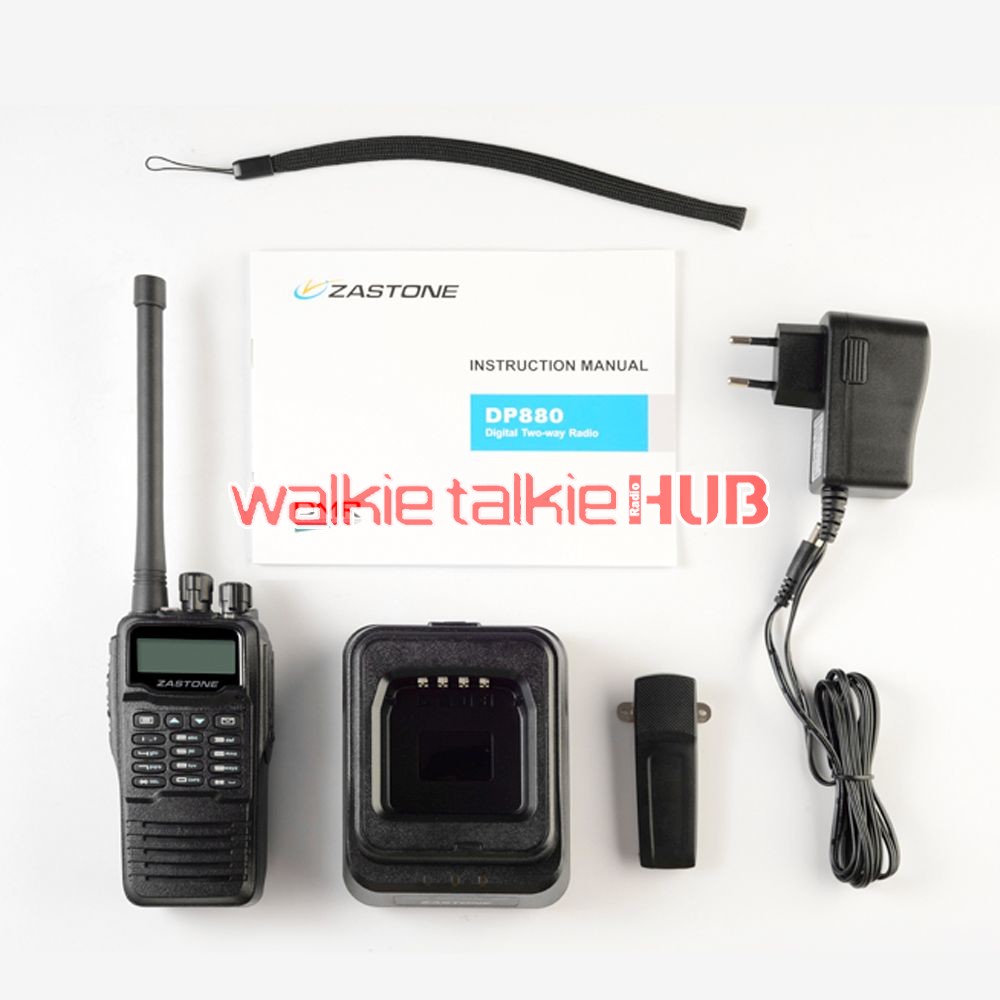

Standard Package
1* Zastone DP880
1* Antenna
1* Battery Pack
1* Intelligent Charger(EU,US,UK and Japan Plug/Adaptor All Available)
1* Belt Clip
1* Wrist Strap
1* English User Manual
