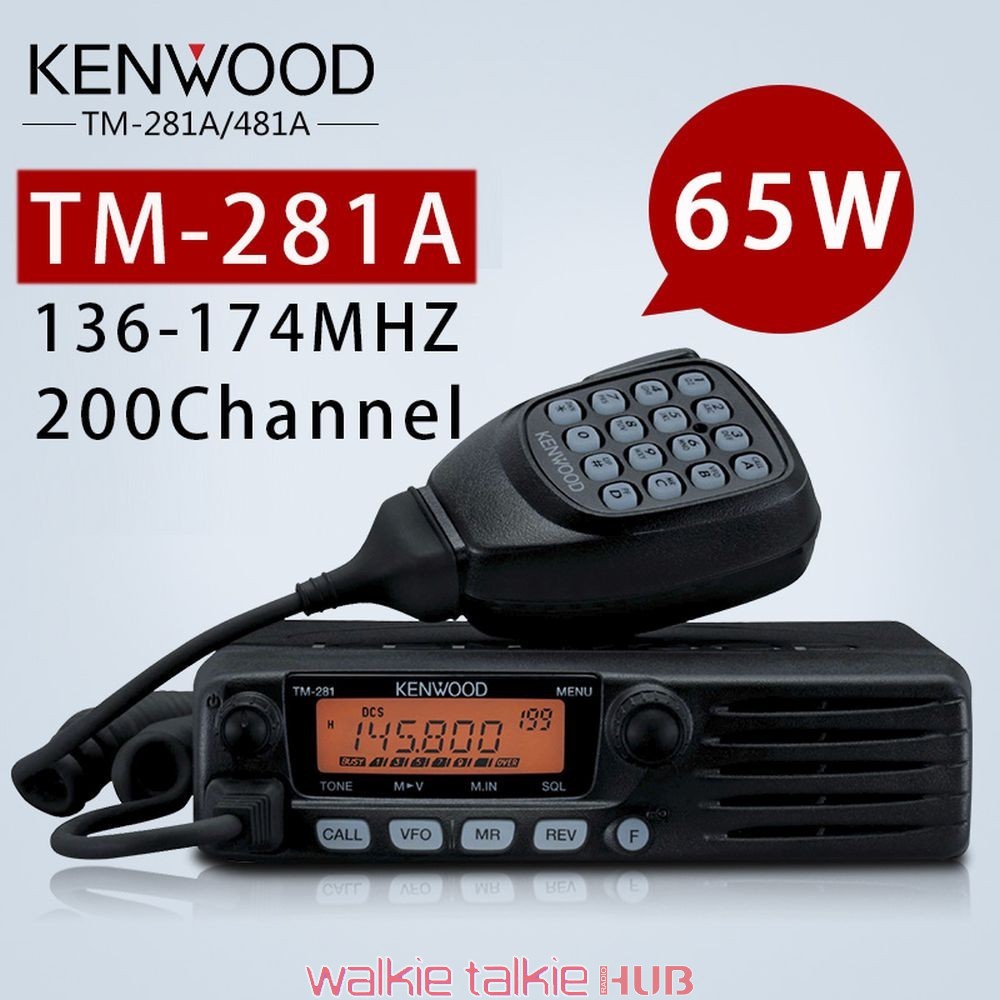

Kenwood TM-281A VHF 136-174MHz Mobile FM Transceiver 65Watt 200 Memory Channels Car Radio
On or off the road,TM-281A is a mobile radio you can always count on. A though as nails, this MIL-STD-compliant transceiver deliver powerful performance, excellent audio clarity,and a host of advanced features. It offers superb operating ease day or night thanks to the large backlit LCD and illuminated keys. So the next time you take off, take the TM-281A.
Features:
– HIGH RF POWER OUTPUT (65W)
– US MIL-STD 810 C/D/E/F & EUROPE S E-MARK
– ALPHANUMERIC LCD AND ILLUMINATED KEYPAD
– DTMF MICROPHONE
– HIGH-QUALITY FRONT SPEAKER
– MULTIPLE SCAN FUNCTIONS
– 200 MEMORY CHANNELS PLUS 1 CALL-CHANNEL
– MEMORY NAME FUNCTION
– CTCSS & DCS ENCODER/DECODER
– HIGH FREQUENCY STABILITY
– 1200/9600BPS HIGH-SPEED DATA COMMUNICATIONS
Specifications:
General | |
Frequency Range | Tx:136-174MHz
Rx: 136-174MHz |
Mode | F3E(FM) |
Antenna impedance | 50 ohms |
Usable temperature range | -20°C~+60°C |
Power supply | 13.8V DC |
Grounding method | Negative ground |
Transmitting Current(Max.) | 14A or less |
Receiving Current(at 2W Output) | 1.0A or less |
Frequency stability | Within ±2.5ppm |
Dimensions(W×H×D) | 160×43×126mm |
Weight | Approx.1.13kg/2.5lb |
Transmitter | |
Power Output (High) | 65W |
Power Output(Low) | Approx.25W |
Spurious emissions | -60dB or less |
Maximum frequency deviation | Wide: ±5kHz
Narrow: ±2.5kHz |
Audio distortion(at 60% modulation) | 3% or less |
Microphone impedance | 600 ohm |
Receiver | |
Circuitry | Double superheterodyne |
Intermediate frequency(1st/2nd) | 4995MHz/450kHz |
Sensitivity(12dB SINAD) | Wide:0.18uV or less
Narrow:0.22uV or less |
Selectivity(-6dB) | Wide:12kHz or more
Narrow: 10kHz or more |
Selectivity(-60dB) | Wide: 30kHz or less
Narrow:24kHz or less |
Squelch sensitivity | 0.1 uV or less |
Audio output(8 ohms,5% distortion) | 2W or higher |
Audio output impedance | 8 ohm |

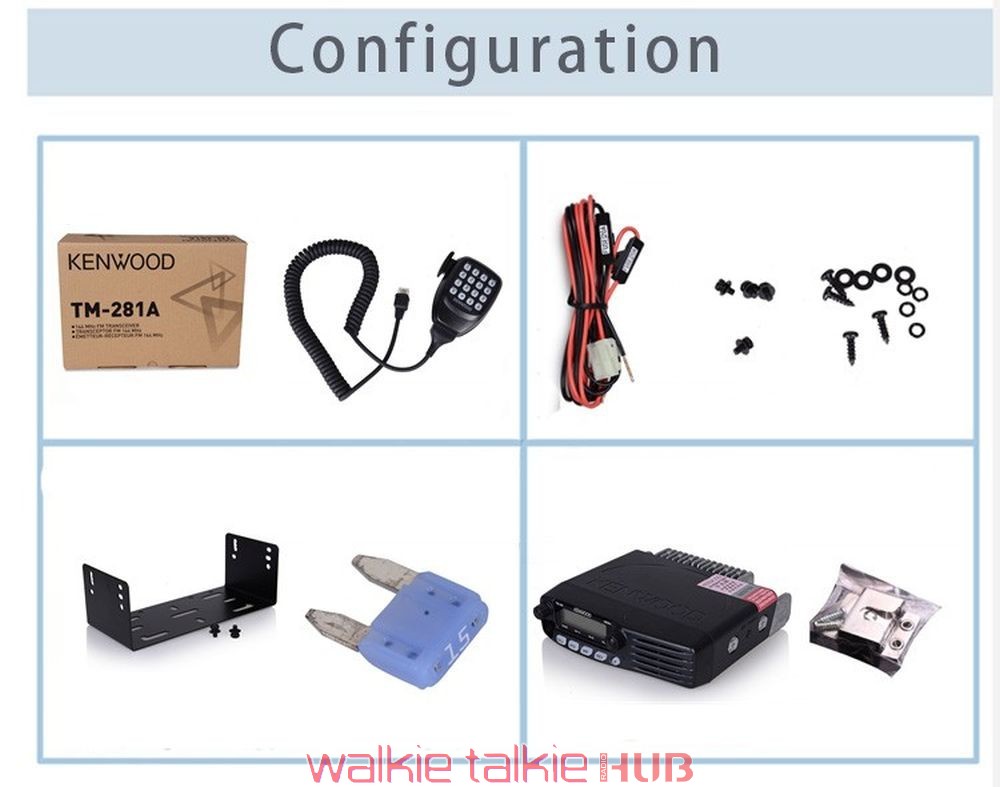

Package Contents:
- 1 x TM-281A VHF FM Transceiver
- 1 x Microphone
- 1 x Mobile Mounting Bracket
- 1 x DC Power Cord with Fuse
- 1 χ Microphone Clip
- 1× Screw Sets
- 1 x English Operating Manual
