mAT-180H HF Auto-tuner 120W Automatic Antenna For Icom Radio

Icom Automatic Tuner mAT-180H AUTO TUNER 2017 New Vesion 120W Auto-tuner For Icom

Related parameters :

Maximum power: 120 watts

Operating frequency: 3M-54MHz range

Work: automatic + manual fine-tuning

Adjust the standing wave: most of the antenna can be adjusted up to 1.5 standing wave.

Power supply: use ICOM radio tonal interface power supply, no external power supply.

Antenna impedance: 5-1500 ohms

Dimensions: width 13cm, length 20cm, high 4cm

Approximate weight: 700 grams

Features:

1, This device specifically for the ICOM Aiku short wave radio design, fully compatible with ICOM special tuner, the use of the same way and the original, can be directly through the radio panel to complete the operation, very convenient. Random with a dedicated data cable, directly connected to the ICOM radio station on the back of the four-core telescopic control socket can be automatically controlled by the radio tonal work, without additional manual settings and operation.

2, The hardware shell using the latest metal aluminum milling process, solid fine, well workmanship.

3, An increase of the input RF frequency detection function, making the tuning faster, and very accurate. When re-entering the frequency used before, the tuner of the tuning moment to complete.

Package Included:

1 x mAT-180H Antenna Tuner

1 x Dedicated Data Line

The mAT-180H is specifically designed for ICOM shortwave radio, fully compatible with ICOM special tuner, the use of the same way and the original, can be directly through the radio panel to complete the operation, very convenient. Random with a dedicated data cable, directly connected to the ICOM radio station on the back of the four-core telescopic control socket can be automatically controlled by the radio tonal work, without additional manual settings and operation. Hardware shell with the latest ultra-thin aluminum shell, screw fixed with riveting nut, will not appear off the phenomenon. Paint for electrostatic painting, excellent craftsmanship. With input RF frequency detection function, making the tuning faster, and very accurate. When re-entering the frequency used before, the tuner of the tuning moment to complete. Added manual tuning priority. When manually tuned to the lowest standing wave ratio and manually saved, the next time you return to the frequency tuning, the manually stored tuning data is preferentially used. The

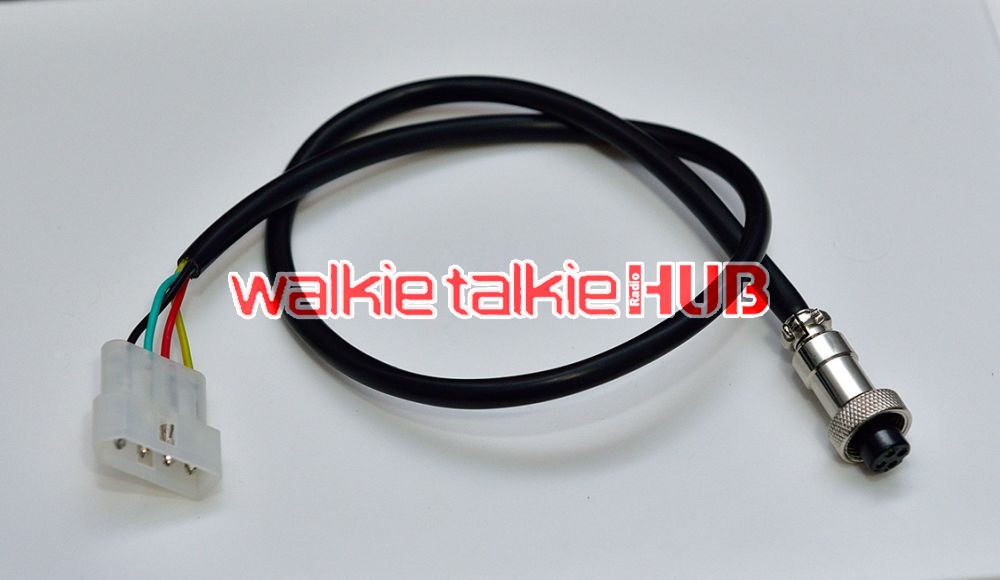

Comes with a dedicated 4-pin data cable to link the radio and tuner. The station through the data line to the tuner power supply and send control instructions.

Applicable to long lines, bipolar, GP, Yagi and other common antenna.

Pledge:

1, In the case of not open the case, commitment to unconditional refund within a week, if the quality of the buyer only need to bear the return postage, but should not have obvious use of traces, does not affect the sale again.

2, The use of power range, the warranty for one year, do not charge any fees.

3, A year after the free maintenance of life, only charge the cost.
