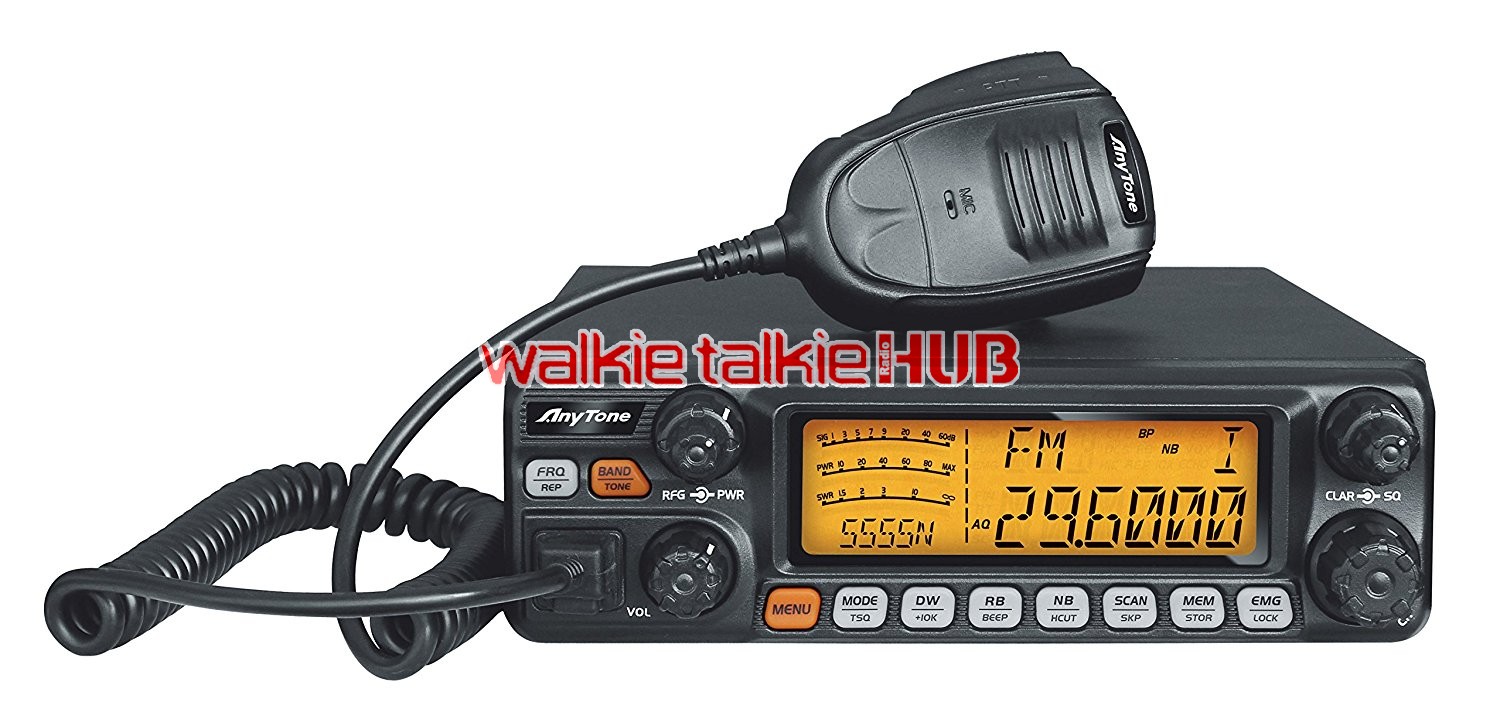

Newest Anytone AT-5555N CB Car Radio 10 Meter Radio with SSB/FM/ AM /PA Mode 28-29.7MHZ 40CH

AnyTone AT-5555N CB Mobile Radio/Transceiver 10 Meter Radio wth SSB/FM/ AM /PA mode, Frequency 28-29.7MHZ 40 CH,Power Output 12W AM,30W FM,30W SSB

Feature:

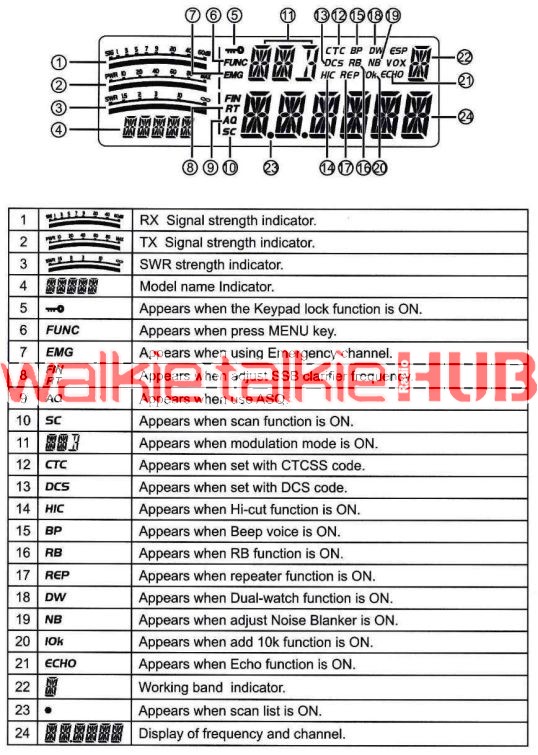

Big LCD displays frequency and all kinds of information

FM,AM,USB,LSB,PA mode

Frequency Tuning Step 100Hz, 1KHz, 10KHz, 100KHz, 1MHz

±1.5KHz CLARIFIER Adjustment

Flexible Menu Function and PC Program Software

ECHO Function

SQ, ASQ Function (FM and AM mode only)

RF GAIN Adjustment

RF PWR Adjustment

SCAN Function

Programmable RB Function

NB/ANL Function

DW DUAL – WATCH Function

Offset Frequency Function

BEEP Voice Prompt

+10KHZ Function

SIG, PWR, SWR Function

TOT function

EMG Channel Function

SWR Protection

Power Supply Voltage Protection

Key-Lock Function

Six (6) Groups Memory Channel

Model Name Customized Function

CTCSS / DCS Code (optional)

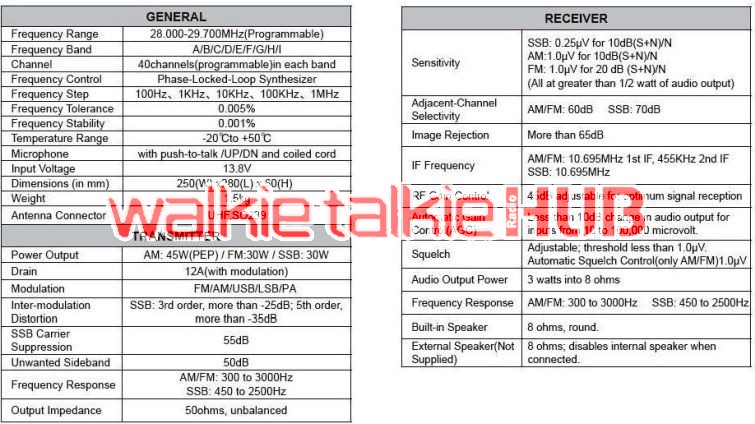

Frequency Range: 28.000-29.700MHz(Programmable);

Frequency Band A/B/C/D/E/F/G/H/I;

Channel 40channels(programmable)in each band;

Frequency Control Phase-Locked-Loop Synthesizer;

Frequency Tolerance 0.005%;Frequency Stability 0.001%;

Temperature Range -20℃to +50℃ ;

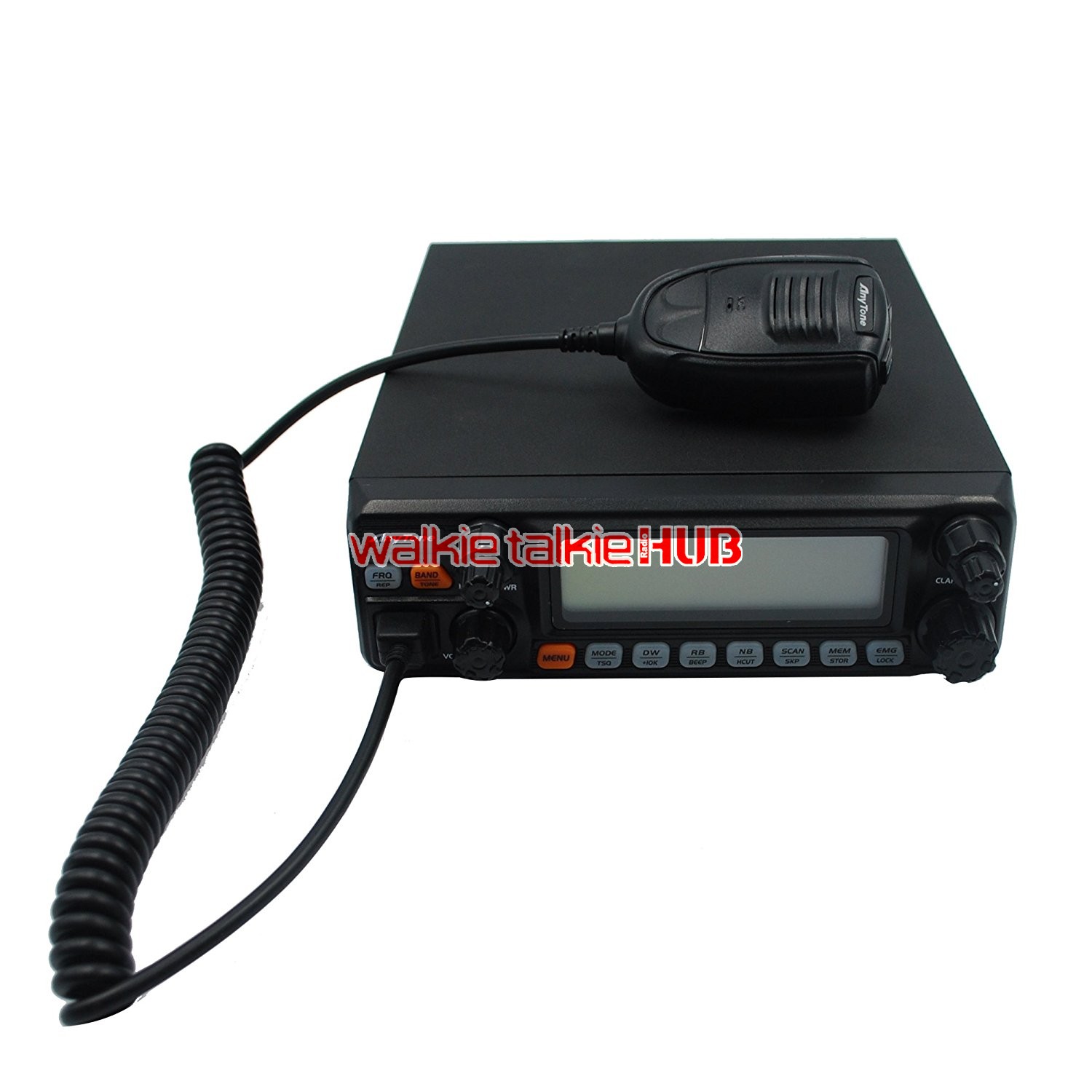

Microphone with push-to-talk /UP/DN and coiled cord;

Input Voltage 13.8

Dimensions (in mm) 250(W) x280(L) x 60(H);

Weight 1.5kg

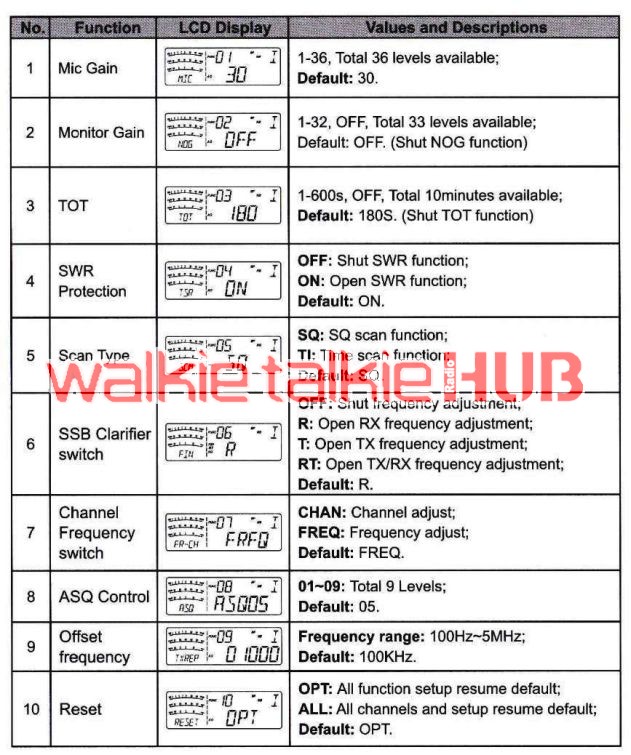

BACKGROUND FUNCTION MENU OPERATION

Press [ MENU ] for 2 seconds to enter menu list;

Turn Channel switch to select menu No.1 to No.10;

Press [ PUSH ] to enter the menu setup;

Turn channel switch to select wanted setup;

Press any other key or wait 5 seconds, the setting will be stored and exit.
