Newest KVE520A Antenna Vector Analyzer Meter for VHF/UHF Amateur Walkie Talkie

Sale!

$275.00

Description

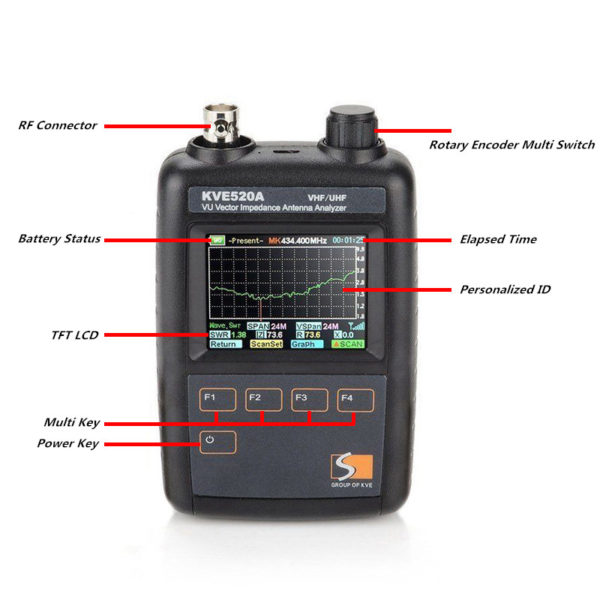

Newest KVE520A Antenna Vector Analyzer Meter for VHF/UHF Amateur Walkie Talkie



Introductions:

KVE520A Antenna Vector Analyzer is based on the KVE520 platform development with the KVE520 operation is basically is the same, Most of the instructions is from KVE520 opearatinq system.

KVE520A Antenna Vector Analyzer is based on a 50-ohm measuring shortwave antenna system experimental apparatus. Can accurately measure the reactance X, standing wave SWR, resistance R, and the complex impedance Z parameters. To check and adjust the antenna resonance short, bandwidth matching.

KVE520A Antenna Vector Analyzer requires users to have a certain radio basic theoretical knowledge and an understanding of the performance of the device; proper operation and in order to better use it.

Second, the developer of the device is a radio amateur, commercial design and try to work with different pursuit:Accuracy! Accuracy! Reliable! Fast! Simple! Easy to use!

KVE520A Antenna Vector Analyzer  has a higher resolution than the commodity machines and precision, test speed, a more friendly user interface, more focus on user experience, portable small size, high quality power management to get more use of time and so on.

Features

  1. Lightweight and high precision antenna analyzer, testing and improve your device’s performance.
  2. Antenna analyzer is widely used in antenna DIY production, installation, debugging, testing maintenance, etc.
  3. Is usually used to amateur check and adjust the antenna under the condition of resonance, bandwidth, matching.
  4. KVE520A Vector Impedance Antenna analyzer is based on a 50-ohm measuring shortwave antenna system experimental apparatus.
  5. Can accurately measure the reactance (X), standing wave SWR, resistance (R), and impedance (Z) parameters.
  6. KVE520 Vector Impedance Antenna analyzer requires users to have a certain radio basic theoretical knowledge and an understanding of the performance of the device; proper operation and in order to better use it.
  7. Accuracy! Reliable! Fast! Simple! Easy to use!



Specification:

Screen Sharp transflective TFT, 1600 million colors, QVGA resolution. External Hard Mitsubishi scratch-resistant acrylic screen protecter
Measuring range VSWR: 1: 1.00 – 1: 99.99
Impedance: 0.1 – 999.9 Ohm
Resistance: 0.1 – 999.9 Ohm
Reactance: 0.1 – 999.9 Ohm
Frequency range 133-177/195-280/395-520MHz
Frequency Stability <0.5PPM
Frequency step 1000Hz
Output Power 3dbm (at 438.500MHz)
Scan width 300KHz/1.5MHz/3MHz/6MHz/12MHz/24MHz/42MHz/75MHz (75MHz only in 395-520MHz effective)
Scanning step 1KHz/5KHz/10KHz/20KHz/40KHz/80KHz/140KHz/250KHz (250KHz only in 395-520MHz effective)

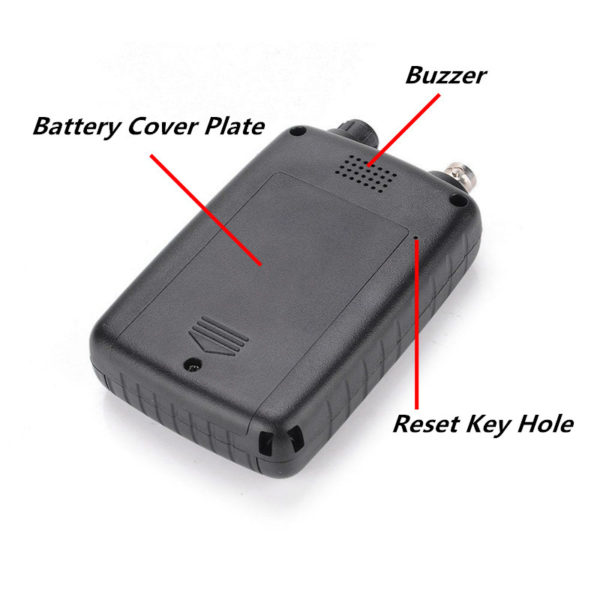

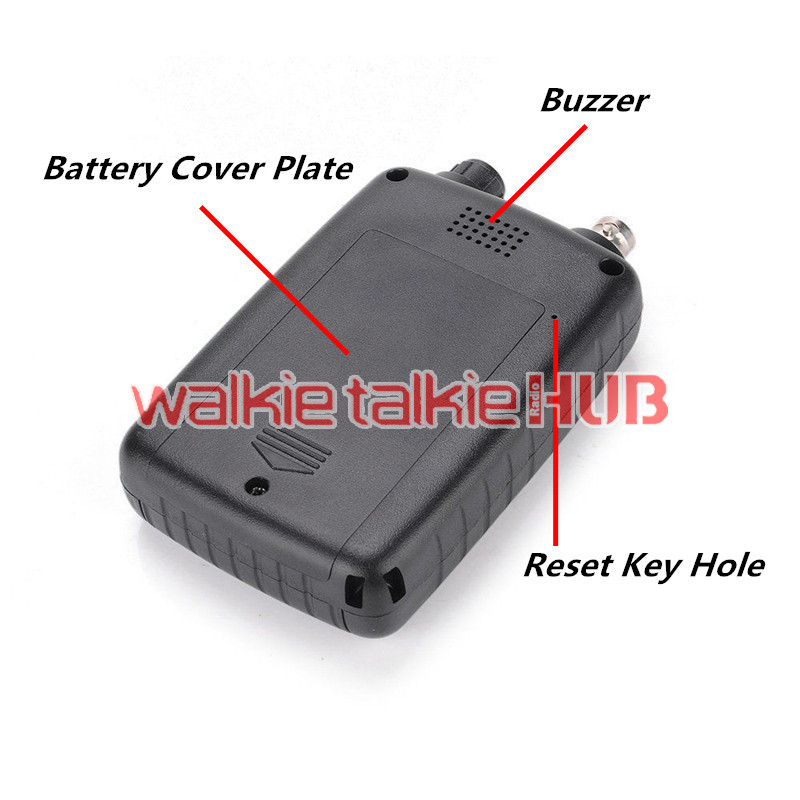

Power Management 3.7-V, 1800-mAh Lithium Polymer battery,Removable

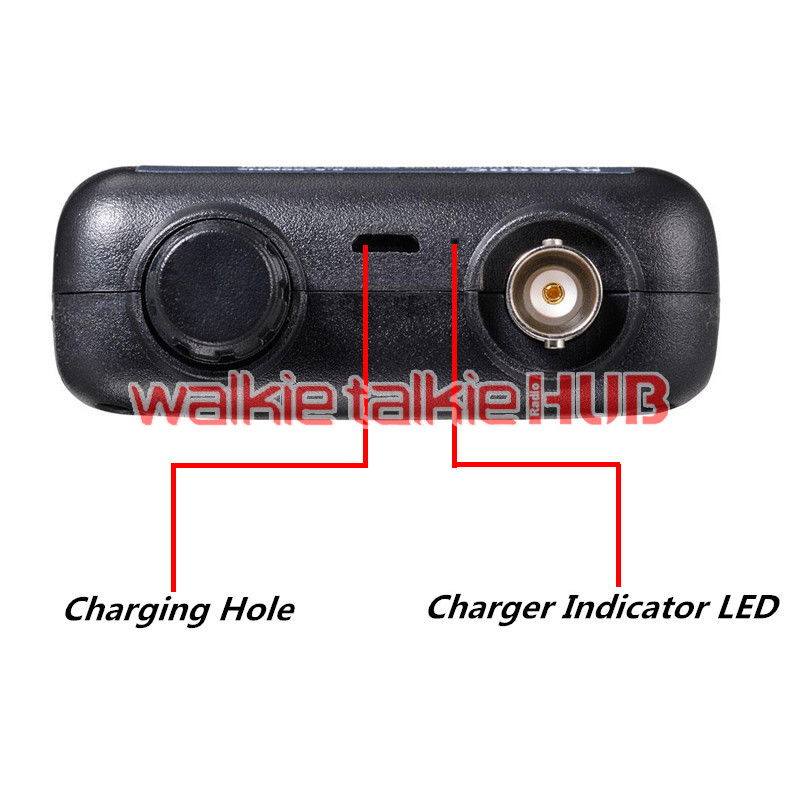

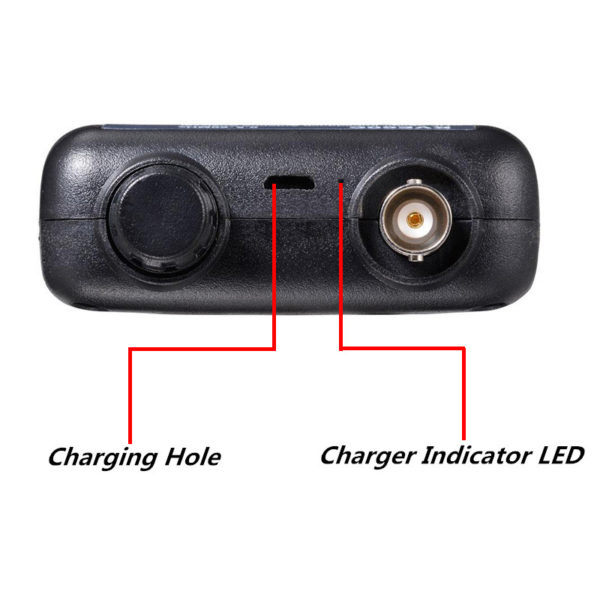

Charger Source Any USB port, analyzer accepts
Micro-USB port(DC output voltage is 5.0-5.5V, and the current output capacity> 500mA)
Charging indicator LED charging-status indicator
Connector BNC

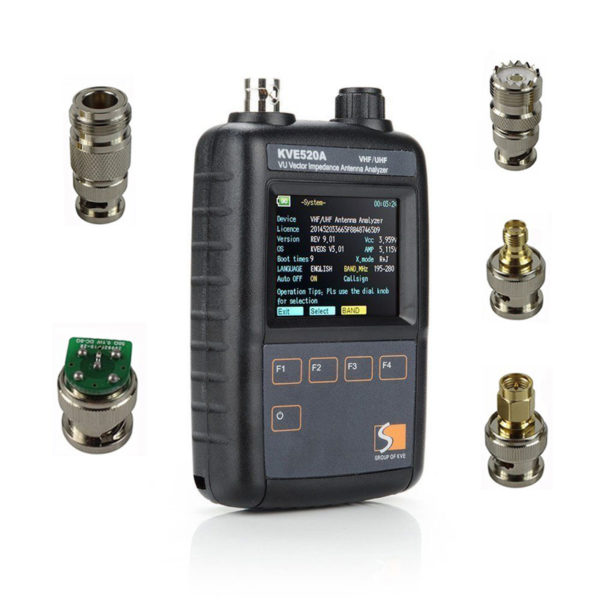

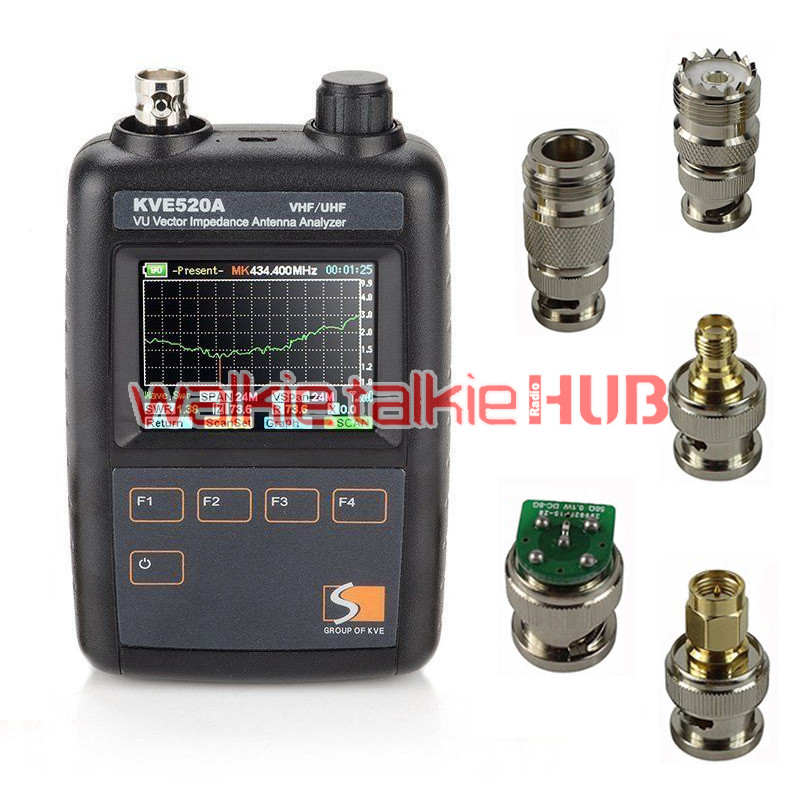

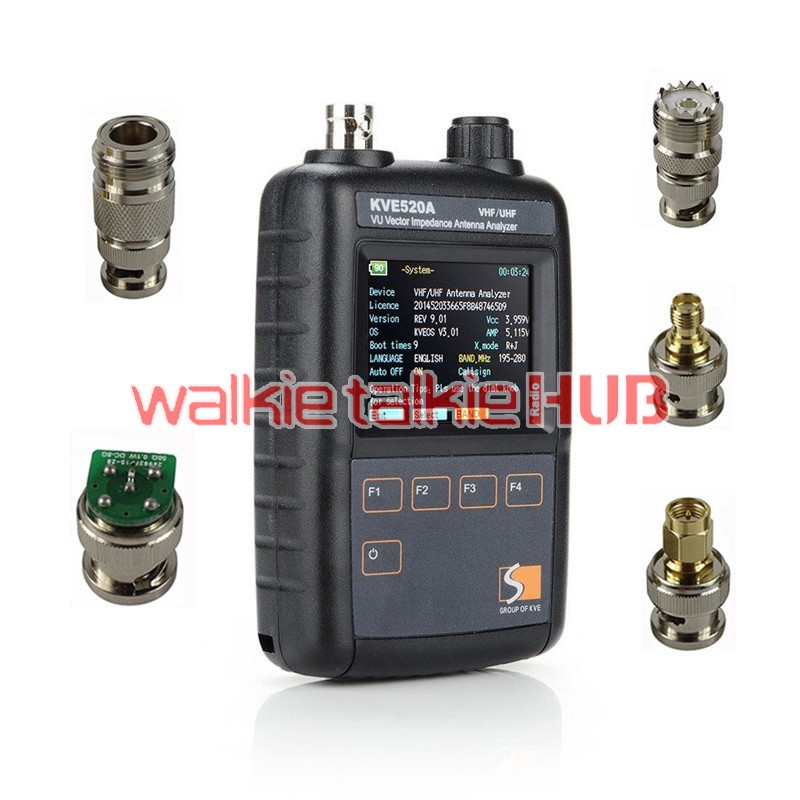

Package Includes:

  • 1 x Antenna Vector Analyzer KVE520A
  • 5 x Connector

If any questions Or bulk order, please contact Ms. Amy Huang:

Email:  sales@walkietalkiehub.com

WhatsApp / Skype: +86-13860123881

Tel: 86(592)5995025

Fax: 86(592)3720556

Newest KVE520A Antenna Vector Analyzer Meter for VHF/UHF Amateur Walkie Talkie

Additional information

Weight 1 kg
Dimensions 300 × 200 × 100 mm
