Pofung UV-82TP Double PTT 8W Dual Band Amateur Handheld Walkie Talkie Same Baofeng UV-82HP

Baofeng UV-82TP High Power 8W Dual Band Amateur Walkie Talkie Dual PTT Handheld Two Way Radio same UV-82HP

Function:

1. Dual PTT keys
2. Frequency Range: 136-174MHz & 400-520MHz

Dual Band, Dual Display, Dual Frequency, Dual Standby

3. A/B band independent operation
4. 128 groups channels storage
5. Shortcut menu operation mode
6. VFO & Memory channels scan
7. Emergency Alarm
8. Tri-color background light selectable
9. 0~9 grades VOX selectable

10.PTT & ANI ID

11.FM radio and 25 stations storage

12.1750Hz Brust

13.Tone Time-out Timer

14.Channel Monitor

15.Battery Saver

16.Keypad Lock

17.Channel Step: 2.5/5/6.25/10/12.5/25KHz

18.Low Battery Alert

19.ROGER SET

20.Emergency Alert

21.25KHz/12.5KHz Switchable

22.FM Radio (65.0MHz-108.0MHz)

23.Large LCD Display

24.LED Flashlight

25.Hight /Low RF Power Switchable

26.Voice companding

27.50 CTCSS/ 104DCS coder & tone searching

28.PC programmable

29.Wide/Narrow Band(25kHz/12.5kHz)

30.Transmitter time-out timer(TOT)

31.High/Low TX power selectable

32.Busy channel lock-out(BCLO)

Specification:

Brand	BaoFeng
Function introduction	LCD has a dual display function
	Automatic search and display functions of CTCSS/DCS signaling
	The new radio
	Flashlight lighting function
	U-U, V-V, U-V function
	The channel name edit function
	Dual band intercom function
	Computer programming function
	VOX voice function
	Frequency, channel scanning
	Channel scanning table editing function (which can be freely selected channel involved in scanning)
	General index
	The frequency range
FM	65-108MHz (radio, can receive, cannot transmit)
VHF	136.000-174.00MHz (VHF, transmitting and receiving are)
UHF	400-520.00MHz (UHF, transmitting and receiving are)
Memory channels	Up to 128 channels
Working voltage	7.4V DC 2800mAh Long battery
Step frequency	2.5/6.25/10/12.5/20/25KHz
Frequency stability	+ 2.5PPM
The 50 ohm antenna
Size	(110mm x 58mm x 32mm) (height x width x thickness)
Emission
Output power	Triple: 8W/ 4W/ 1W
Current	less than 1.4A (4W)
Modulation sensitivity	8-12mV
Modulation distortion	<10%
	Modulation restrictions
	<5KHz broadband, narrowband <2.5KHz
	The sub audio / digital sub audio frequency offset
	0.75KHz + 50Hz, 0.37KHz + 30Hz
The stray radiation	<7 W
Modulation mode	16K phi F3E/11K phi F3E
Modulation characteristics	6dB/ per times frequency increasing
Receiver
Reference sensitivity	-122dBm (12dB SINAD)
Audio Power	1W
Audio distortion	<10%
Modulation of receiving bandwidth	5K
Clutter suppression	greater than or equal to 65dB
Adjacent channel selectivity (broadband, narrowband)	= 65dB = 60dB
Intermodulation (broadband, narrowband)	= 60dB = 55dB
Blocking	= 85dB
Standard configuration	a host, antenna, battery charger root block, a sleeve, a hand belt clip and lanyard a, book, package box a.

Package included:

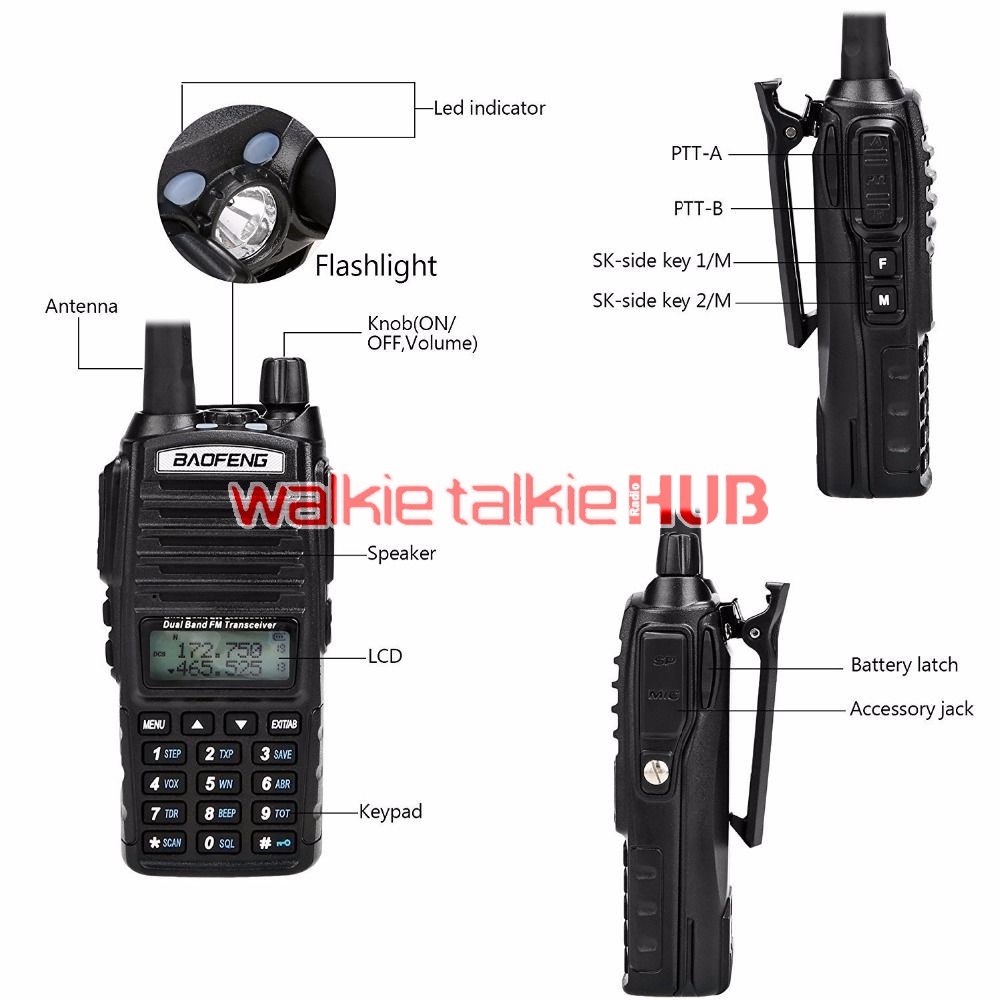

1 Baofeng UV-82 Triple-power 1W/4W/8W Transceiver

1 x 7.4V 2800mAh Li-ion Battery Pack.

1 x Antenna

1 x Dual PTT Earphone

1 x Belt Clip.

1 x Hand Strap.

1 x AC Adapter.

1 x Desktop Charger (100V~240V)

1 x User Manual
