Quansheng TG-K10AT 10Watt UHF Radio

Quansheng TG-K10AT 10Watt Output Power walkie talkie Super Power Super Distance Radio

Features:

01. Outpower: 10W

02. Adopting newest polymer Li-ion battery

03. Adopting imported PC material in case to make it solid abradable

04. 350 hours’ super-long waiting time

05. CTCSS/DCS

06. Voice prompt ( Chinese and English )

07. High or Low power adjust

08. Squelch level adjust

09. Wide/Narrow bandwidth

10. Jacklight

11. PC programmable

12. Multi Scan function

13. Time-out-timer

14. Low power alarm

15. DTMF PTT-ID

16. 1750Hz call tone

17. Tail tone Elimination

18. Roger

19. Channel step 5k/10k/12.5k/25k

20. Same frequency / different frequency

21. Initialization

Specifications:

General Specifications
Frequency Range	400-470Mhz
Channel	100
Channel Spacing	5/6.25/10/25 /12.5KHz
Operating Voltage	7.2V
Antenna Impedance	50Ω
Operating Temperature	-25°c~+65°c
Frequency Stability	±2.5ppm

Receiving part
Output Power	10W
Modulation	16KΦF3E/11KΦF3E
Maximum Deviation	≤5.0KHz/≤2.5KHz(W/N)
Modulation Distortion	≤5%
Audio Distortion	≤5%

Transmitting section
Sensitivity	≤0.25/0.28μV
Adjacent Channel Selectivity	≥70dB/≥50dB
Intermodulation	≥60dB
Spurious Response Rejection	≥70dB
S/N	>-45/>-40dB
Rated Audio Power Output	1W
Rated Audio Distortion	≤5%

Package
Battery	4000mAh Polymer Li-ion
Dimensions(H*W*D)(without antenna)	138mmX62mmX37mm
Weight (with antenna and battery)	250g

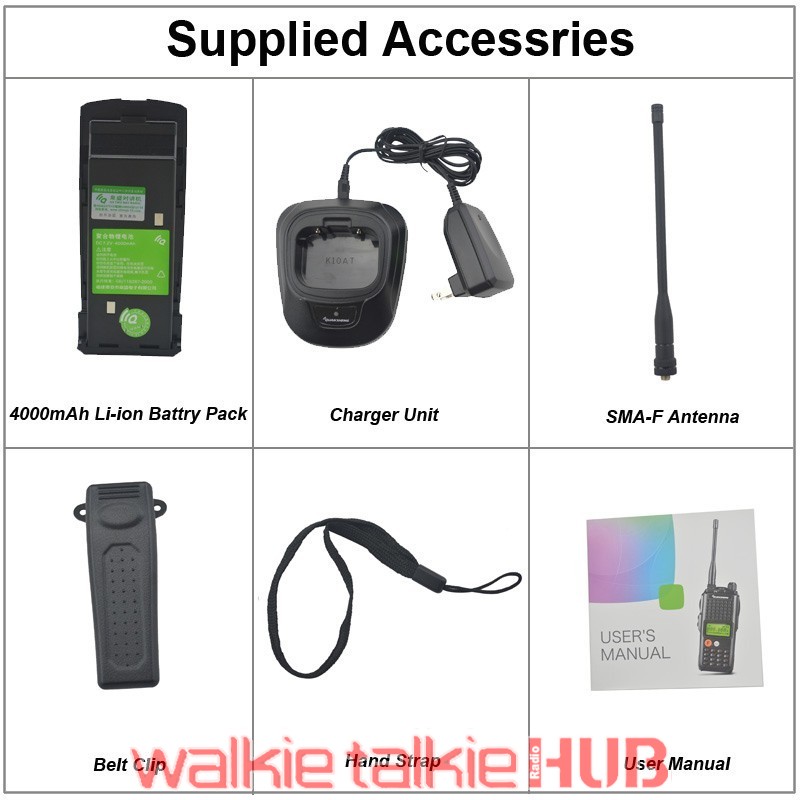

Each Set Package Contain:

1×TG-K10AT UHF 10W Radio

1× 4000mAh Li-ion Battery Pack

1× Charger Unit

1× Belt Clip

1× Hand Strap

1× SMA-F Antenna

1× User’s Manual

1× PTT Earpiece
