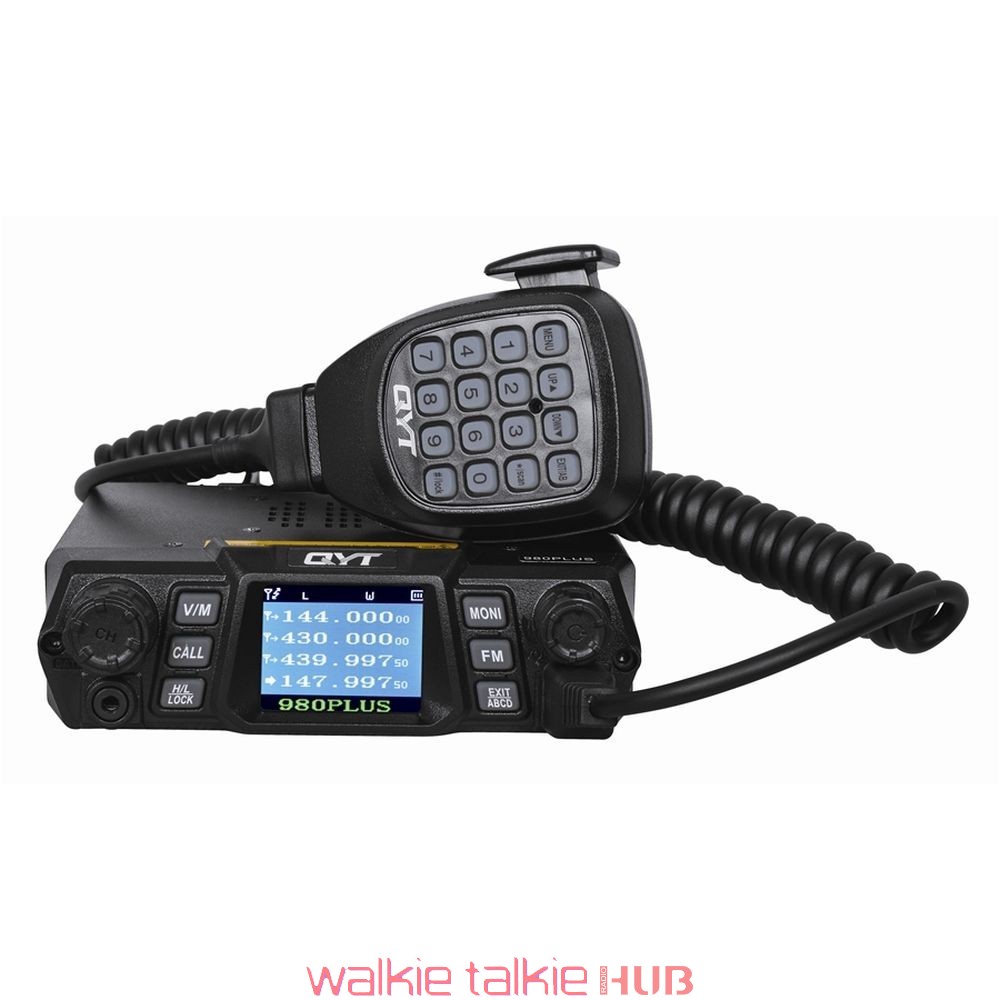

QYT 980PLUS Dual Band Quad Standby UHF 400-480 MHz VHF 136-174 MHz Highest Power 85W Vehicle-mouted Mobile Radio
Features:
Dual Band, Quad-standby
Output Power
VHF 144/148MHz: 75W-85W
UHF 430-440MHz: 55W-65W
External speaker/PTT
Mini Size
PC Program
Remote Stun, Remote Activate, Remote Kill
DTMF Function, 2 tone, 5 tone
PTT-ID Code
Repeater Function
Long-distance Communication
FM Radio
Alarm Function
LCD Monitor
Specifications:
Item number: 980PLUS
Frequency Range:VHF:136-174MHz UHF:400-480MHz
Number of Channel:200
Channel Spacing:25KHz 20K 12.5K
Phase lock step: 2.5KHz, 5KHz, 6.25 KHz, 10 KHz ,12.5 KHz, 15 KHz, 25 KHz
Working Voltage:13.8V DC±15%
Squelch way: CTCSS/DCS/5Tone/2Tone/DTMF
Frequency Stability :±2.5ppm
Operating Temperature:-20-+60
Dimension(W x H x D):140(W) x 43(H) x 172(D)mm
Weight: 1.03kg
Receiver | ||
Broadband | Narrow band | |
Sensitivity | < 0.25V | < 0.35V |
Channel choice | >70dB | >60dB |
Intermodulation | >65dB | >60dB |
Spurious Rejection | >70dB | >70dB |
Audio response | +1 – -3dB(0.3-3KHz) | +1 – -3dB(0.3-2.55KHz) |
Signal to noise ratio | >45dB | >40dB |
Audio distortion | <5% | |
Audio output power | >2W 10% | |
Transmitter | ||
Broadband | Narrow band | |
Output power | 75W/55W(VHF/UHF) | |
Modulation Mode | 16K F3E | 11K F3E |
Channel Power | >70dB | >60B |
Signal to noise ratio | >40dB | >36dB |
Parasitic harmonic | >60dB | >60dB |
Audio response | +1- -3dB(0.3-3KHz) | +1- -3dB(0.3-2.55KHz) |
Audio distortion | <5% |

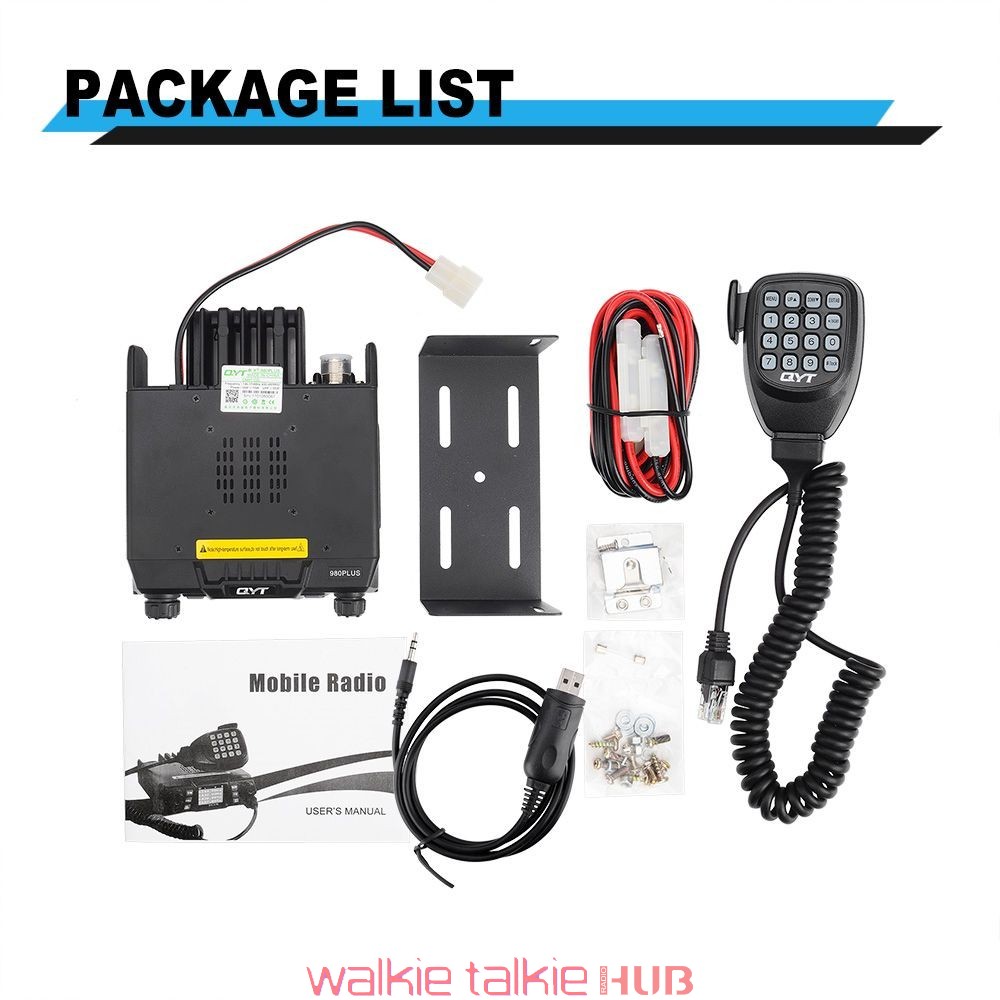

Package includes:
1x QTY 980PLUS Dual Band Quad Standby Mobile Radio
1x Microphone(version 2)
1x Car Power Cable
1x Clip for Speaker Microphone
1x Mounting Bracket
1x Screw Sets
1 x User Manual
1 x Programming cable
