QYT CB-27 Citizen Band Radio CB Mobile Radio
All European Norms Mobile/In-Vehicle CB Mobile Radio
CE Cetification 0700
FUNCTIONS & FEATURES
FTF LCD display
12/24V voltage
Full alloy body for heat radiation
Programmable keypad
CTCSS/DCS (Optional)
Wireless microphone control (optional)
Cell-phone APP control (optional)
AM/FM multi norms
Flexible menu and programming software
DTMF
SQ,ASQ
SQ,ASQ open/close value setting
RF Gain
Scan
Dual watch
Programmable RB
CH9/19
NB/ANL
HI-CUT
Voltage protection
9 memory channel
TOT
Backlight control
Automatic power on
Keypad lock
SPECIFICATIONS
GENERAL | ||
Modulation Mode | AM/FM | |
Frequency Range | 26.965-27.405MHz | |
Frequency Tolerance | ±5.0ppm | |
Input Voltage | 12/24V | |
Dimensions (mm) | 123(W) x 158(D) x 44(H) | |
Weight | Approx.660g | |
Frequency Control | PLL Synthesizer | |
Operating Temperature Range | -20°c ~ +55°c | |
Current Drain | Transmit | 2A Max |
Receiver | Squelched 0.3A | |
VOL Max | 0.8A | |
Antenna Conector | UHF,SO-239 | |
TRANSMITTER | ||
Output Power | 4Watt FM/AM | |
Transmission interference | Inferior to 4nW(-54dBm) | |
Frequency Response | 300-3000Hz | |
Modulated signal distortion | Inferior to 5% | |
Output Impedance | 50 ohm | |
RECEIVER | ||
Sensitivity | Less than 1uV for 10dB(S+N)/N | |
Image rejection | 70dB | |
Adjacent channel rejection | 60dB | |
IF Frequency | 1st 10.695MHz | |
2nd 455KHz | ||
Automatic Gain Control (AGC) | Less than 10dB change in audio | |
Output for inputs from 10 to 50000uV | ||
Squelch | Less than 1uV | |
Audio Output Power | 3 watt into 8ohm | |
Frequency Response | 300-3000Hz |
Package Contains:
1 x CB-27 CB band Mobile Transceiver body

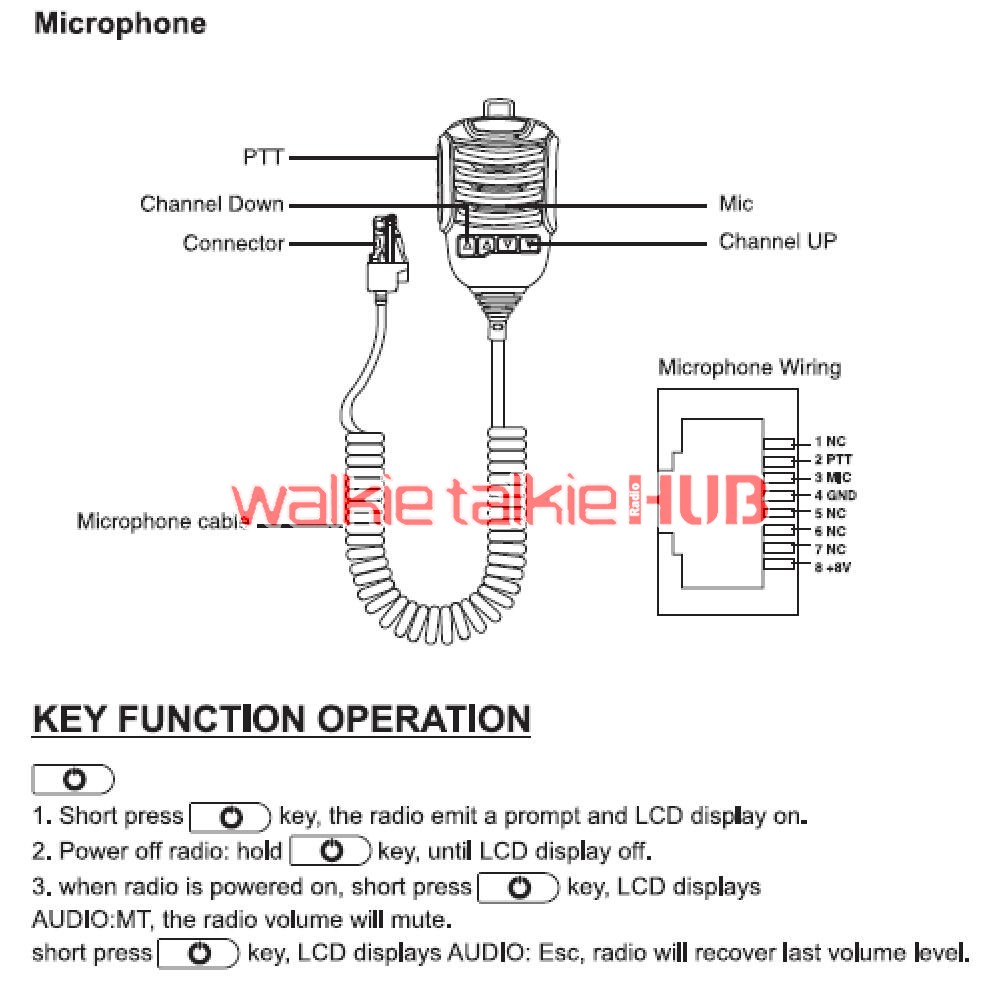

1 x Speaker Microphone
1 x Plastic Bracket
1 x Fuse
2 x Fixing Screw sets
1 x ENG USERS’ Manual
