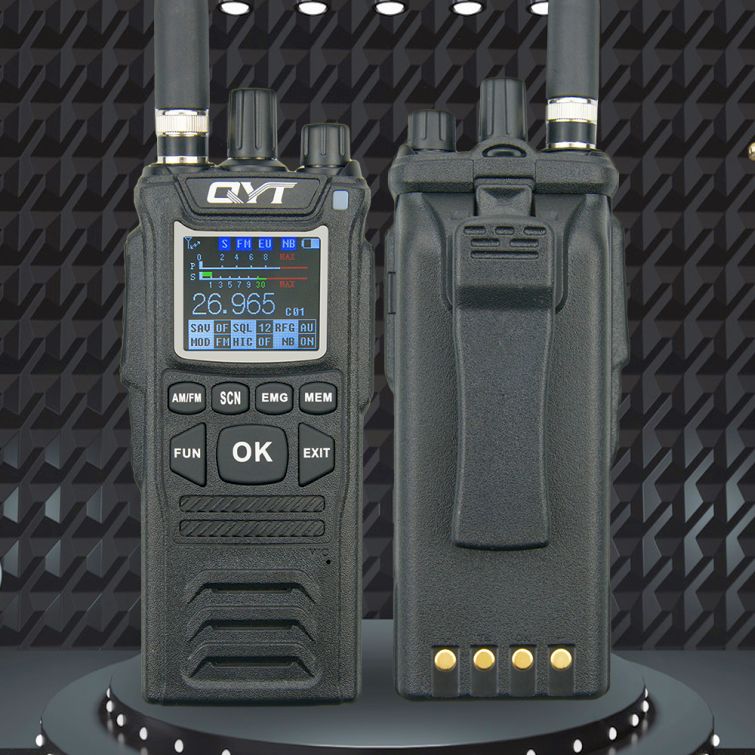

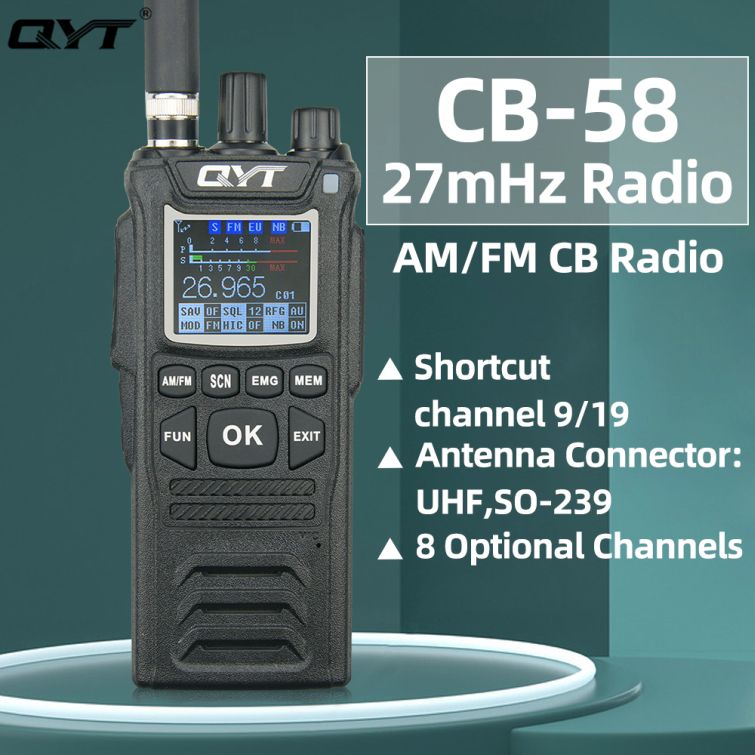

QYT CB-58 AM FM 27MHz CB Radio Handheld Walkie Talkie

$98.00$141.00

+ Free Shipping

QYT 27MHz CB-58 Radio Standard Handheld 40 Channel  AM/FM CB Radio 4W Handheld Walkie Talkie 26.965-27.405MHz

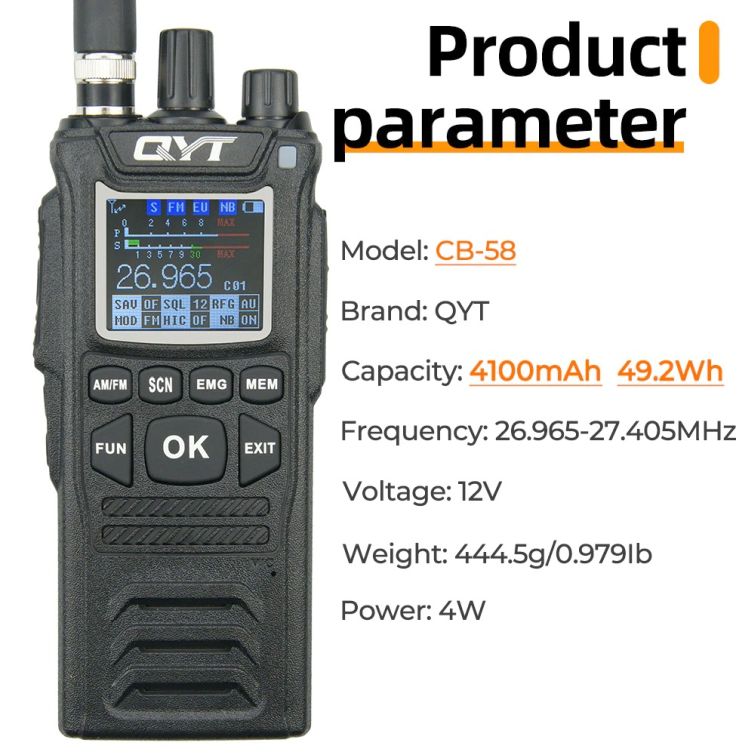

Specification:

Power: 4W

Modulation Mode: AM/FM

Frequency Range: 27MHZ(26.965-27.405MHz)

Frequency Tolerance: ±5.0ppm

Input Voltage: 12V

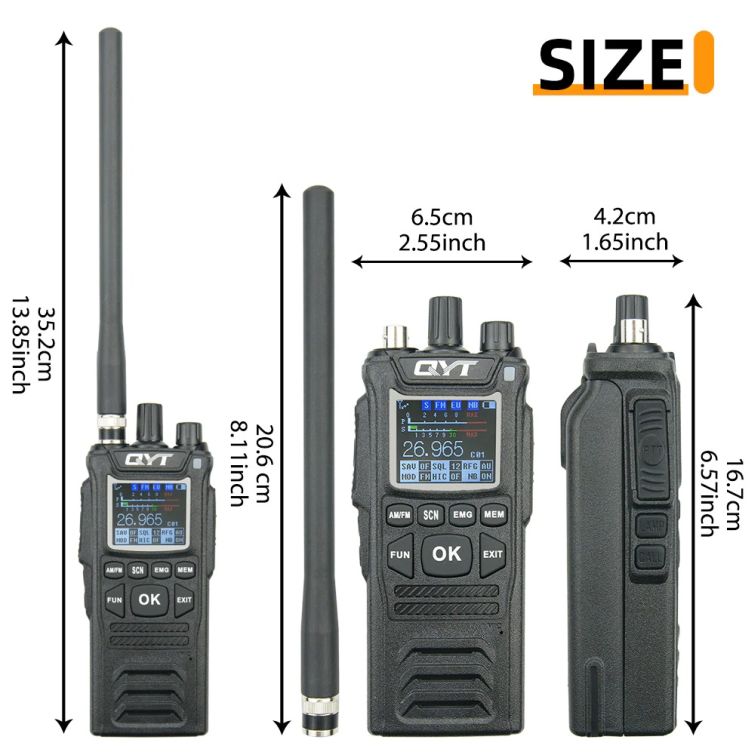

Dimensions(in mm): 165(W) x 67(D) x44(H)

Weight:Approx.444.5g

Frequency Control: PLL Synthesizer

Operating Temperature Range: -20°C TO + 55°C

Transmit: 2A MAX

Current Drain: Receive(Squelched 0.3A)  VOL Max(0.8A)

Antenna Connector: UHF,SO-239

Battery Model: WB58L

Battery Capacity:4100mAh Battery Watt Hours: 49.2Wh

Receiver:

Sensitivity: Less than 1uV for 10dB(S+N)/N

Image rejection: 70dB

Adjacent channel rejection: 60 dB

IF frequency: 1st 10.695MHz      2nd  455KHz

Automatic gain control(AGC): less than 10dB change in audio/output for inputs from 10 to 50000uV

Squelch: less than 1uV

Frequency response: 300-3000Hz

Main Feature:

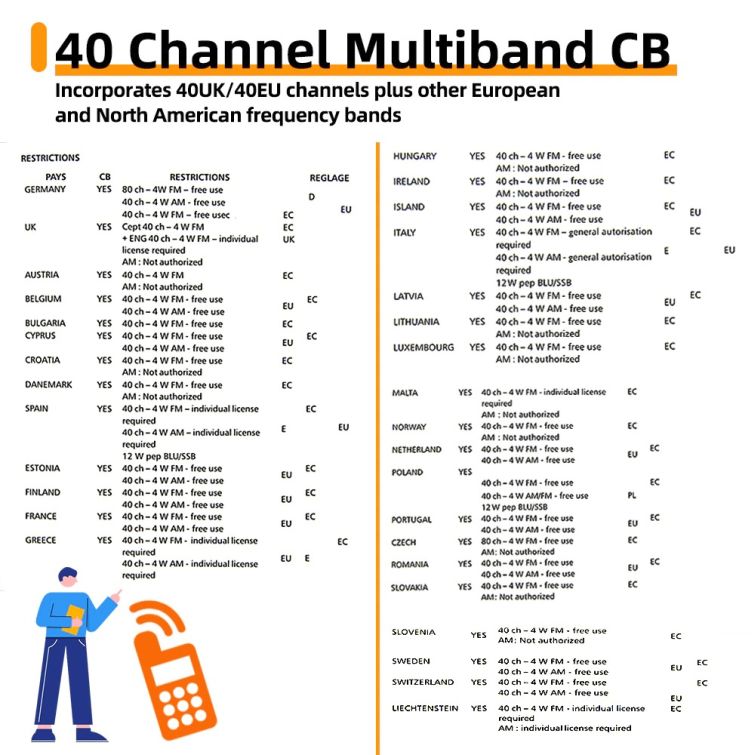

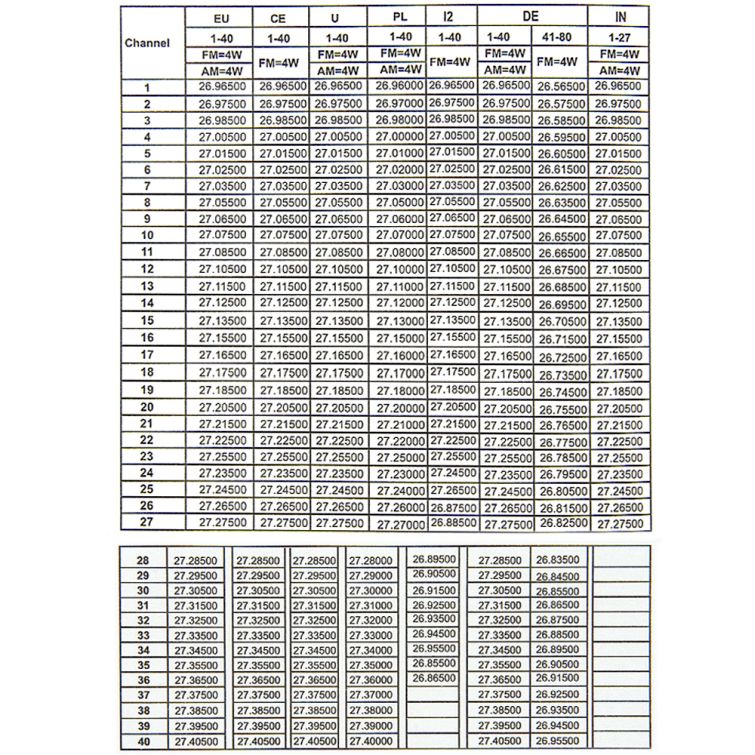

▲40 Channel Multiband CB

(Incorporates 40UK/40EU channels plus other European and North American frequency bands)

▲TFT LCD Display

▲8 Optional Channels

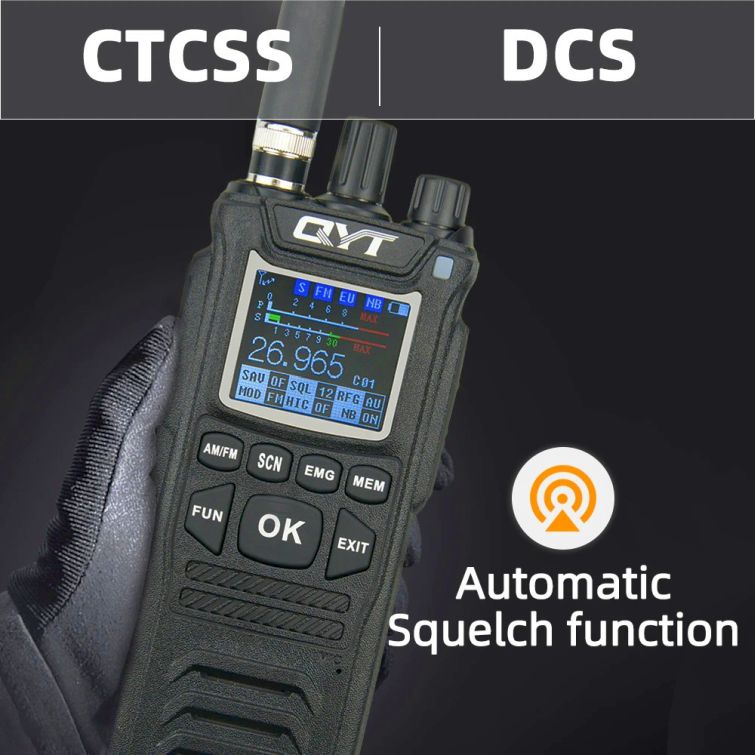

▲CTCSS/DCS

▲DTMF

▲TOT

▲Automatic Squelch function

▲Squelch level adjustable

▲Receive gain control adjustment

▲Editable channel scan

▲Shortcut channel 9/19

▲NB/ANL wave filter

▲Audio high frequency cancellation

▲Keyboard Lock

Transmitter:

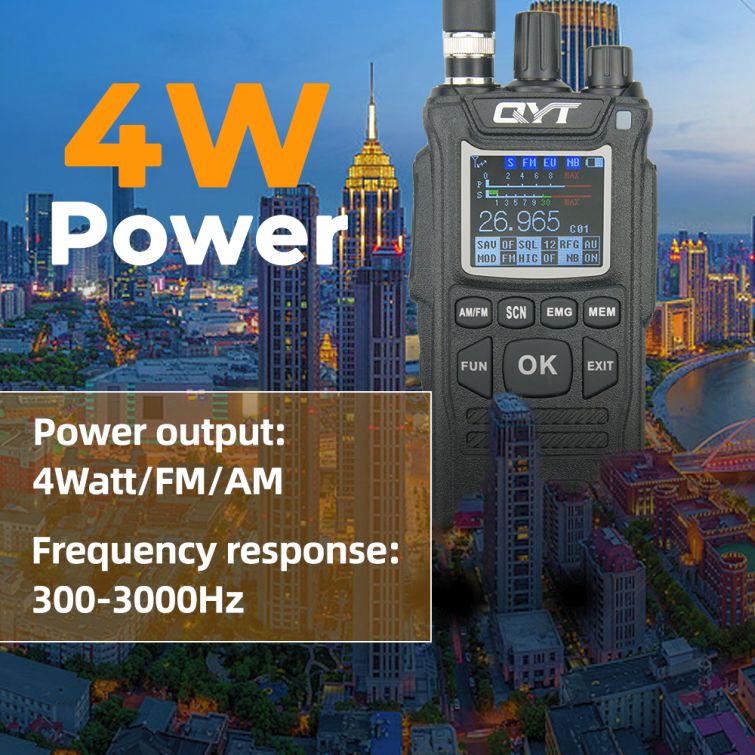

▲Power output: 4Watt/FM/AM

▲Transmission interference: inferior to 4nW(-54dBm)

▲Frequency response: 300-3000Hz

▲Modulated signal distortion: inferior to 5%

▲Output impedance: 50 ohms

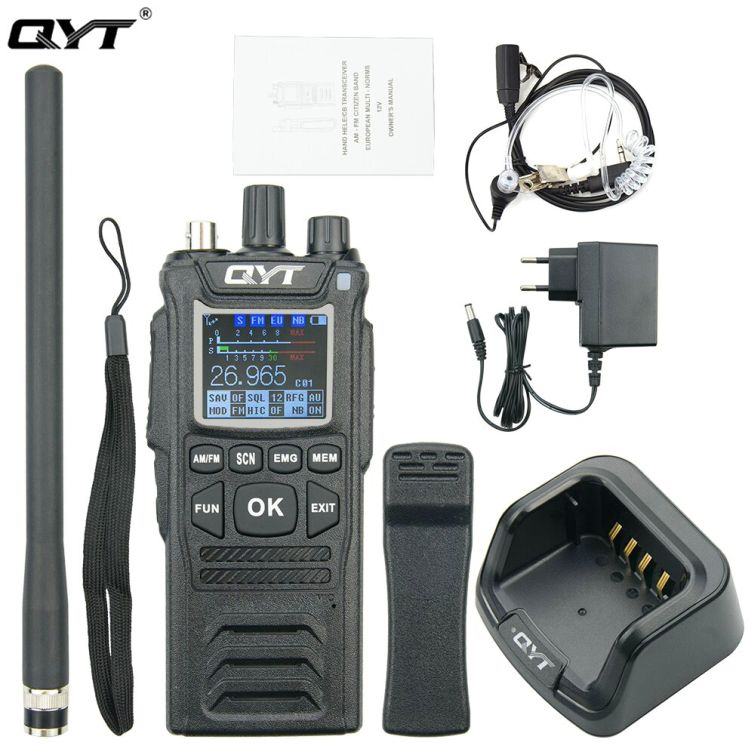

Package contents A

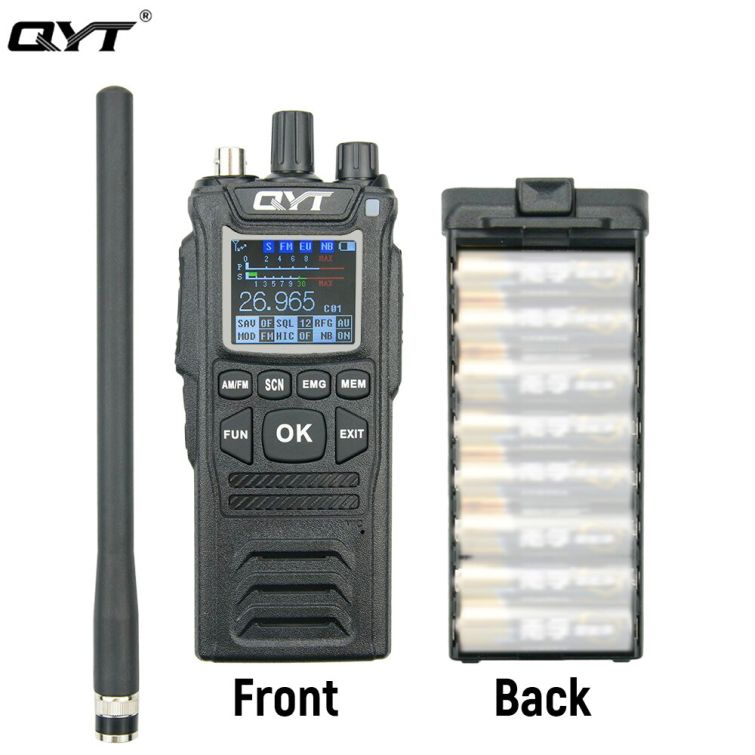

QYT CB-58 27mHz radio

4100mAh Li-ion battery pack – fitted to radio

User Manual in English

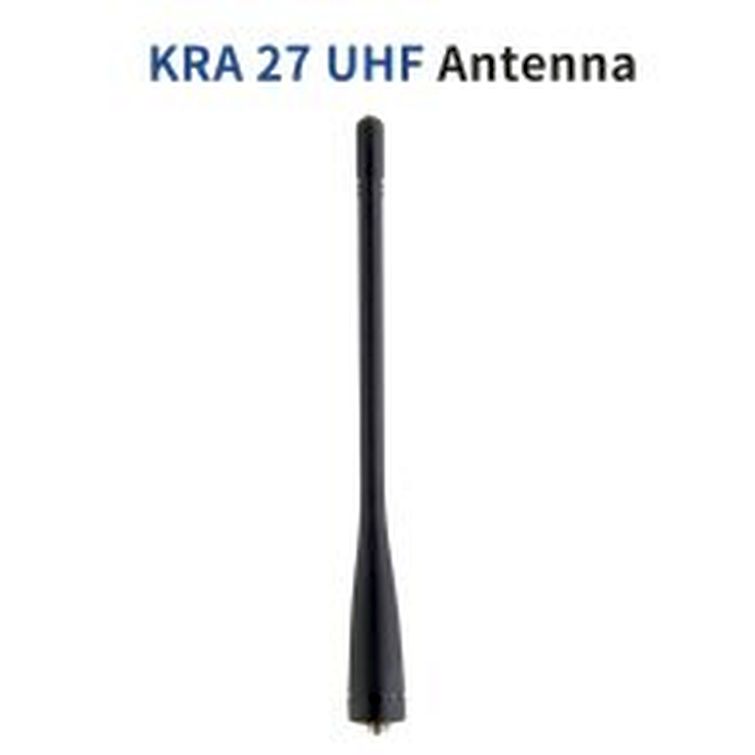

Radio antenna

Charger base

Adapter (for your country)

earphone

Package contents B

QYT CB-58 27mHz radio

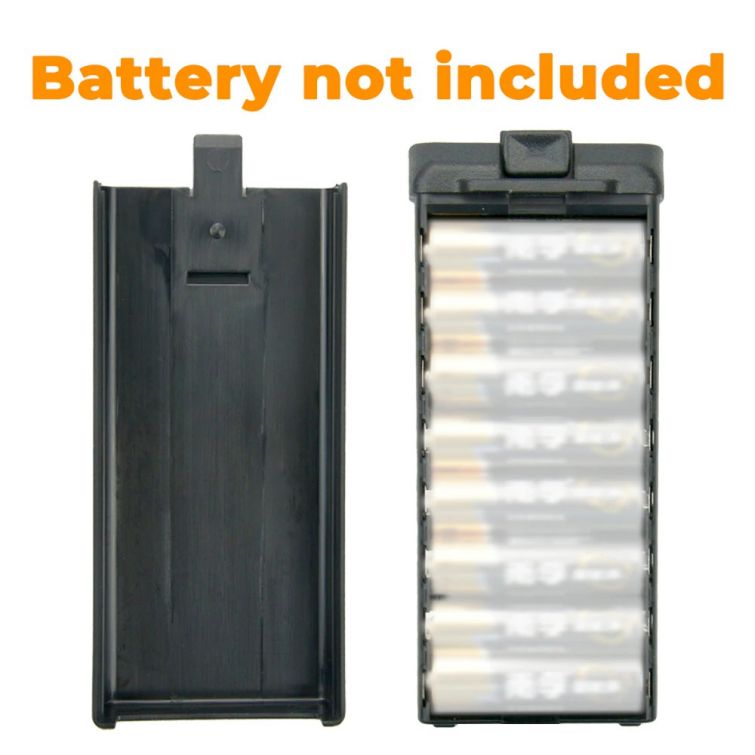

Battery case(Does not include battery)

User Manual in English

Radio antenna

Weight 1 kg
Dimensions 100 × 100 × 100 mm
Package

Pakcage A, Package B, Package C
